Chicago Stainless

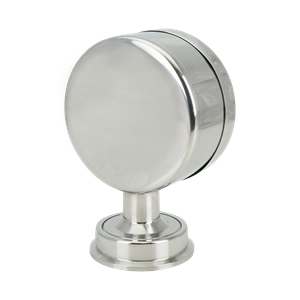

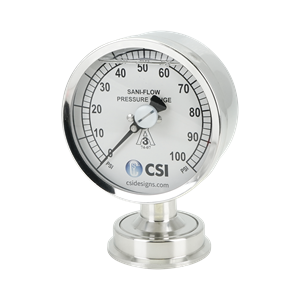

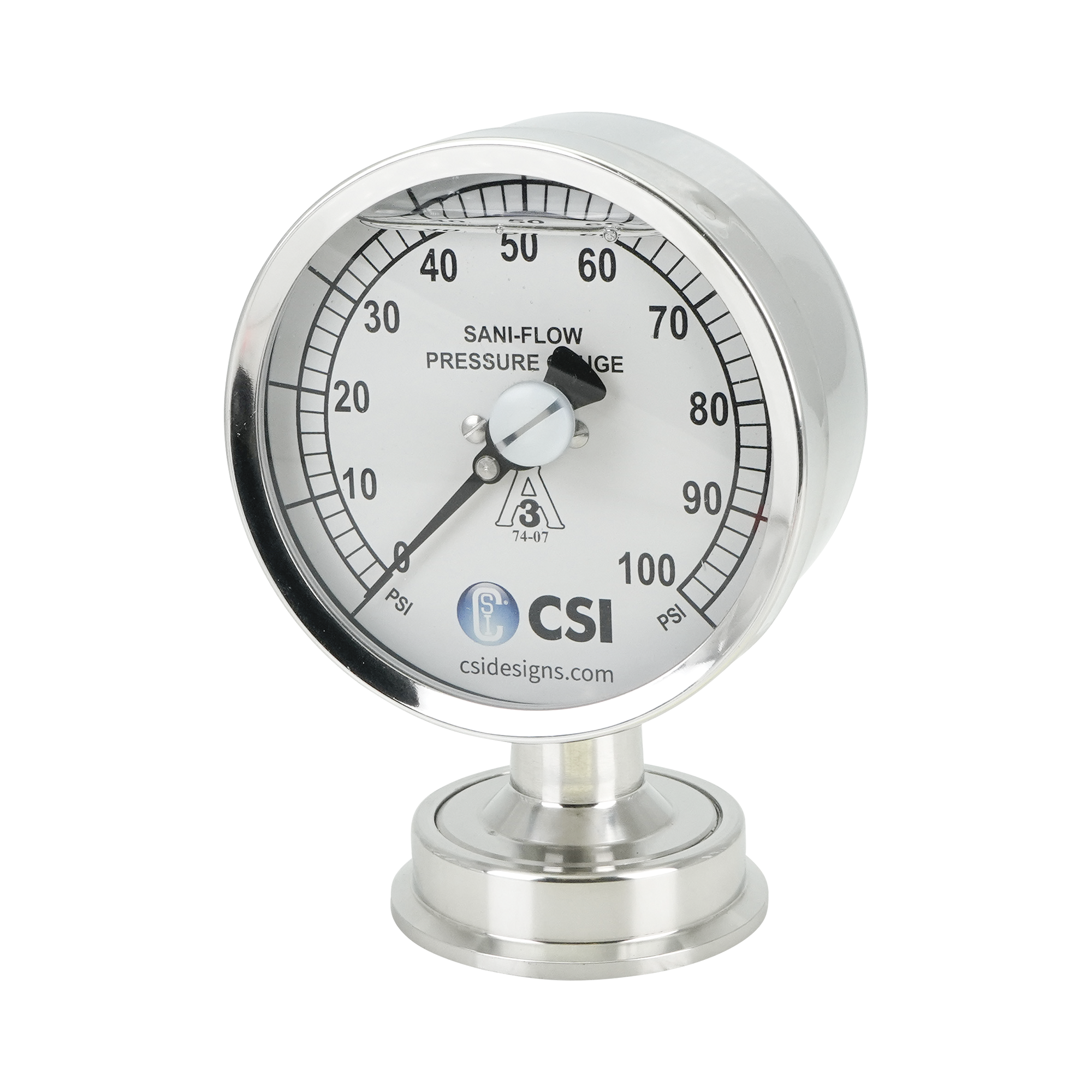

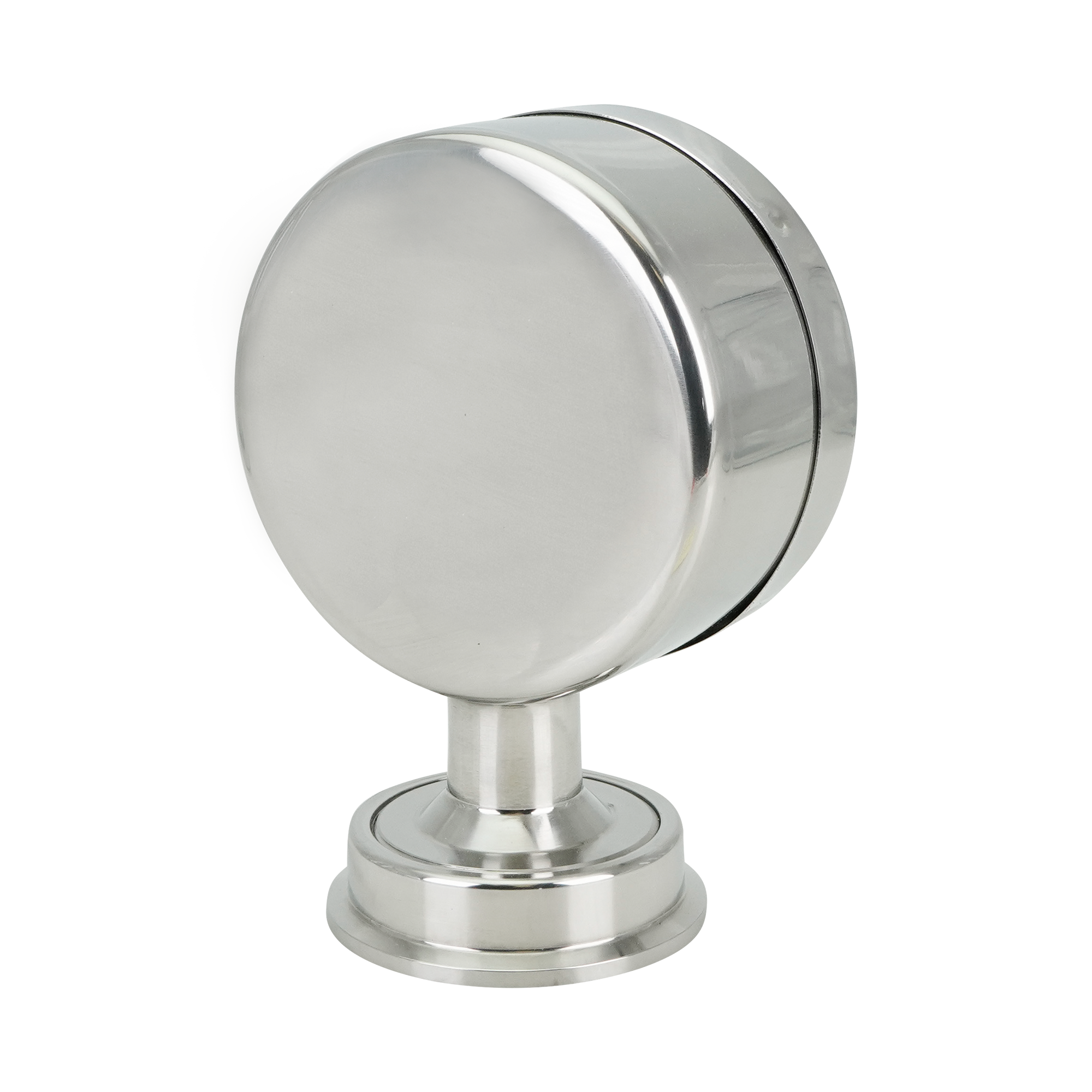

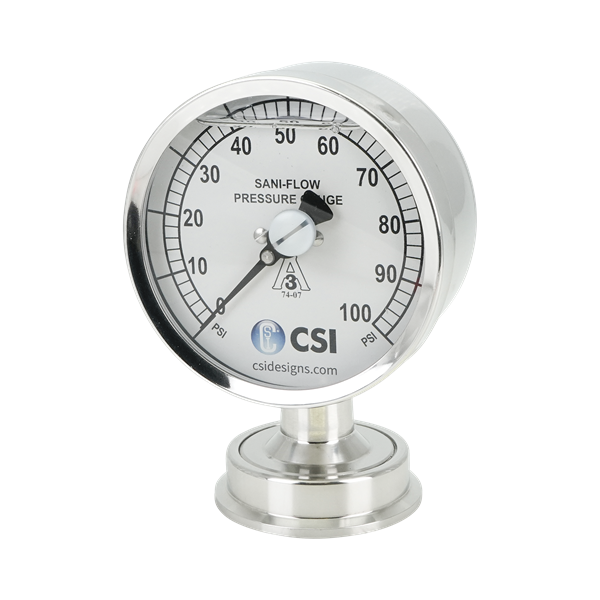

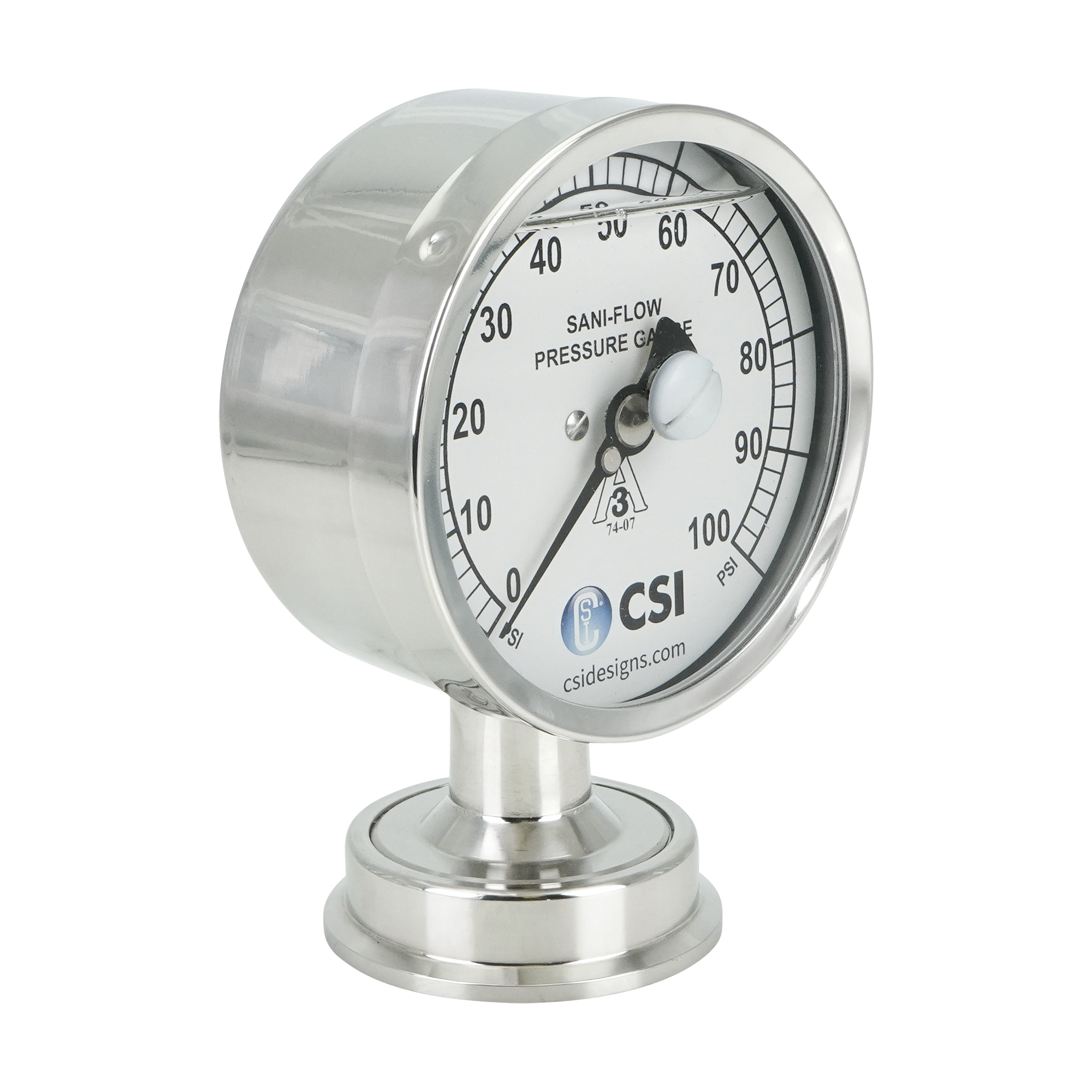

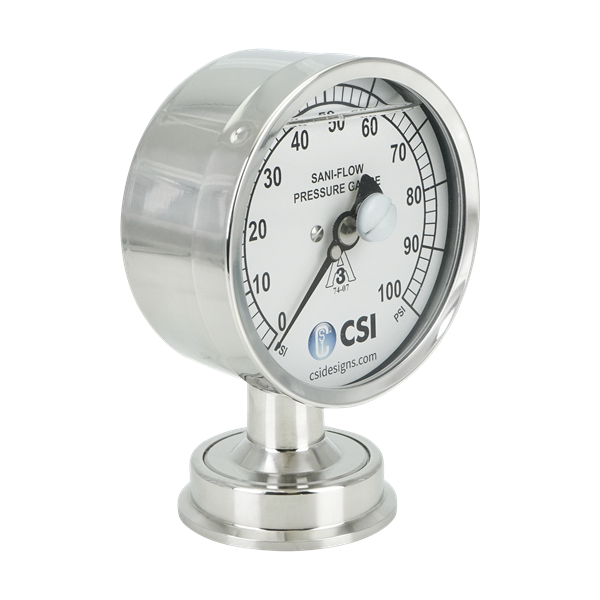

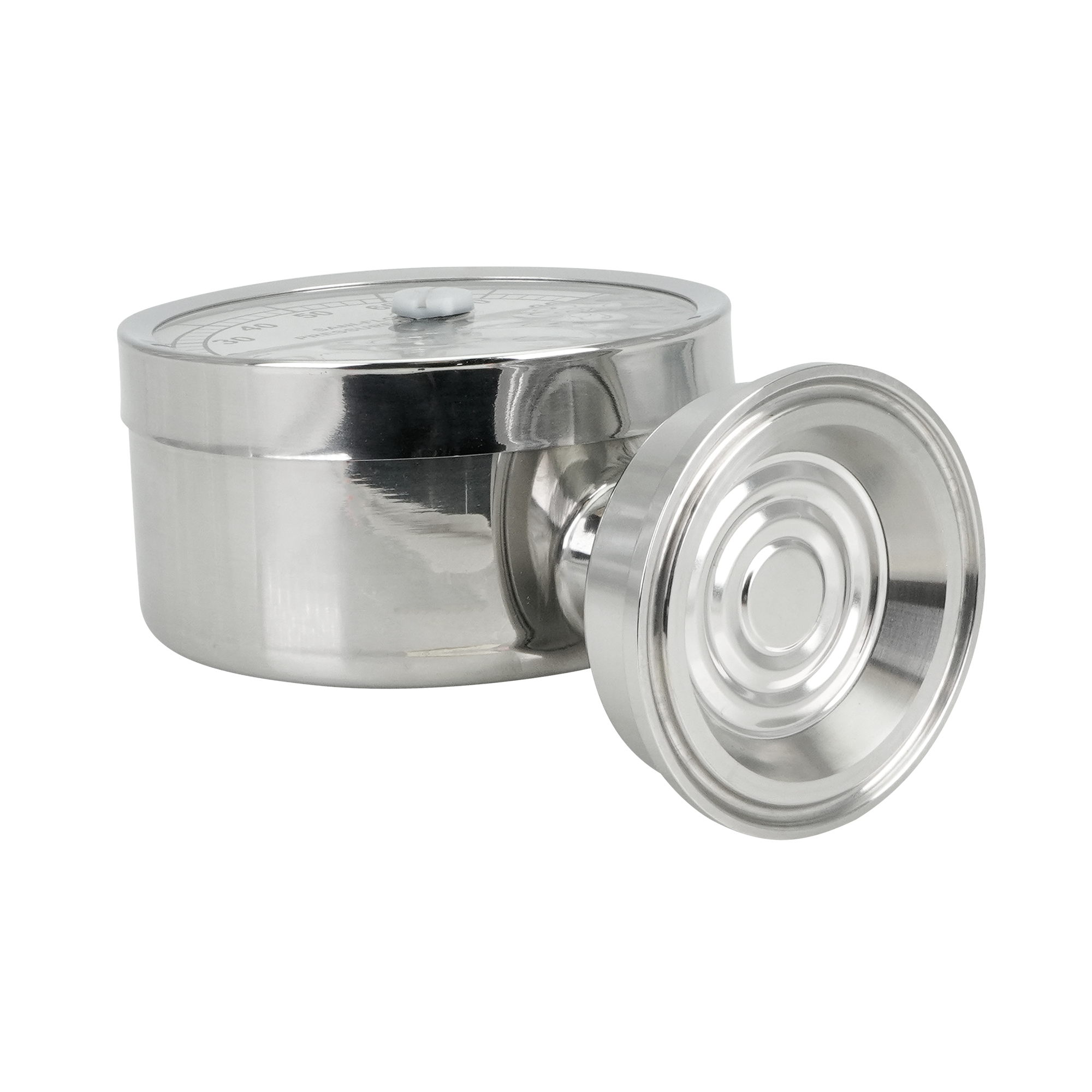

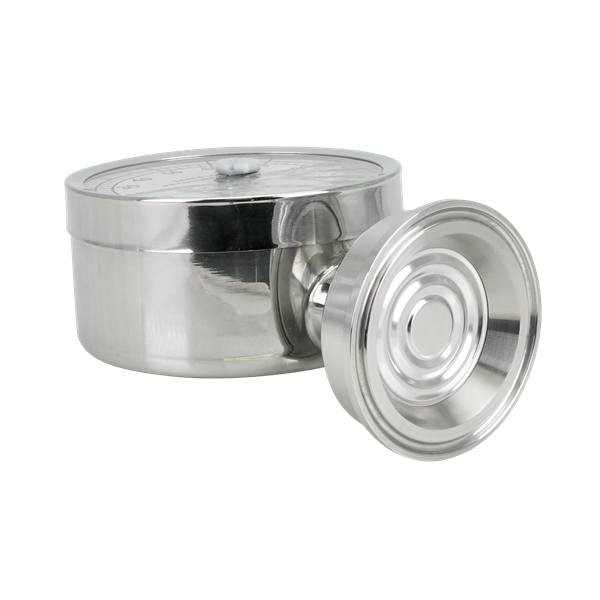

PRESSURE GAUGE 2" TC BOTTOM MOUNT 0-100 PSI 316L DIAPHRAGM 3.5" DIAL POLYCARBONATE LENS GLYCERIN FILLED 304L CASE AND LENS CSI LOGO CHICAGO STAINLESS
3S-D-2U-GF-BT-SS-CSI
- MPN:
- 3S-D-2U-GF-BT-SS-CSI
Net Price: $444.00 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Chicago Stainless |
|---|---|
| Product Type | Instrumentation |
| Product Subtype | Pressure Gauges |
| Series | Sani-Flow Series |
| Material | 316L Stainless Steel |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | 3-A |
| Range | 0 to 100 PSI |
| Scale | PSI |
| Dial Size | 3.5" Dial |
| Orientation / Mount | Bottom |
| Weight | 0.00000 |
- Manufacturer:
- Chicago Stainless Equipment
- MPN:
- 3S-D-2U-GF-BT-SS-CSI
Dimensional Data
Sani-Flow Pressure Gauge Tri-Clamp Bottom Mount
| Gauge Size | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 3½ | 88.90 | 1.88 | 47.75 | 3.69 | 93.73 | 0.63 | 16.00 | 5.38 | 136.65 |
| 5 | 127.00 | 2.31 | 58.67 | 5.06 | 128.52 | 0.63 | 16.00 | 6.75 | 171.45 |
Chicago Stainless Sani-Flow Pressure Gauge Data Sheet
