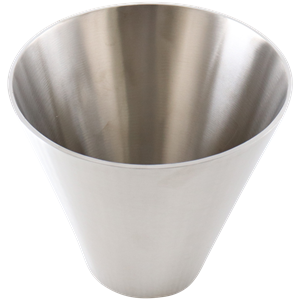

CONCENTRIC REDUCER 6X3 BW 304 5.5" OAL 32RA ID 32RA OD

L31-6X3-304-7

Product Type Fittings
Product Subtype Concentric Reducers
Size 6"
Connection Type Weld
Material 304 Stainless Steel
Finish 32Ra ID / 32Ra OD
Specification / Standard Sanitary Fittings
Size 2 3"
Connection Type 2 Weld
Weight 3.15000

L31 Dimensional Diagram

Concentric Butt Weld Reducers, Short | L31-Size-Material-Finish
Nominal SizeA
(in)(mm)(in)(mm)
1 x ½25.40 x 12.702.0050.80
1 x ¾25.40 x 19.051.0025.40
1½ x ½38.10 x 12.704.00101.60
1½ x ¾38.10 x 19.053.0076.20
1½ x 138.10 x 25.402.0050.80
2 x 150.80 x 25.404.00101.60
2 x 1½50.80 x 38.102.0050.80
2½ x 1½63.50 x 25.404.75120.65
2½ x 263.50 x 50.802.0050.80
3 x 1½76.20 x 38.106.00152.40
3 x 276.20 x 50.804.00101.60
3 x 2½76.20 x 63.502.0050.80
4 x 1½101.60 x 38.1010.00254.00
4 x 2101.60 x 50.808.00203.20
 4 x 2½101.60 x 63.506.00152.40
4 x 3101.60 x 76.204.00101.60
6 x 3152.40 x 76.205.50139.70
6 x 4152.40 x 101.605.50139.70
