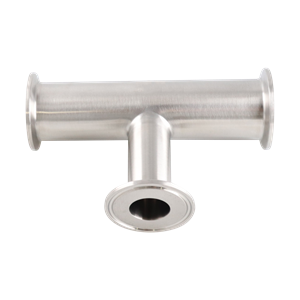

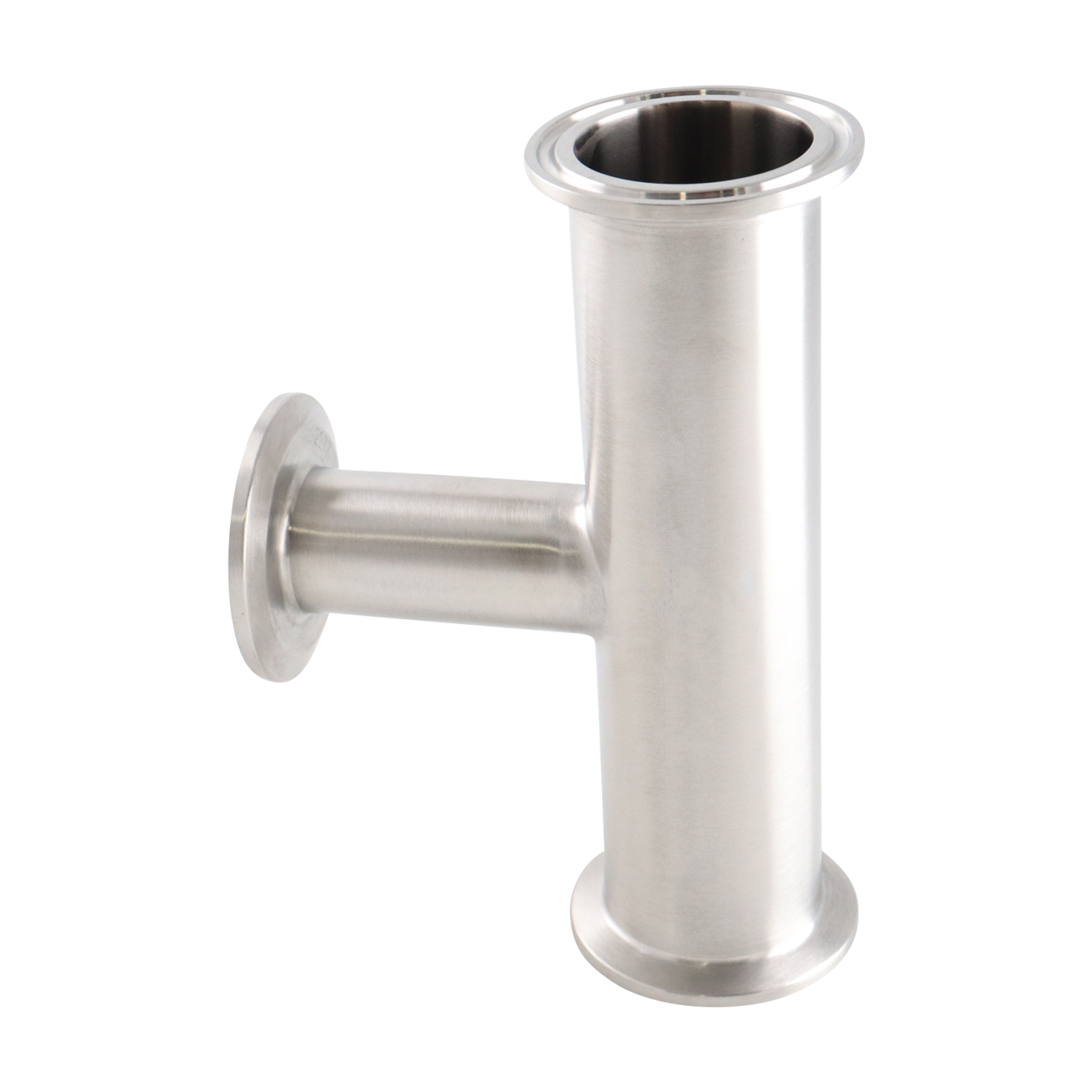

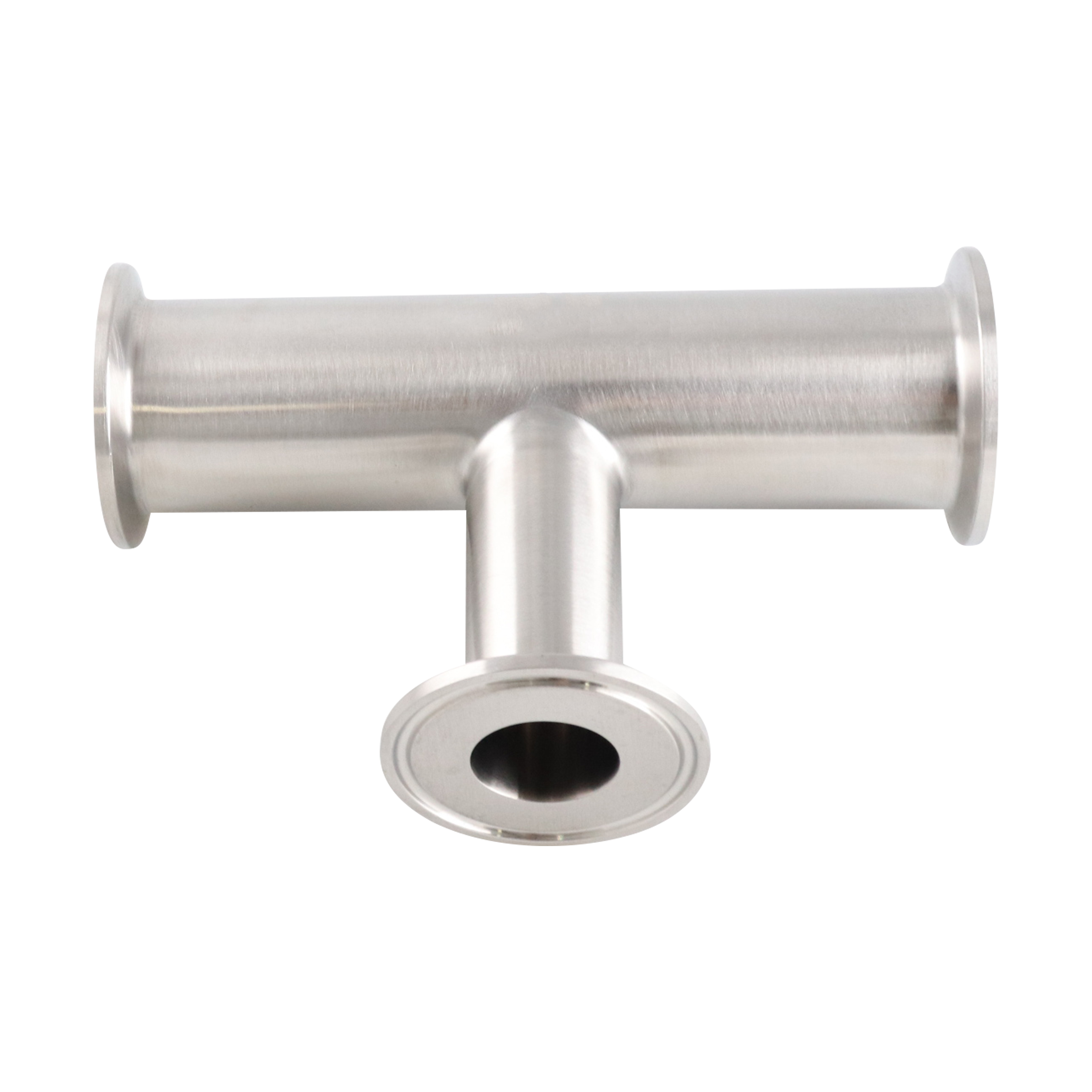

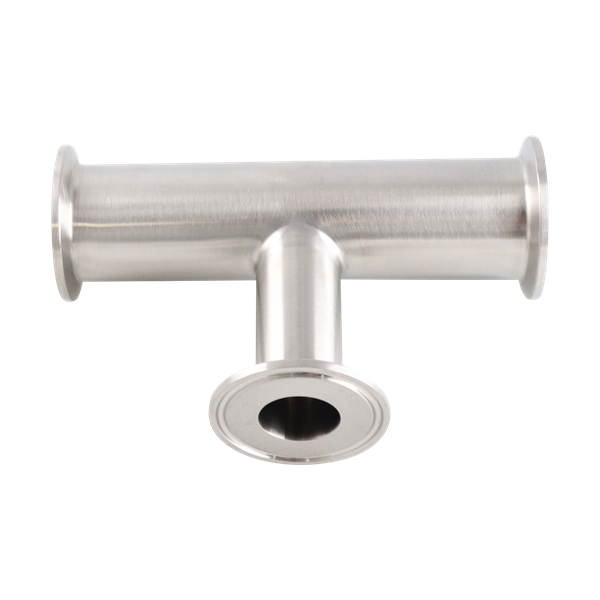

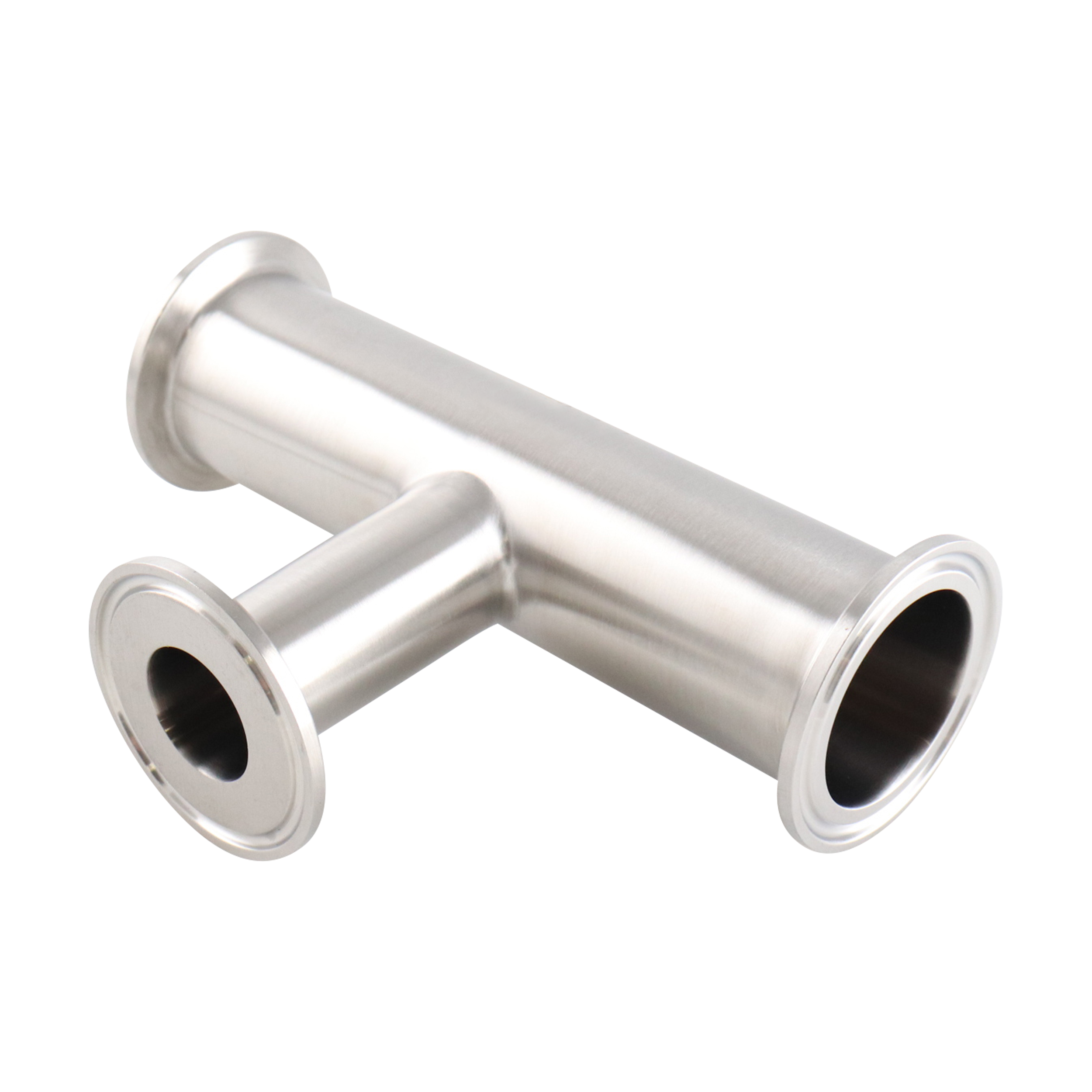

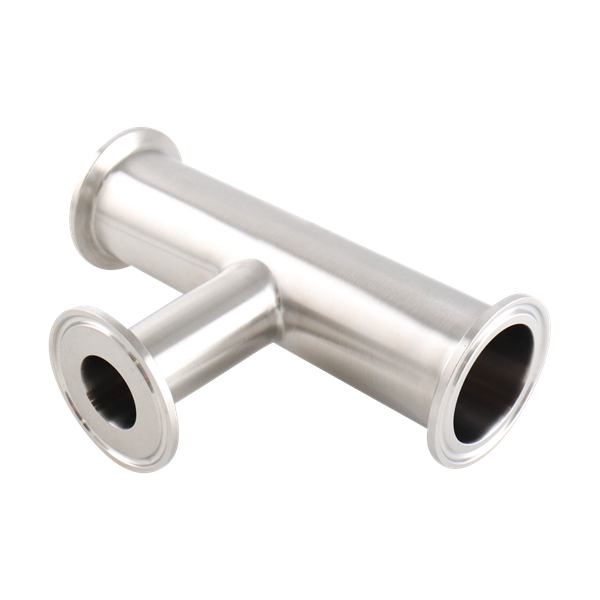

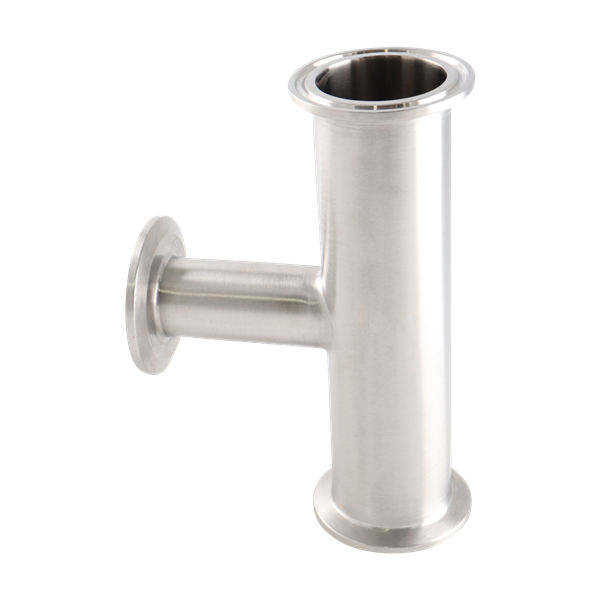

REDUCING TEE 1.5X1 TC 316L 20RA ID 32RA OD SF1 BPE
B7RMP-1.5X1-316L-PL
This item is non-returnable.
$87.88 / EA
- Availability:
-
Springfield, MO 7 EA Durham, NC 20 EA Modesto, CA 0 EA Grand Prairie, TX 14 EA
Spare Parts
Suggested products
Attributes
| Product Type | Fittings |
|---|
| Product Subtype | Tees & Crosses |
|---|
| Size | 1.5" |
|---|
| Connection Type | Tri-Clamp |
|---|
| Material | 316L Stainless Steel |
|---|
| Finish | 20Ra ID / 32Ra OD |
|---|
| Specification / Standard | BPE Mechanical Polished |
|---|
| Size 2 | 1" |
|---|
| Connection Type 2 | Tri-Clamp |
|---|
| Weight | 0.85000 |
|---|
Dimensional Data
Tri-Clamp Reducing Tee | B7RMP-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| â…œ x ¼ | 9.53 x 6.35 | 2.250 | 57.15 | 2.250 | 57.15 |
| ¾ x ½ | 19.05 x 12.70 | 2.500 | 63.50 | 2.500 | 63.50 |
| 1 x ½ | 25.40 x 12.70 | 2.625 | 66.68 | 2.625 | 66.68 |
| 1 x ¾ | 25.40 x 19.05 | 2.625 | 66.68 | 2.625 | 66.68 |
| 1½ x ½ | 38.10 x 12.70 | 2.875 | 73.03 | 2.875 | 73.03 |
| 1½ x ¾ | 38.10 x 19.05 | 2.875 | 73.03 | 2.875 | 73.03 |
| 1½ x 1 | 38.10 x 25.40 | 2.875 | 73.03 | 2.875 | 73.03 |
| 2 x ½ | 50.80 x 12.70 | 3.375 | 85.73 | 3.125 | 79.38 |
| 2 x ¾ | 50.80 x 19.05 | 3.375 | 85.73 | 3.125 | 79.38 |
| 2 x 1 | 50.80 x 25.40 | 3.375 | 85.73 | 3.125 | 79.38 |
| 2 x 1½ | 50.80 x 38.10 | 3.375 | 85.73 | 3.125 | 79.38 |
| 2½ x ½ | 63.50 x 12.70 | 3.625 | 92.08 | 3.375 | 85.73 |
| 2½ x ¾ | 63.50 x 19.05 | 3.625 | 92.08 | 3.375 | 85.73 |
| 2½ x 1 | 63.50 x 25.40 | 3.625 | 92.08 | 3.375 | 85.73 |
| 2½ x 1½ | 63.50 x 38.10 | 3.625 | 92.08 | 3.375 | 85.73 |
| 2½ x 2 | 63.50 x 50.80 | 3.625 | 92.08 | 3.375 | 85.73 |
| 3 x ½ | 76.20 x 12.70 | 3.875 | 98.43 | 3.625 | 92.08 |
| 3 x ¾ | 76.20 x 19.05 | 3.875 | 98.43 | 3.625 | 92.08 |
| 3 x 1 | 76.20 x 25.40 | 3.875 | 98.43 | 3.625 | 92.08 |
| 3 x 1½ | 76.20 x 38.10 | 3.875 | 98.43 | 3.625 | 92.08 |
| 3 x 2 | 76.20 x 50.80 | 3.875 | 98.43 | 3.625 | 92.08 |
| 3 x 2½ | 76.20 x 63.50 | 3.875 | 98.43 | 3.625 | 92.08 |
| 4 x ½ | 101.60 x 12.70 | 4.750 | 120.65 | 4.125 | 104.78 |
| 4 x ¾ | 101.60 x 19.05 | 4.750 | 120.65 | 4.125 | 104.78 |
| 4 x 1 | 101.60 x 25.40 | 4.750 | 120.65 | 4.125 | 104.78 |
| 4 x 1½ | 101.60 x 38.10 | 4.750 | 120.65 | 4.125 | 104.78 |
| 4 x 2 | 101.60 x 50.80 | 4.750 | 120.65 | 4.375 | 111.13 |
| 4 x 2½ | 101.60 x 63.50 | 4.750 | 120.65 | 4.375 | 111.13 |
| 4 x 3 | 101.60 x 76.20 | 4.750 | 120.65 | 4.375 | 111.13 |
| 6 x 3 | 152.40 x 76.20 | 7.125 | 180.98 | 5.375 | 136.53 |
| 6 x 4 | 152.40 x 101.60 | 7.125 | 180.98 | 5.750 | 146.05 |
| 2022 BPE DT-4.1.2-8 | 2009 BPE DT-19 | |||||
