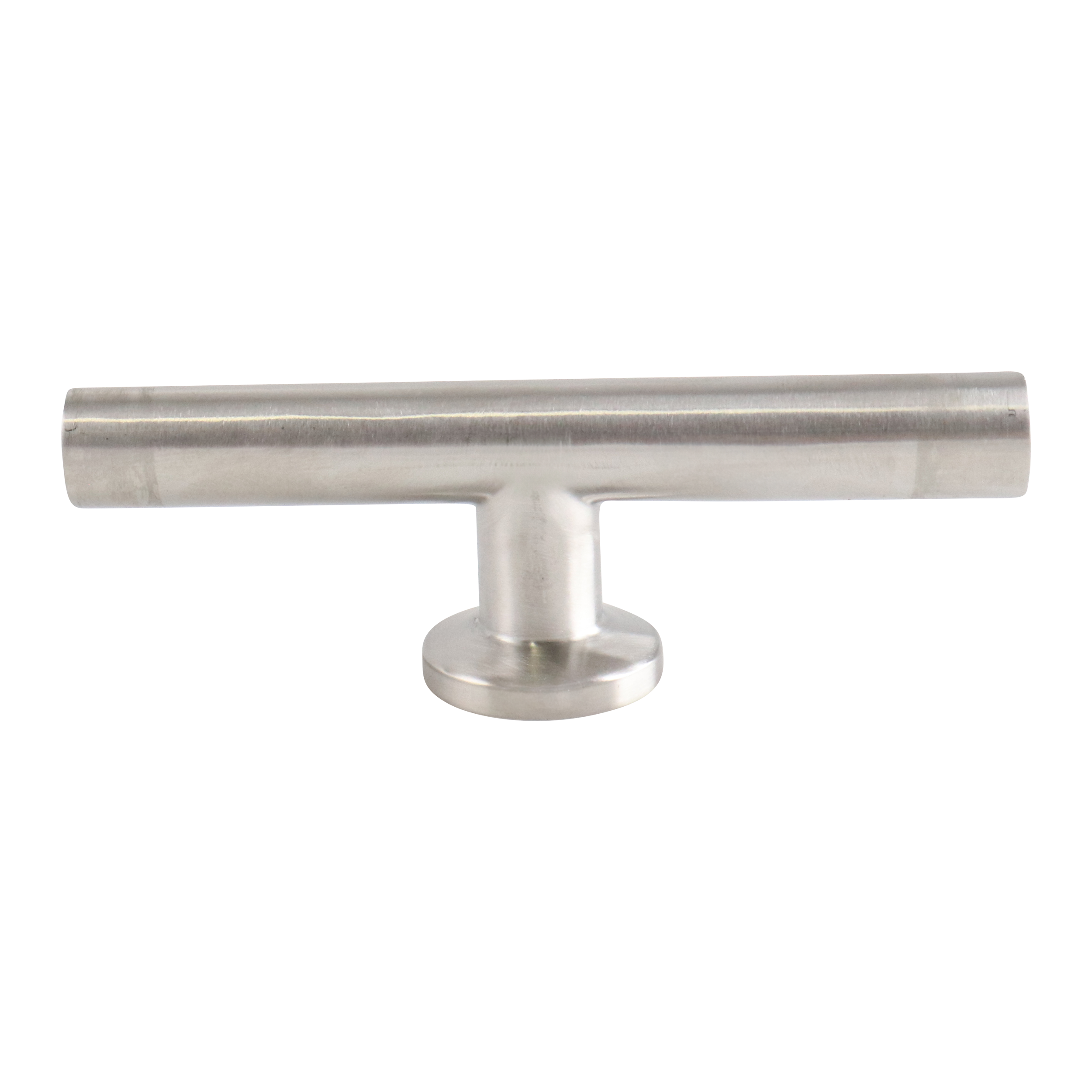

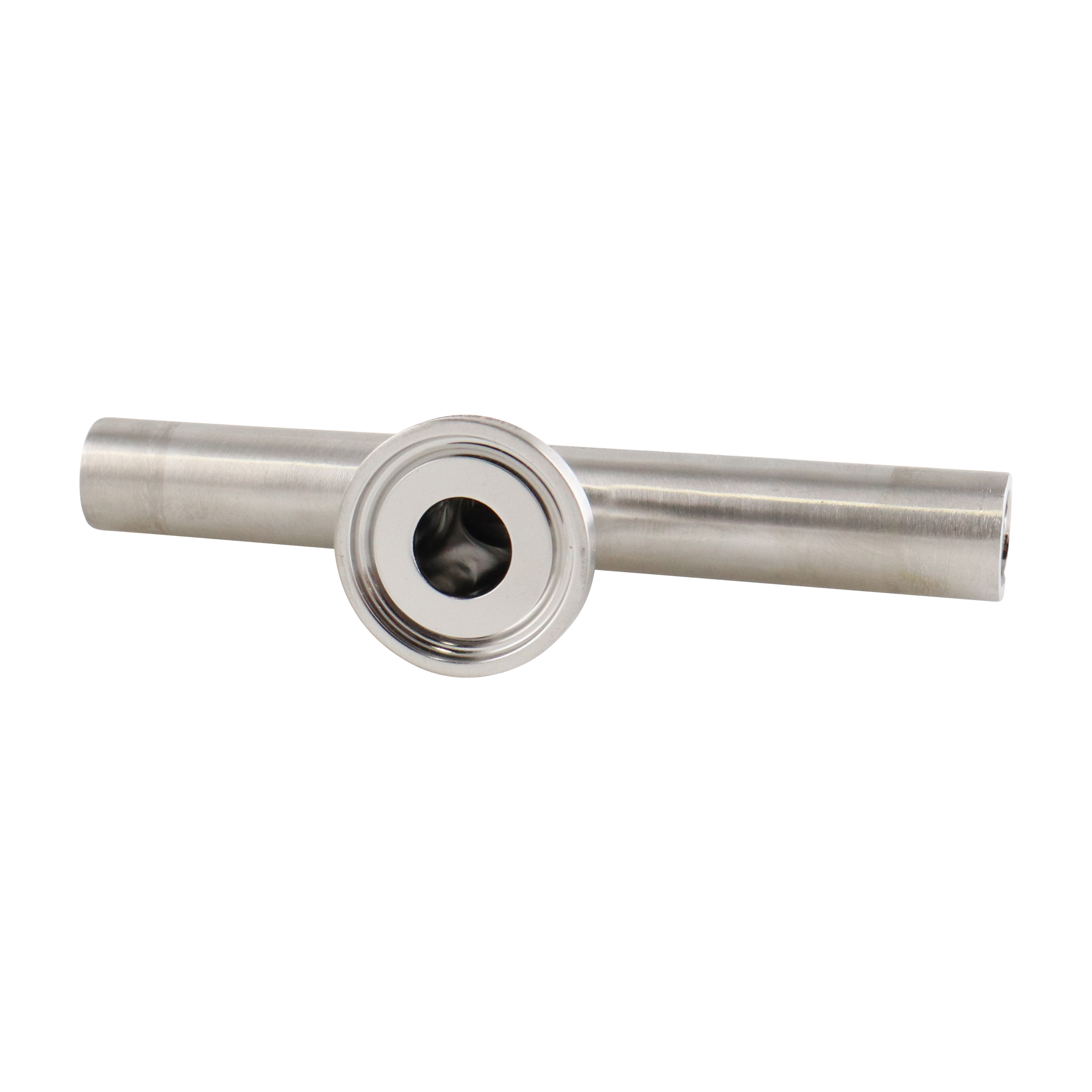

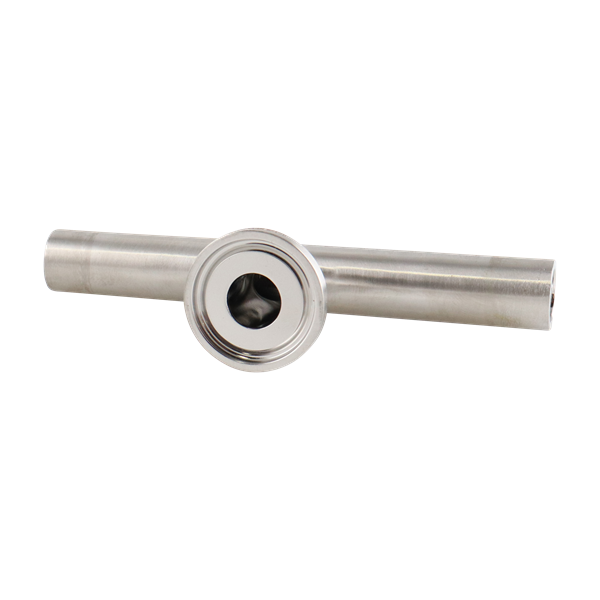

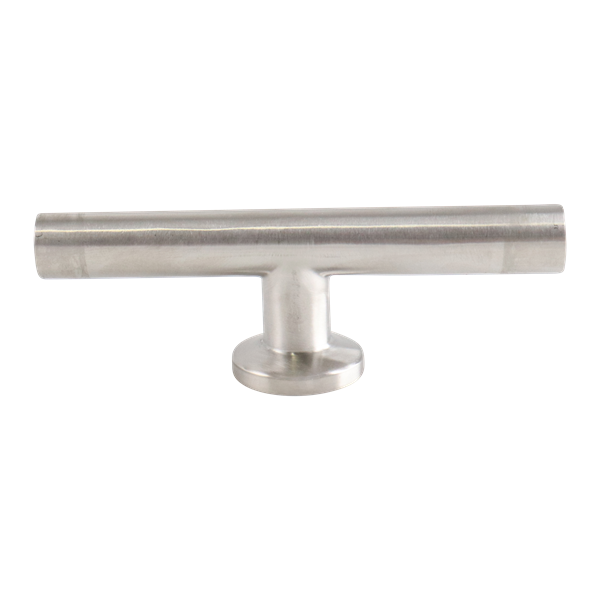

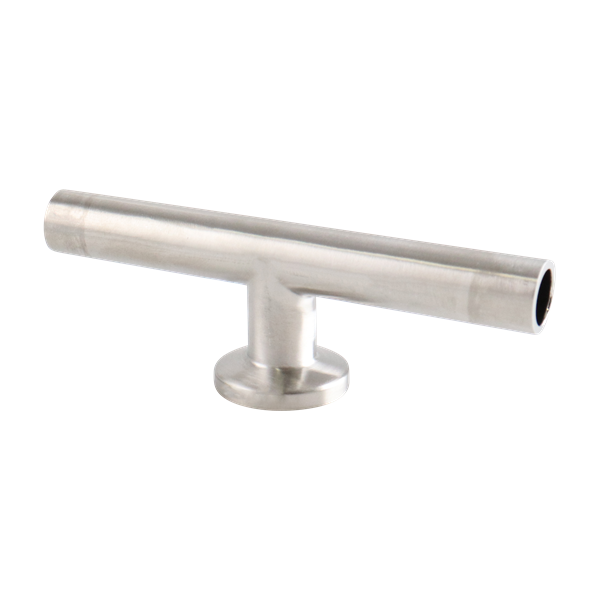

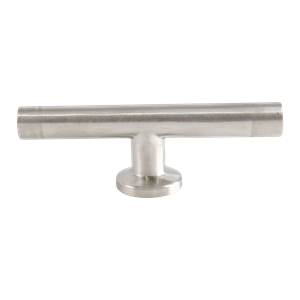

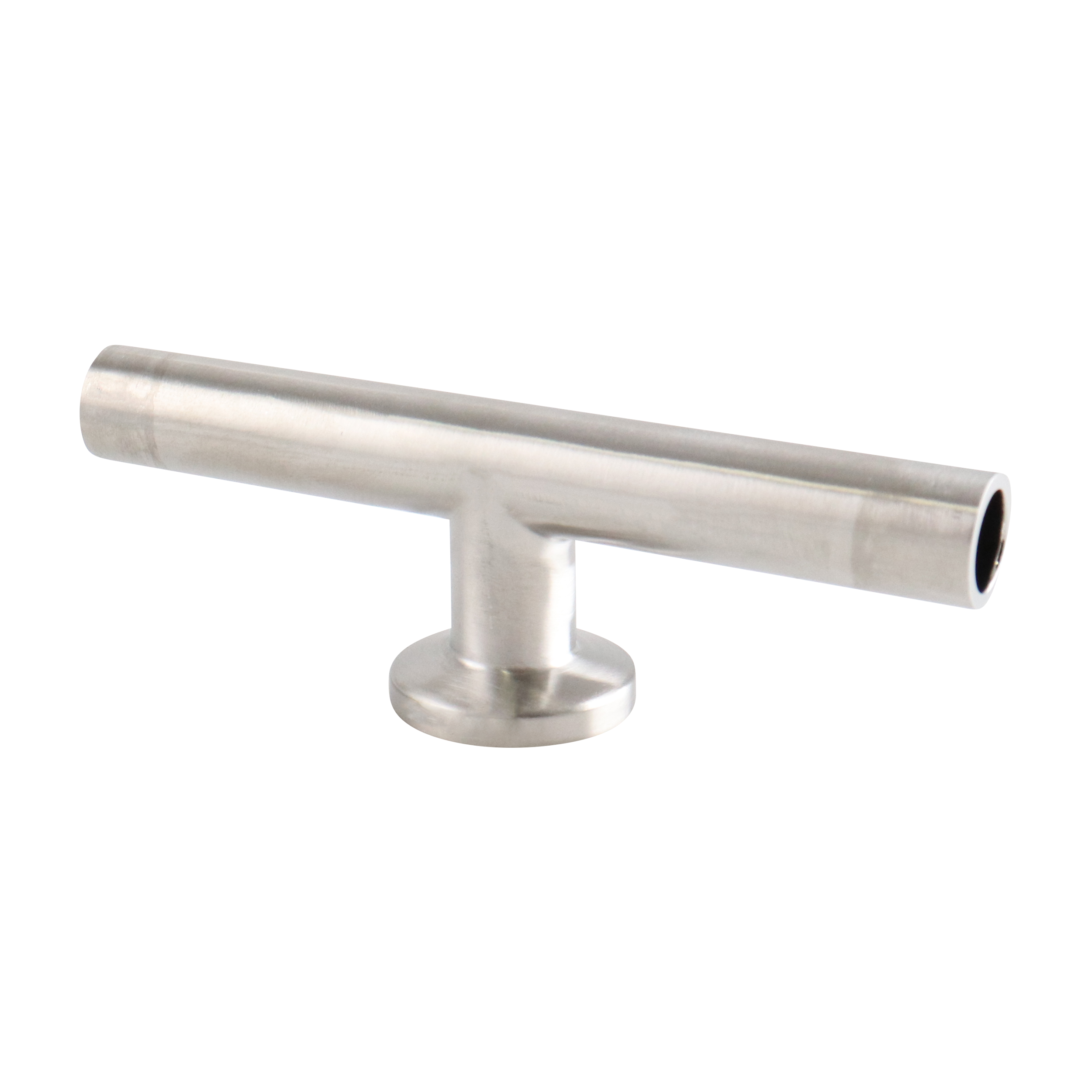

TEE 0.5" BW X SHORT TC BRANCH 316L 15RA EP ID 32RA OD SF4 BPE
B7WWMS-0.5-316L-PM
$49.21 / EA
- Availability:
-
Springfield, MO 39 EA Durham, NC 202 EA Modesto, CA 0 EA Grand Prairie, TX 0 EA
Spare Parts
Suggested products
Attributes
| Product Type | Fittings |
|---|
| Product Subtype | Tees & Crosses |
|---|
| Size | 0.5" |
|---|
| Connection Type | Weld |
|---|
| Material | 316L Stainless Steel |
|---|
| Finish | 15Ra EP ID / 32Ra OD |
|---|
| Specification / Standard | BPE Electropolished |
|---|
| Size 2 | 0.5" |
|---|
| Connection Type 2 | Tri-Clamp |
|---|
| Weight | 0.54000 |
|---|
Dimensional Data
Short Outlet Tri-Clamp Tee | B7WWMS-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 1.750 | 44.45 | 1.000 | 25.40 |
| ⅜ | 9.53 | 1.750 | 44.45 | 1.000 | 25.40 |
| ½ | 12.70 | 1.875 | 47.63 | 1.000 | 25.40 |
| ¾ | 19.05 | 2.000 | 50.80 | 1.125 | 28.58 |
| 1 | 25.40 | 2.125 | 53.98 | 1.125 | 28.58 |
| 1½ | 38.10 | 2.375 | 60.33 | 1.375 | 34.93 |
| 2 | 50.80 | 2.875 | 73.03 | 1.625 | 41.28 |
| 2½ | 63.50 | 3.125 | 79.38 | 1.875 | 47.63 |
| 3 | 76.20 | 3.375 | 85.73 | 2.125 | 53.98 |
| 4 | 101.60 | 4.125 | 104.78 | 2.750 | 69.85 |
| 6 | 152.40 | 5.625 | 142.88 | 4.625 | 117.48 |
| 2022 BPE DT-4.1.2-2 | 2009 BPE DT-15 | |||||
