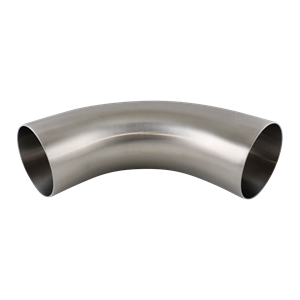

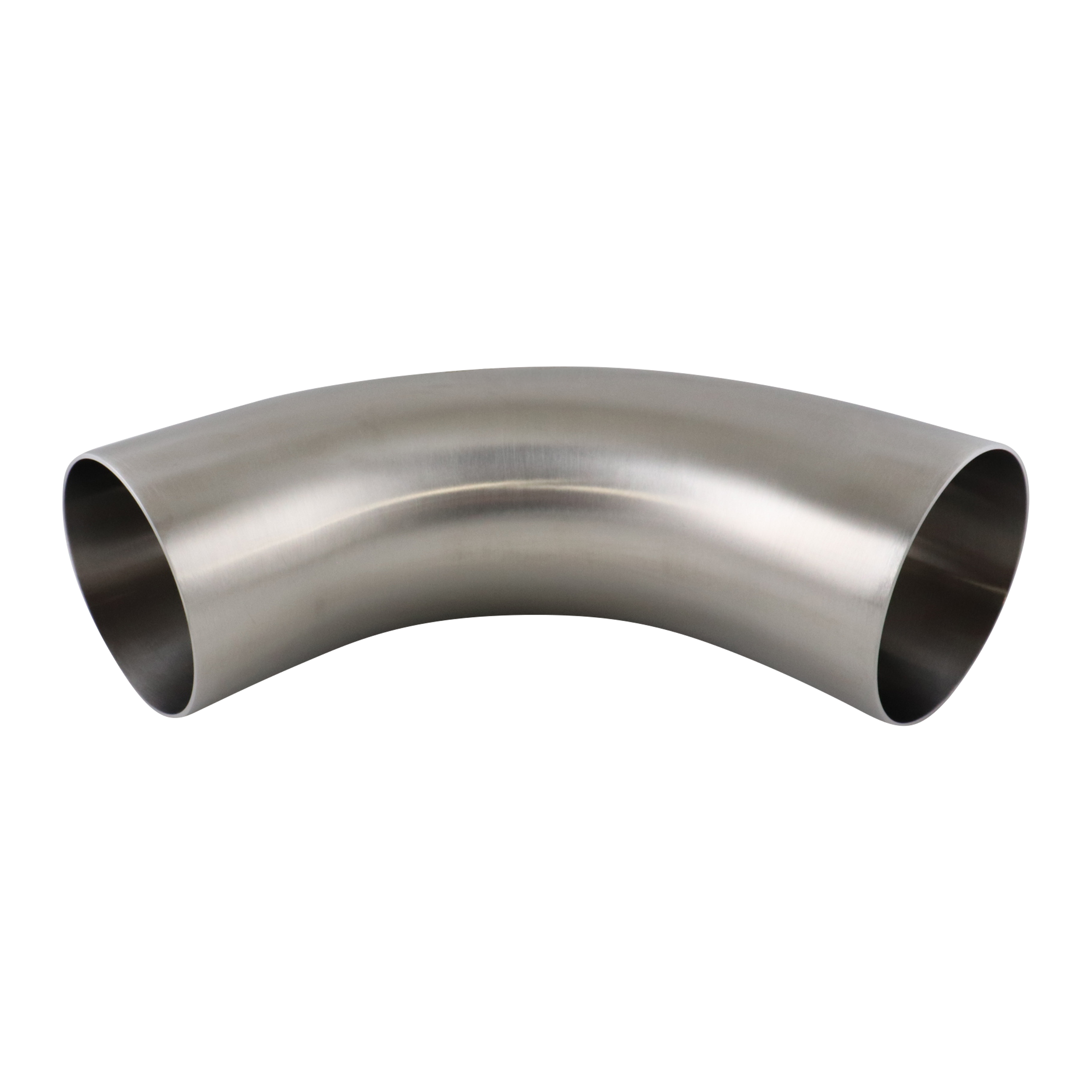

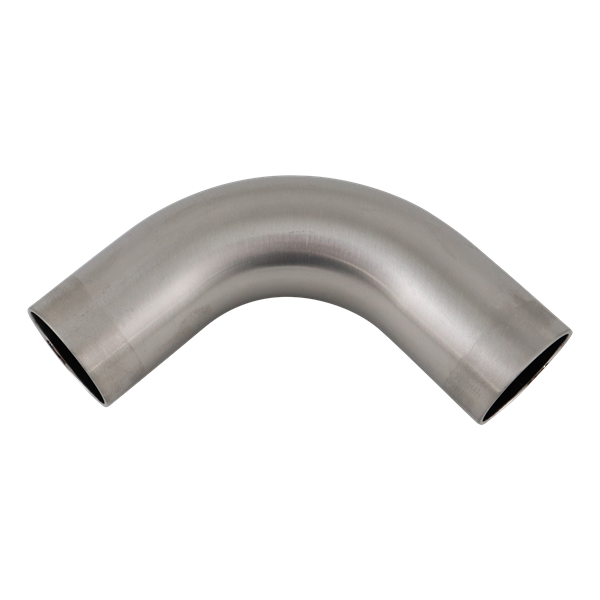

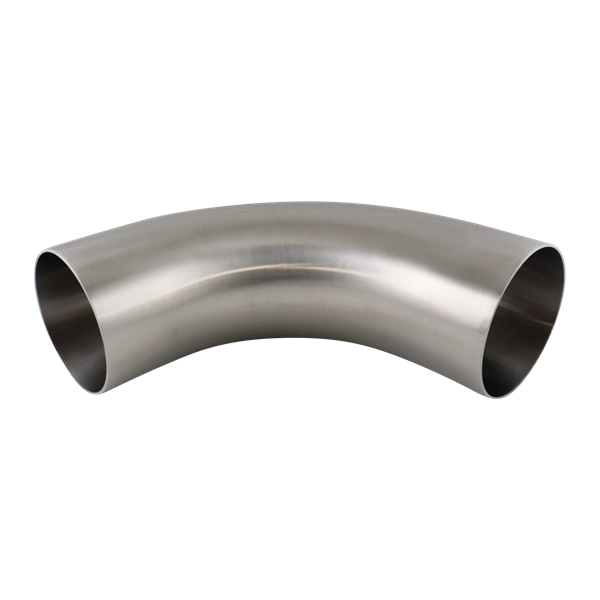

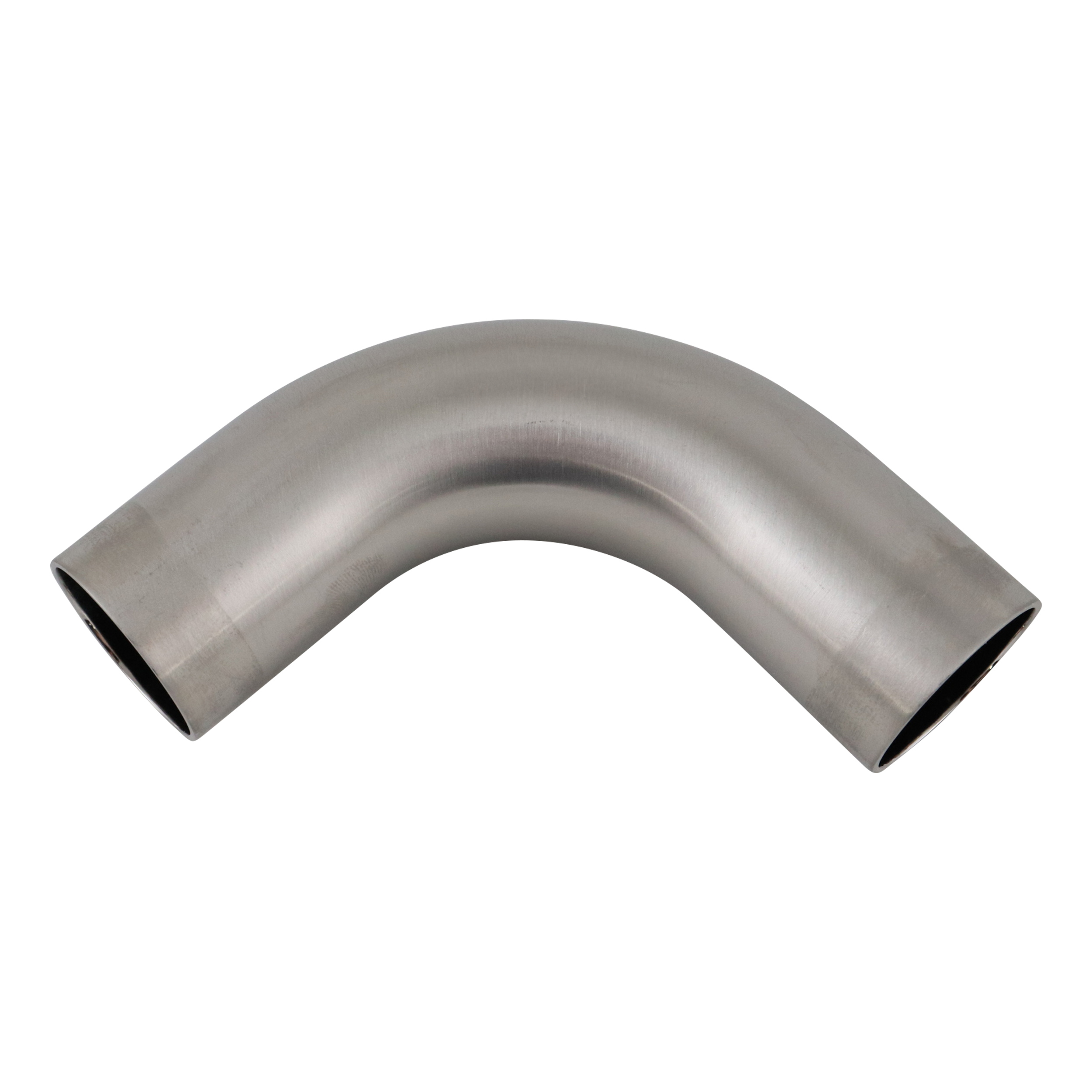

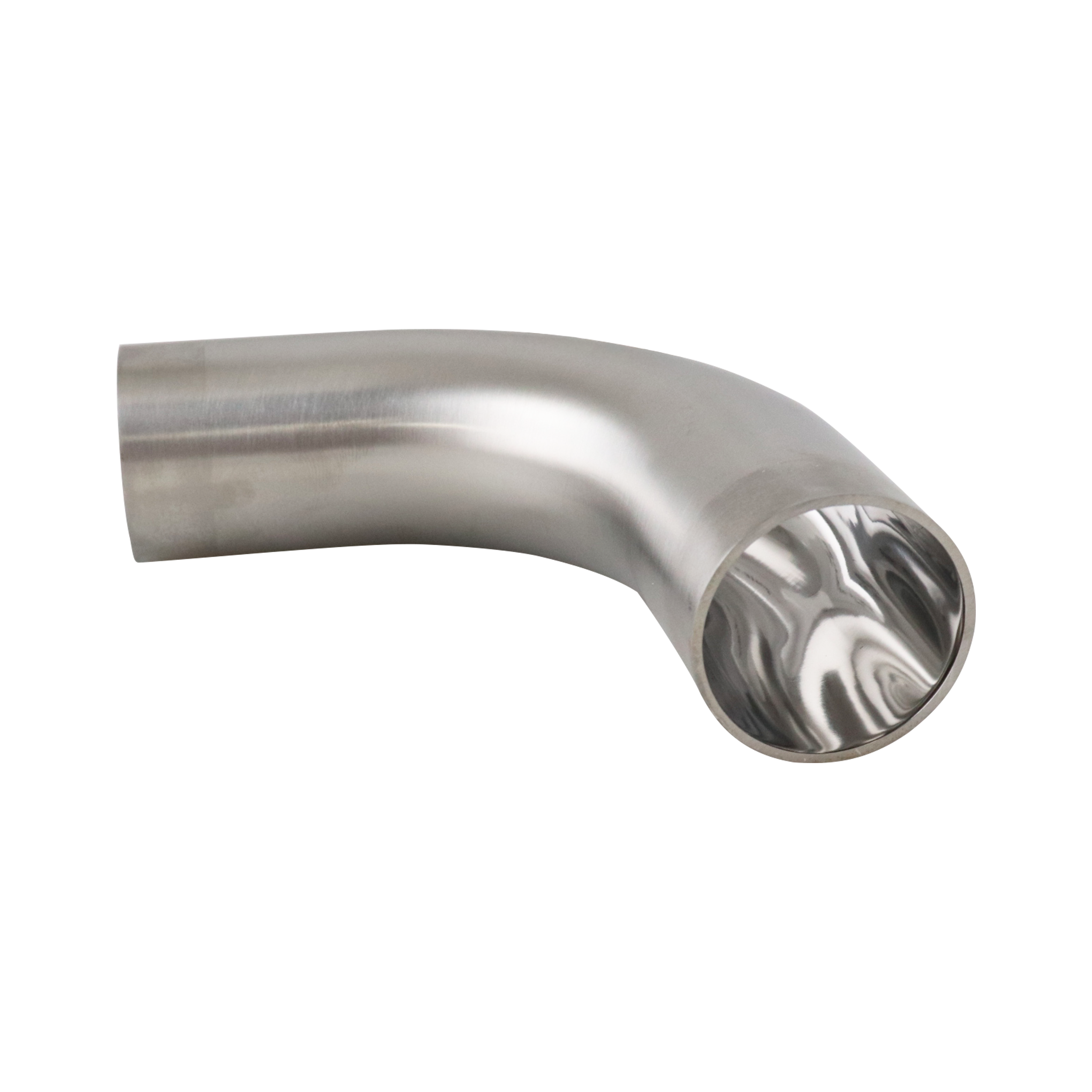

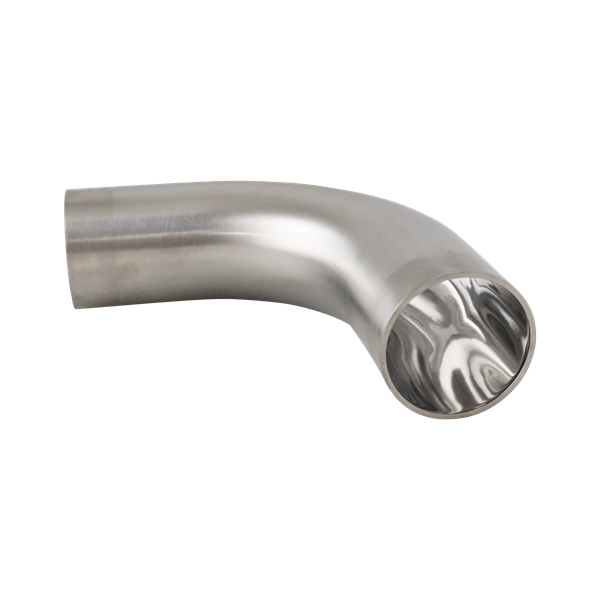

88 DEGREE ELBOW 2" BW 316L 15RA EP ID 32RA OD SF4 BPE
B2S88-2-316L-PM
Net Price: $103.84 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP ID / 32Ra OD |
| Size 1 | 2" |
| Connection Type 1 | Butt Weld |
| Shape | 88 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2S88 |
| Weight | 0.98000 |
Dimensional Data
88° Butt Weld Elbow DT-4.1.1-9 | B2S88-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 3.065 | 77.85 |
| ¾ | 19.05 | 3.065 | 77.85 |
| 1 | 25.40 | 3.050 | 77.47 |
| 1½ | 38.10 | 3.800 | 96.52 |
| 2 | 50.80 | 4.810 | 122.17 |
| 2½ | 63.50 | 5.560 | 141.22 |
| 3 | 76.20 | 6.310 | 160.27 |
| 4 | 101.60 | 8.065 | 204.85 |
| BPE DT-4.1.1-9 | |||
B2S88 2D Drawing
B2S88-2 3D Model
