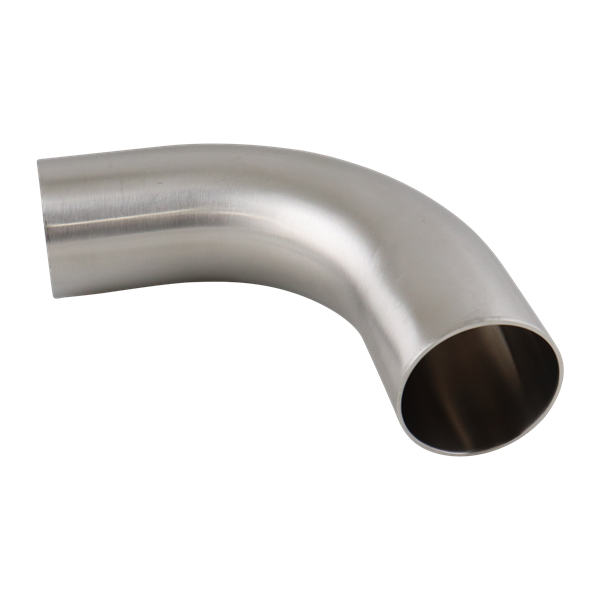

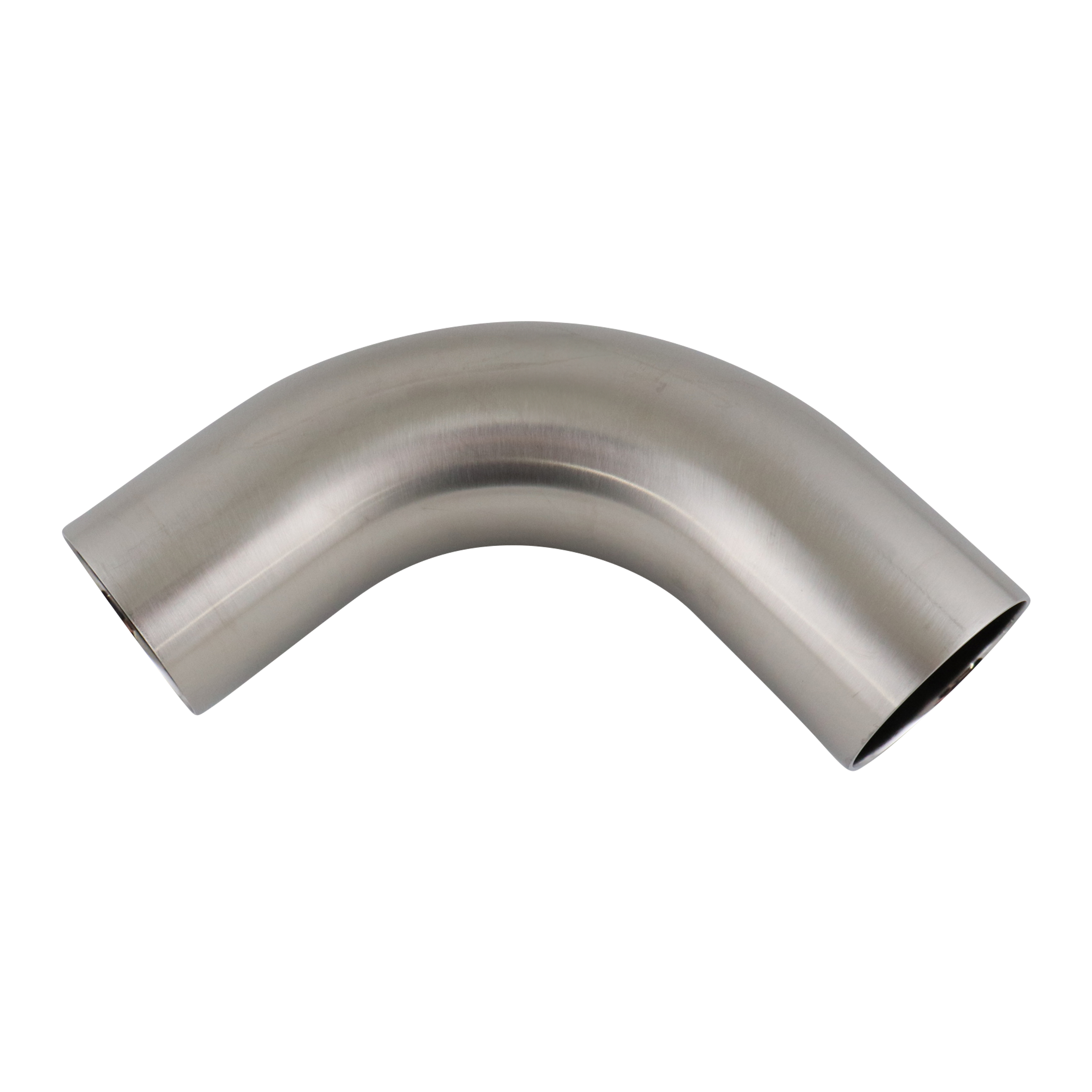

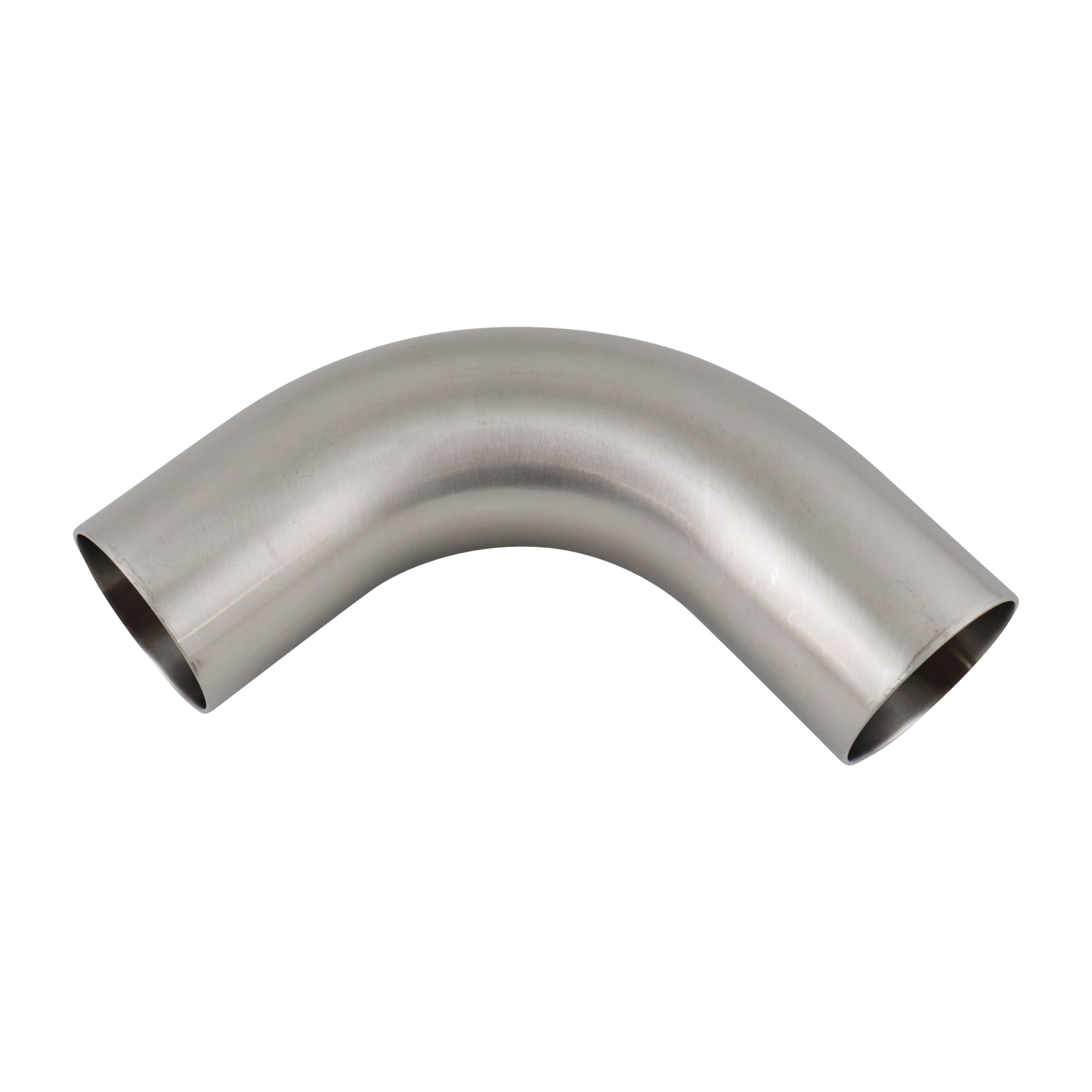

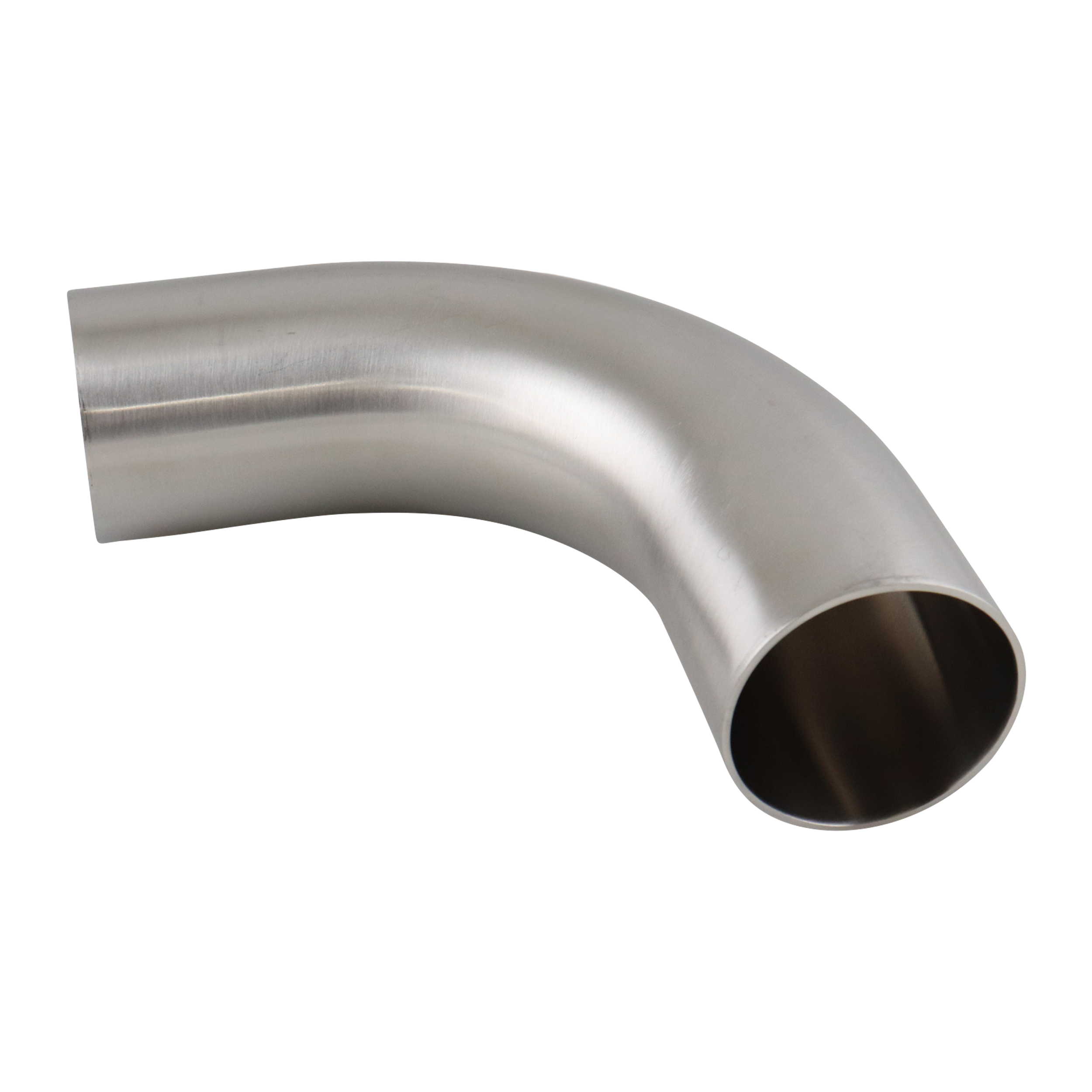

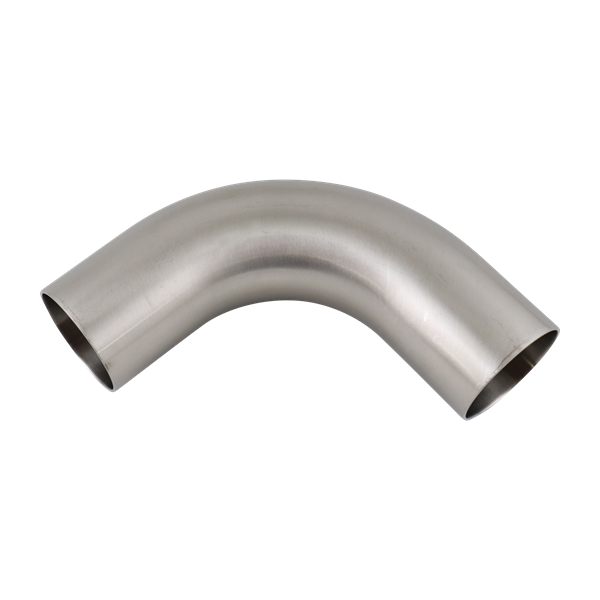

90 DEGREE ELBOW 1" BW 316L 20RA ID 32RA OD SF1 BPE
B2S-1-316L-PL
Net Price: $21.26 / EA
- Availability:
Spare Parts
Suggested products
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|

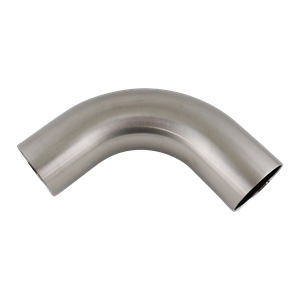

| 90 DEGREE ELBOW 1" BW 316L 15RA EP ID ONLY SF4 BPE |
$26.17 / EA |
|
||

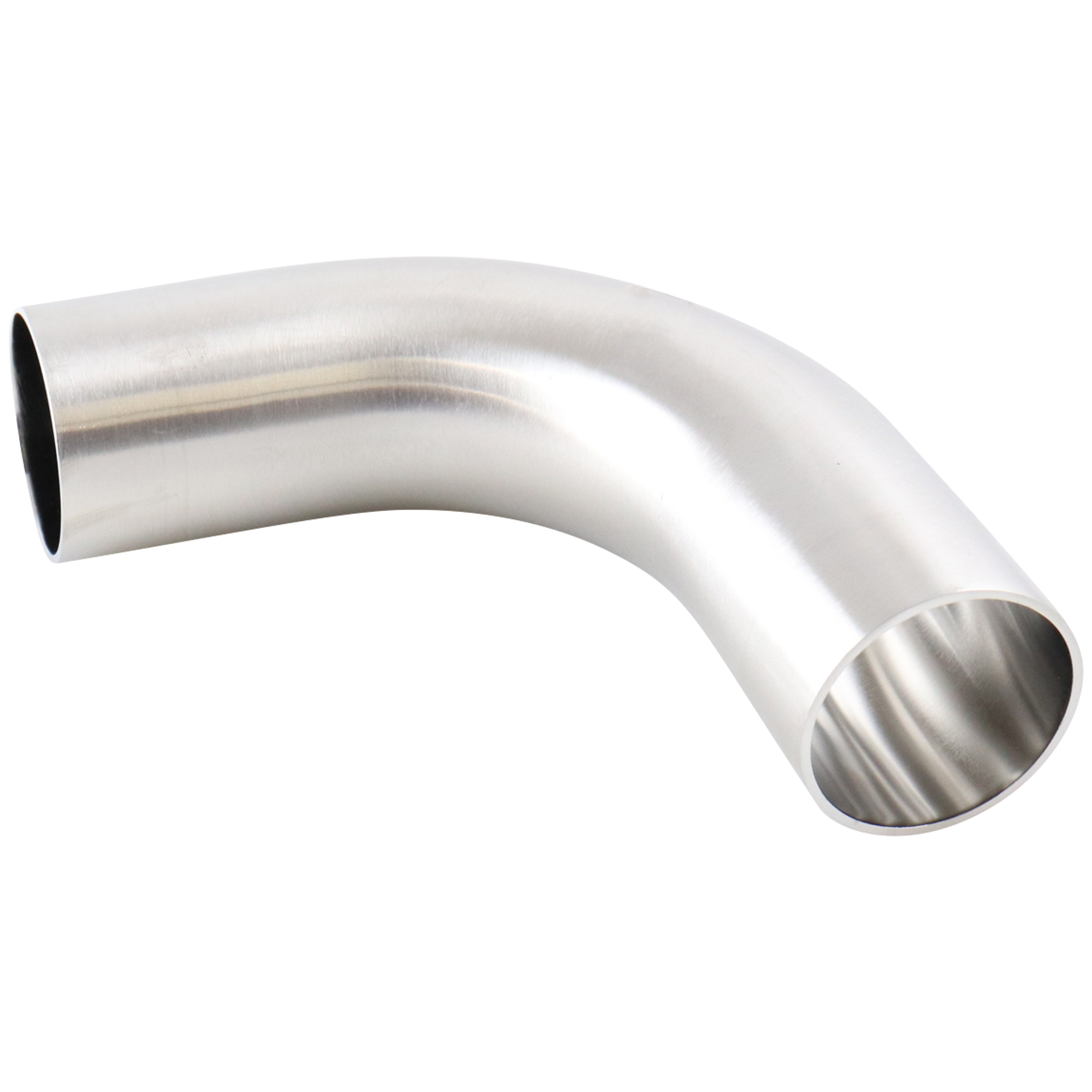

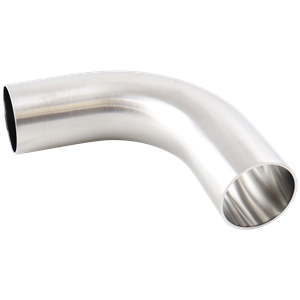

| 90 DEGREE ELBOW 1" BW 316L 15RA EP ID 32RA OD SF4 BPE |
$27.55 / EA |
|
- Total: 2
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Butt Weld |
| Shape | 90 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2S |
| Weight | 0.34000 |
Dimensional Data
Butt Weld 90° Elbows | B2S-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 2.625 | 66.68 |
| ⅜ | 9.53 | 2.625 | 66.68 |
| ½ | 12.70 | 3.000 | 76.20 |
| ¾ | 19.05 | 3.000 | 76.20 |
| 1 | 25.40 | 3.000 | 76.20 |
| 1½ | 38.10 | 3.750 | 95.25 |
| 2 | 50.80 | 4.750 | 120.65 |
| 2½ | 63.50 | 5.500 | 139.70 |
| 3 | 76.20 | 6.250 | 158.75 |
| 4 | 101.60 | 8.000 | 203.20 |
| 6 | 152.40 | 11.500 | 292.10 |
| BPE DT-4.1.1-1 | 2009 BPE DT-7 | |||
B2S 2D Drawing
B2S-1 3D Model
