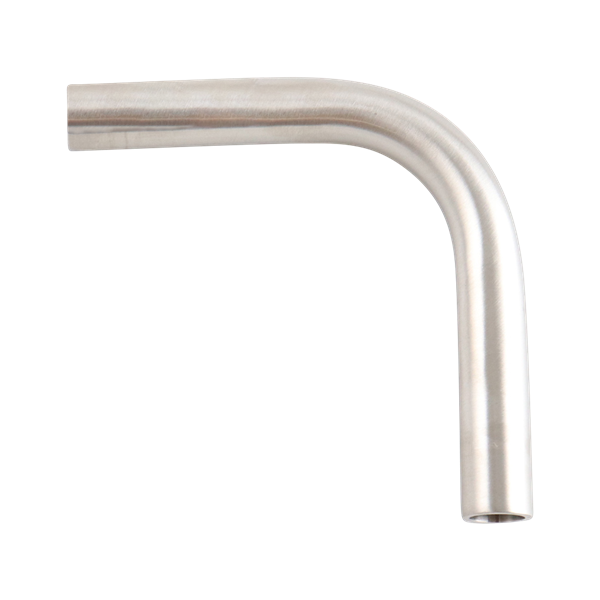

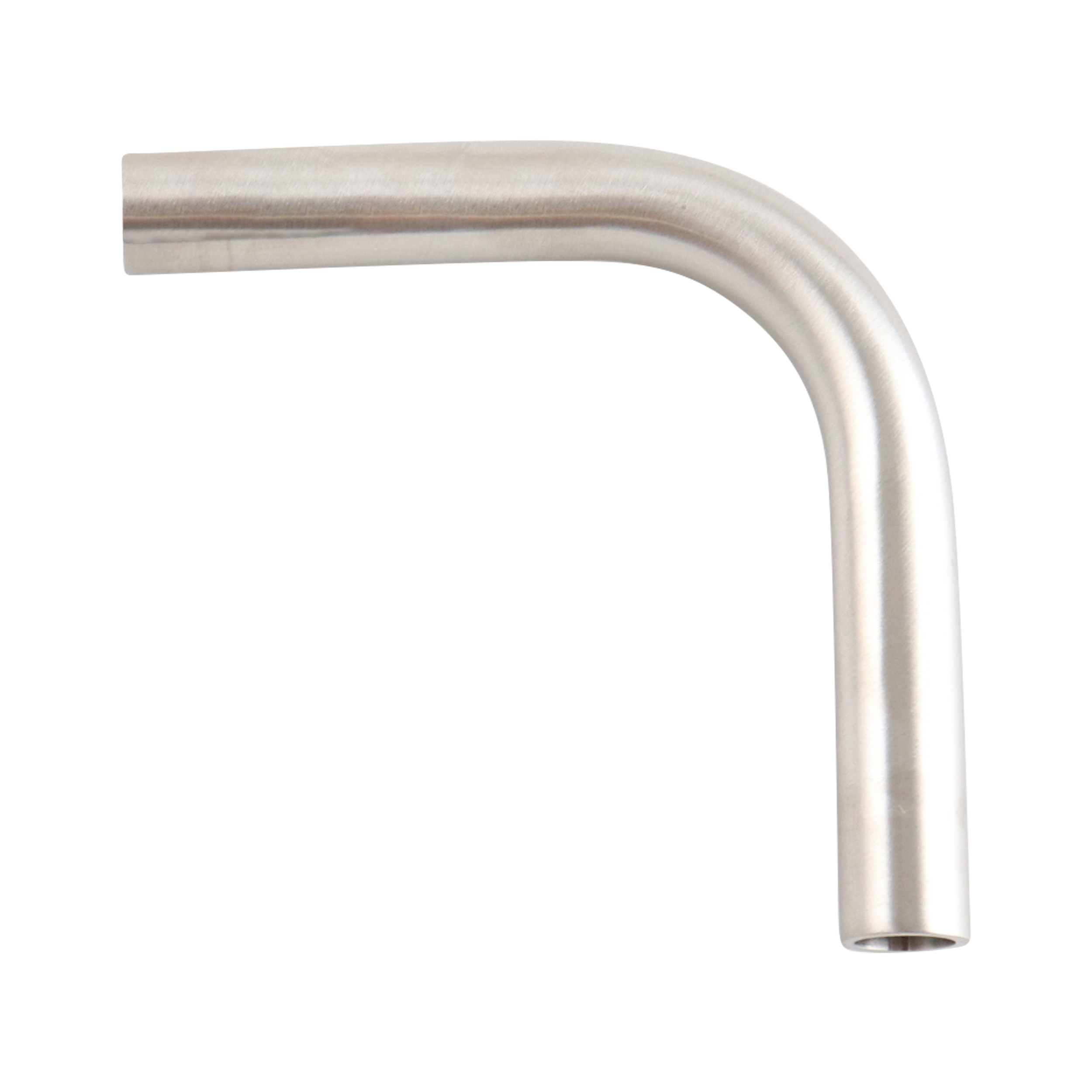

92 DEGREE ELBOW 0.75" BW 316L 20RA ID 32RA OD SF1 BPE
B2S92-0.75-316L-PL
Net Price: $56.47 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 0.75" |
| Connection Type 1 | Butt Weld |
| Shape | 92 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2S92 |
| Weight | 0.25000 |
Dimensional Data
92° Butt Weld Elbow DT-4.1.1-10 | B2S92-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 2.930 | 74.42 |
| ¾ | 19.05 | 2.930 | 74.42 |
| 1 | 25.40 | 2.950 | 74.93 |
| 1½ | 38.10 | 3.690 | 93.73 |
| 2 | 50.80 | 4.690 | 119.13 |
| 2½ | 63.50 | 5.440 | 138.18 |
| 3 | 76.20 | 6.190 | 157.23 |
| 4 | 101.60 | 7.930 | 201.42 |
| BPE DT-4.1.1-10 | |||
B2S92 2D Drawing
B2S92-0.75 3D Model
