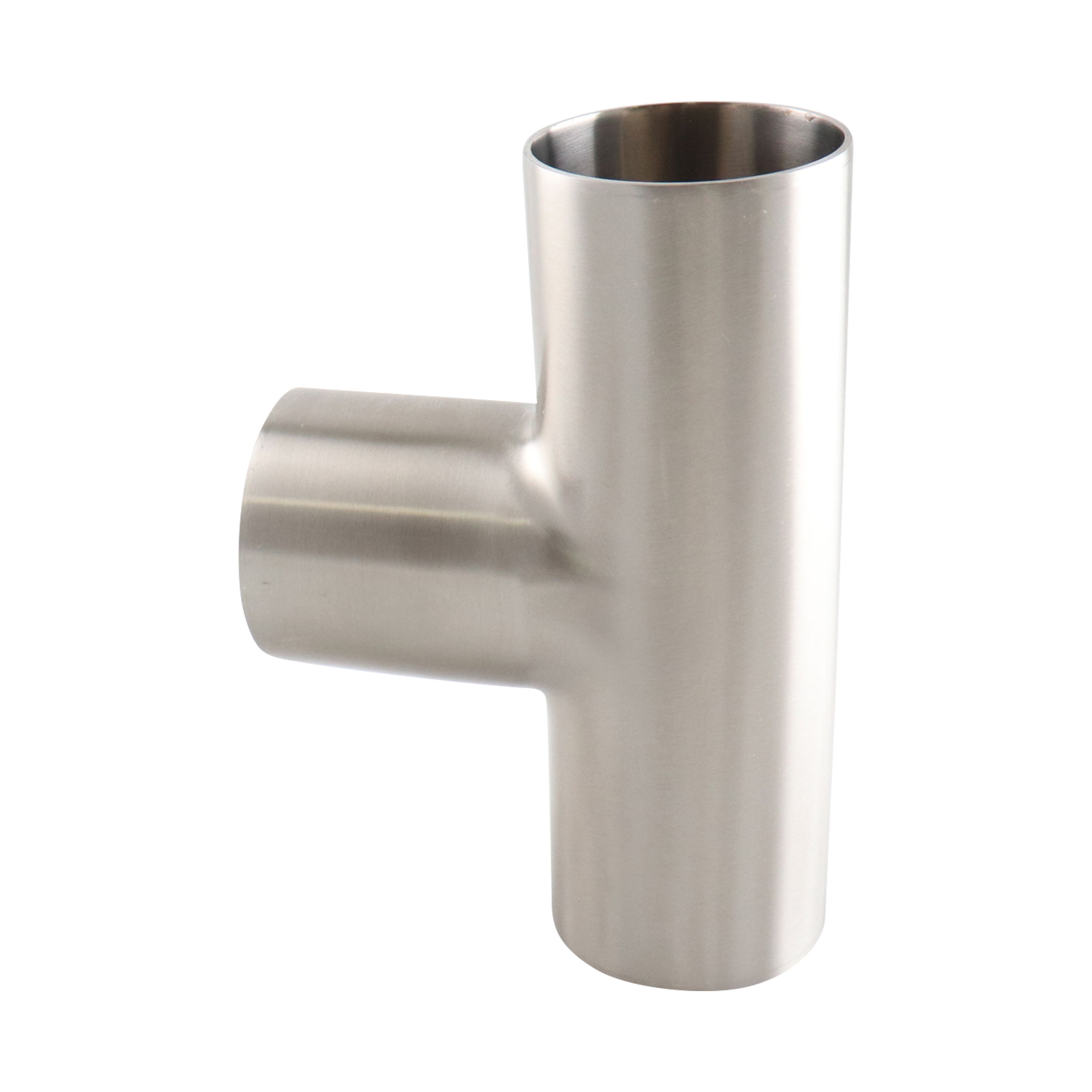

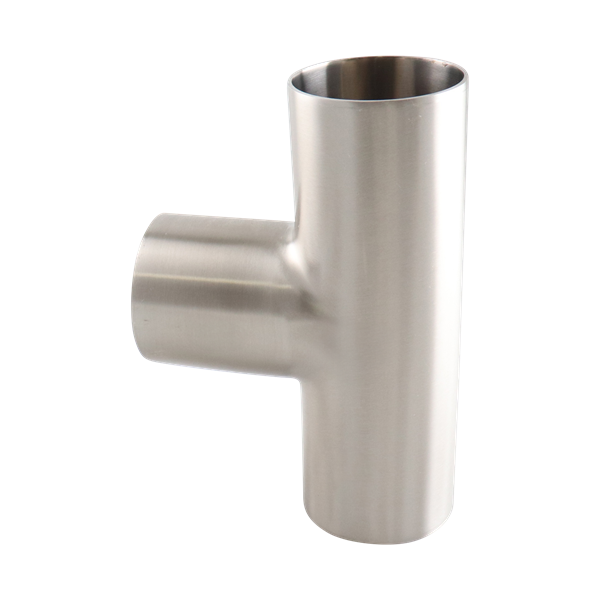

TEE 1" BW 316L 20RA ID 32RA OD SF1 BPE
B7WWW-1-316L-PL
Net Price: $31.36 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tees |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Butt Weld |
| Size 2 | 1" |
| Connection Type 2 | Butt Weld |
| Specification / Standard | ASME BPE |
| Fitting Design | B7WWW |
| Weight | 0.36000 |
Dimensional Data
Butt Weld Tee | B7WWW-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 1.750 | 44.45 |
| ⅜ | 9.53 | 1.750 | 44.45 |
| ½ | 12.70 | 1.875 | 47.63 |
| ¾ | 19.05 | 2.000 | 50.80 |
| 1 | 25.40 | 2.125 | 53.98 |
| 1½ | 38.10 | 2.375 | 60.33 |
| 2 | 50.80 | 2.875 | 73.03 |
| 2½ | 63.50 | 3.125 | 79.38 |
| 3 | 76.20 | 3.375 | 85.73 |
| 4 | 101.60 | 4.125 | 104.78 |
| 6 | 152.40 | 5.625 | 142.88 |
| BPE DT-4.1.2-1 | 2009 BPE DT-9 | |||
B7WWW 2D Drawing
B7WWW-1 3D Model
