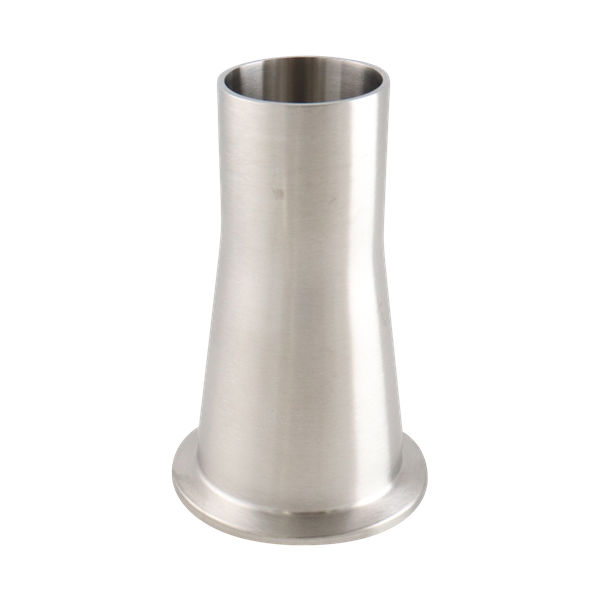

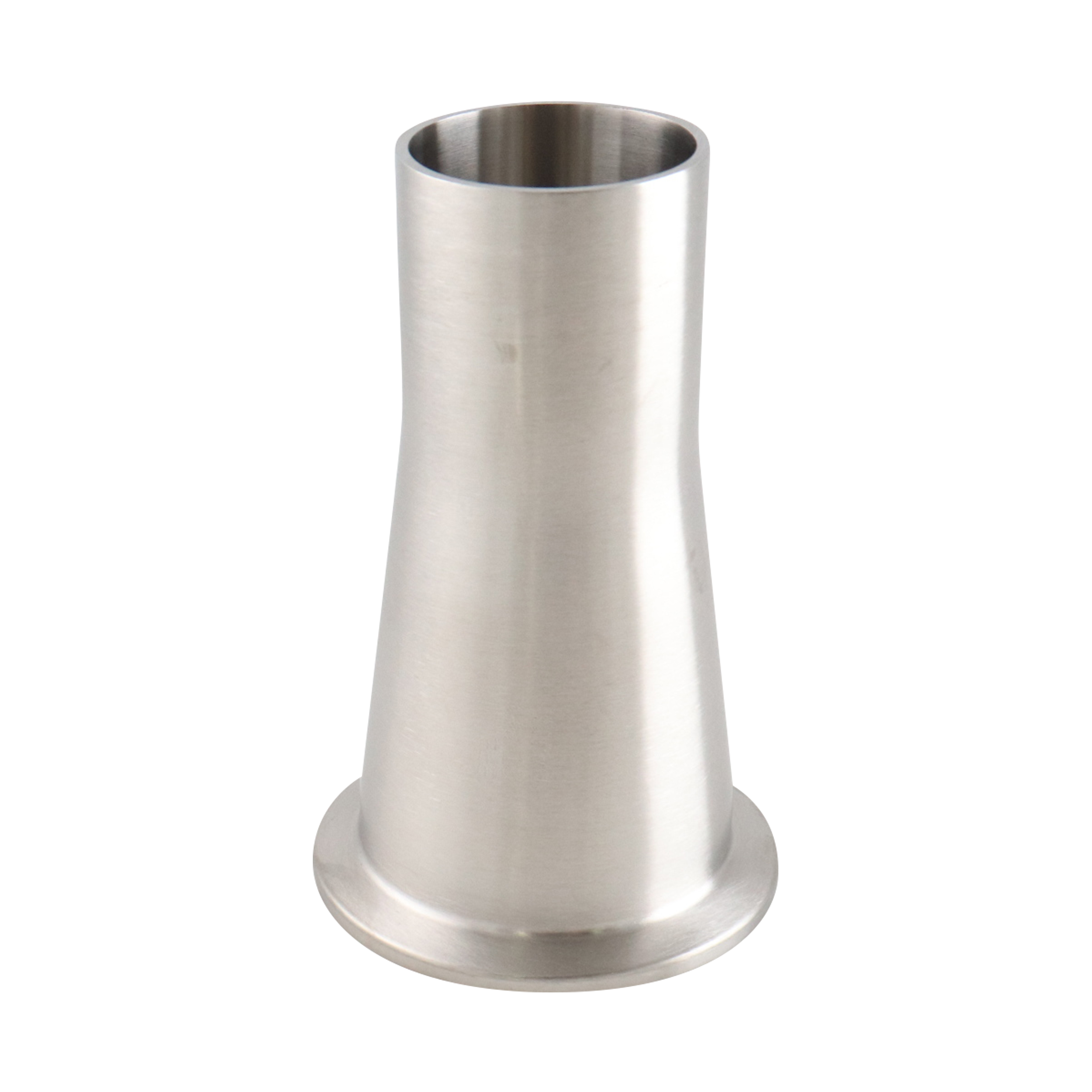

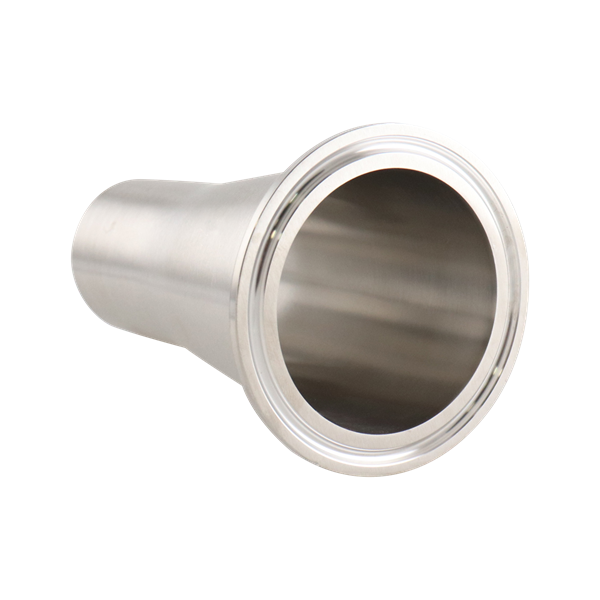

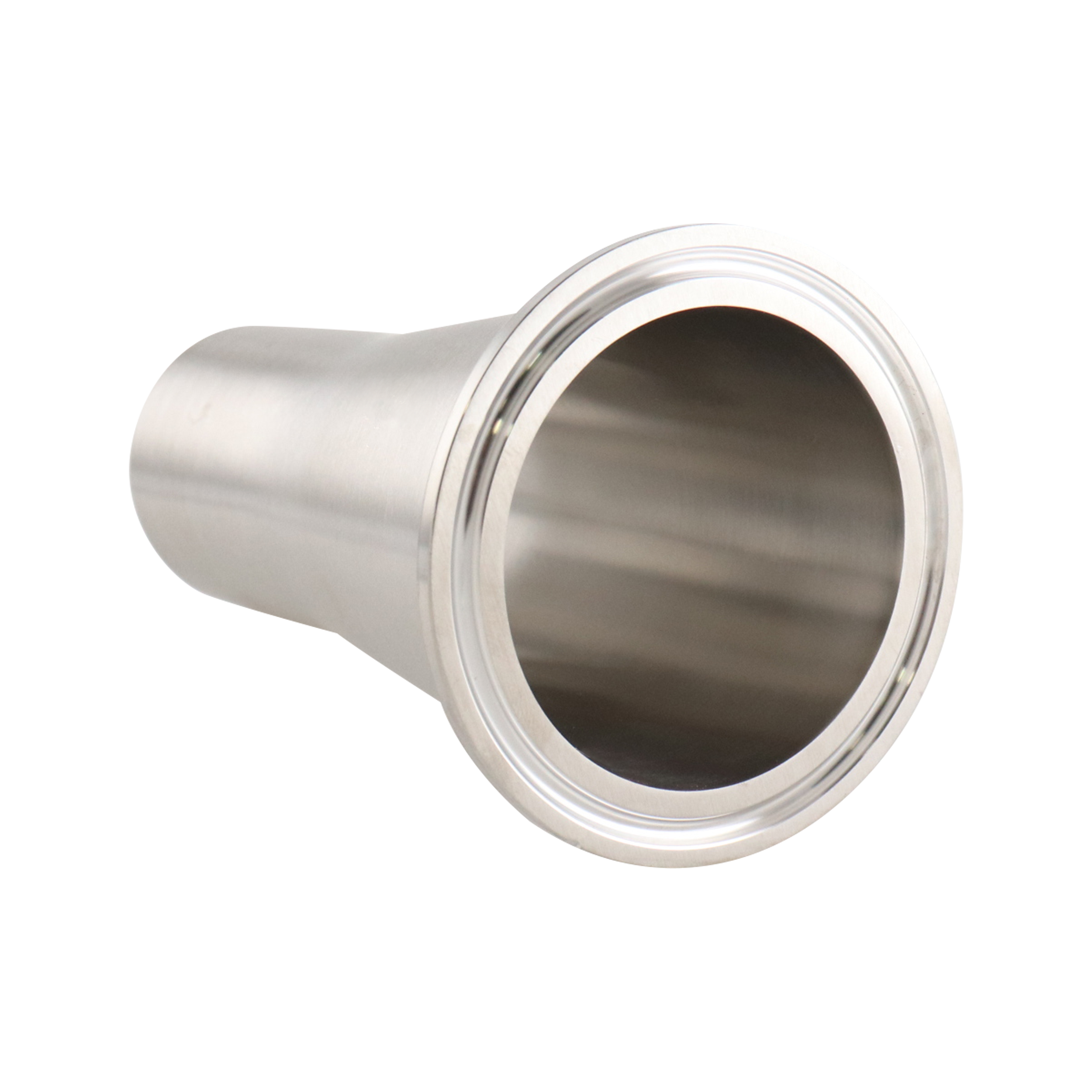

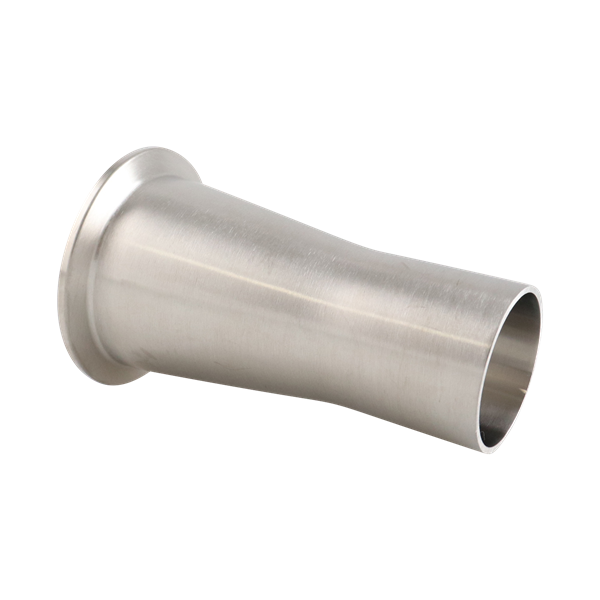

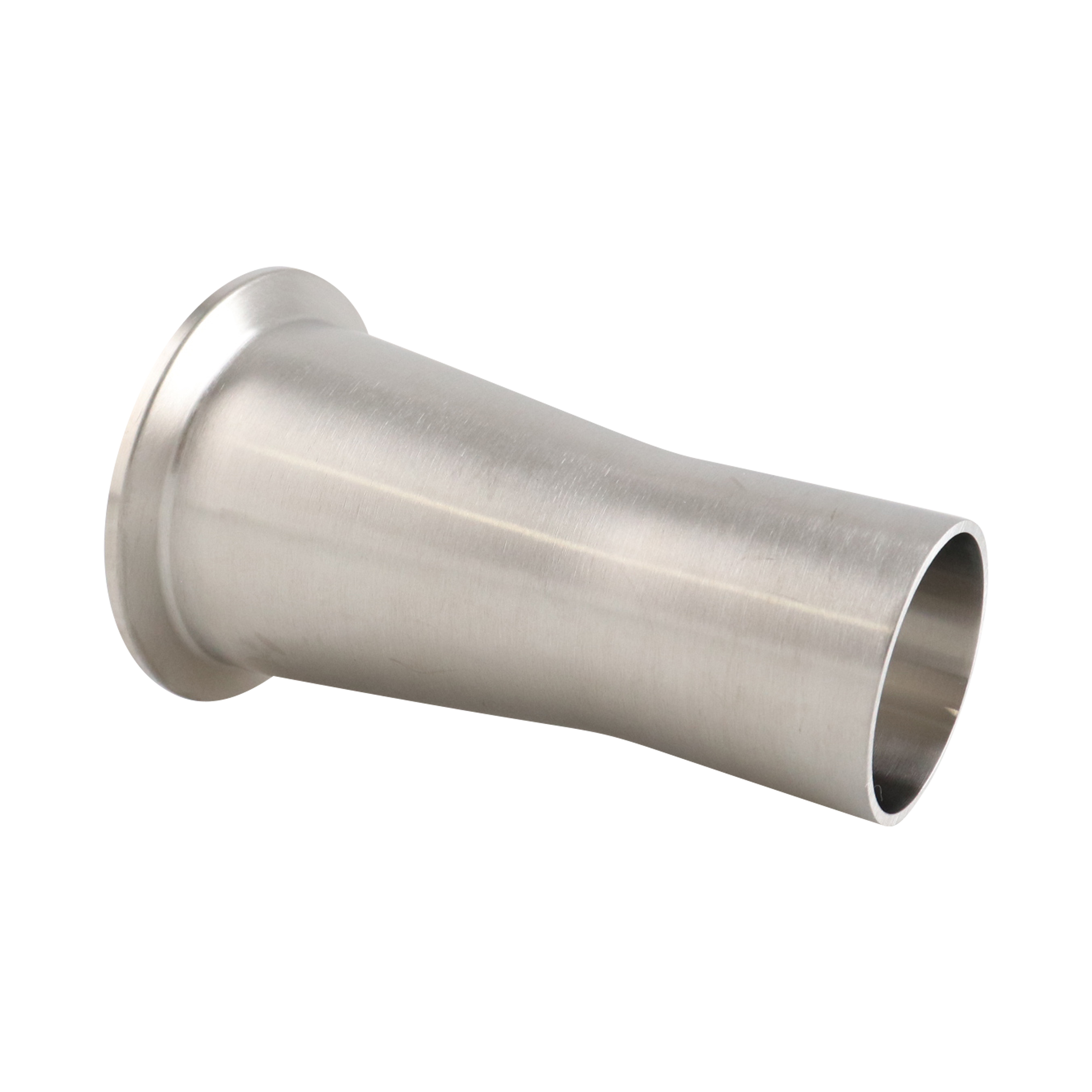

CONCENTRIC REDUCER 2X1.5 TC X BW 316L 4" OAL 20RA ID 32RA OD SF1
B31M-2X1.5-316L-PL
Net Price: $59.21 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Concentric Reducers |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 1.5" |
| Connection Type 2 | Butt Weld |
| Length | 4" OAL |
| Fitting Design | B31M |
| Weight | 1.10000 |
Dimensional Data
Concentric Tri-Clamp x Butt Weld Reducers | B31M-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¾ x ½ | 19.05 x 12.70 | 3.00 | 76.20 |
| 1 x ½ | 25.40 x 12.70 | 3.50 | 88.90 |
| 1 x ¾ | 25.40 x 19.05 | 3.00 | 76.20 |
| 1½ x ½ | 38.10 x 12.70 | 4.50 | 114.30 |
| 1½ x ¾ | 38.10 x 19.05 | 4.00 | 101.60 |
| 1½ x 1 | 38.10 x 25.40 | 4.00 | 101.60 |
| 2 x 1 | 50.80 x 25.40 | 6.00 | 152.40 |
| 2 x 1½ | 50.80 x 38.10 | 4.00 | 101.60 |
| 2½ x 1½ | 63.50 x 38.10 | 6.00 | 152.40 |
| 2½ x 2 | 63.50 x 50.80 | 4.25 | 107.95 |
| 3 x 1½ | 76.20 x 38.10 | 8.00 | 203.20 |
| 3 x 2 | 76.20 x 50.80 | 6.25 | 158.75 |
| 3 x 2½ | 76.20 x 63.50 | 4.25 | 107.95 |
| 4 x 2 | 101.60 x 50.80 | 10.38 | 263.65 |
| 4 x 2½ | 101.60 x 63.50 | 8.38 | 212.85 |
| 4 x 3 | 101.60 x 76.20 | 6.38 | 162.05 |
| BPE DT-4.1.2-6 | 2009 BPE DT-10 | |||
