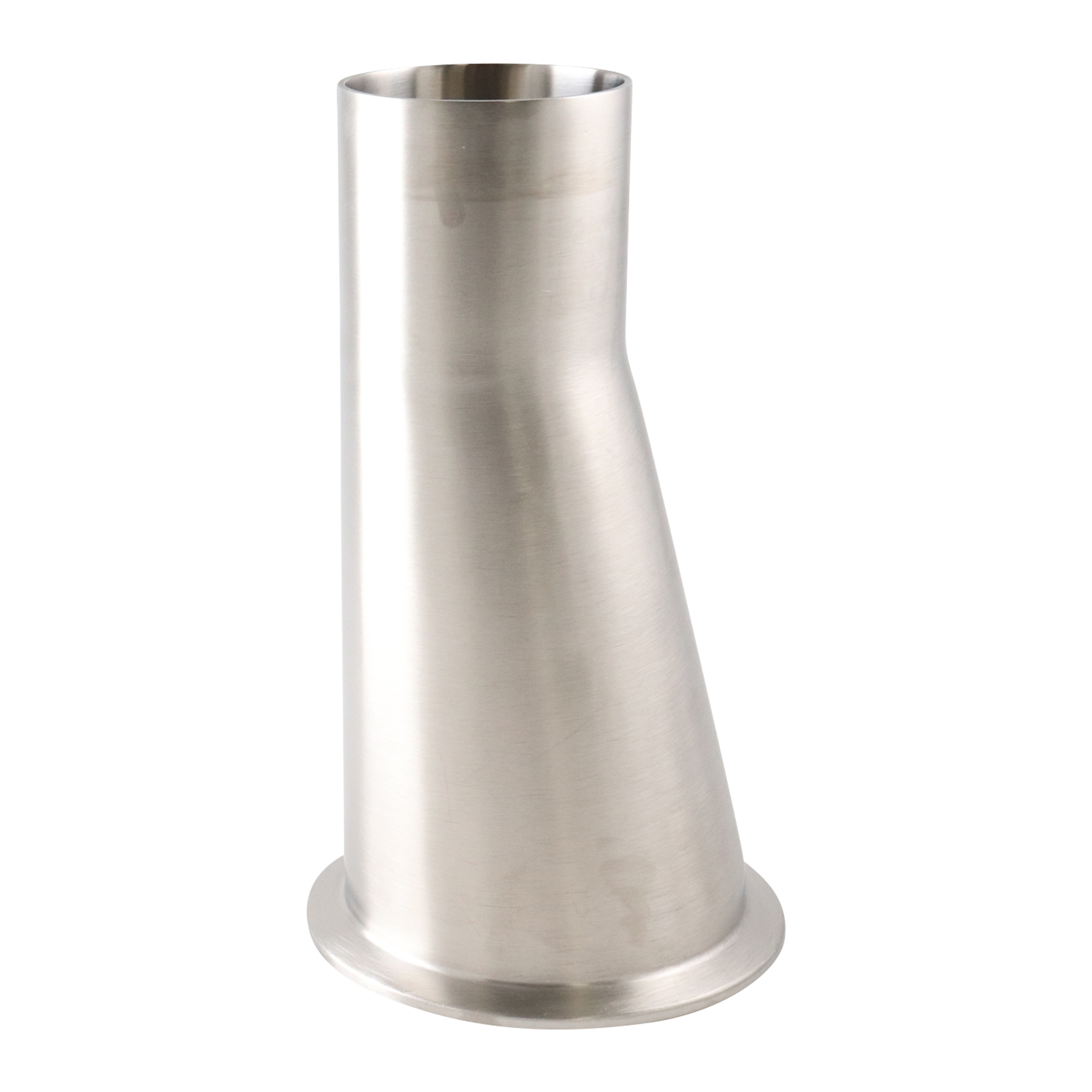

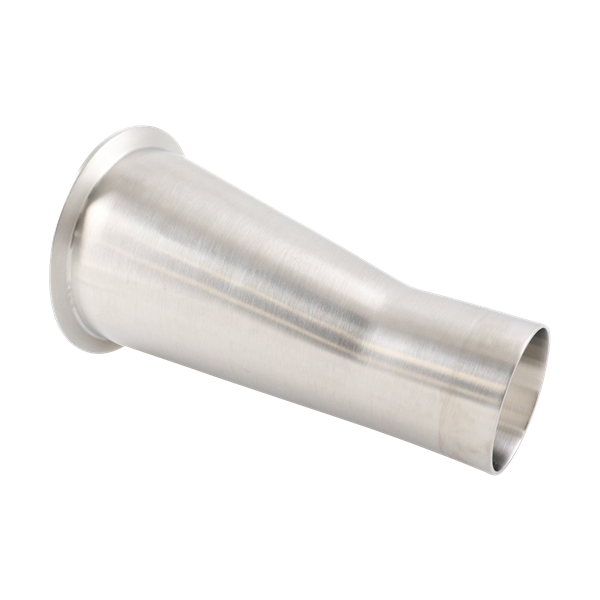

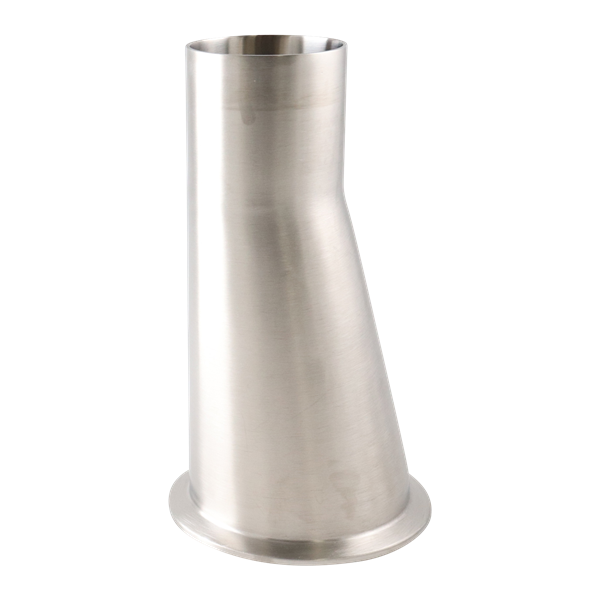

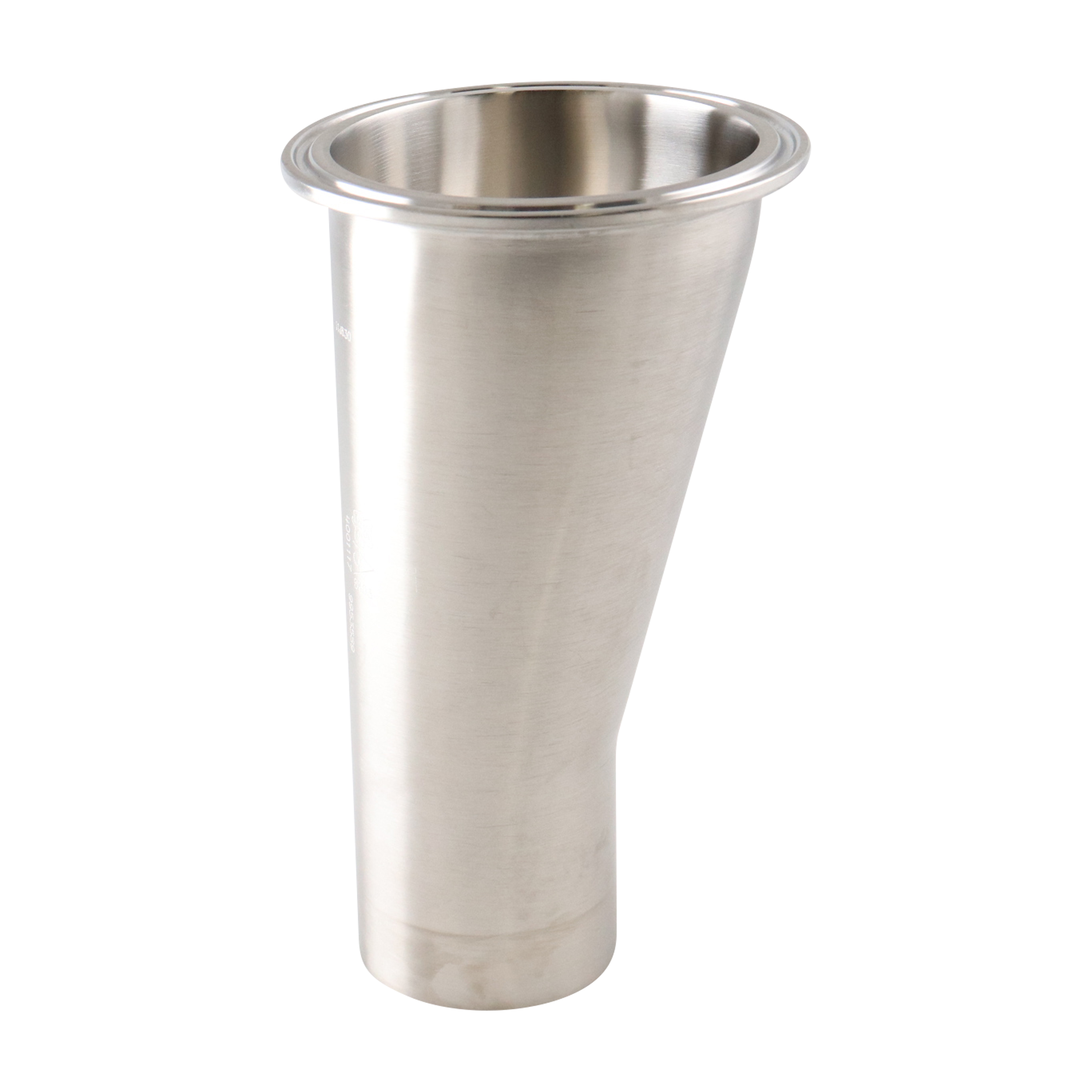

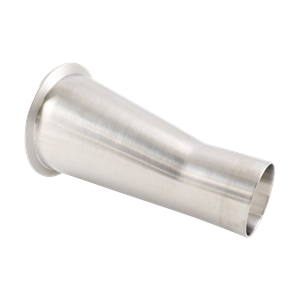

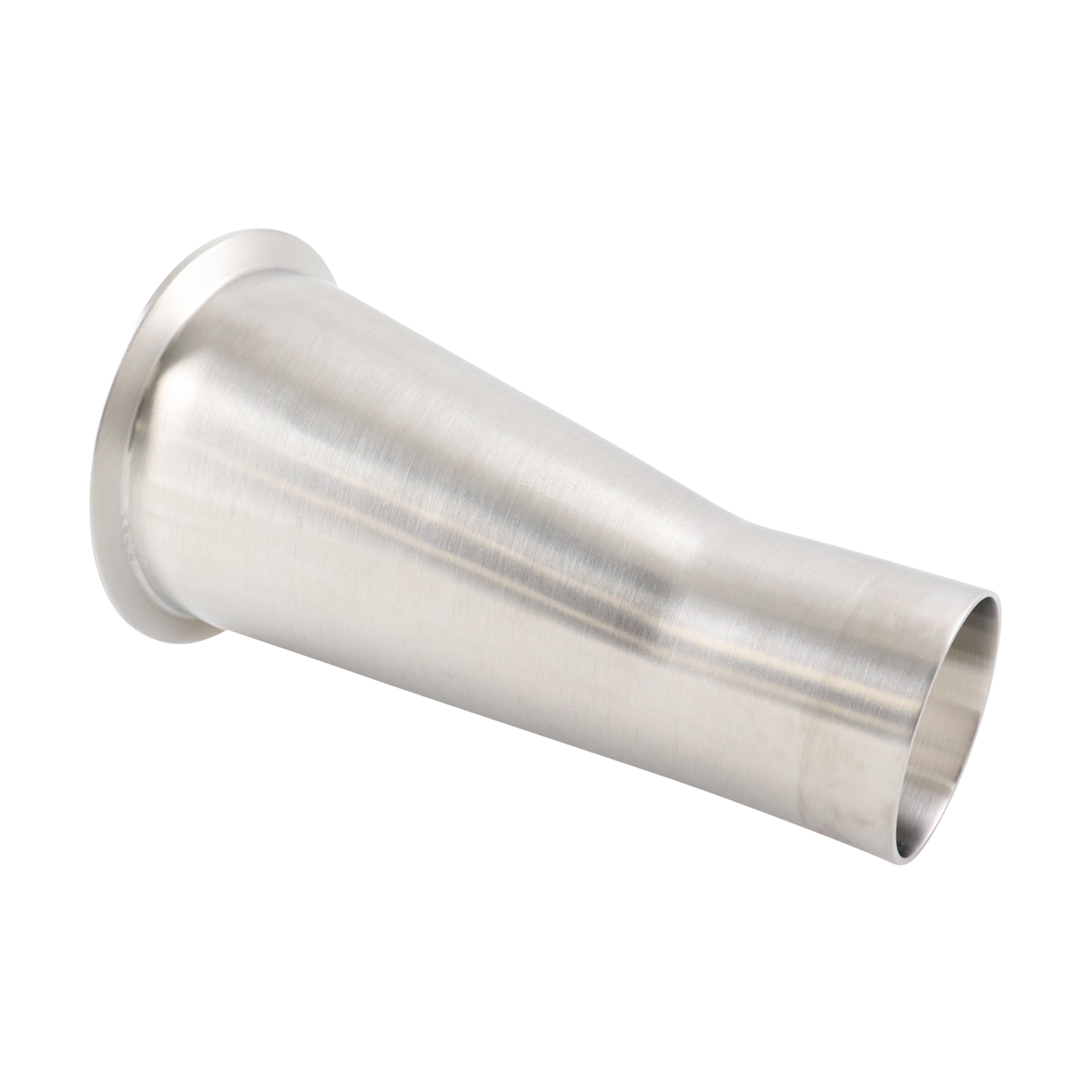

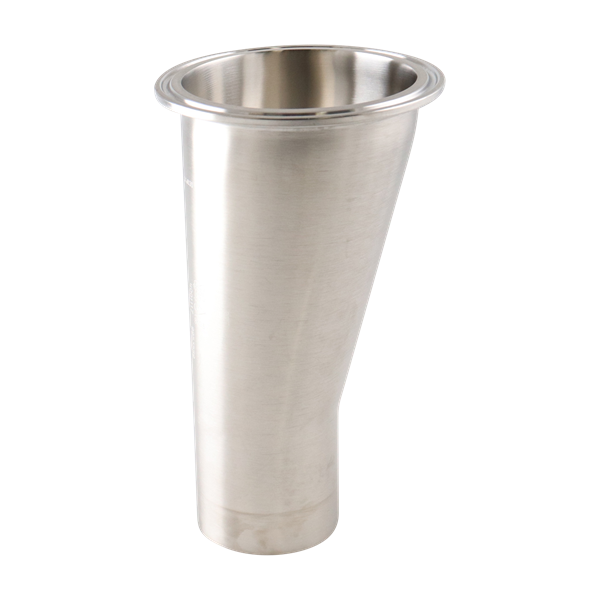

ECCENTRIC REDUCER 3X2 TC X BW 316L 6.25" OAL 20RA ID 32RA OD SF1
B32M-3X2-316L-PL
Net Price: $98.69 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Eccentric Reducers |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2" |
| Connection Type 2 | Butt Weld |
| Length | 6.25" OAL |
| Fitting Design | B32M |
| Weight | 1.50000 |
Dimensional Data
Eccentric Butt Weld Reducers | B32-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¾ x ½ | 19.05 x 12.7 | 3.00 | 76.2 |
| 1 x ½ | 25.4 x 12.7 | 3.50 | 88.9 |
| 1 x ¾ | 25.4 x 19.05 | 3.00 | 76.2 |
| 1½ x ½ | 38.1 x 12.7 | 4.50 | 114.3 |
| 1½ x ¾ | 38.1 x 19.05 | 4.00 | 101.6 |
| 1½ x 1 | 38.1 x 25.4 | 4.00 | 101.6 |
| 2 x 1 | 50.8 x 25.4 | 6.00 | 152.4 |
| 2 x 1½ | 50.8 x 38.1 | 4.00 | 101.6 |
| 2½ x 1½ | 63.5 x 38.1 | 6.00 | 152.4 |
| 2½ x 2 | 63.5 x 50.8 | 4.25 | 107.95 |
| 3 x 1½ | 76.2 x 38.1 | 8.00 | 203.2 |
| 3 x 2 | 76.2 x 50.8 | 6.25 | 158.75 |
| 3 x 2½ | 76.2 x 63.5 | 4.25 | 107.95 |
| 4 x 2 | 101.6 x 50.8 | 10.38 | 263.652 |
| 4 x 2½ | 101.6 x 63.5 | 8.38 | 212.852 |
| 4 x 3 | 101.6 x 76.2 | 6.38 | 162.052 |
| BPE DT-4.1.2-6 | 2009 BPE DT-10 | |||
