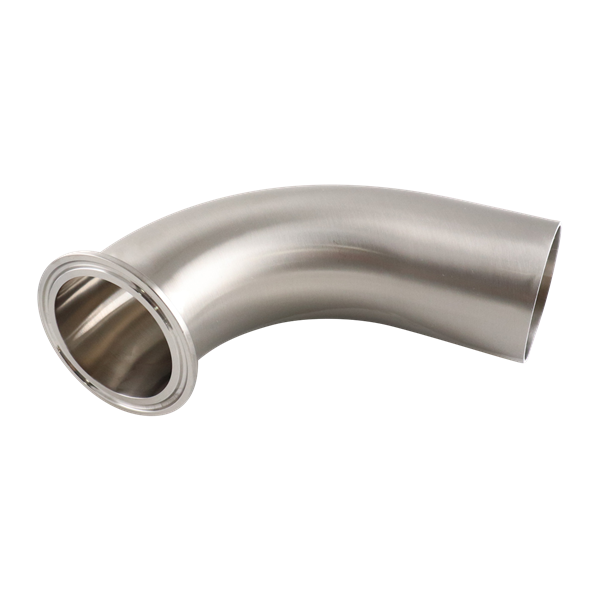

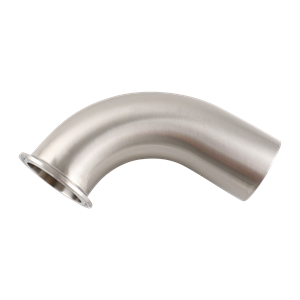

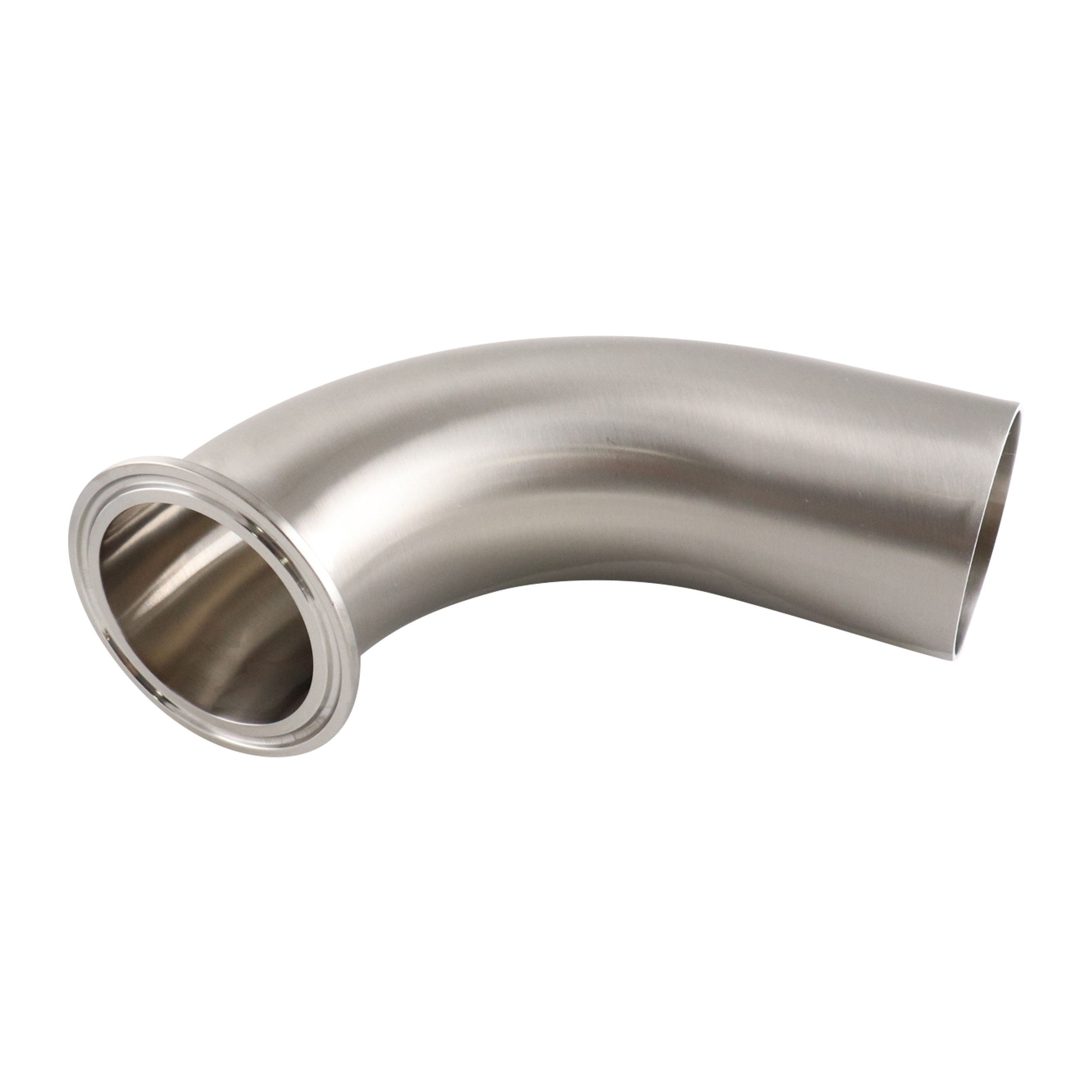

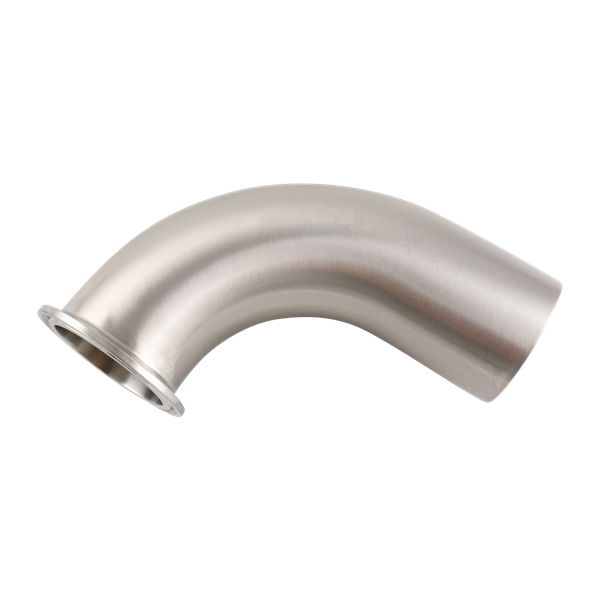

88 DEGREE ELBOW 2.5" TC X BW 316L 20RA ID 32RA OD SF1 BPE
B2CMW88-2.5-316L-PL
Net Price: $148.78 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 2.5" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2.5" |
| Connection Type 2 | Butt Weld |
| Shape | 88 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2CMW88 |
| Weight | 1.20000 |
Dimensional Data
88° Tri-Clamp x Butt Weld Elbow | B2CMW88-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 2.961 | 75.21 | 1.586 | 40.28 |
| ¾ | 19.05 | 2.961 | 75.21 | 1.586 | 40.28 |
| 1 | 25.40 | 2.949 | 74.90 | 1.949 | 49.50 |
| 1½ | 38.10 | 3.673 | 93.29 | 2.673 | 67.89 |
| 2 | 50.80 | 4.647 | 118.03 | 3.397 | 86.28 |
| 2½ | 63.50 | 5.371 | 136.42 | 4.121 | 104.67 |
| 3 | 76.20 | 6.096 | 154.84 | 4.846 | 123.09 |
| 4 | 101.60 | 7.794 | 197.97 | 6.419 | 163.04 |
| 6 | 152.40 | 11.505 | 292.23 | 10.479 | 266.17 |
B2CMW88-2.5 3D Model
