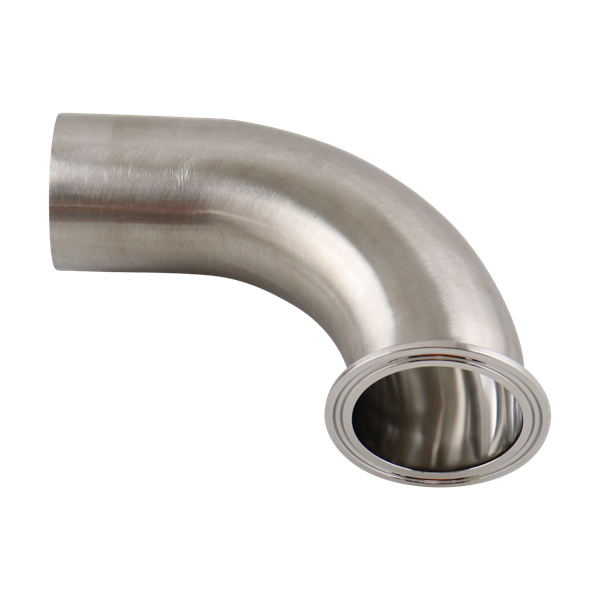

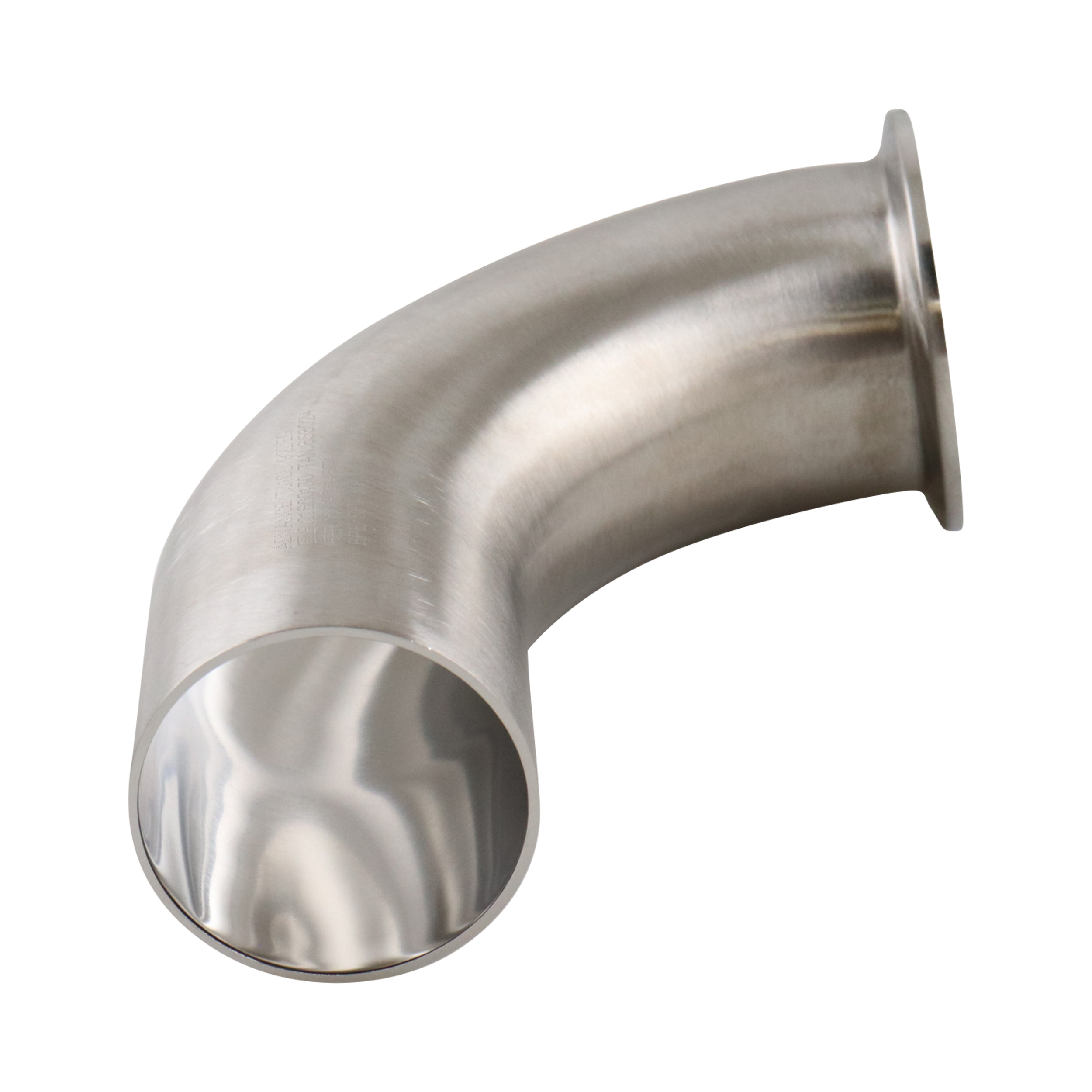

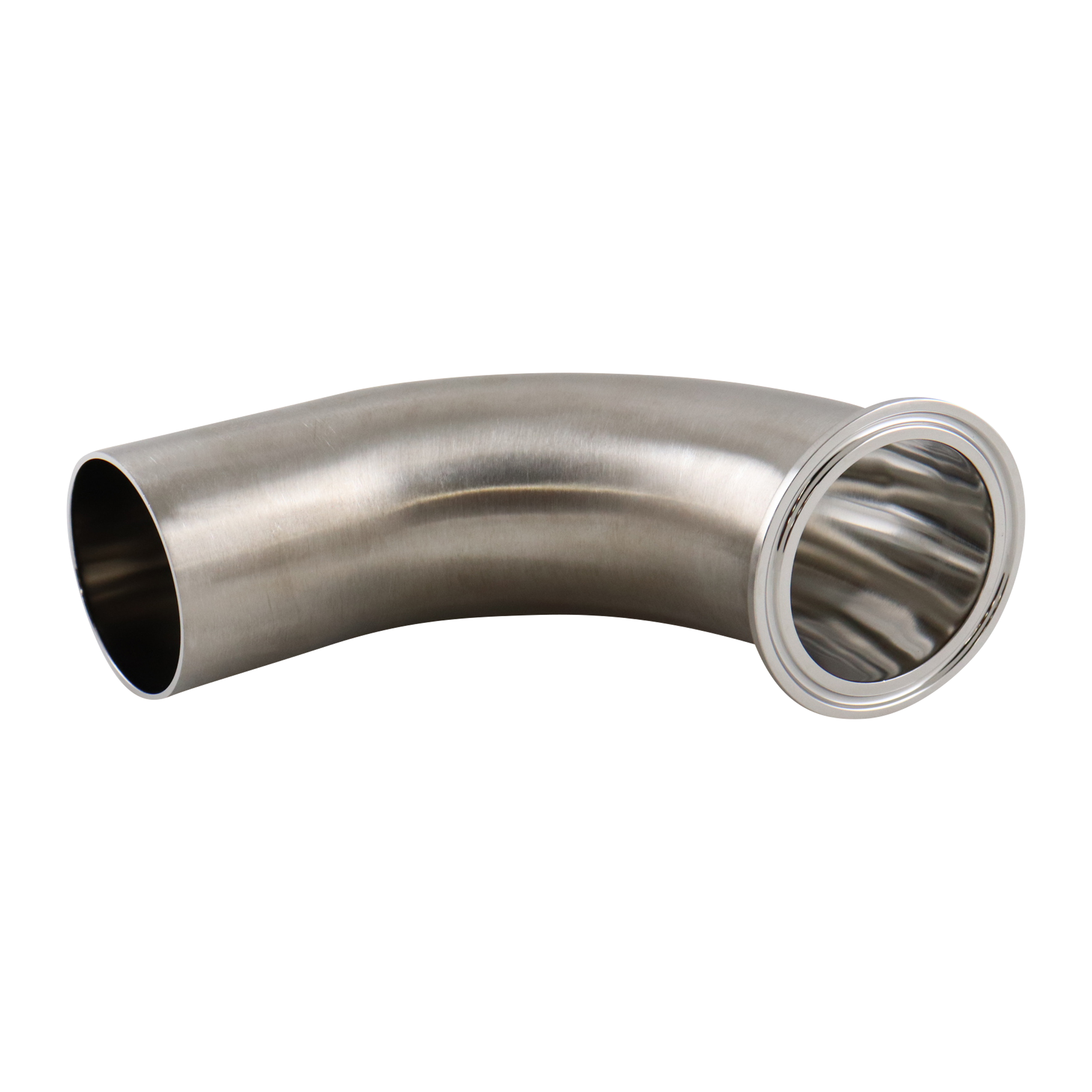

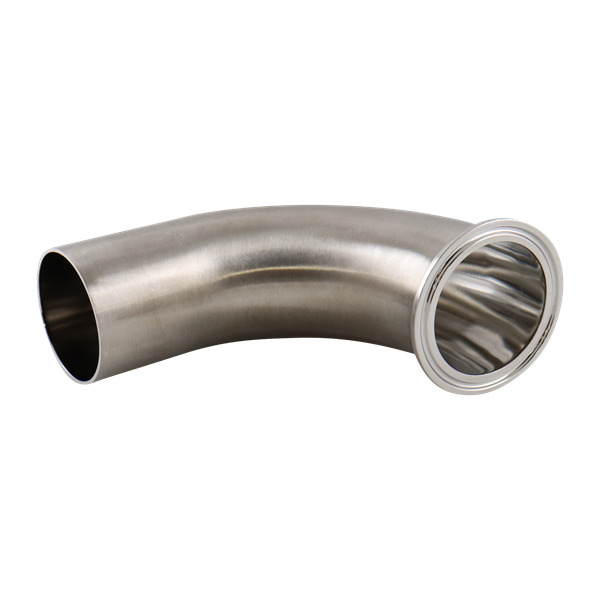

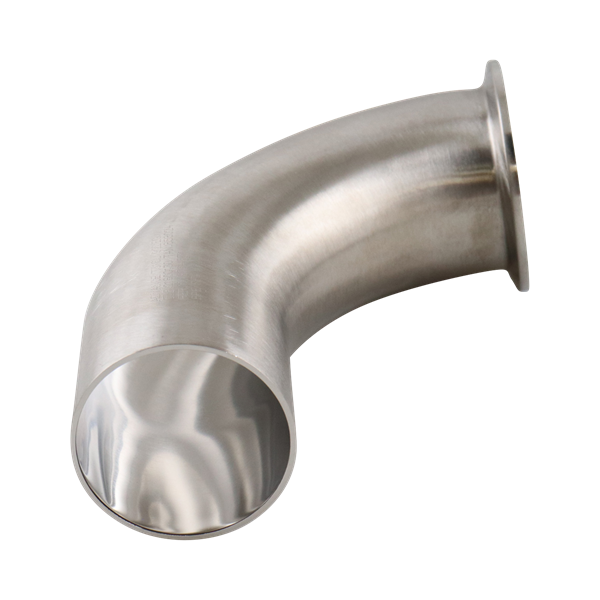

92 DEGREE ELBOW 2.5" TC X BW 316L 15RA EP ID 32RA OD SF4 BPE
B2CMW92-2.5-316L-PM
Net Price: $235.98 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP ID / 32Ra OD |
| Size 1 | 2.5" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2.5" |
| Connection Type 2 | Butt Weld |
| Shape | 92 Degree |
| Specification / Standard | ASME BPE |
| Fitting Design | B2CMW92 |
| Weight | 0.85000 |
Dimensional Data
92° Tri-Clamp x Butt Weld Elbow | B2CMW92-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 3.040 | 77.22 | 1.665 | 42.29 |
| ¾ | 19.05 | 3.040 | 77.22 | 1.665 | 42.29 |
| 1 | 25.40 | 3.053 | 77.55 | 2.053 | 52.15 |
| 1½ | 38.10 | 3.830 | 97.28 | 2.830 | 71.88 |
| 2 | 50.80 | 4.857 | 123.37 | 3.607 | 91.62 |
| 2½ | 63.50 | 5.633 | 143.08 | 4.383 | 111.33 |
| 3 | 76.20 | 6.410 | 162.81 | 5.160 | 131.05 |
| 4 | 101.60 | 8.213 | 208.61 | 6.838 | 173.69 |
B2CMW92-2.5 3D Model
