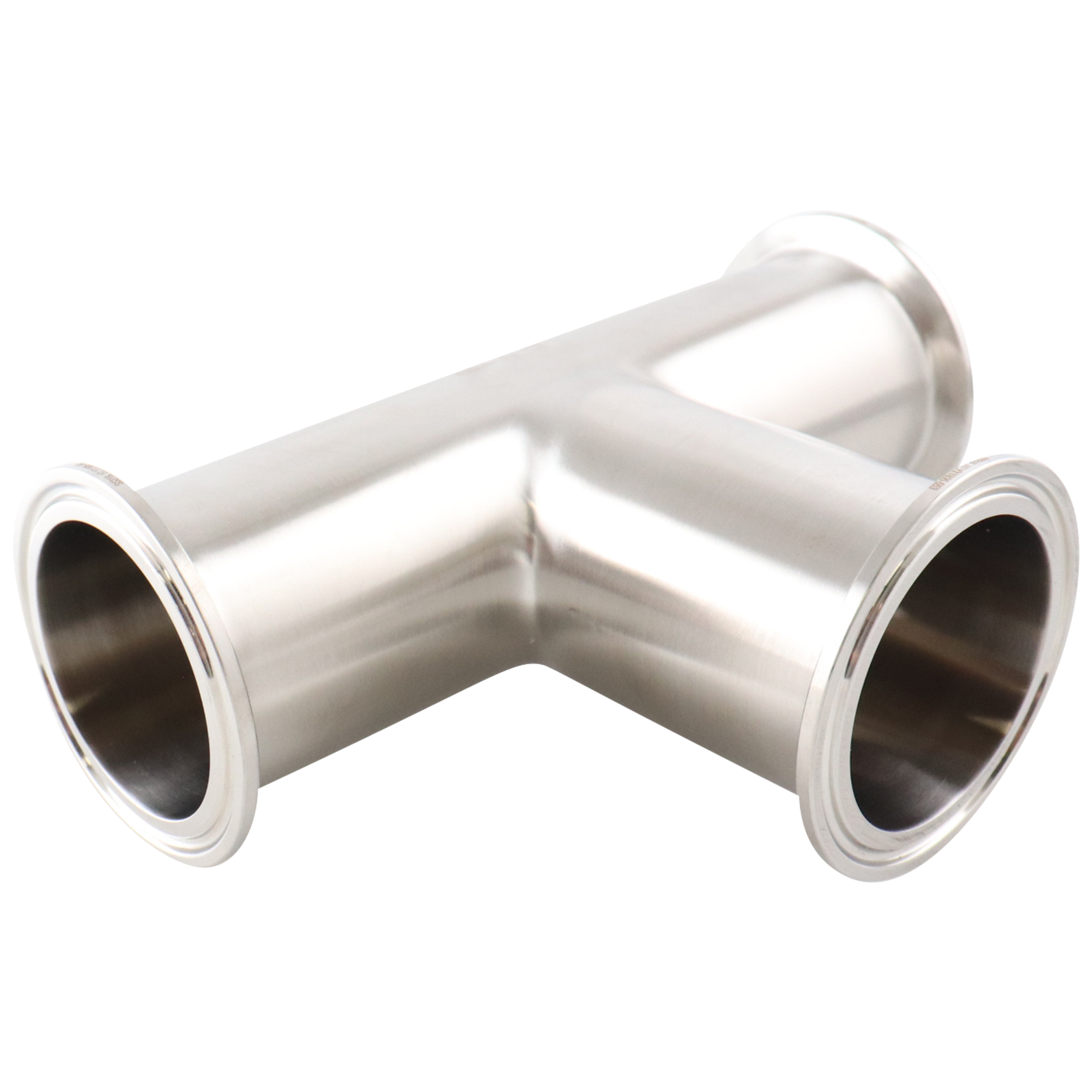

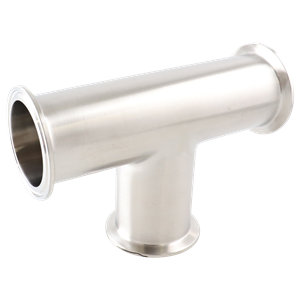

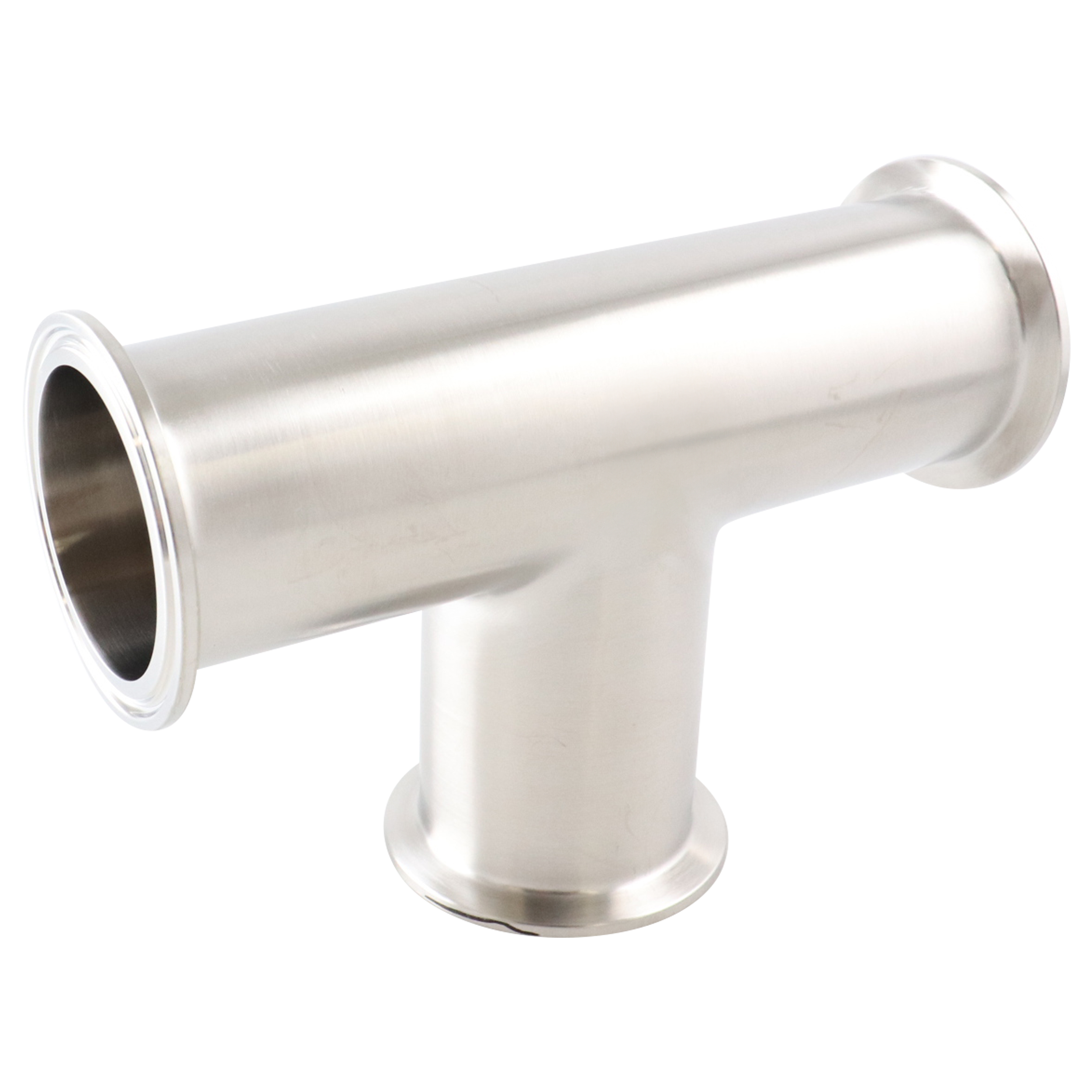

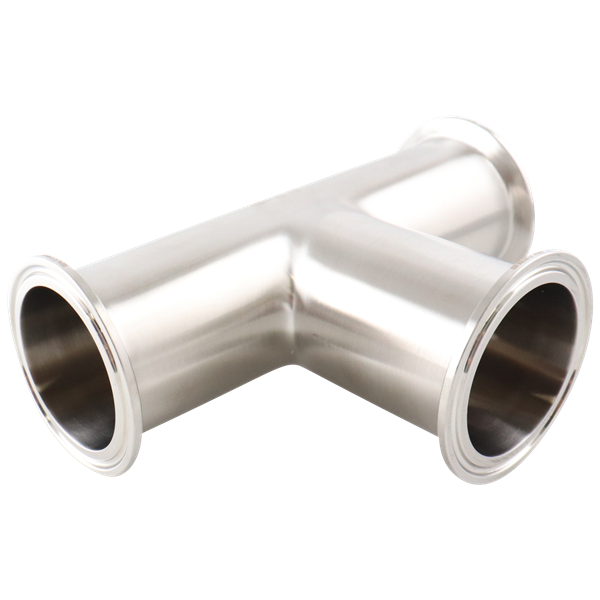

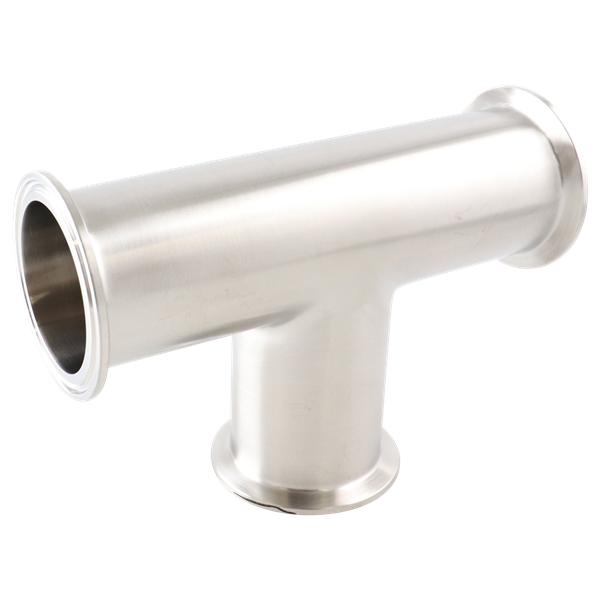

TEE 1" TC 316L 20RA ID 32RA OD SF1 BPE
B7MP-1-316L-PL
Net Price: $59.94 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tees |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 1" |
| Connection Type 2 | Tri-Clamp |
| Specification / Standard | ASME BPE |
| Fitting Design | B7MP |
| Weight | 0.80000 |
Dimensional Data
Tri-Clamp Tee | B7MP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 2.250 | 57.15 |
| ⅜ | 9.53 | 2.250 | 57.15 |
| ½ | 12.70 | 2.375 | 60.33 |
| ¾ | 19.05 | 2.500 | 63.40 |
| 1 | 25.40 | 2.625 | 66.68 |
| 1½ | 38.10 | 2.875 | 73.03 |
| 2 | 50.80 | 3.375 | 85.73 |
| 2½ | 63.50 | 3.625 | 92.08 |
| 3 | 76.20 | 3.875 | 98.43 |
| 4 | 101.60 | 4.750 | 120.65 |
| 6 | 152.40 | 7.125 | 180.98 |
| BPE DT-4.1.2-4 | 2009 BPE DT-18 | |||
B7MP-1 3D Model
Fittings Reference Sheet
