CAP 1" 1.5" TC 316L 20RA ID 32RA OD SF1 BPE
16AMP-1.5-316L-PL

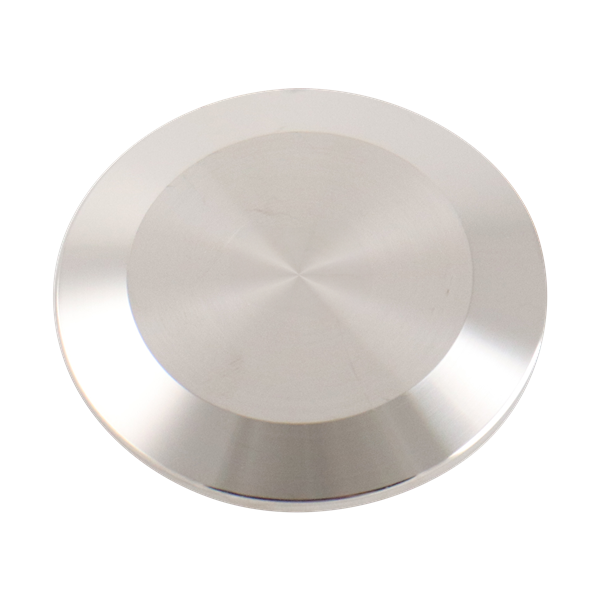

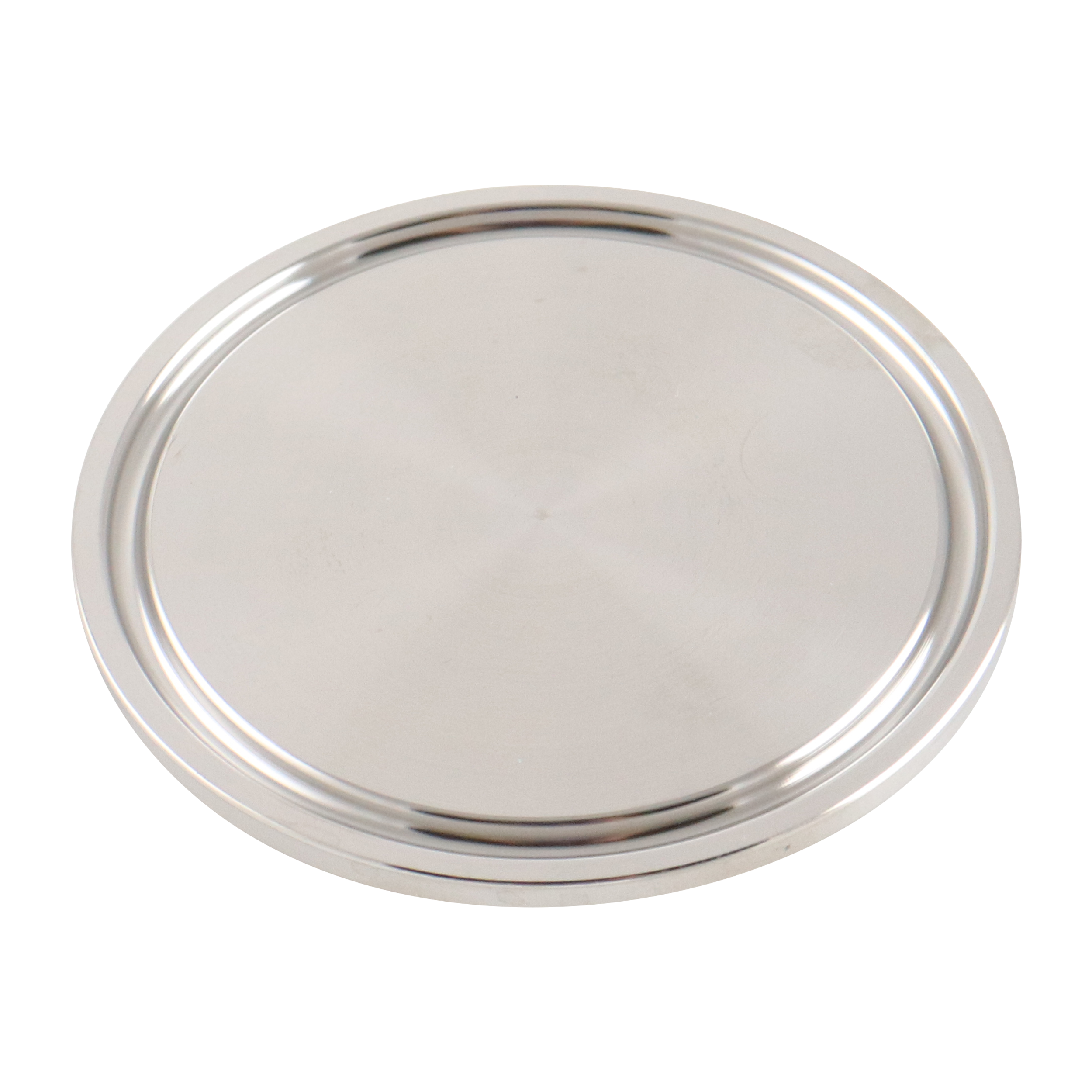

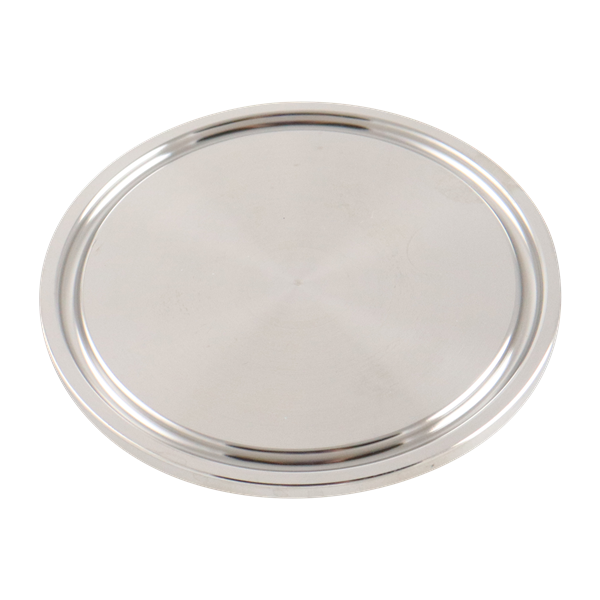

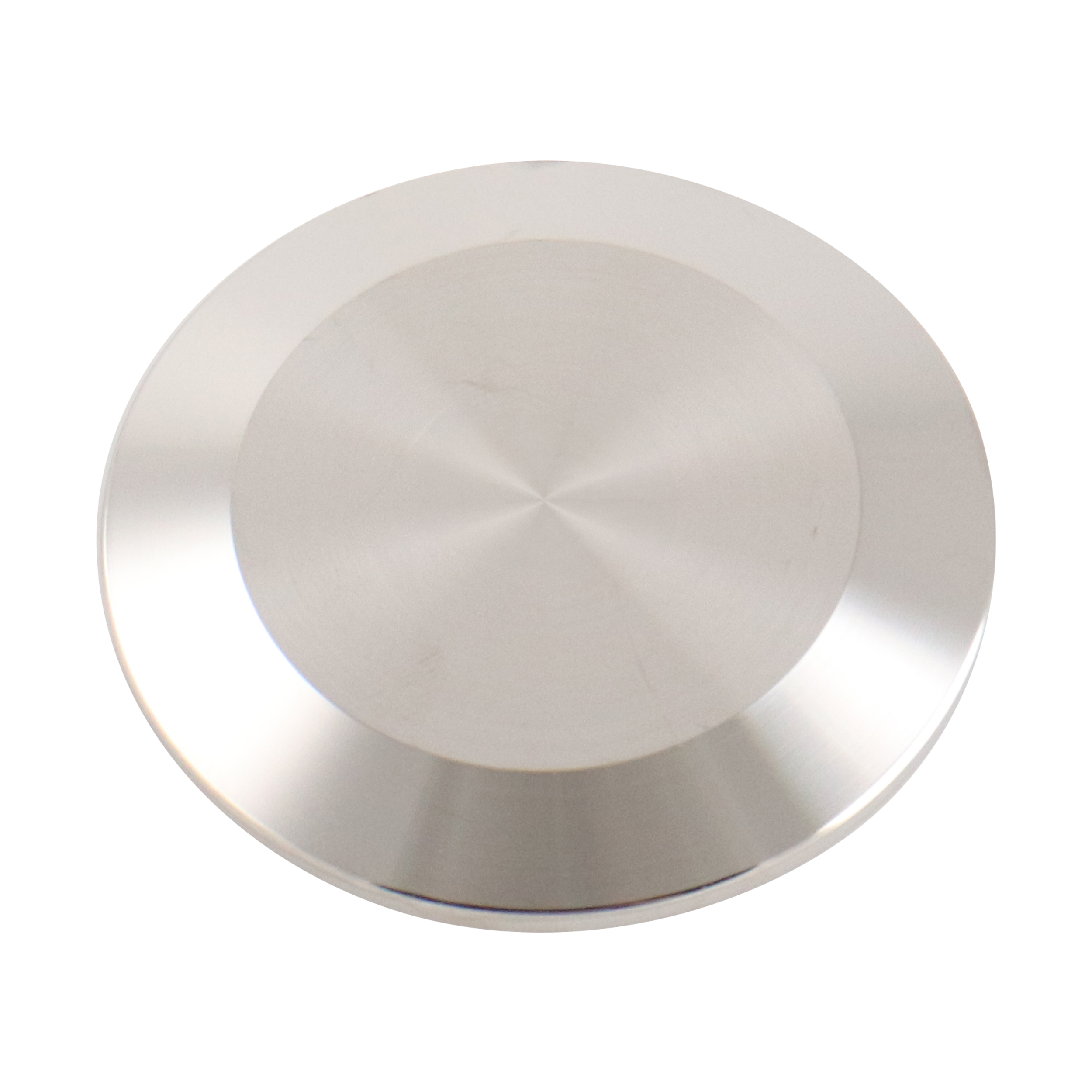

The 16AMP Cap - 1" & 1.5" Tri-Clamp is a robust fitting made from 316L Stainless Steel, renowned for its corrosion resistance and durability. It boasts a 20Ra ID and 32Ra OD, providing a sanitary surface that meets Bioprocessing Equipment (BPE) standards. The SF1 BPE Finish enhances its sanitary properties, making it suitable for sanitary processing applications.
This cap fits both 1" and 1.5" Tri-Clamp connections, offering versatility in various setups. The Tri-Clamp design ensures a secure, leak-proof seal, vital for system integrity. Its compact size and lightweight nature facilitate easy handling and installation, minimizing downtime. The cap complies with ASME BPE standards, ensuring reliable performance in demanding environments.
Net Price: $6.15 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Caps |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 1"-1.5" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | ASME BPE |
| Fitting Design | 16AMP |
| Weight | 0.20000 |
Dimensional Data
Tri-Clamp Solid End Cap | 16AMP-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 0.187 | 4.75 | 0.984 | 25.00 |
| ⅜ | 9.53 | 0.187 | 4.75 | 0.984 | 25.00 |
| ½ | 12.70 | 0.187 | 4.75 | 0.984 | 25.00 |
| ¾ | 19.05 | 0.187 | 4.75 | 0.984 | 25.00 |
| 1 | 25.40 | 0.250 | 6.35 | 1.984 | 50.40 |
| 1½ | 38.10 | 0.250 | 6.35 | 1.984 | 50.40 |
| 2 | 50.80 | 0.250 | 6.35 | 2.516 | 63.90 |
| 2½ | 63.50 | 0.250 | 6.35 | 3.047 | 77.40 |
| 3 | 76.20 | 0.250 | 6.35 | 3.579 | 90.00 |
| 4 | 101.60 | 0.312 | 7.92 | 4.682 | 119.10 |
| 6 | 152.40 | 0.437 | 11.10 | 6.575 | 167.01 |
| BPE DT-4.1.5-2 | 2009 BPE DT-31 | |||||
