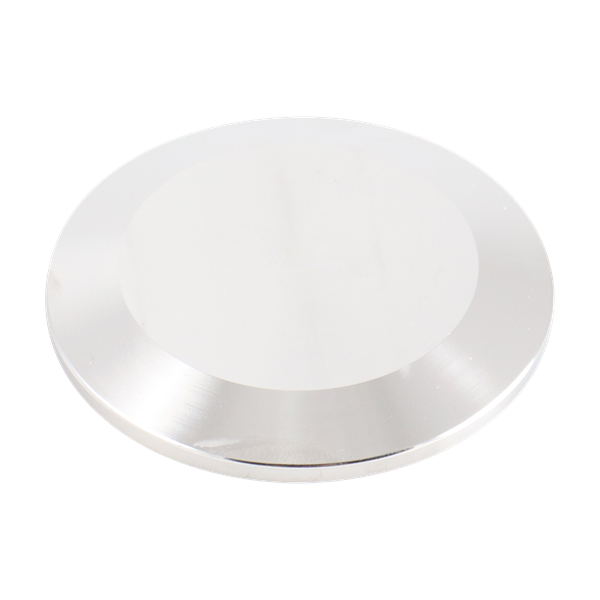

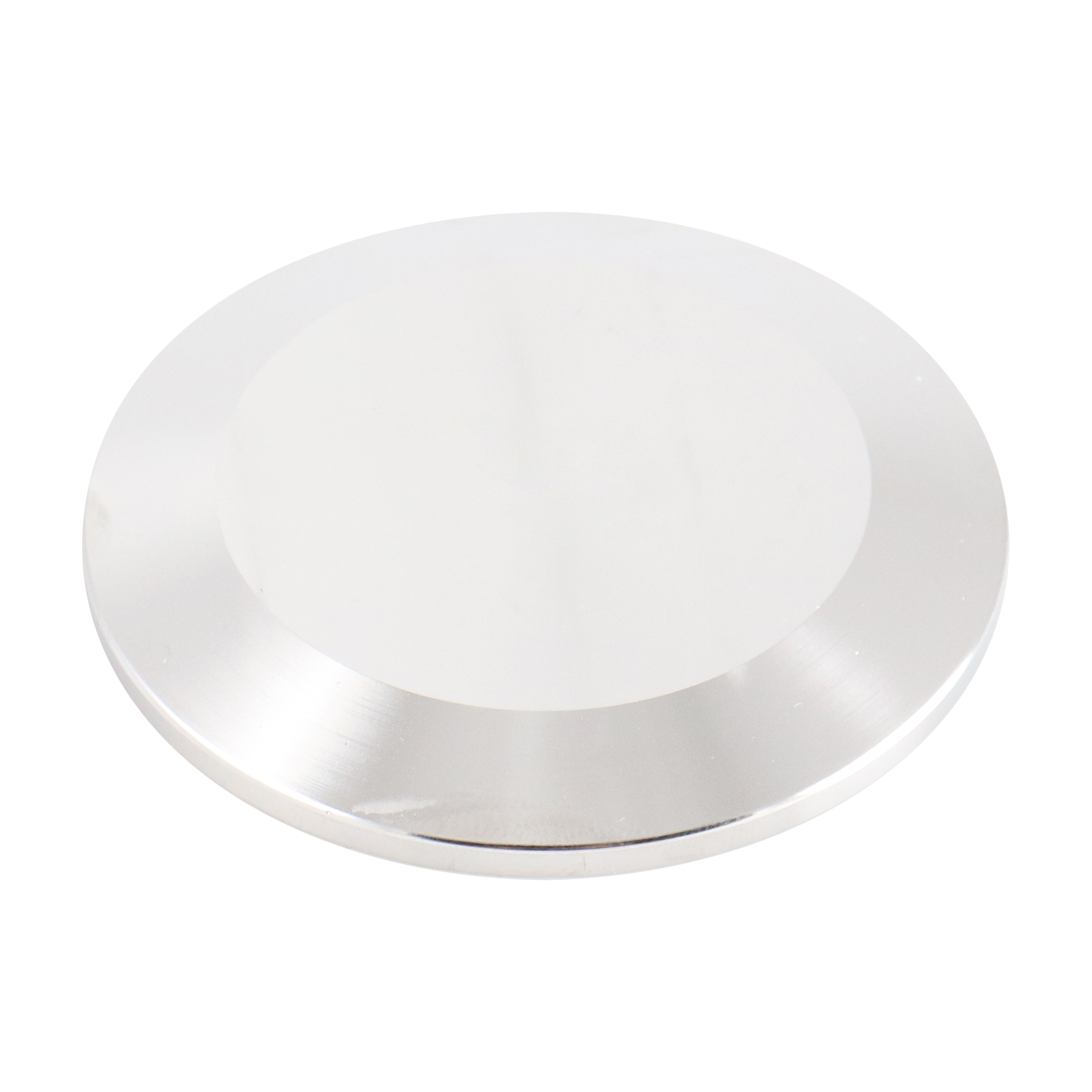

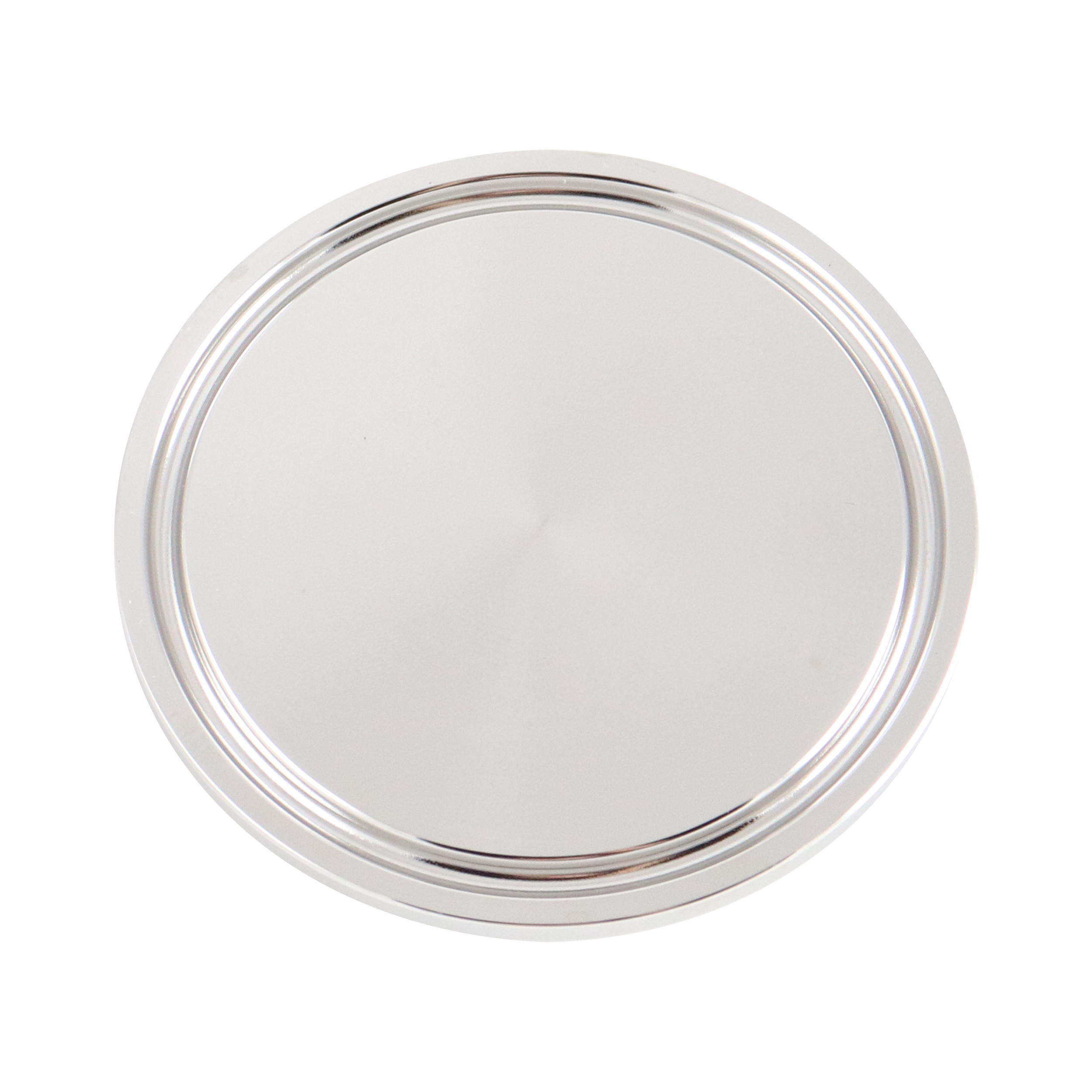

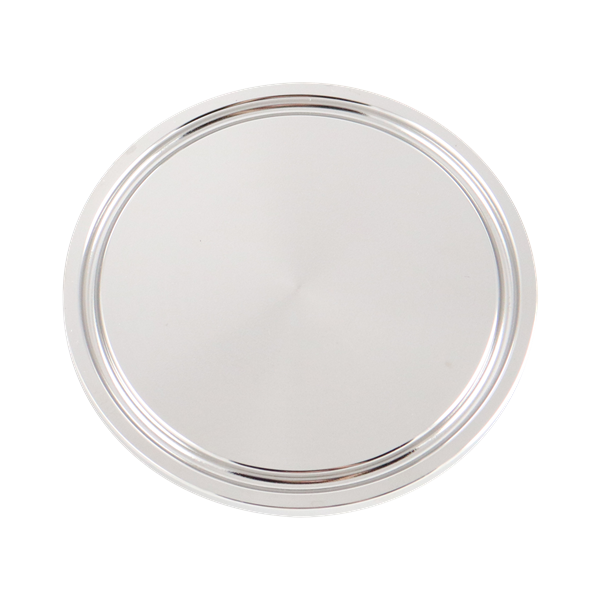

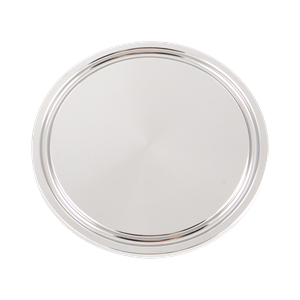

CAP 3" TC 316L 15RA EP ID 32RA OD SF4 BPE
16AMP-3-316L-PM
The 16AMP CAP - 3in Tri-Clamp 316L - 15Ra EP ID, 32Ra OD SF4 BPE is a superior fitting for sanitary processing. Crafted from 316L stainless steel, it provides excellent durability and corrosion resistance. Its 3-inch tri-clamp design ensures a secure, leak-proof connection, and its 15Ra EP ID and 32Ra OD meet BPE standards for sanitary finishes.
Compliant with ASME BPE guidelines, this cap's SF4 finish meets stringent sanitary processing requirements. Its design and finish help maintain a clean, hygienic environment, minimizing contamination risk. The cap's compact size and tri-clamp feature offer easy installation and removal, providing flexibility in various processing setups.
Net Price: $27.36 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Caps |
| Material | 316L Stainless Steel |
| Finish | 15Ra EP ID / 32Ra OD |
| Size 1 | 3" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | ASME BPE |
| Fitting Design | 16AMP |
| Weight | 0.65000 |
Dimensional Data
Tri-Clamp Solid End Cap | 16AMP-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 0.187 | 4.75 | 0.984 | 25.00 |
| ⅜ | 9.53 | 0.187 | 4.75 | 0.984 | 25.00 |
| ½ | 12.70 | 0.187 | 4.75 | 0.984 | 25.00 |
| ¾ | 19.05 | 0.187 | 4.75 | 0.984 | 25.00 |
| 1 | 25.40 | 0.250 | 6.35 | 1.984 | 50.40 |
| 1½ | 38.10 | 0.250 | 6.35 | 1.984 | 50.40 |
| 2 | 50.80 | 0.250 | 6.35 | 2.516 | 63.90 |
| 2½ | 63.50 | 0.250 | 6.35 | 3.047 | 77.40 |
| 3 | 76.20 | 0.250 | 6.35 | 3.579 | 90.00 |
| 4 | 101.60 | 0.312 | 7.92 | 4.682 | 119.10 |
| 6 | 152.40 | 0.437 | 11.10 | 6.575 | 167.01 |
| BPE DT-4.1.5-2 | 2009 BPE DT-31 | |||||
Fittings Reference Sheet
