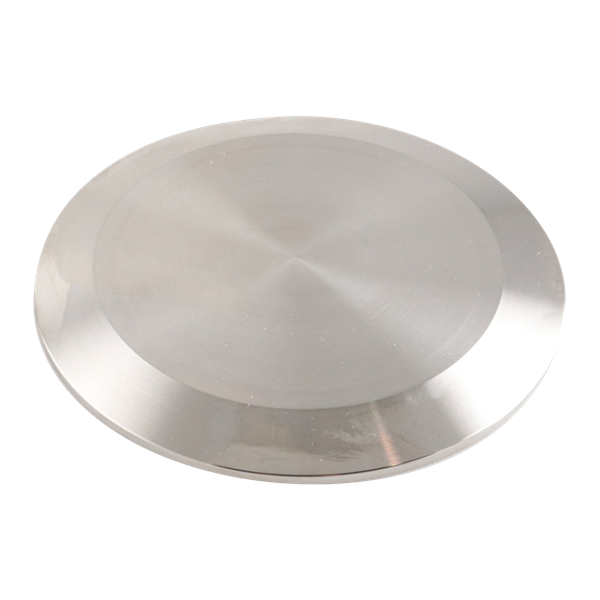

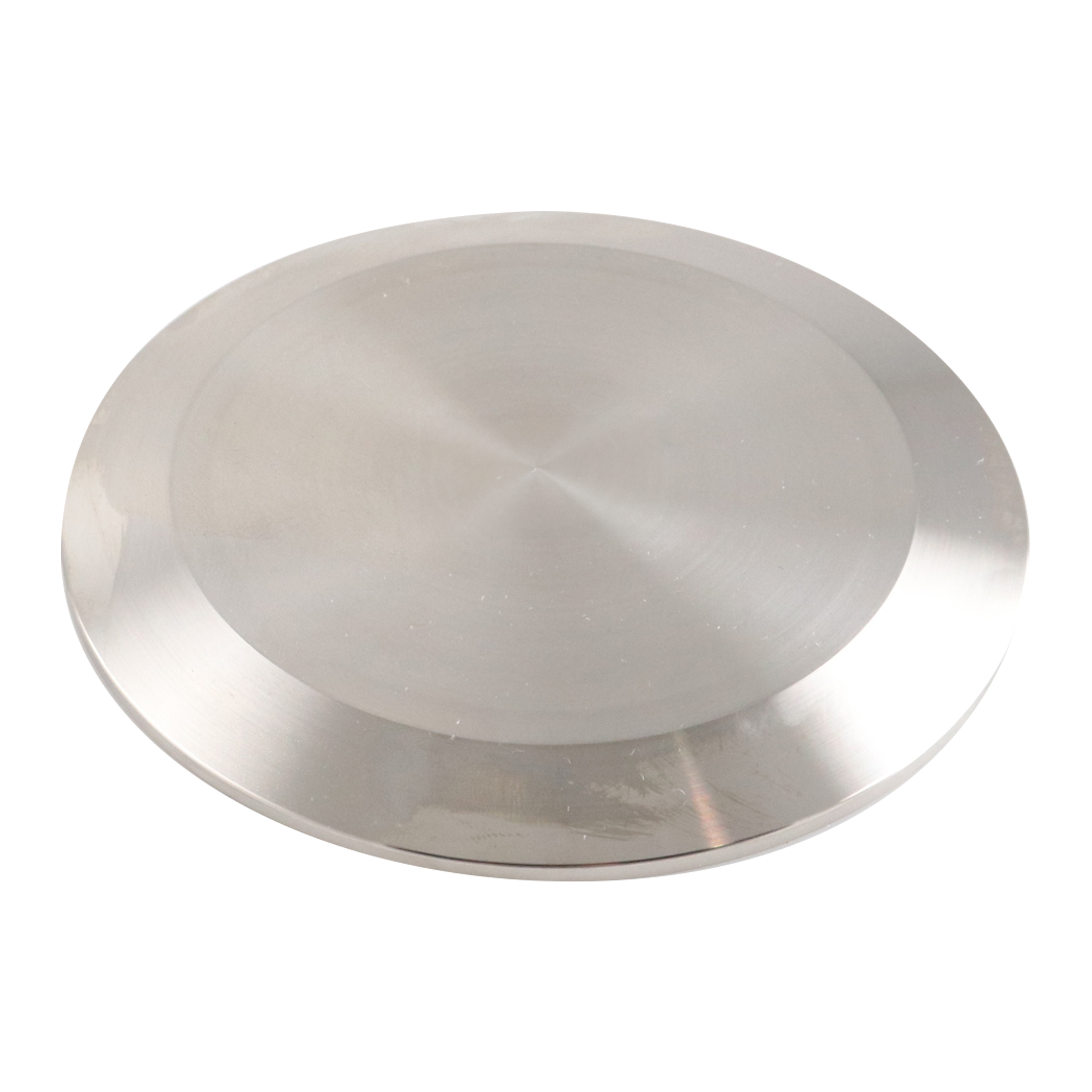

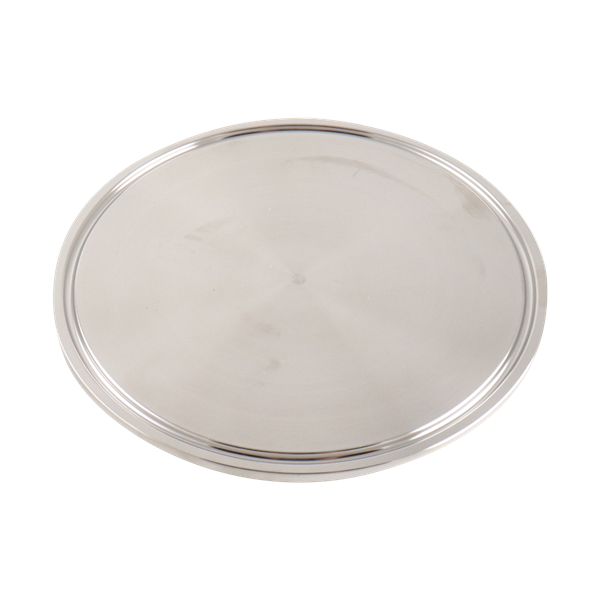

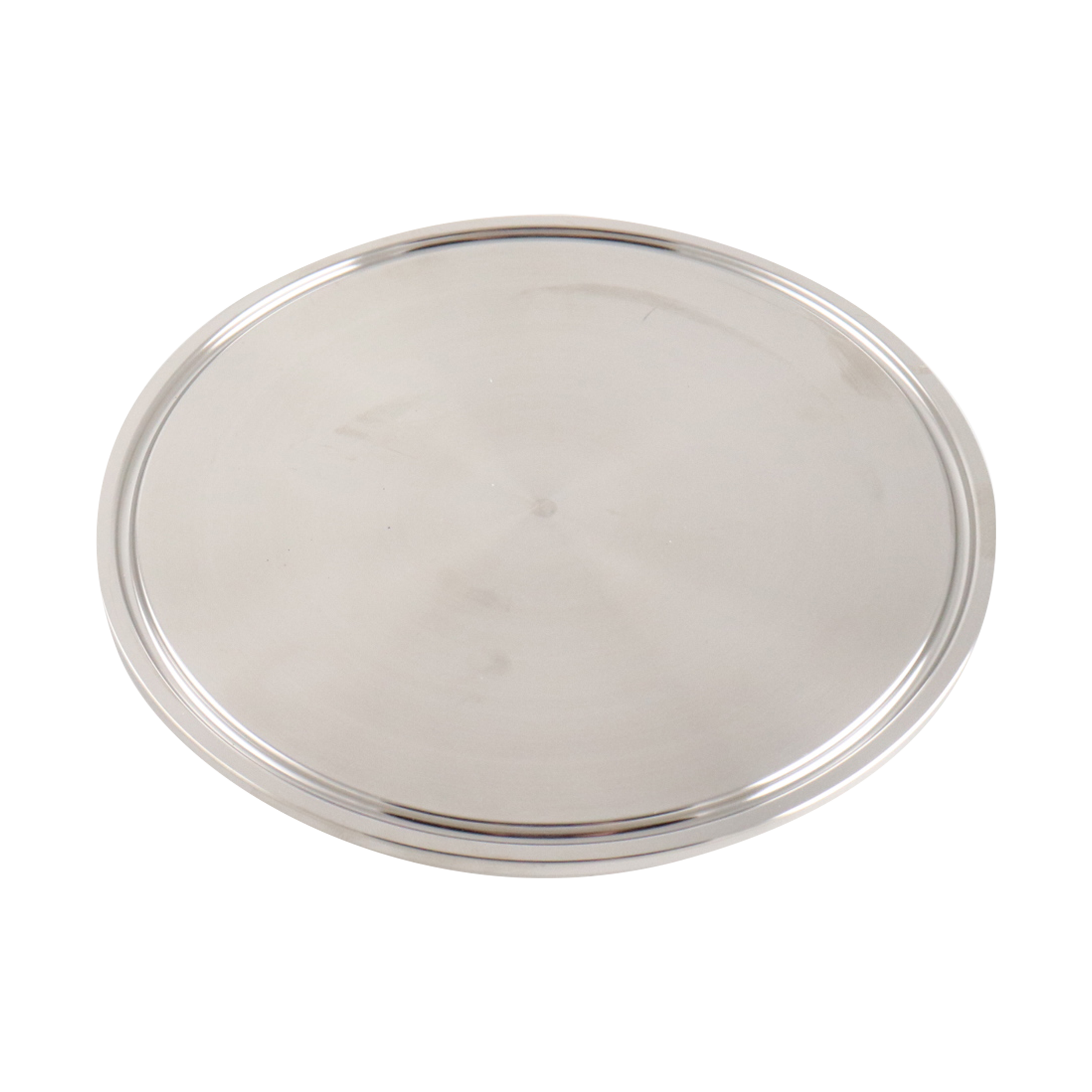

CAP 4" TC 316L 20RA ID 32RA OD SF1 BPE
16AMP-4-316L-PL
The 16AMP CAP - 4in Tri-Clamp 316L is a top-tier fitting, compliant with Bio-Processing Equipment (BPE) standards. Made from 316L stainless steel, it offers excellent corrosion resistance and durability. The interior and exterior finishes meet sanitary requirements, making this cap perfect for secure, efficient tri-clamp sealing.
At 4 inches, it fits snugly onto tri-clamp fittings, ensuring a leak-proof seal. Meeting the SF1 BPE standard, it's undergone stringent testing, proving its reliability for sanitary processing. Ideal for pharmaceutical, biotech, or food and beverage industries, this BPE Tri-Clamp Cap maintains your system's integrity.
Net Price: $41.87 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Caps |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 4" |
| Connection Type 1 | Tri-Clamp |
| Specification / Standard | ASME BPE |
| Fitting Design | 16AMP |
| Weight | 1.50000 |
Dimensional Data
Tri-Clamp Solid End Cap | 16AMP-Size-Material-Finish
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ¼ | 6.35 | 0.187 | 4.75 | 0.984 | 25.00 |
| ⅜ | 9.53 | 0.187 | 4.75 | 0.984 | 25.00 |
| ½ | 12.70 | 0.187 | 4.75 | 0.984 | 25.00 |
| ¾ | 19.05 | 0.187 | 4.75 | 0.984 | 25.00 |
| 1 | 25.40 | 0.250 | 6.35 | 1.984 | 50.40 |
| 1½ | 38.10 | 0.250 | 6.35 | 1.984 | 50.40 |
| 2 | 50.80 | 0.250 | 6.35 | 2.516 | 63.90 |
| 2½ | 63.50 | 0.250 | 6.35 | 3.047 | 77.40 |
| 3 | 76.20 | 0.250 | 6.35 | 3.579 | 90.00 |
| 4 | 101.60 | 0.312 | 7.92 | 4.682 | 119.10 |
| 6 | 152.40 | 0.437 | 11.10 | 6.575 | 167.01 |
| BPE DT-4.1.5-2 | 2009 BPE DT-31 | |||||
