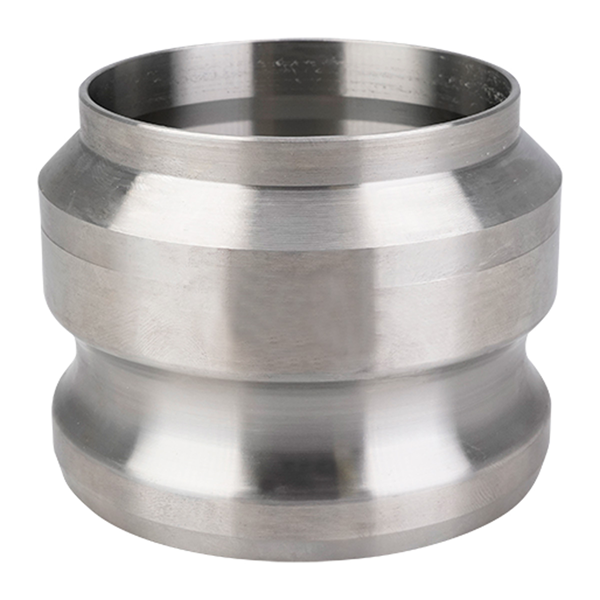

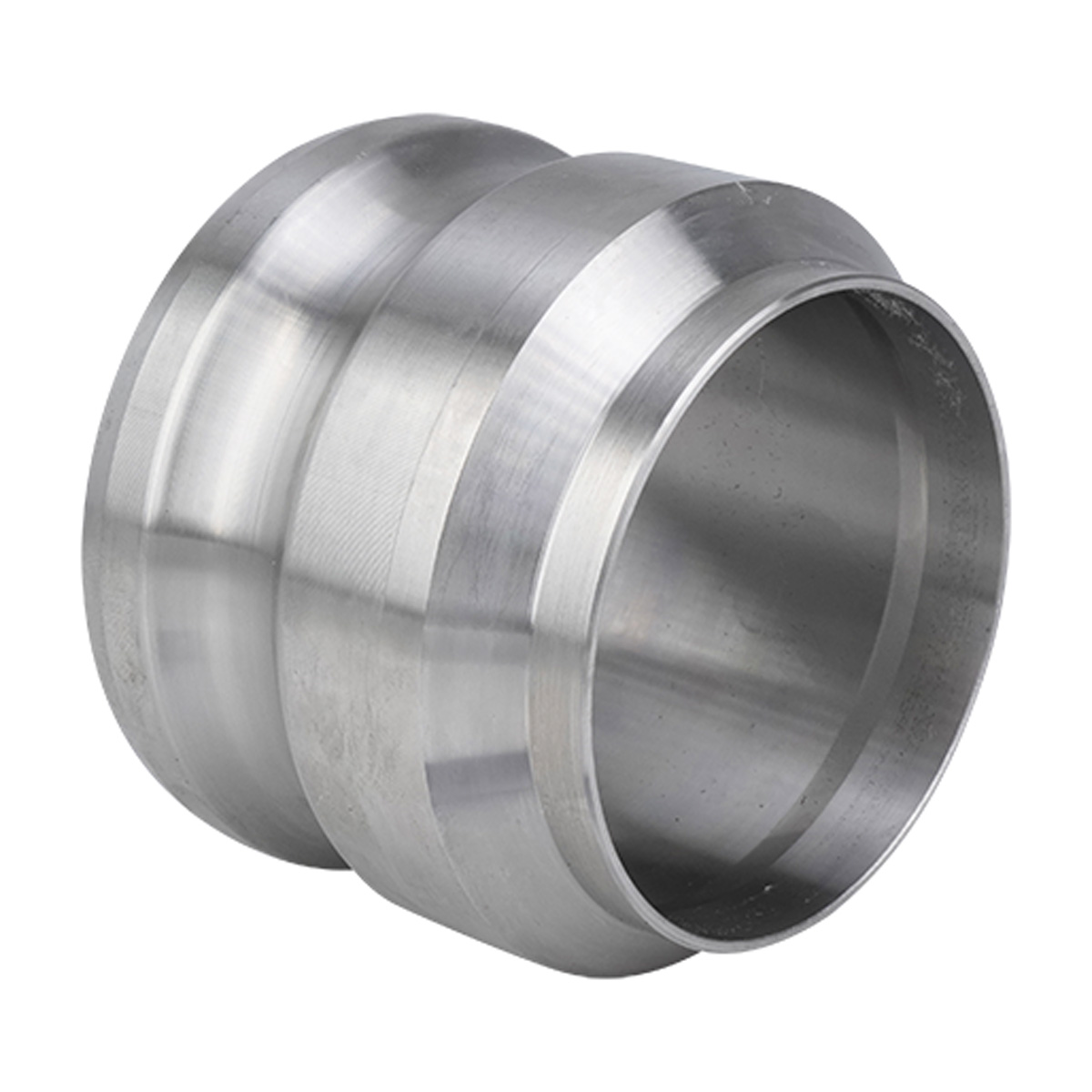

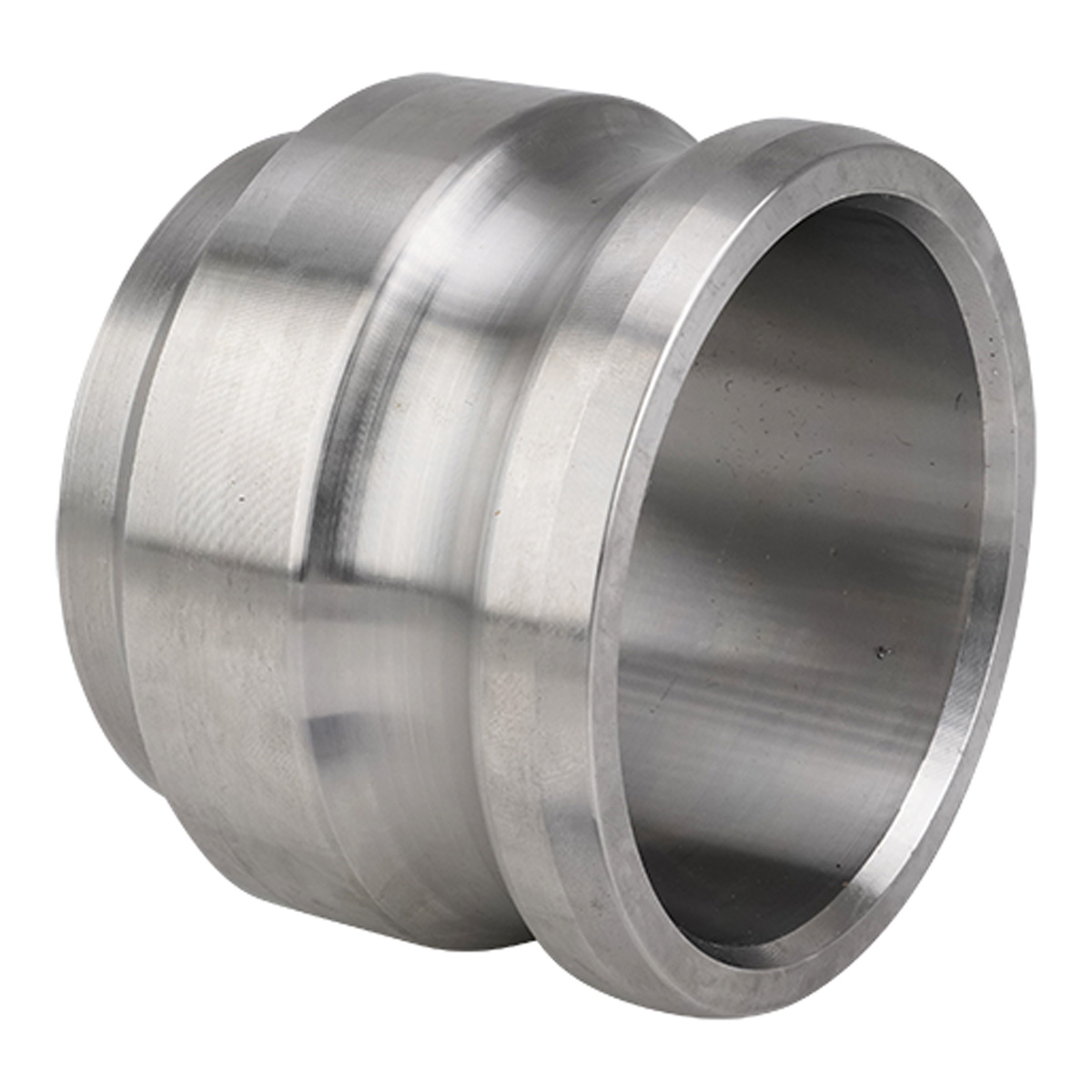

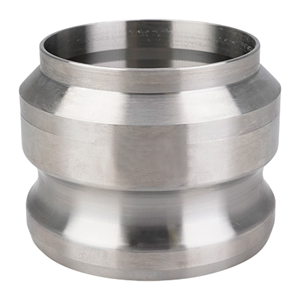

CAMLOCK CAM & GROOVE 3" MALE ADAPTER X BW 0.065" WALL 316

30AWB-316

Net Price: $157.04 / EA

Have an account? Login now.

Availability:
Product Type Camlock Fittings
Product Subtype Adapters
Material 316 Stainless Steel
Size 1 3"
Connection Type 1 Male Camlock
Size 2 3"
Connection Type 2 Butt Weld
Fitting Design AWB
Wall Thickness 0.065"
Weight 1.81200

Camlock Male Adapter x Butt Weld Tube OD
Nominal Size Tube Wall Thickness A B
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
½ 12.70 0.065 1.651 1.43 36.32 0.53 13.46
¾ 19.05 0.065 1.651 1.40 35.56 0.75 19.05
1 25.40 0.065 1.651 1.70 43.18 0.88 22.35
1½ 38.10 0.065 1.651 2.10 53.34 1.06 26.92
2 50.80 0.065 1.651 2.50 63.50 1.25 31.75
2½ 63.50 0.065 1.651 2.40 60.96 1.75 44.45
3 76.20 0.065 1.651 2.80 71.12 2.81 71.37
4 101.60 0.083 2.108 3.00 76.20 3.75 95.25
6 152.40 0.109 2.769 2.90 73.66 5.84 148.34
