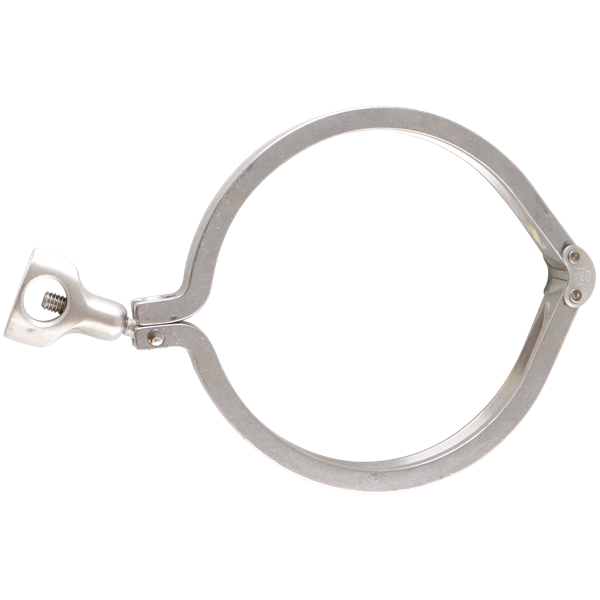

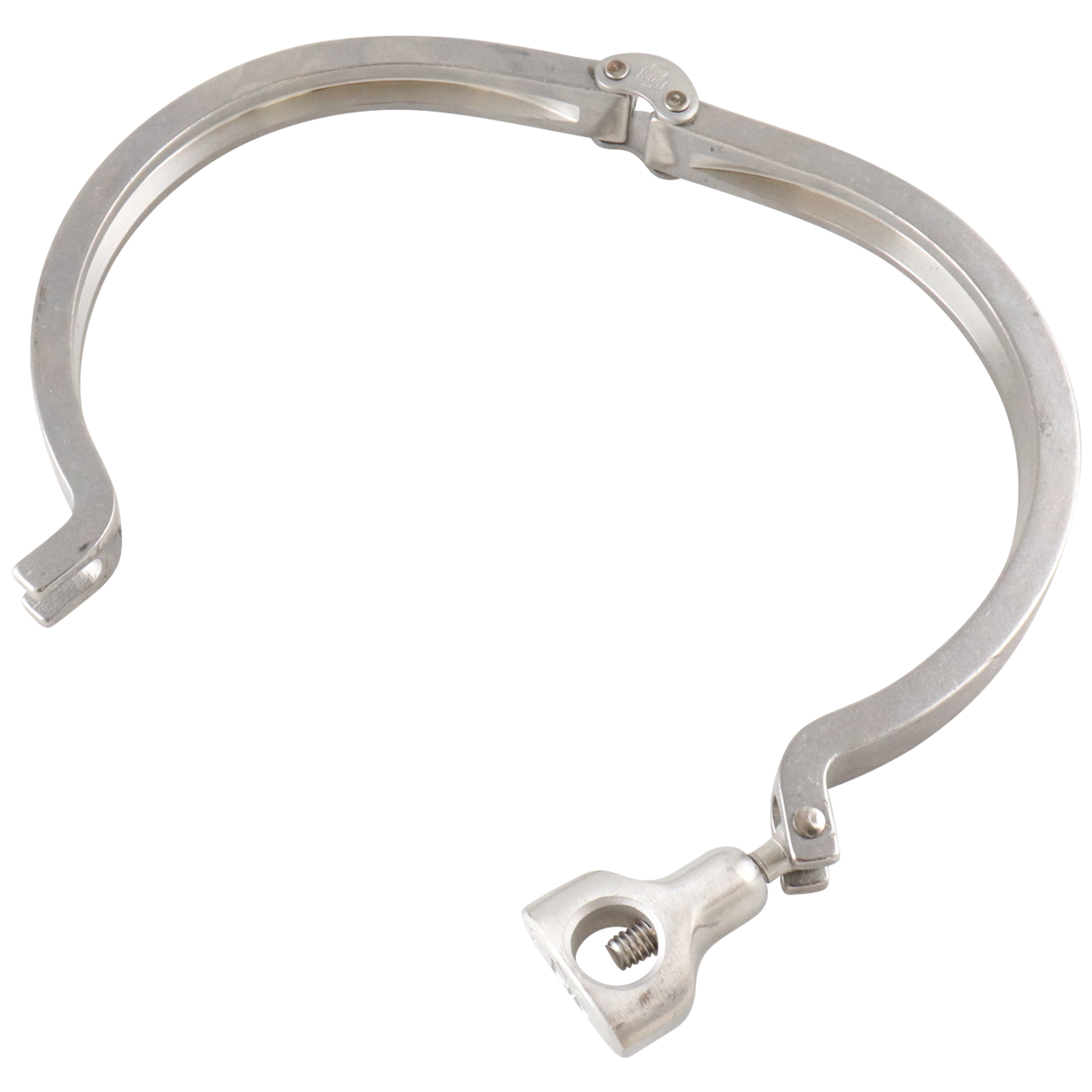

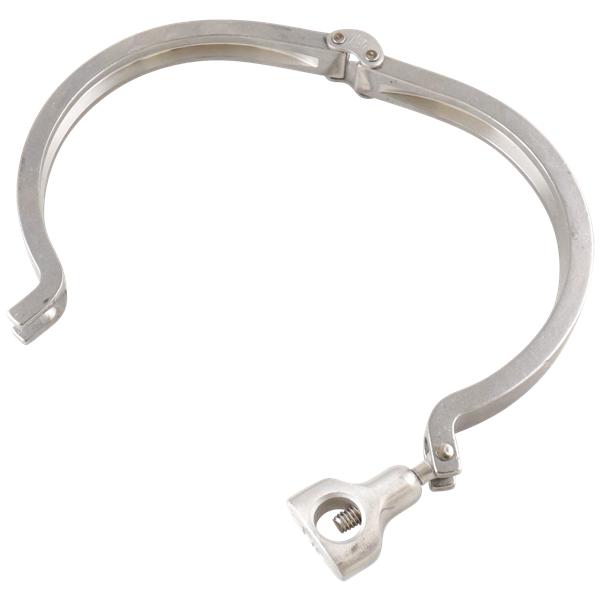

CLAMP HEAVY TWO PIECE 5" TC DOUBLE PIN 304
13MHHM-5-S
Net Price: $43.90 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Clamps |
| Material | 304 Stainless Steel |
| Size 1 | 5" |
| Connection Type 1 | Tri-Clamp |
| Fitting Design | 13MHHM |
| Weight | 1.46880 |
Dimensional Data
Tri-Clamp | 13MHHM-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¾ | 19.05 | 1.13 | 28.70 |
| 1½ | 38.10 | 2.13 | 54.10 |
| 2 | 50.80 | 2.66 | 67.56 |
| 2½ | 63.50 | 3.19 | 81.03 |
| 3 | 76.20 | 3.72 | 94.49 |
| 4 | 101.60 | 4.83 | 122.68 |
| 6 | 152.40 | 6.69 | 169.93 |
| 8 | 203.20 | 8.69 | 220.73 |
| 10 | 254.00 | 10.71 | 272.03 |
| 12 | 304.80 | 12.72 | 323.09 |
