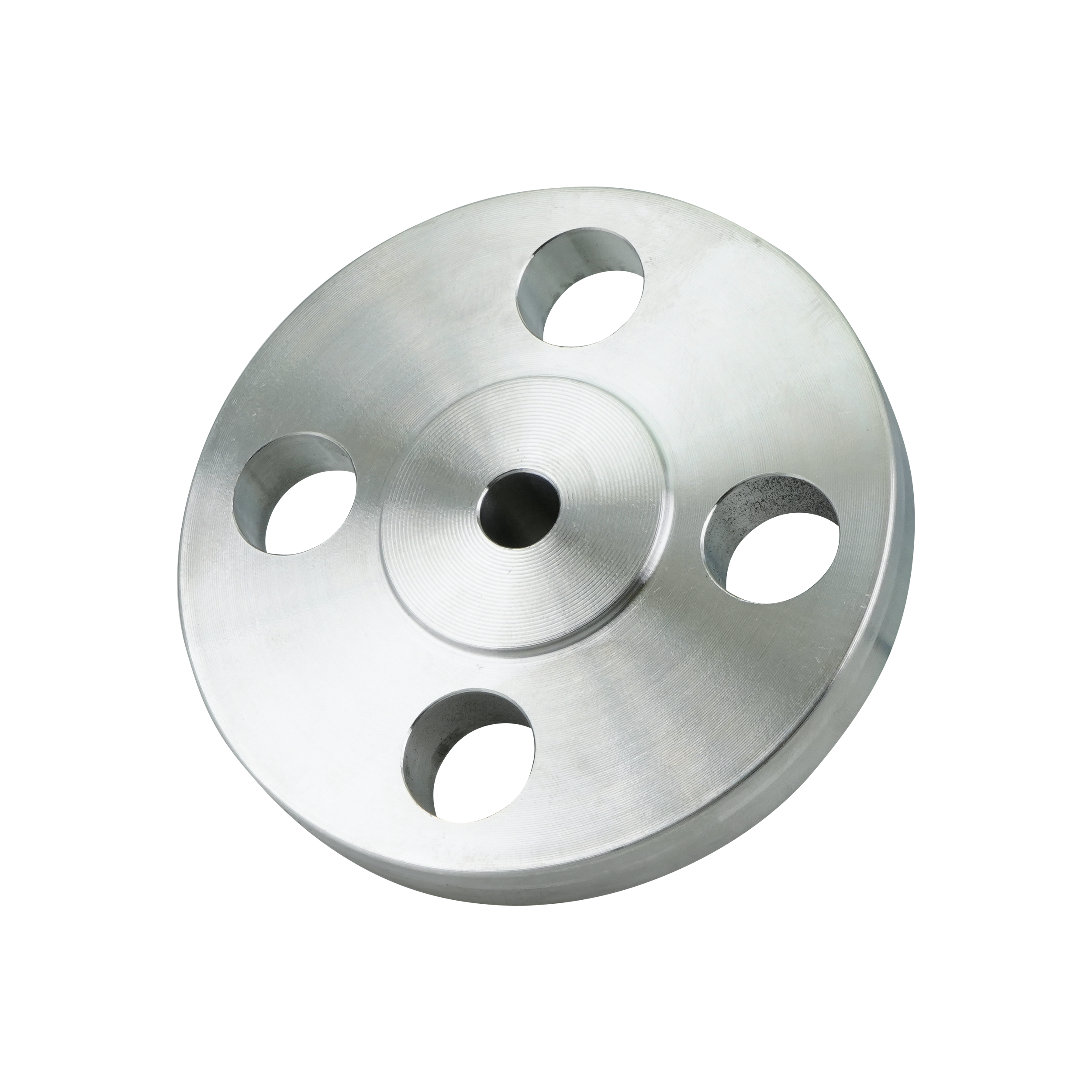

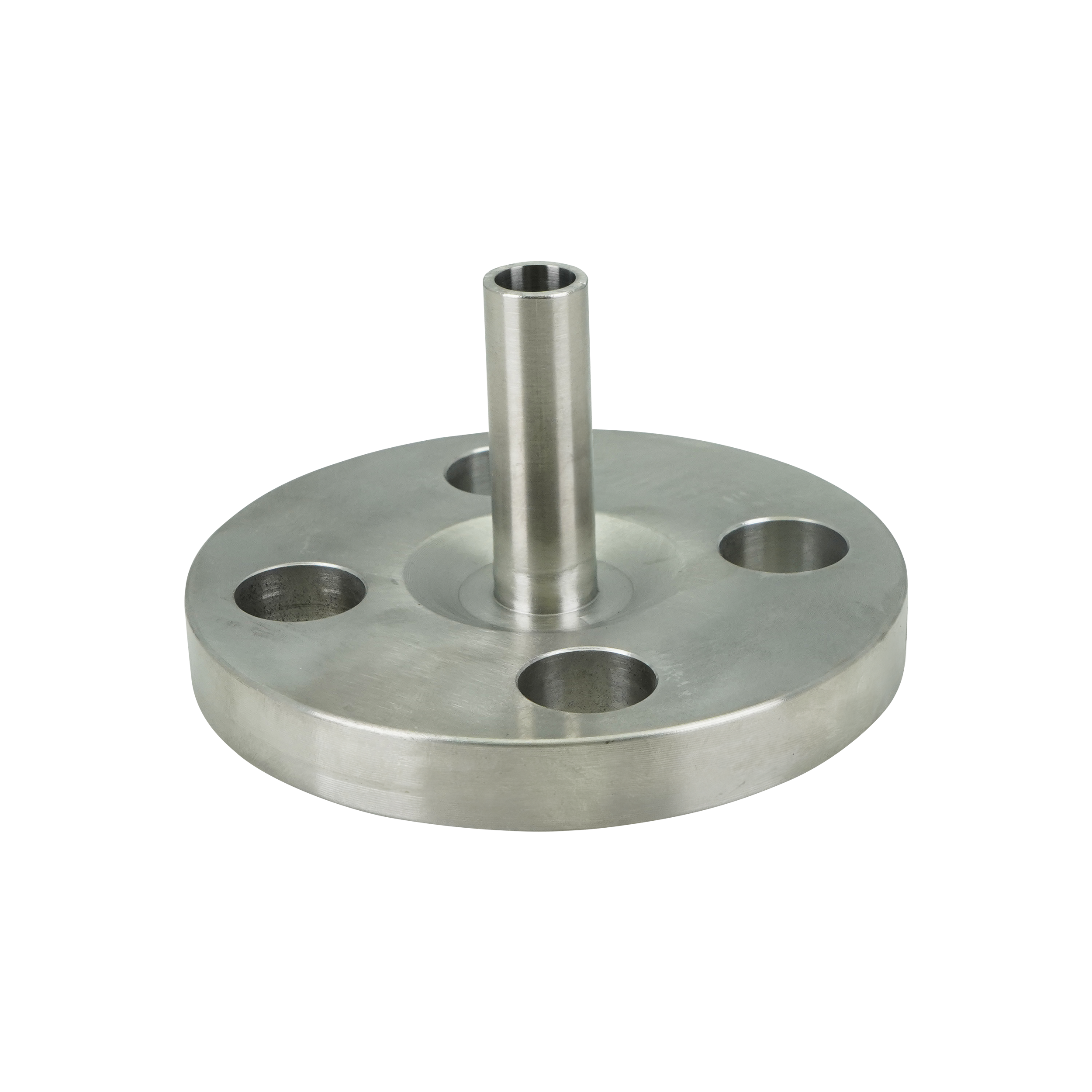

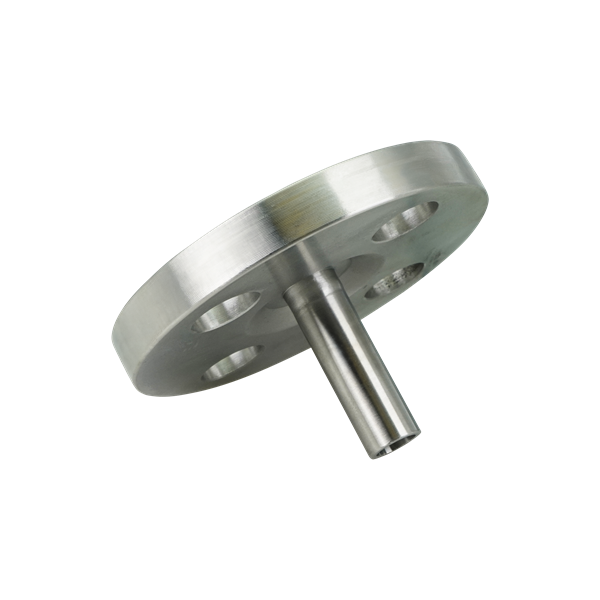

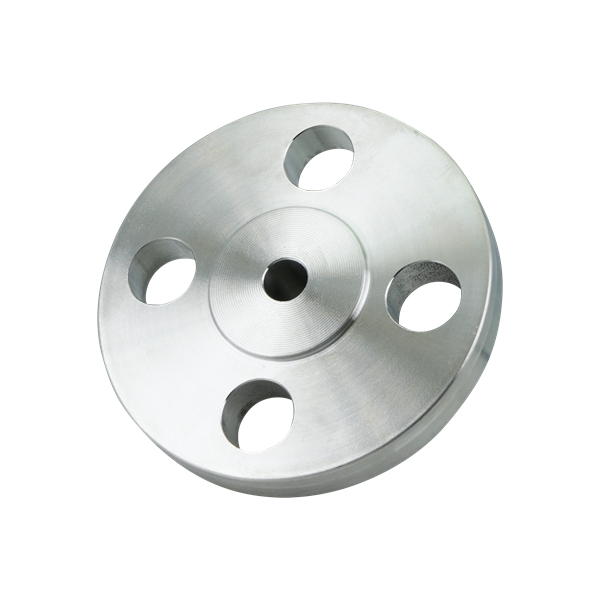

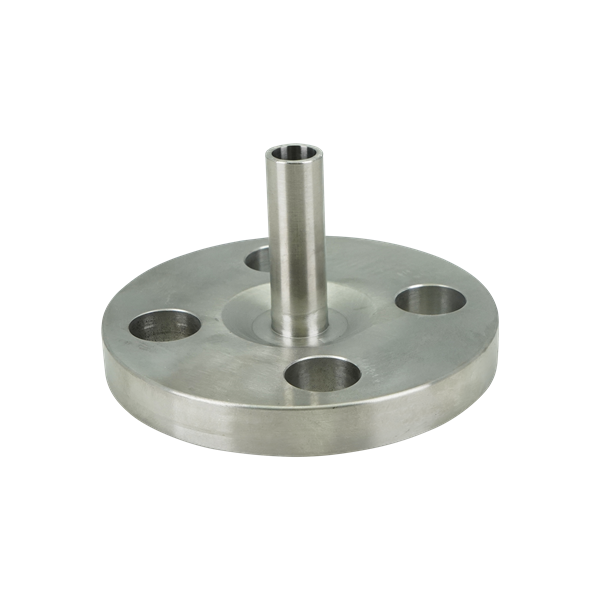

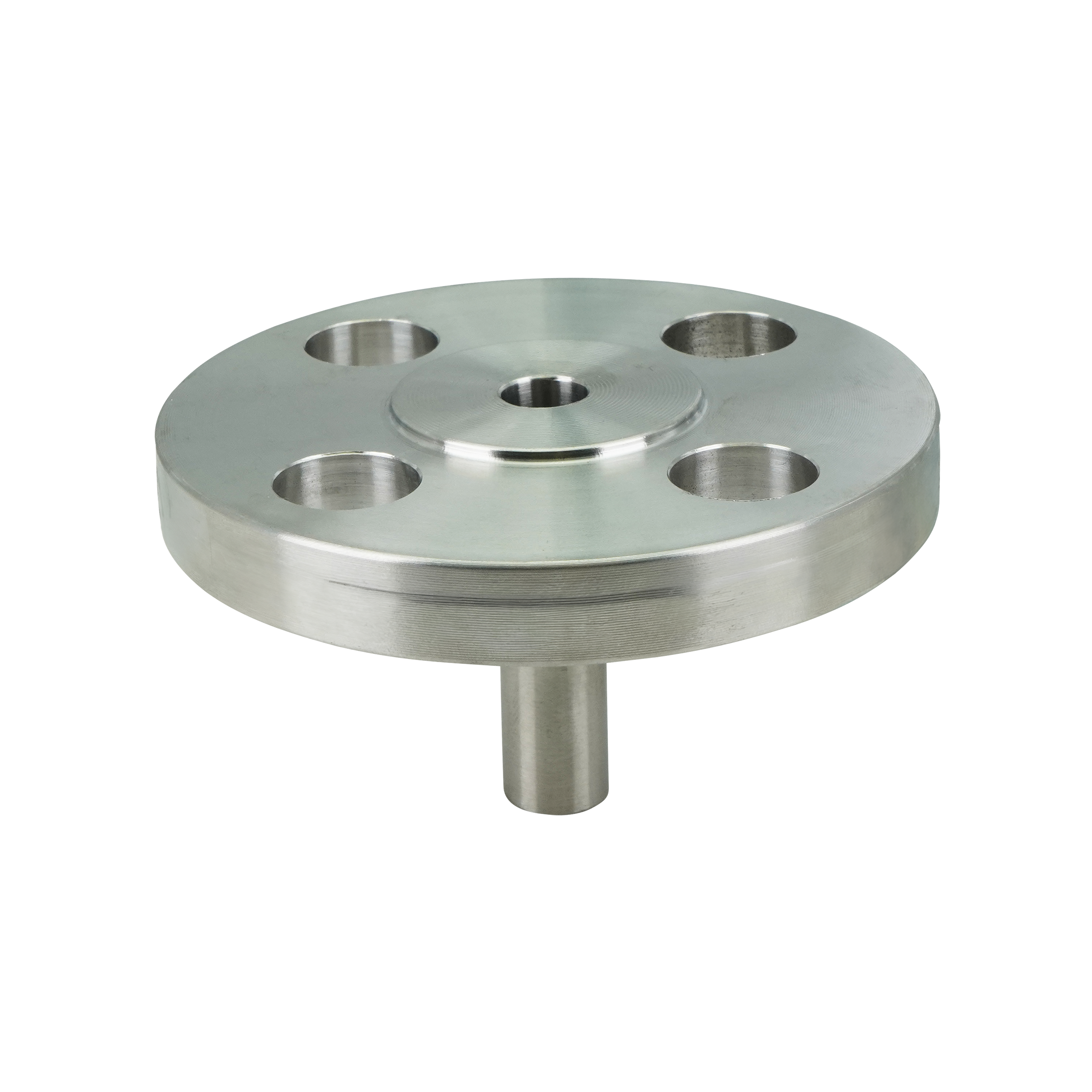

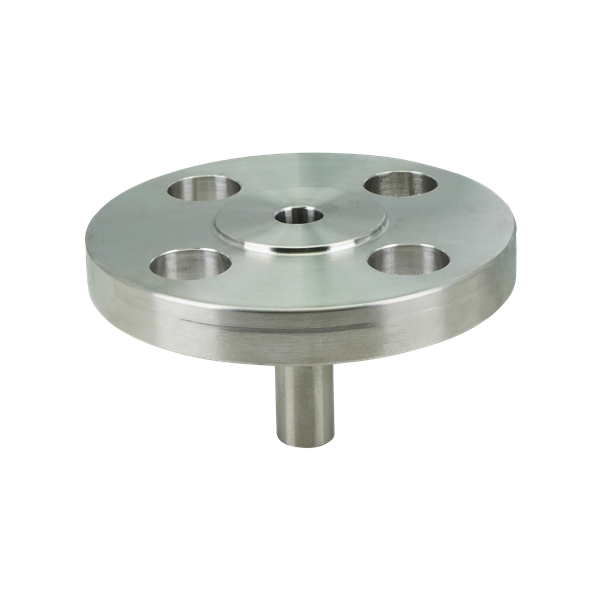

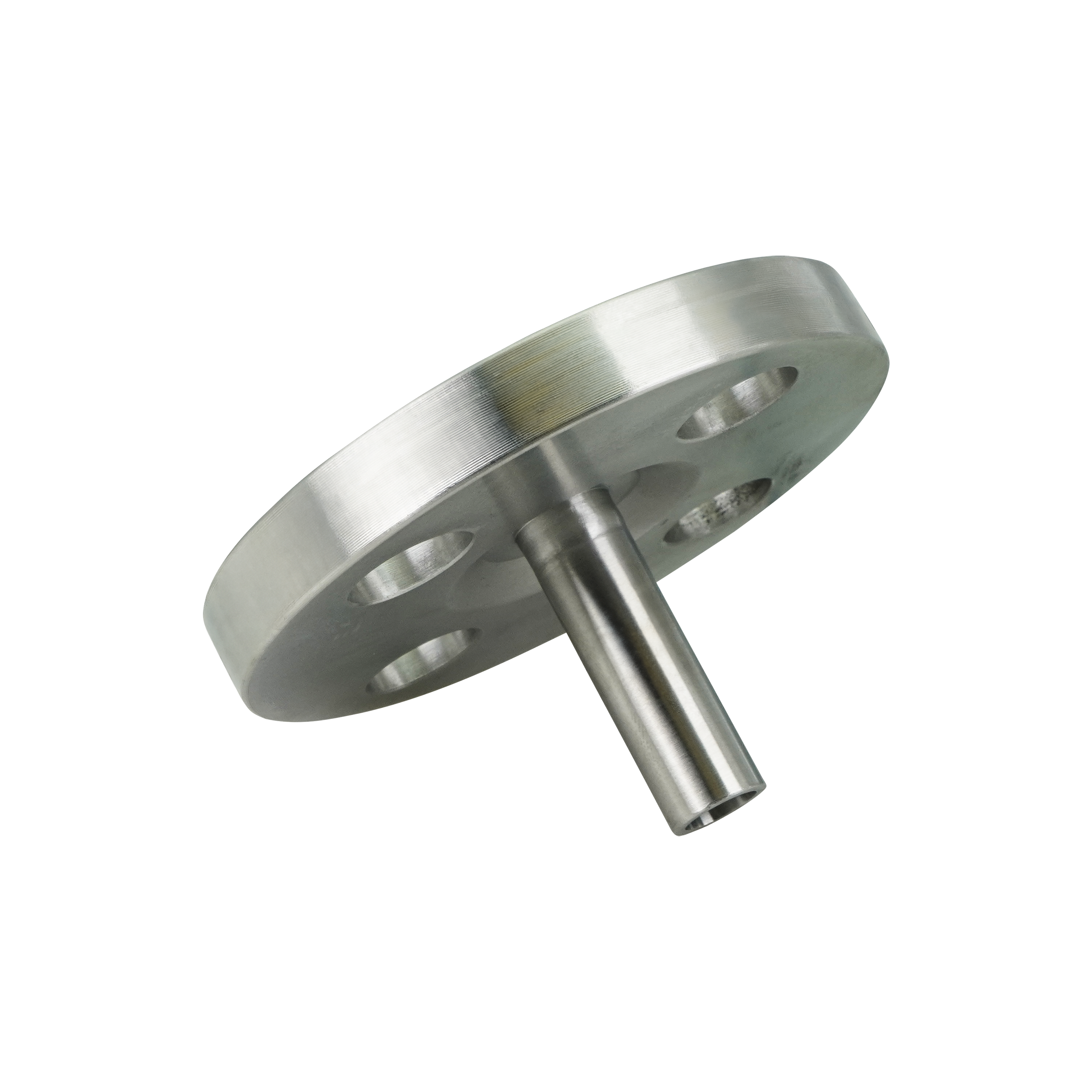

ADAPTER 0.5" 150# FLANGE X BW W/ WELD TANGENT 316L

38BW-0.5-316L

USUALLY SHIPS IN 1-2 DAYS

LEAD TIMES MAY VARY BECAUSE THIS IS AN ASSEMBLED OR MANUFACTURED PART

Net Price: $135.00 / EA

Have an account? Login now.

Availability:
  • Total: 1
Product Availability
Price
FLANGE PACK 0.5" WITH (4) 1/2-13 X 2 304 SS BOLT CAP SCREW (4) 1/2 304 SS HEX NUT

$3.83 / EA

  • Total: 1
Product Type Tube Fittings
Product Subtype Flange Adapters
Material 316L Stainless Steel
Size 1 0.5"
Connection Type 1 Flange
Size 2 0.5"
Connection Type 2 Butt Weld
Fitting Design 38BW
Number of Bolt Holes 4
Weight 1.05000

38BW Dimensional Diagram

Flange x Butt Weld Adapter | 38BW-Size-Material-Finish
Nominal Size A # of Bolt Holes
(in) (mm) (in) (mm)
½ 12.70 2.000 50.80 4
¾ 19.05 2.063 52.40 4
1 25.40 2.125 53.98 4
1½ 38.10 2.250 57.15 4
2 50.80 2.313 58.75 4
2½ 63.50 2.438 61.93 4
3 76.20 2.750 69.85 4
4 101.60 3.000 76.20 8
6 152.40  3.563 90.50  8
