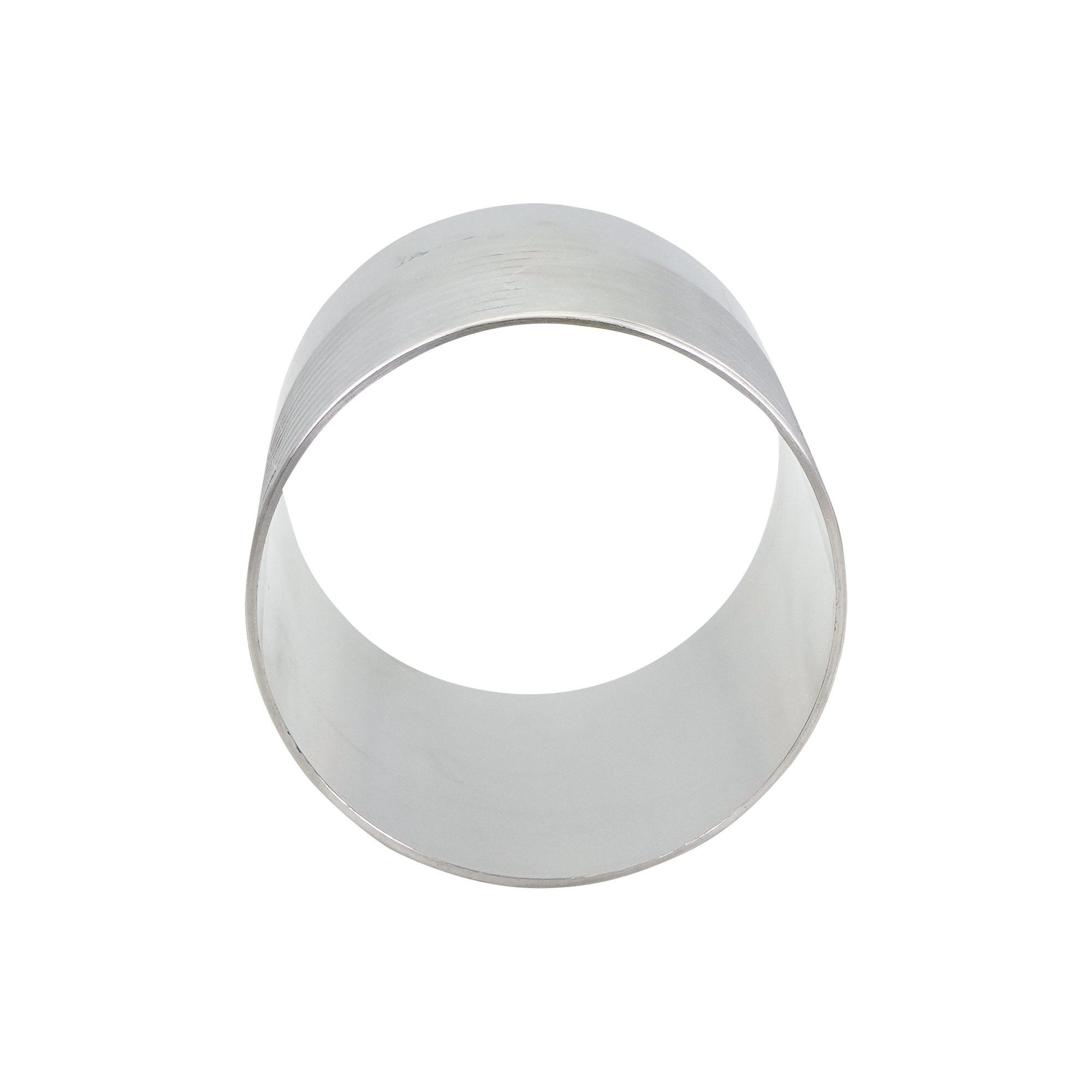

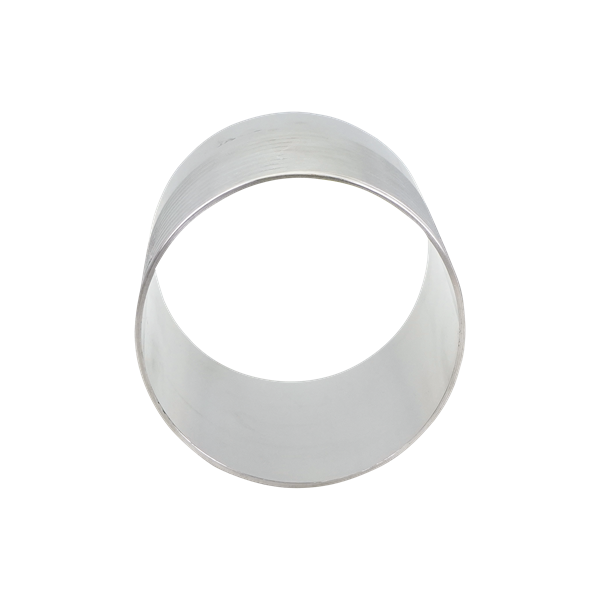

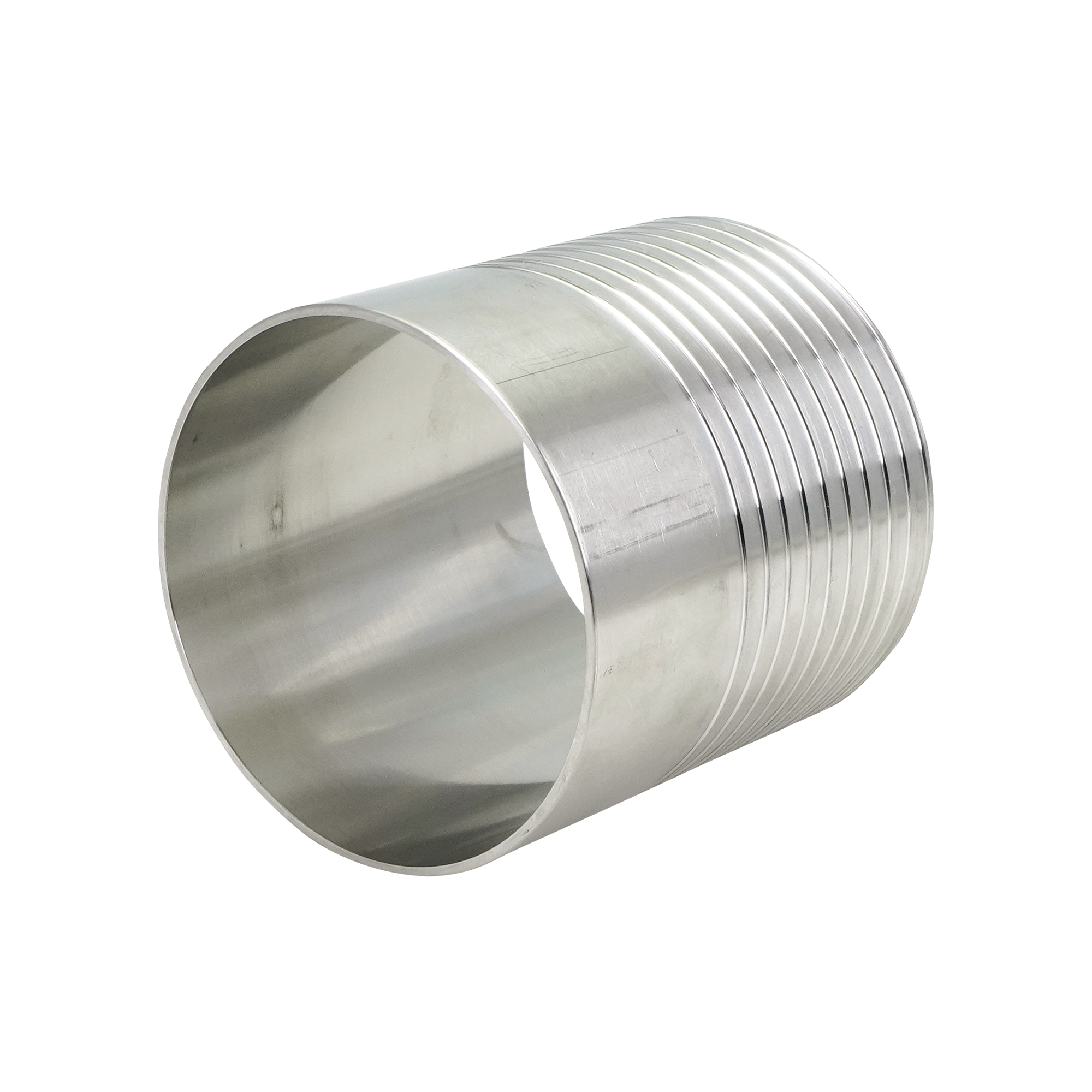

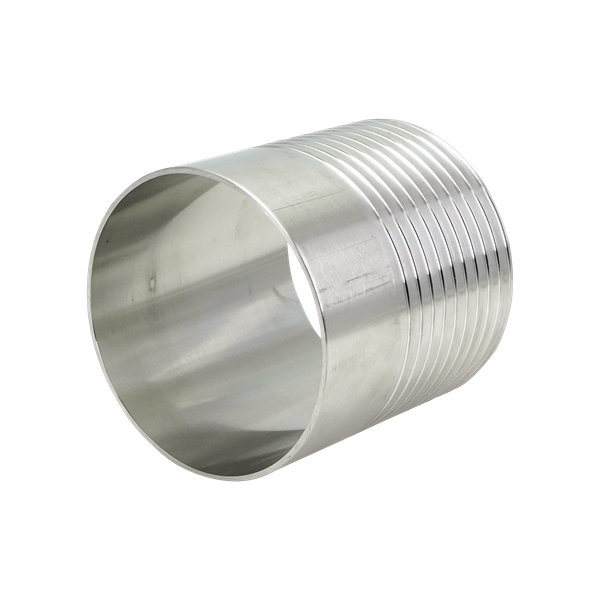

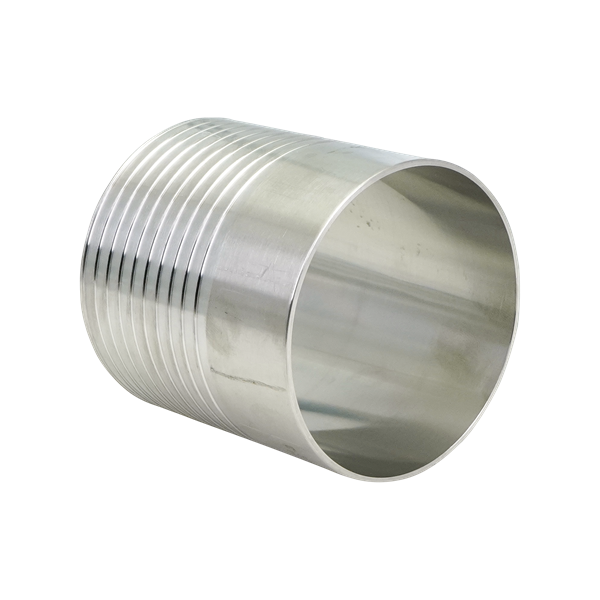

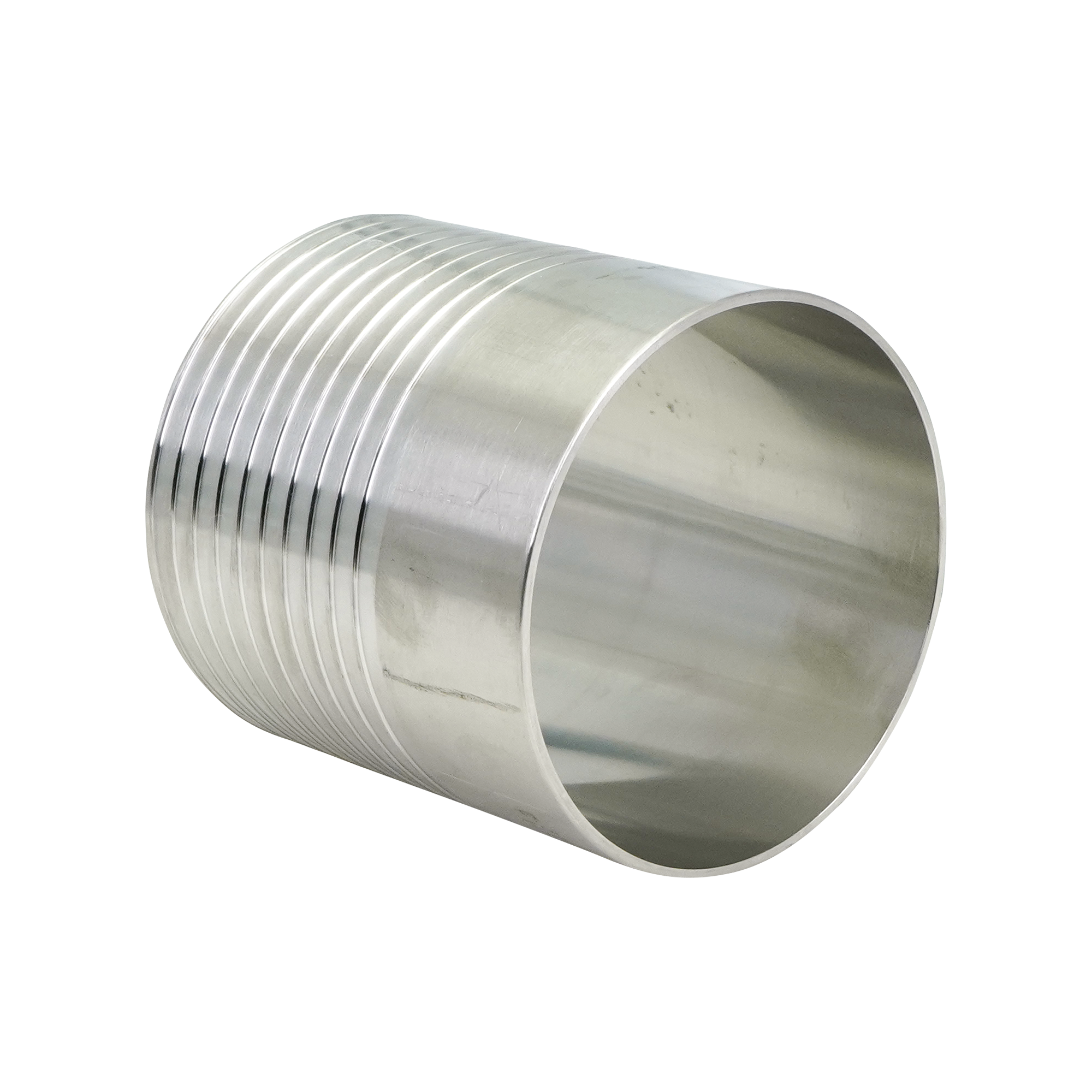

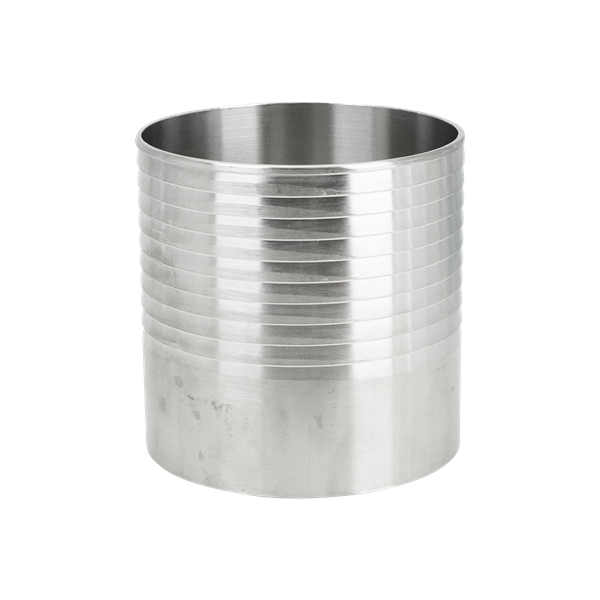

HOSE BARB ADAPTER 3" BW 316L 3" OAL 14WHR
F0025
Net Price: $28.28 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Adapters |
| Material | 316L Stainless Steel |
| Size 1 | 3" |
| Connection Type 1 | Butt Weld |
| Size 2 | 3" |
| Connection Type 2 | Hose Barb |
| Length | 3" OAL |
| Fitting Design | 14WHR |
| Weight | 0.50000 |
Dimensional Data
Butt Weld x Hose Barb Adapter
| Nominal Size | A | B | # of Barbs | |||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| ⅜ | 9.53 | 1.750 | 44.45 | 0.375 | 9.53 | 5 |
| ½ | 12.70 | 1.750 | 44.45 | 0.500 | 12.70 | 5 |
| ¾ | 19.05 | 1.750 | 44.45 | 0.750 | 19.05 | 5 |
| 1 | 25.40 | 3.000 | 76.20 | 1.000 | 25.40 | 10 |
| 1½ | 38.10 | 3.000 | 76.20 | 1.500 | 38.10 | 10 |
| 2 | 50.80 | 3.000 | 76.20 | 2.000 | 50.80 | 10 |
| 2½ | 63.50 | 3.000 | 76.20 | 2.500 | 63.50 | 10 |
| 3 | 76.20 | 3.000 | 76.20 | 3.000 | 76.20 | 10 |
