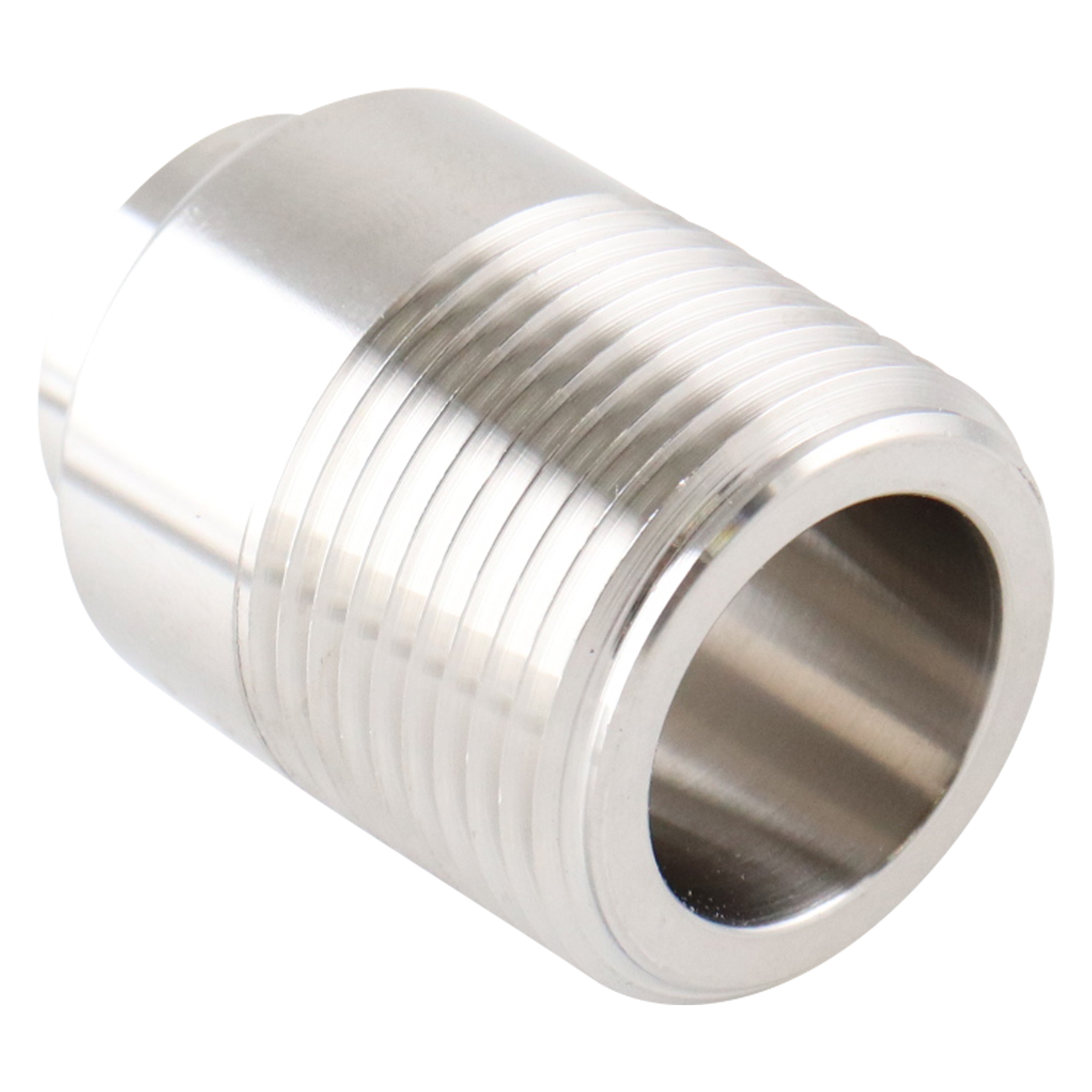

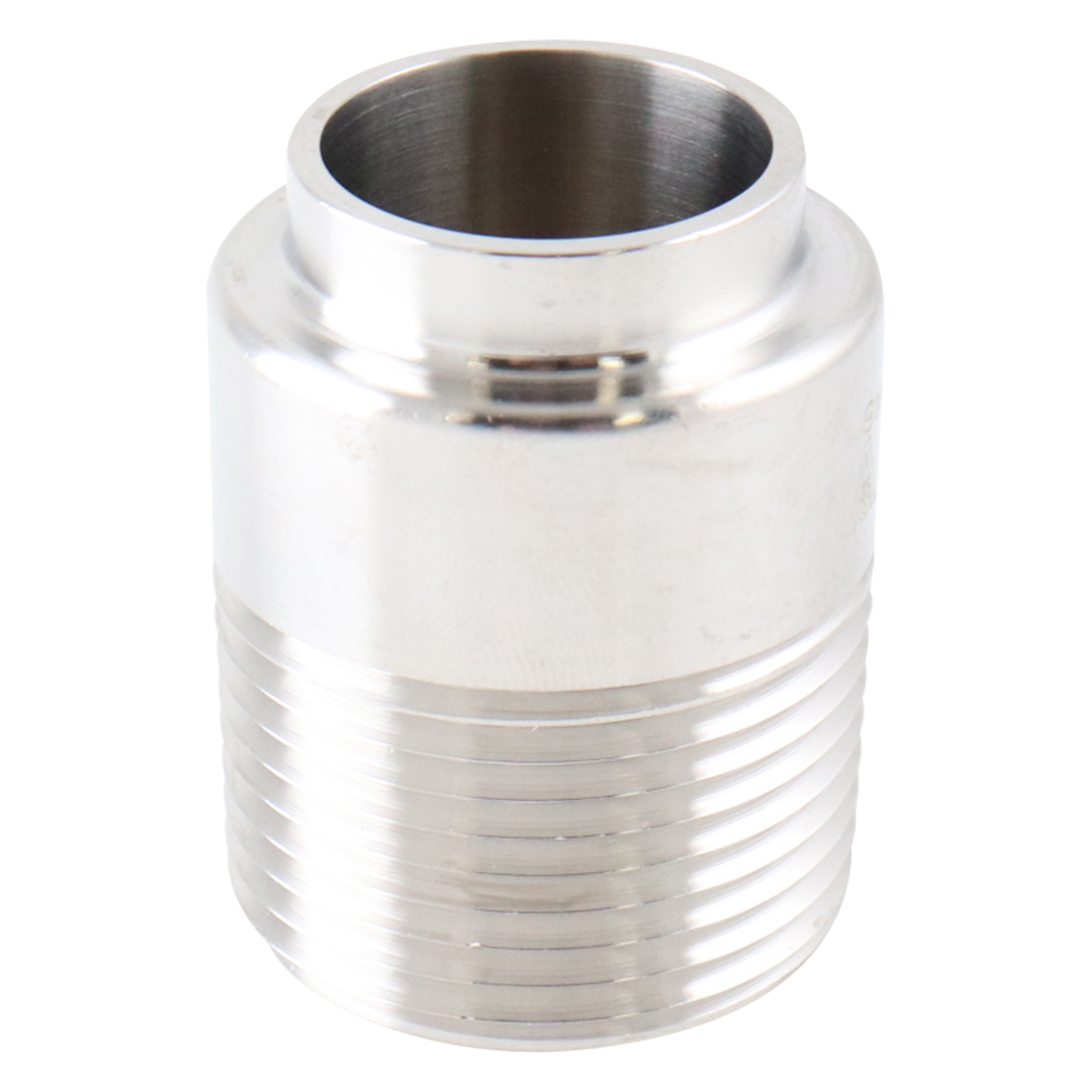

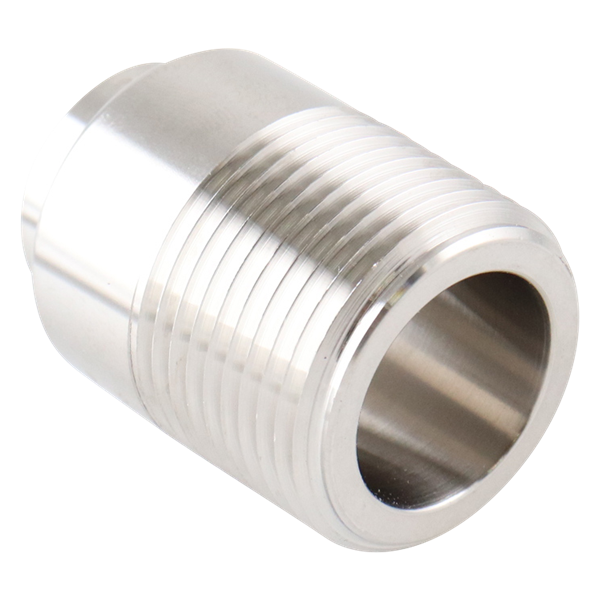

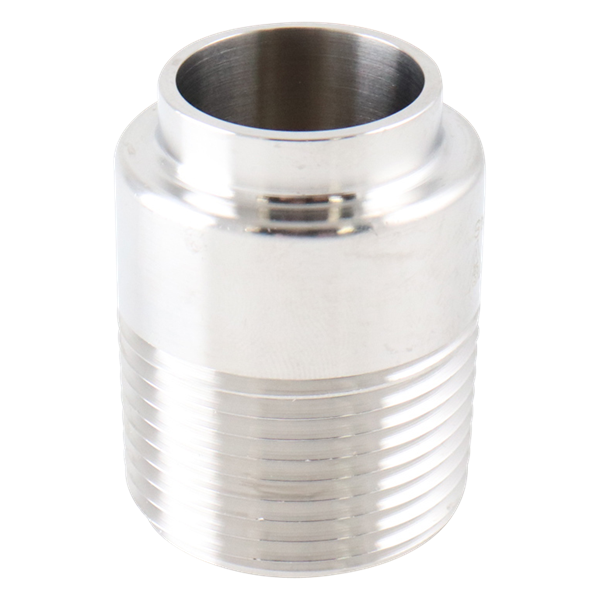

ADAPTER 1" BW X MNPT 316L
19WB-1-316L
Net Price: $9.01 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Adapters |
| Material | 316L Stainless Steel |
| Size 1 | 1" |
| Connection Type 1 | Butt Weld |
| Size 2 | 1" |
| Connection Type 2 | MNPT |
| Fitting Design | 19WB |
| Weight | 0.35420 |
Dimensional Data
Butt Weld x Male NPT Adapter | 19WB-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 1.31 | 33.27 |
| ¾ | 19.05 | 1.63 | 41.40 |
| 1 | 25.40 | 1.75 | 44.45 |
| 1½ | 38.10 | 1.75 | 44.45 |
| 2 | 50.80 | 1.81 | 45.97 |
| 2½ | 63.50 | 2.31 | 58.67 |
| 3 | 76.20 | 2.50 | 63.50 |
| 4 | 101.60 | 2.56 | 65.02 |
Fittings Reference Sheet
