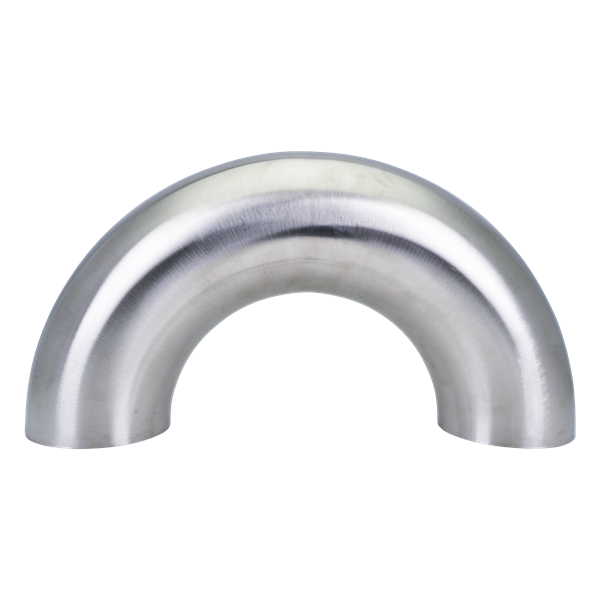

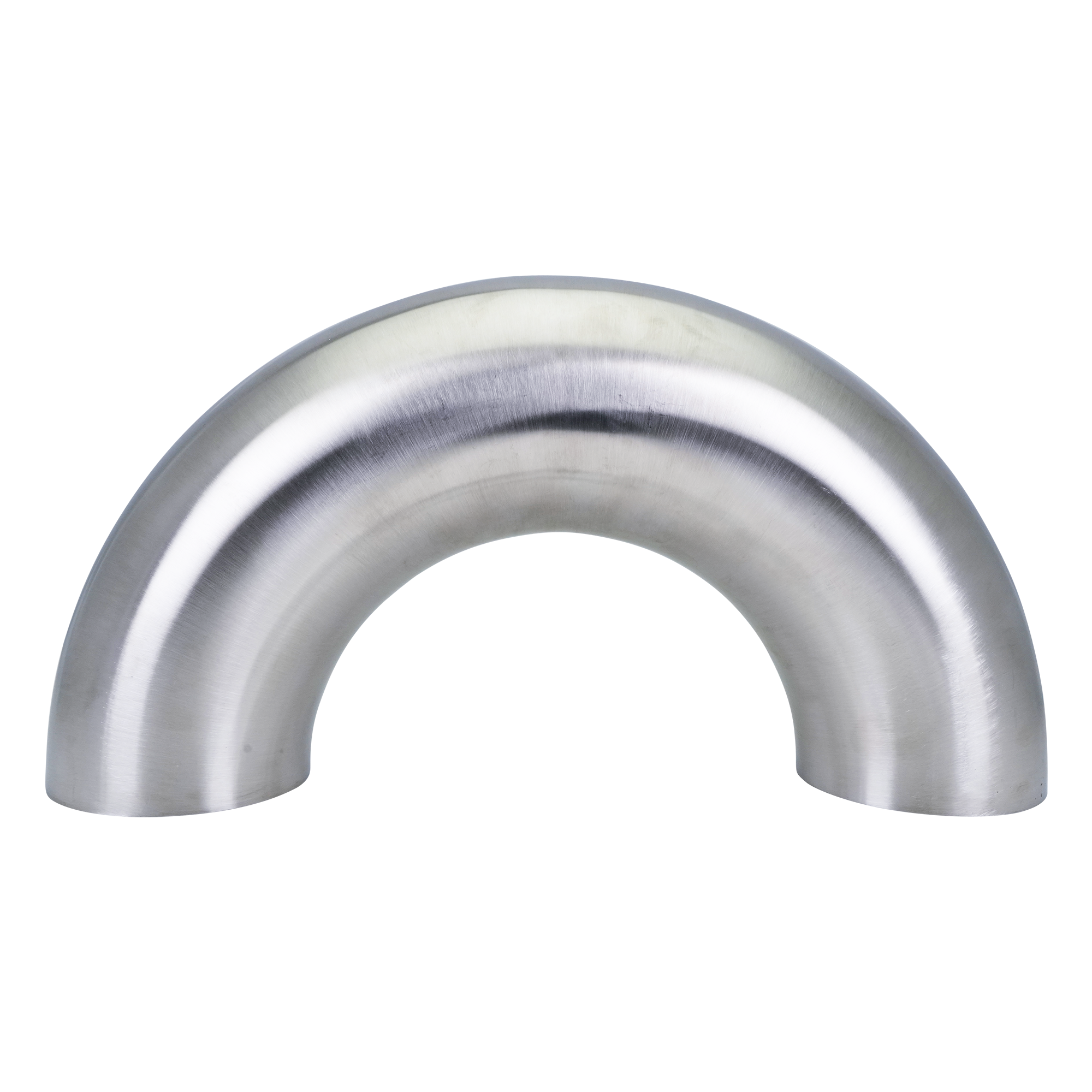

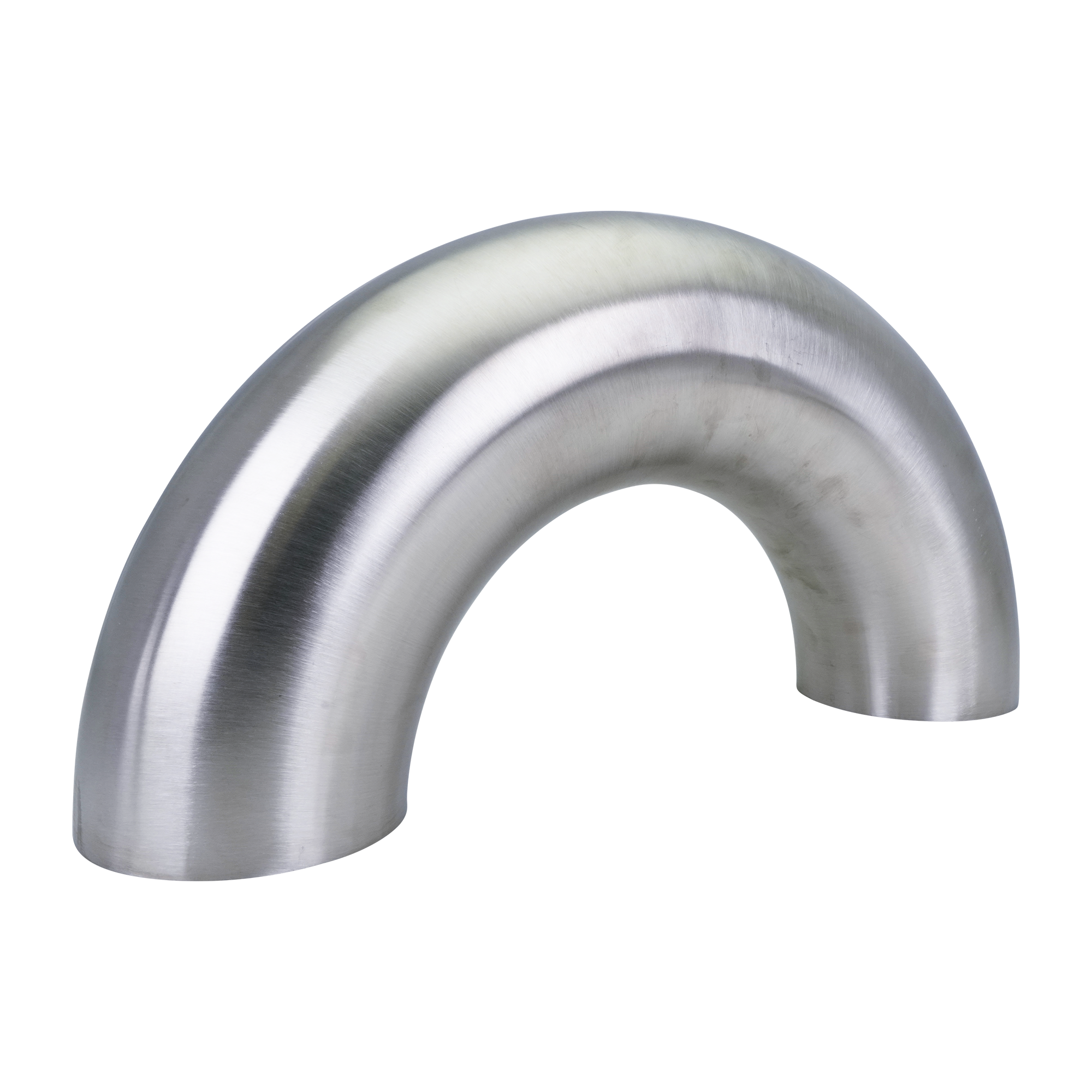

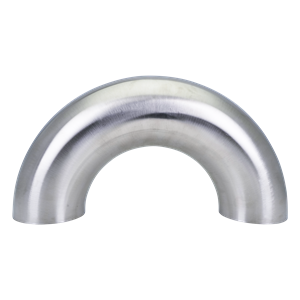

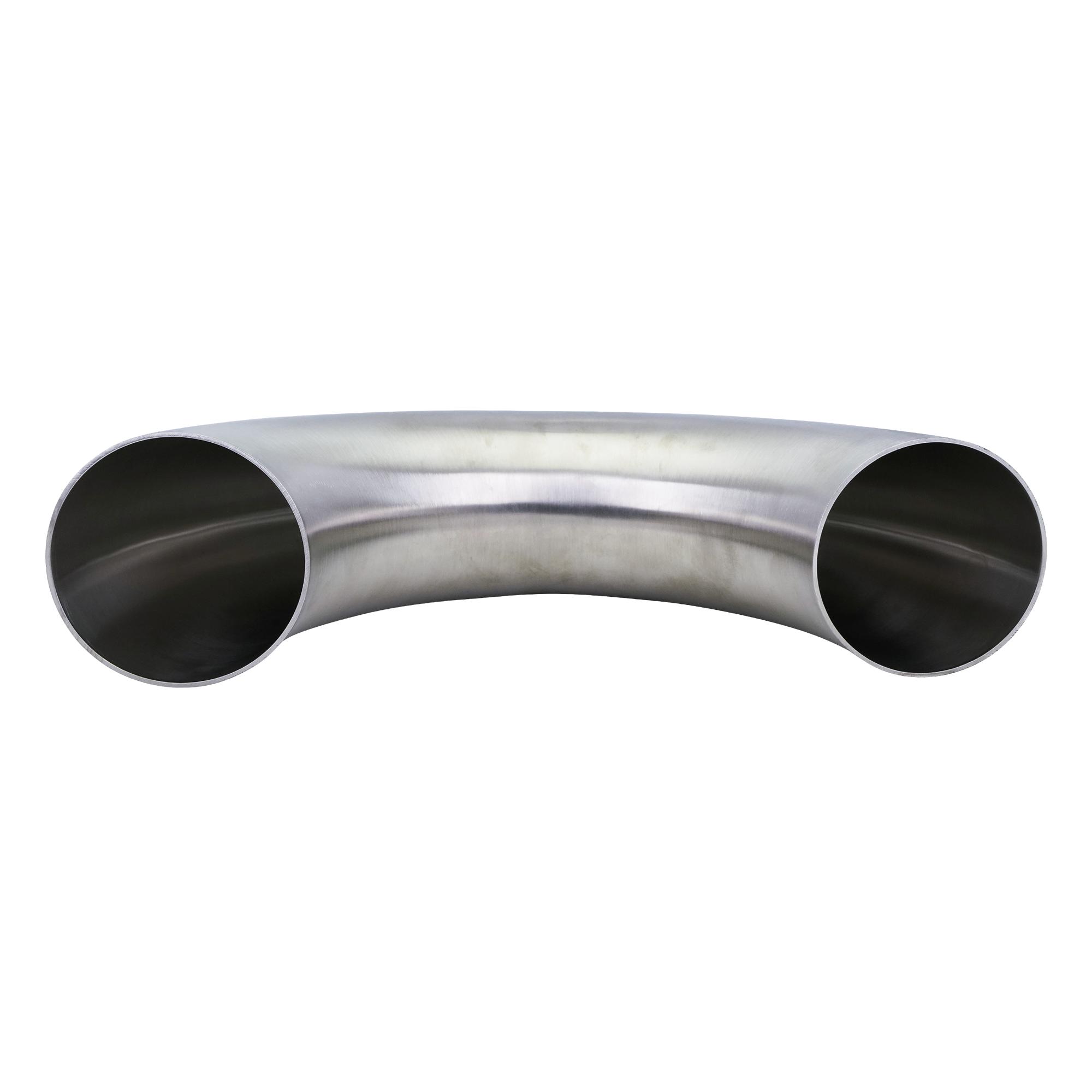

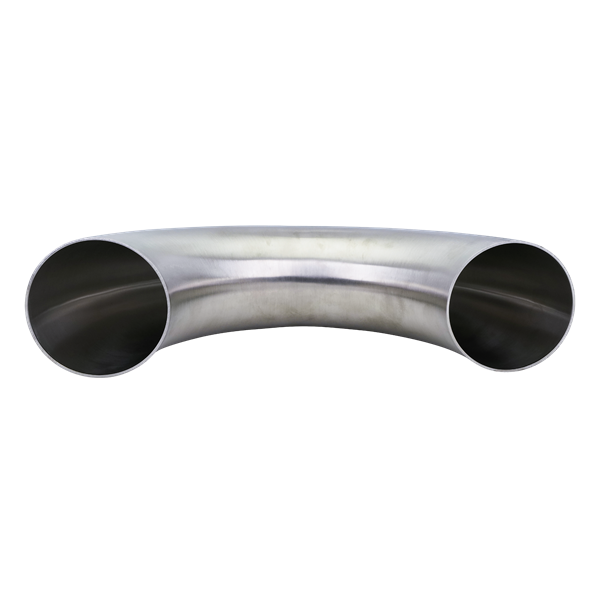

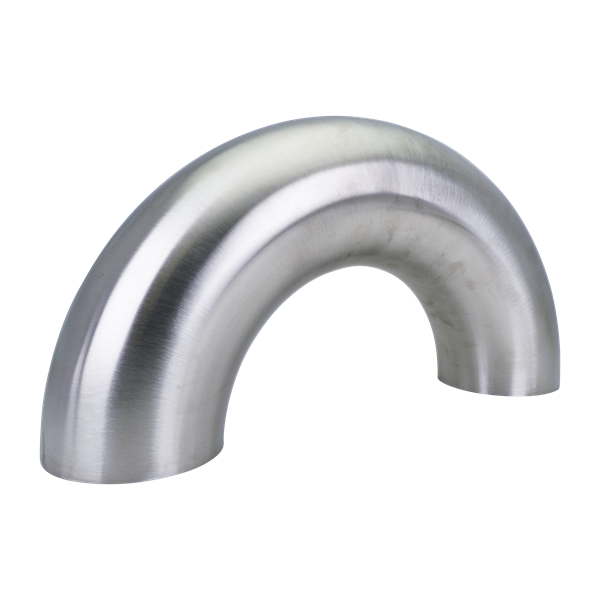

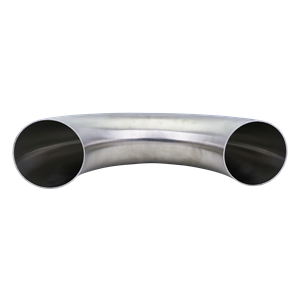

180 DEGREE BEND 4" BW 316L 32RA ID 32RA OD
2WUL-4-316L-7
Net Price: $257.09 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Return Bends |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 4" |
| Connection Type 1 | Butt Weld |
| Shape | 180 Degree |
| Fitting Design | 2WUL |
| Weight | 5.70000 |
Dimensional Data
2WUL-Butt Weld 180° Bend
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 3.00 | 76.20 | 2.00 | 50.80 |
| 1½ | 38.10 | 4.50 | 114.30 | 3.00 | 76.20 |
| 2 | 50.80 | 6.00 | 152.40 | 4.00 | 101.60 |
| 2½ | 63.50 | 7.50 | 190.50 | 5.00 | 127.00 |
| 3 | 76.20 | 9.00 | 228.60 | 6.00 | 152.40 |
| 4 | 101.60 | 12.00 | 304.80 | 8.00 | 203.20 |
