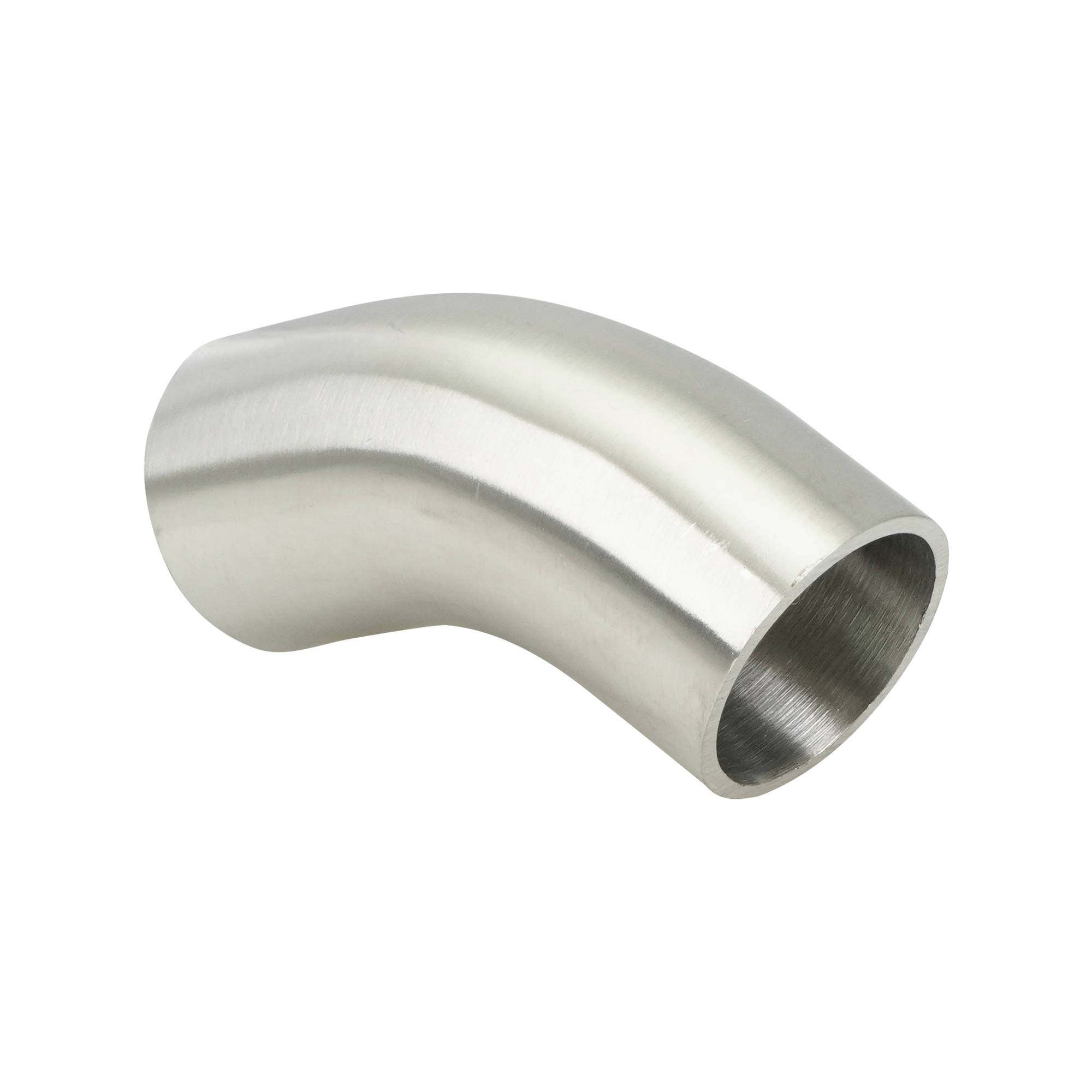

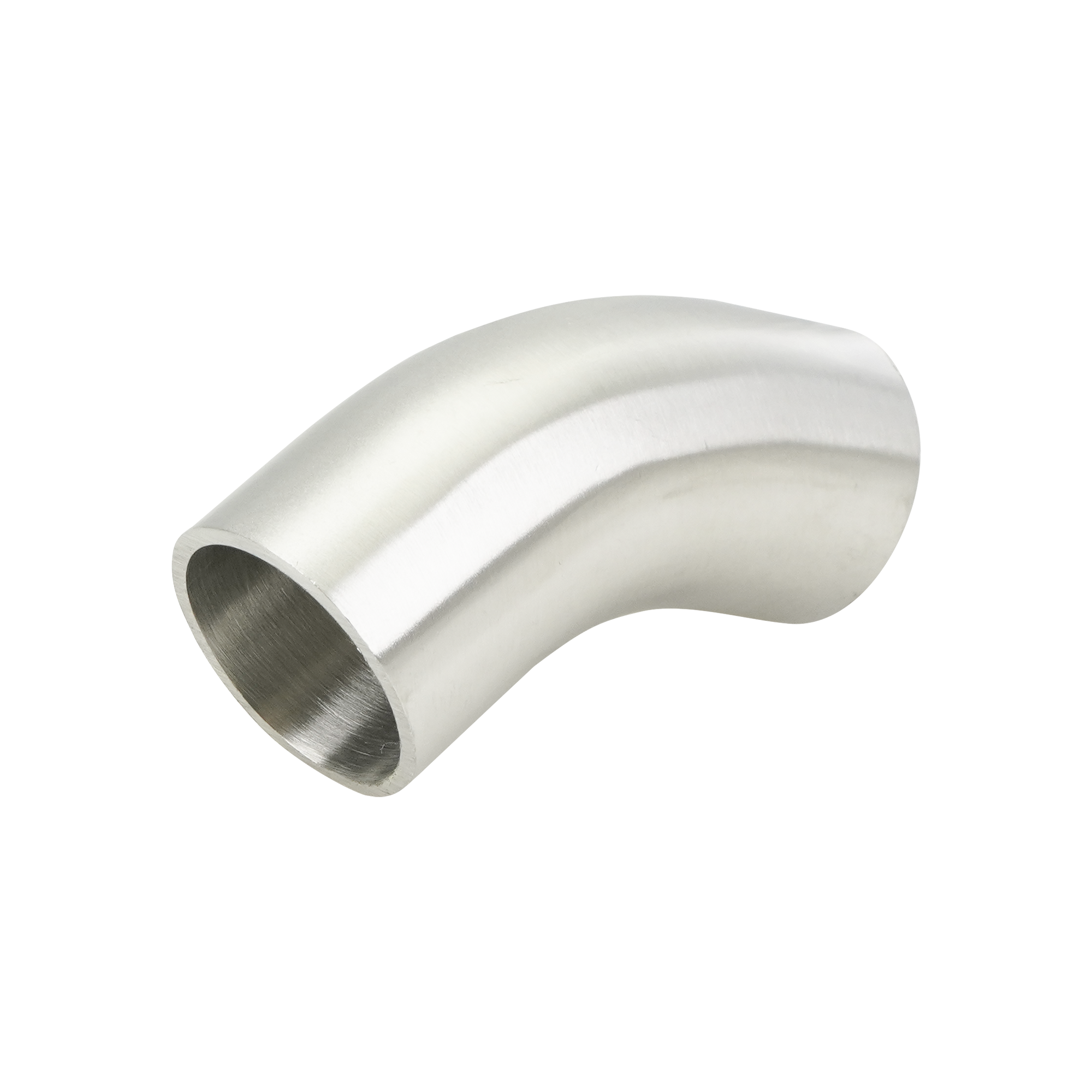

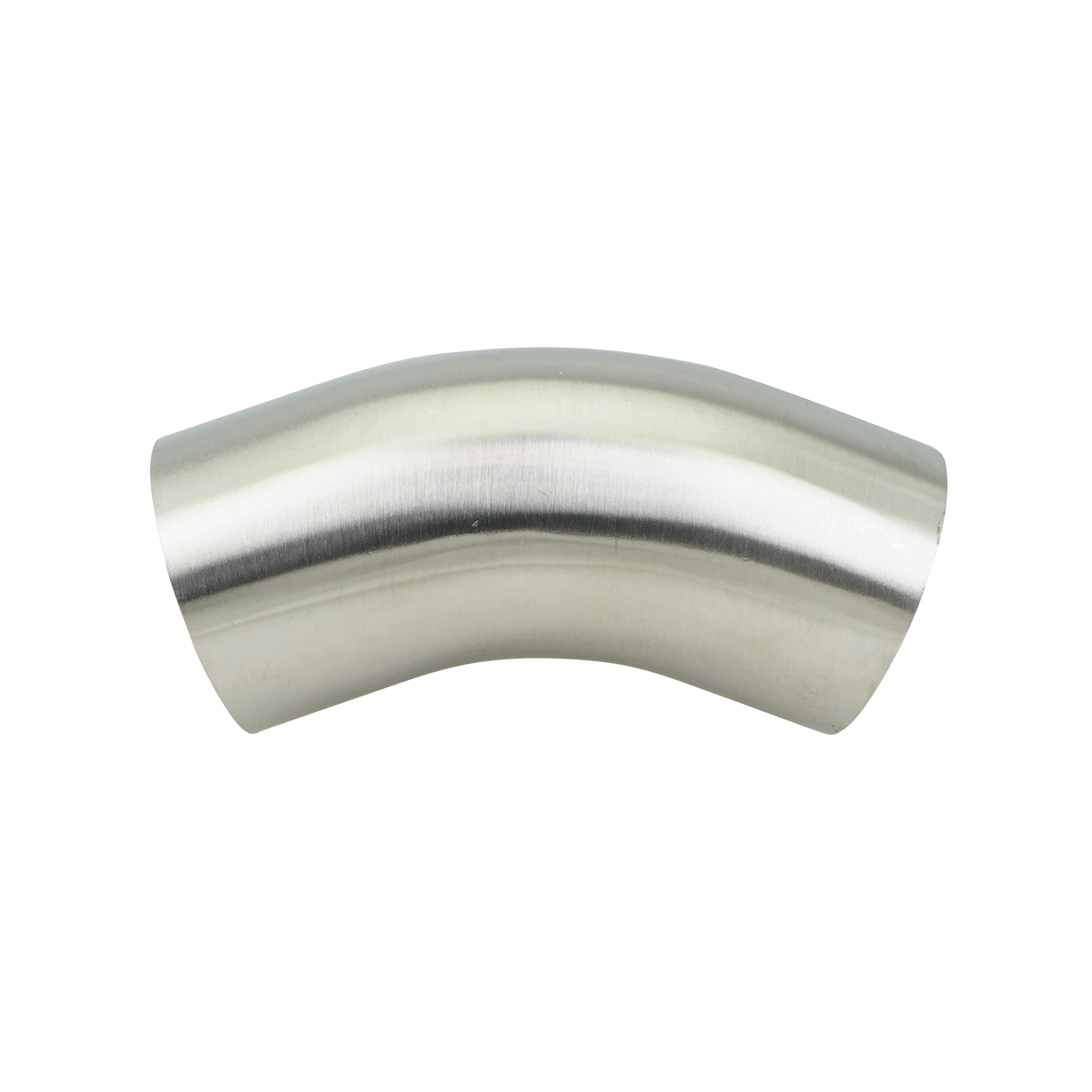

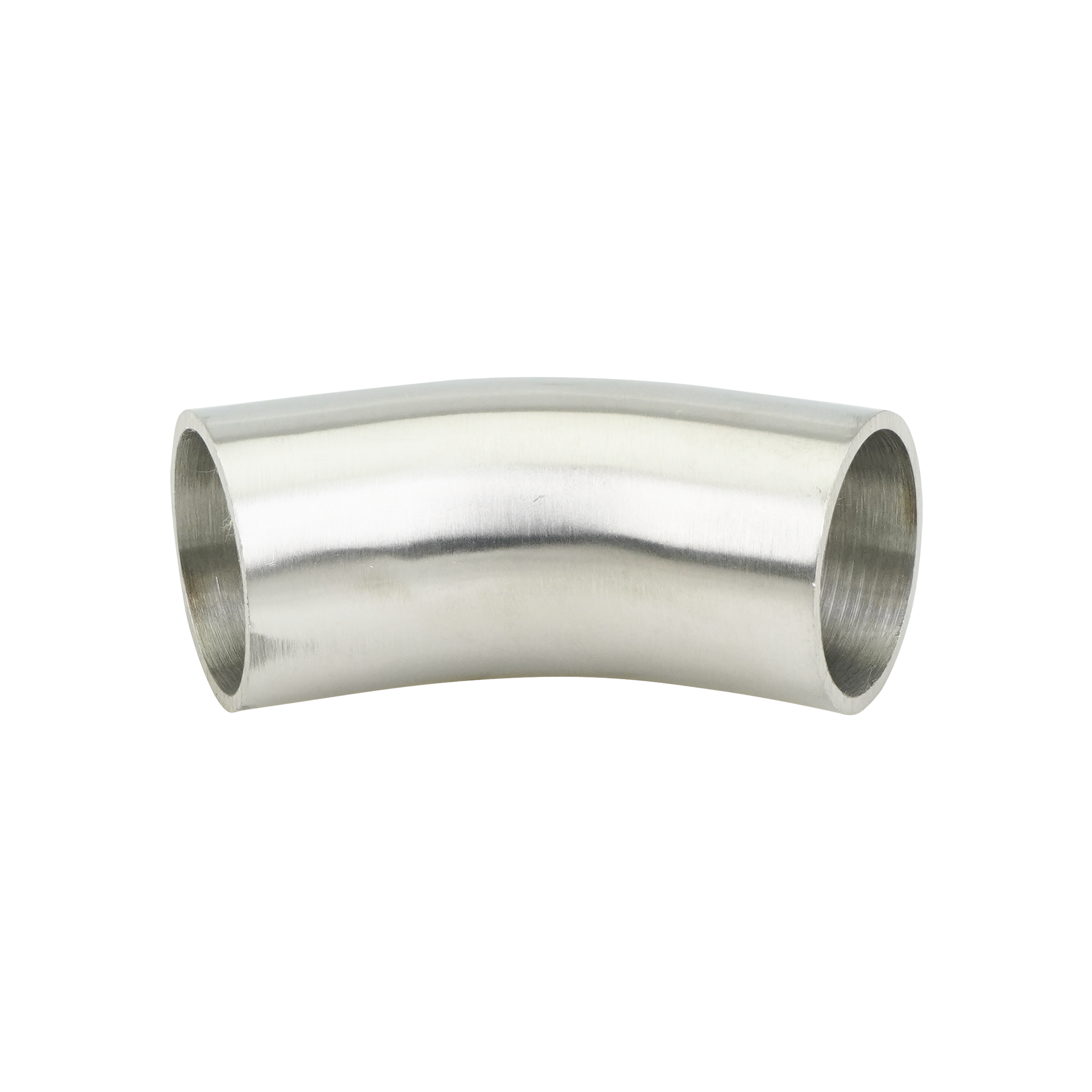

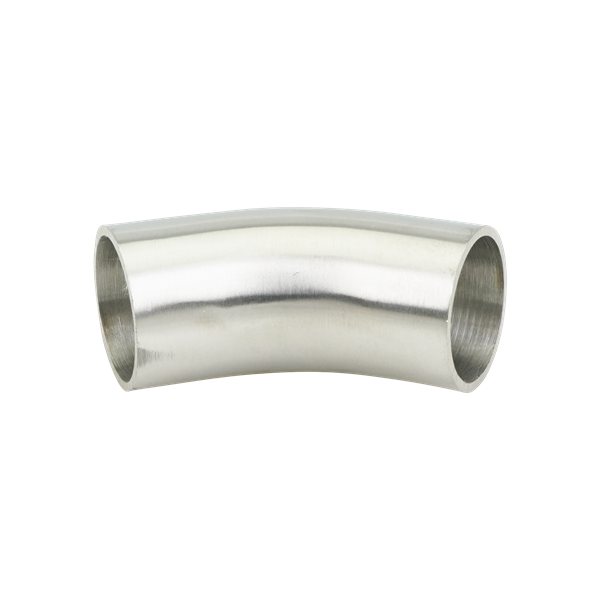

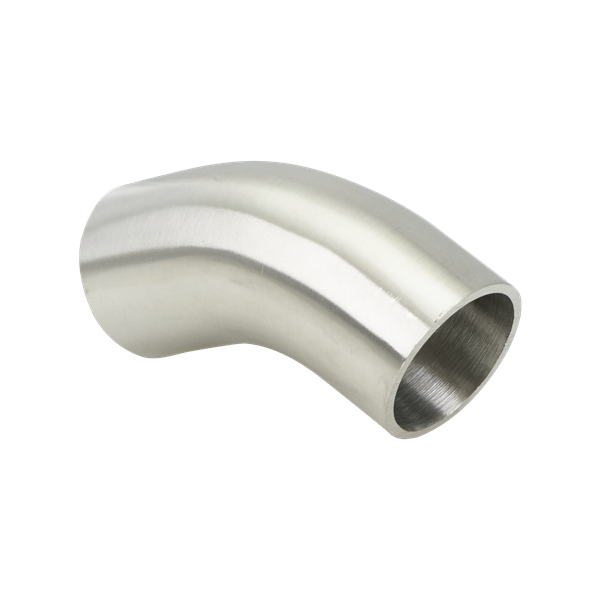

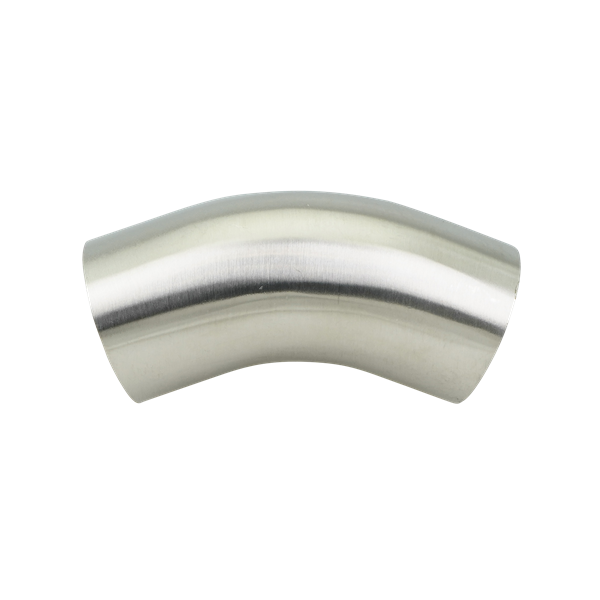

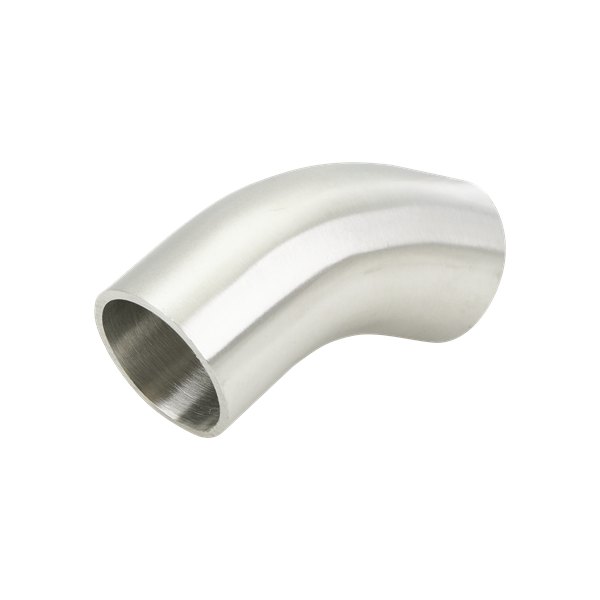

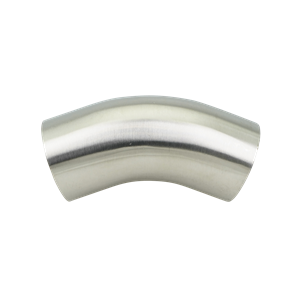

45 DEGREE ELBOW 1" BW 316L 32RA ID 32RA OD
L2KS-1-316L-7
Net Price: $4.31 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Butt Weld |
| Shape | 45 Degree |
| Fitting Design | L2KS |
| Weight | 5.00000 |
Dimensional Data
45° Butt Weld Elbow, Tangent | L2KS-Size-Material-Finish
| Nominal Size | A | R | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 2.25 | 57.15 | 0.75 | 19.05 |
| ¾ | 19.05 | 2.25 | 57.15 | 1.13 | 28.70 |
| 1 | 25.40 | 1.19 | 30.23 | 1.50 | 38.10 |
| 1½ | 38.10 | 1.63 | 41.40 | 2.25 | 57.15 |
| 2 | 50.80 | 2.31 | 58.67 | 3.00 | 76.20 |
| 2½ | 63.50 | 3.00 | 76.20 | 3.75 | 95.25 |
| 3 | 76.20 | 3.69 | 93.73 | 4.50 | 114.30 |
| 4 | 101.60 | 4.81 | 122.17 | 6.00 | 152.40 |
| 6 | 152.40 | 7.50 | 190.50 | 9.00 | 228.60 |
