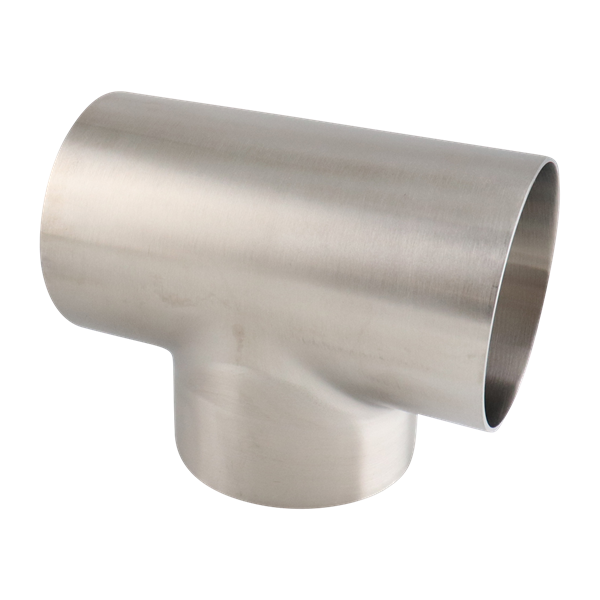

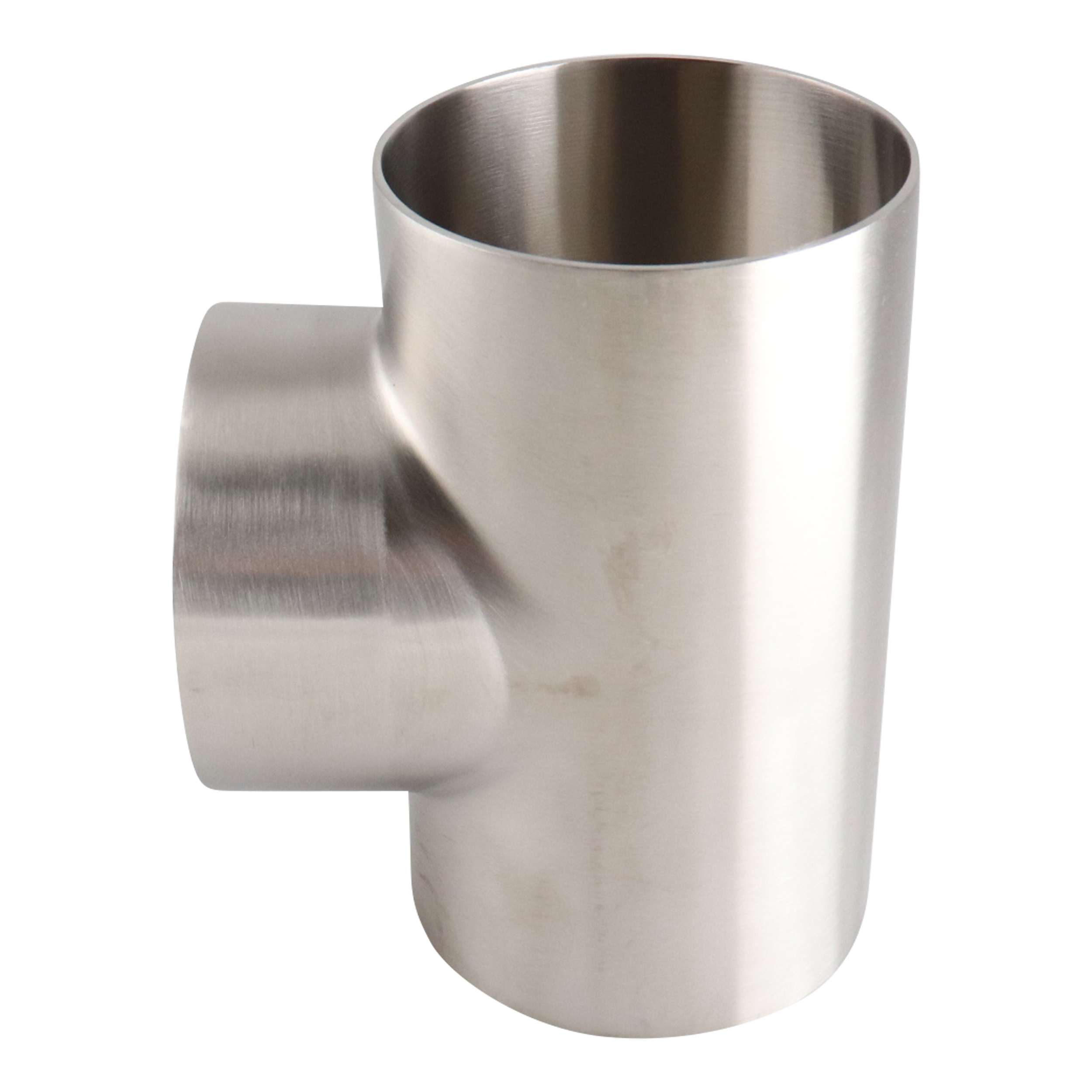

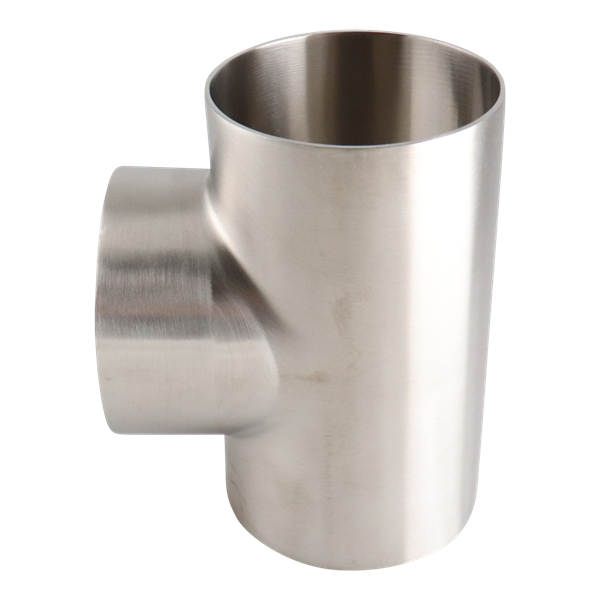

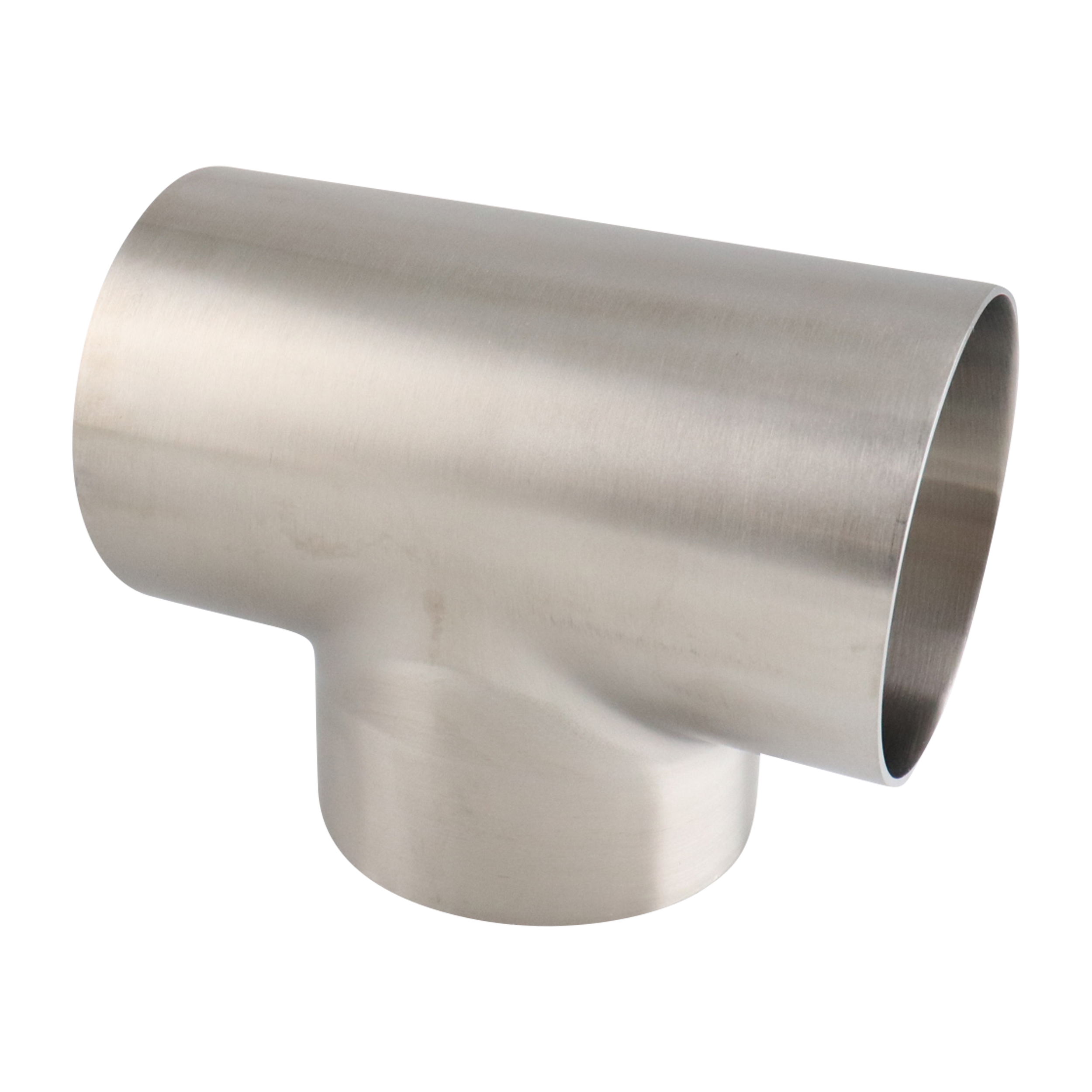

TEE SHORT 3" BW 304 32RA ID 32RA OD
L7WWW-3-304-7
Net Price: $12.77 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tees |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 3" |
| Connection Type 1 | Butt Weld |
| Size 2 | 3" |
| Connection Type 2 | Butt Weld |
| Specification / Standard | 3-A |
| Fitting Design | L7WWW |
| Weight | 1.06000 |
Dimensional Data
Butt Weld Tees | L7WWW-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 1.13 | 28.70 |
| 1½ | 38.10 | 1.66 | 42.16 |
| 2 | 50.80 | 2.06 | 52.32 |
| 2½ | 63.50 | 2.34 | 59.44 |
| 3 | 76.20 | 2.59 | 65.79 |
| 4 | 101.60 | 3.44 | 87.38 |
