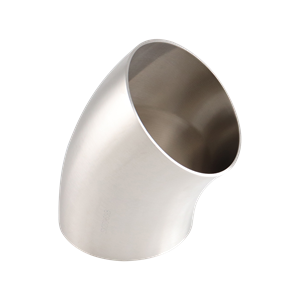

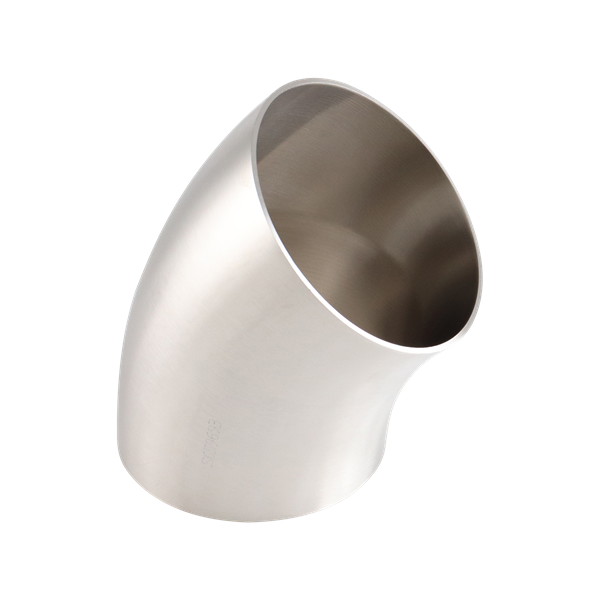

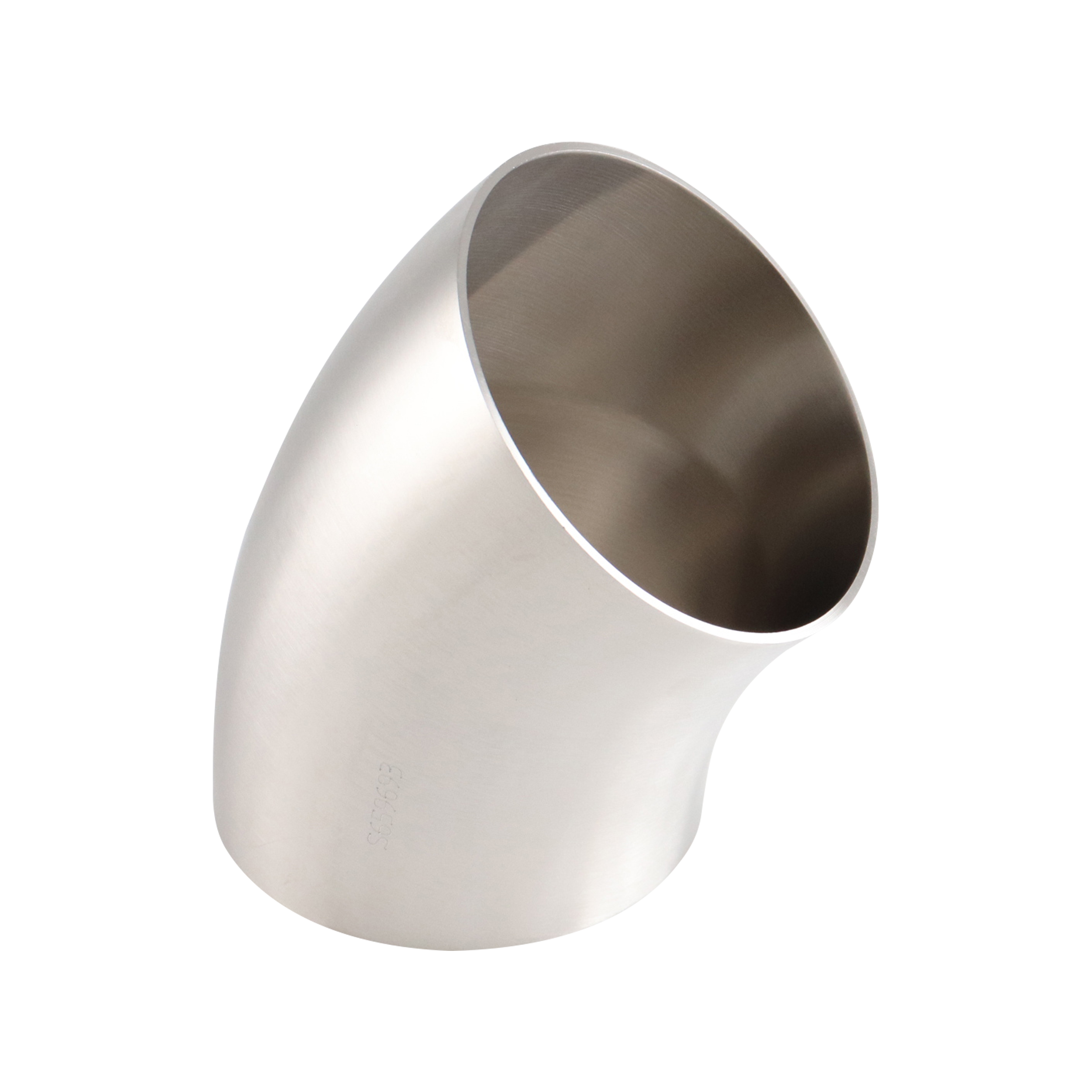

45 DEGREE ELBOW 4" BW NO TANGENT 316L 32RA ID 32RA OD
2WK-4-316L-7
Net Price: $21.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Elbows |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 4" |
| Connection Type 1 | Butt Weld |
| Shape | 45 Degree |
| Fitting Design | 2WK |
| Weight | 2.90000 |
Dimensional Data
Butt Weld 45° Elbow | 2WK-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 0.47 | 11.94 |
| ¾ | 19.05 | 0.47 | 11.94 |
| 1 | 25.40 | 0.63 | 16.00 |
| 1½ | 38.10 | 0.94 | 23.88 |
| 2 | 50.80 | 1.25 | 31.75 |
| 2½ | 63.50 | 1.56 | 39.62 |
| 3 | 76.20 | 1.88 | 47.75 |
| 4 | 101.60 | 2.50 | 63.50 |
| 6 | 152.40 | 3.75 | 95.25 |
| 8 | 203.20 | 4.97 | 126.24 |
| 10 | 254.00 | 6.21 | 157.73 |
| 12 | 304.80 | 7.46 | 189.48 |
Fittings Reference Sheet
