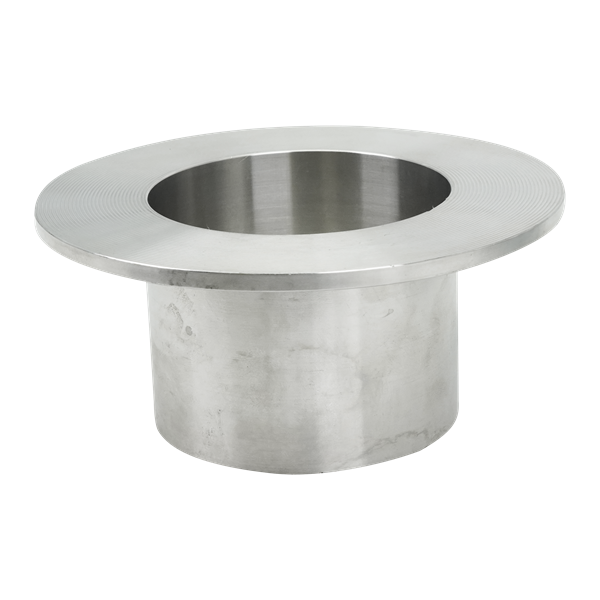

STUB END 3" 304 2.25" OAL 32RA ID 32RA OD
14VB-3-304-7
Net Price: $54.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Stub Ends |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 3" |
| Connection Type 1 | Butt Weld |
| Length | 2.25" OAL |
| Specification / Standard | 3-A |
| Fitting Design | 14VB |
| Weight | 1.01000 |
Dimensional Data
Stub End | 14VB-Size-Material-Finish
| Size OD | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 2 | 50.80 | 1.50 | 38.10 | 3.63 | 92.07 |
| 2½ | 63.50 | 2.00 | 50.80 | 4.13 | 104.77 |
| 3 | 76.20 | 2.25 | 76.20 | 5.00 | 127.00 |
| 4 | 101.60 | 2.63 | 63.50 | 6.19 | 157.17 |
| 6 | 152.40 | 3.00 | 76.20 | 8.63 | 219.20 |
| 8 | 203.20 | 3.00 | 76.20 | 10.62 | 269.75 |
Fittings Reference Sheet
