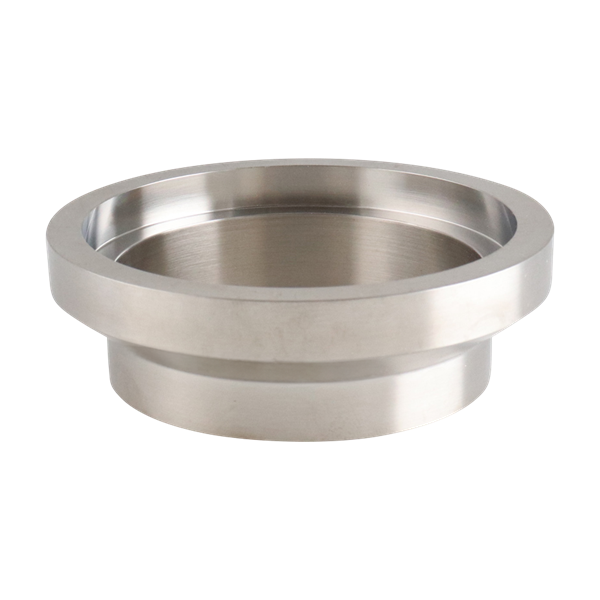

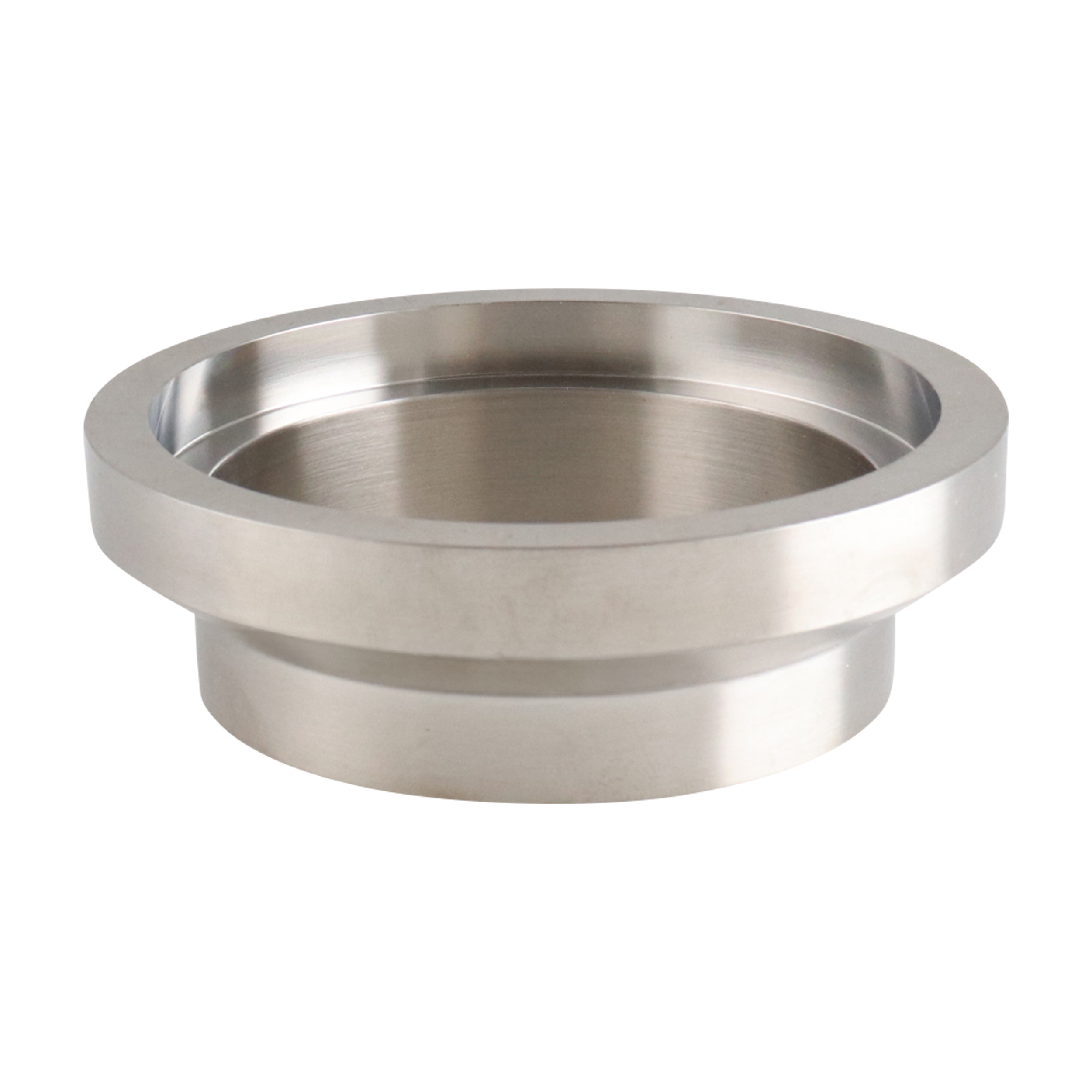

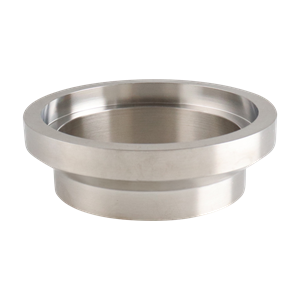

FERRULE FEMALE I-LINE 3" 304 1.22" OAL 32RA ID 32RA OD
15WI-3-304-7
Net Price: $18.95 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Ferrules |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 3" |
| Connection Type 1 | Female I-line |
| Size 2 | 3" |
| Connection Type 2 | Butt Weld |
| Length | 1.22" OAL |
| Specification / Standard | 3-A |
| Fitting Design | 15WI |
| Weight | 0.80360 |
Dimensional Data
Female I-Line Short Ferrule | 15WI-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 0.78 | 19.81 |
| 1½ | 38.10 | 0.94 | 23.88 |
| 2 | 50.80 | 1.03 | 26.16 |
| 2½ | 63.50 | 1.16 | 29.46 |
| 3 | 76.20 | 1.22 | 30.99 |
| 4 | 101.60 | 1.34 | 34.04 |
