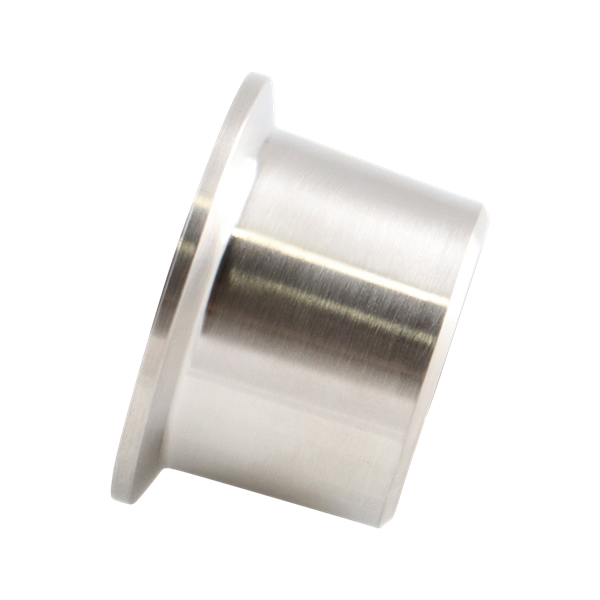

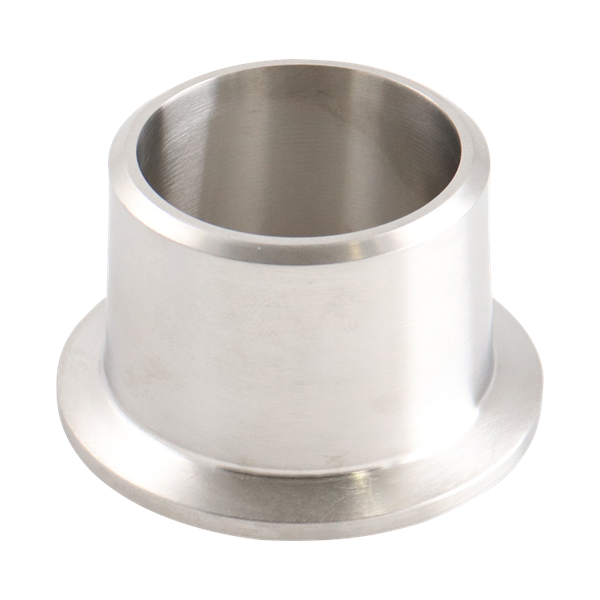

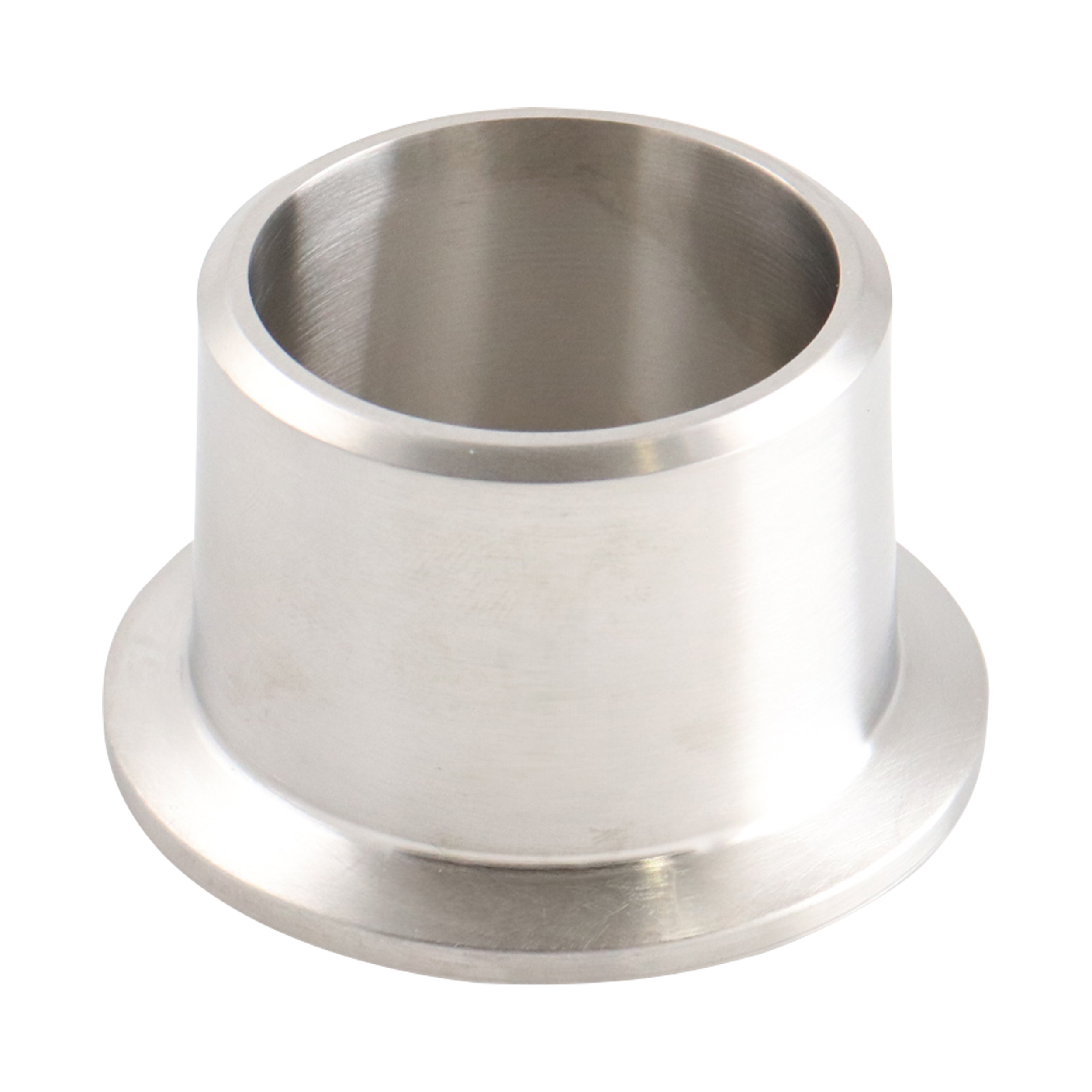

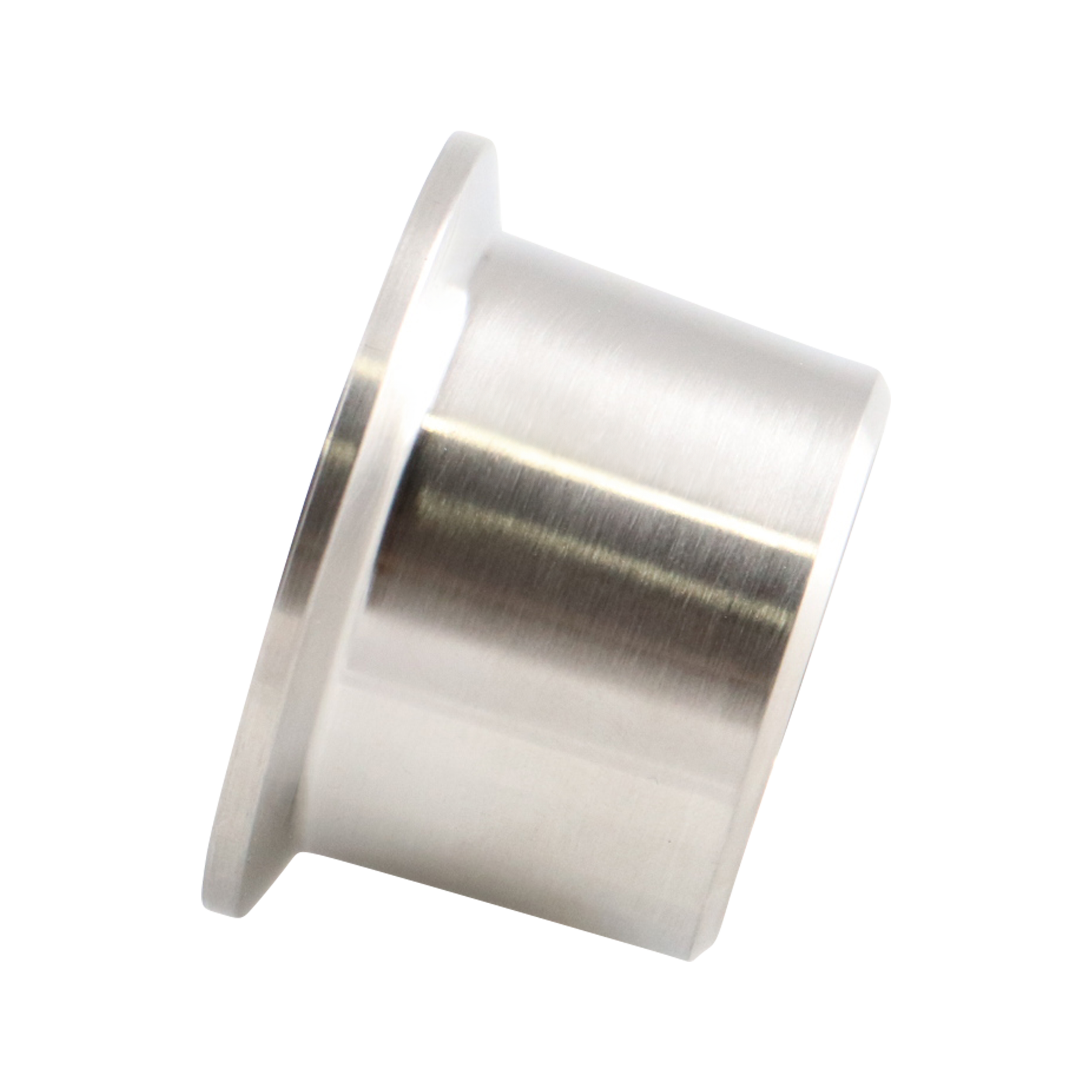

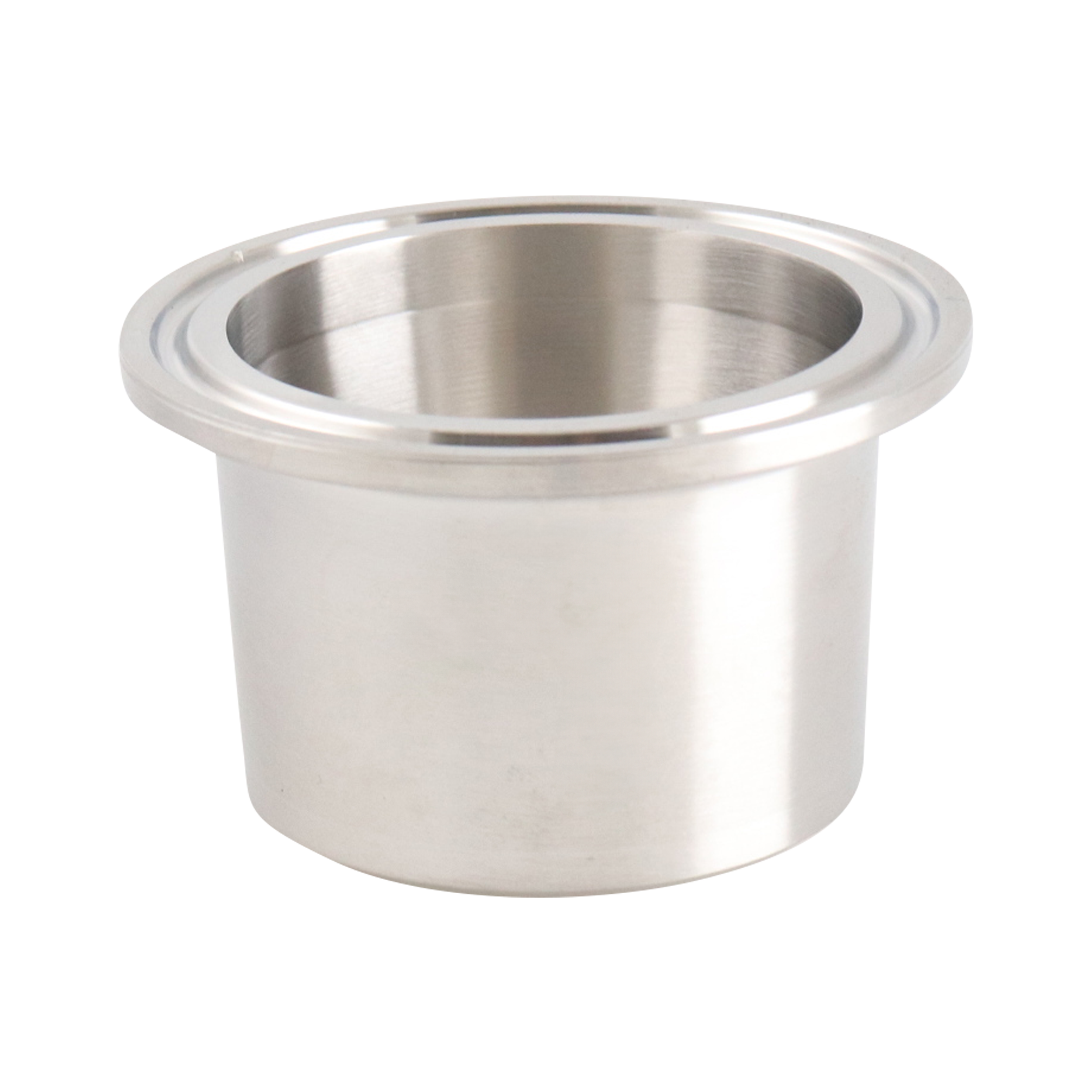

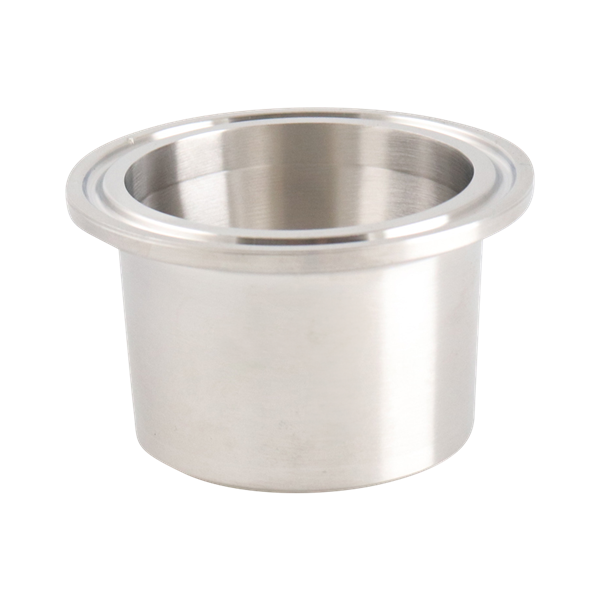

ADAPTER 2" TC X 1.5" BW SCH 40 PIPE 316L SA479

14MPW20X15P40

USUALLY SHIPS IN 1-2 DAYS

LEAD TIMES MAY VARY BECAUSE THIS IS AN ASSEMBLED OR MANUFACTURED PART

Net Price: $152.19 / EA

Have an account? Login now.

Availability:
Product Type Tube Fittings
Product Subtype Adapters
Material 316L Stainless Steel
Size 1 2"
Connection Type 1 Tri-Clamp
Size 2 1.5"
Connection Type 2 Butt Weld Pipe
Fitting Design 14MPW
Wall Thickness Sch 40
Weight 0.40000

14MPW(pipesize)P

Butt Weld x Tri-Clamp Pipe Adapter | 14MPW(Pipe Size)P40-Material
Nominal SizeSch 40 Pipe Wall ThicknessPipe ODLength A
(in)(mm)(in)(mm)(in)(mm)(in)(mm)
½12.700.1092.770.84021.341.75044.45
¾19.050.1132.871.05026.671.75044.45
125.400.1333.381.31533.401.50038.10
1½38.100.1453.681.90048.261.50038.10
250.800.1543.912.37560.331.50038.10
2½63.500.2035.162.87573.032.50063.50
376.200.2165.493.50088.902.50063.50
4101.600.2376.024.500114.302.50063.50
6152.400.2807.116.625168.281.75044.45
