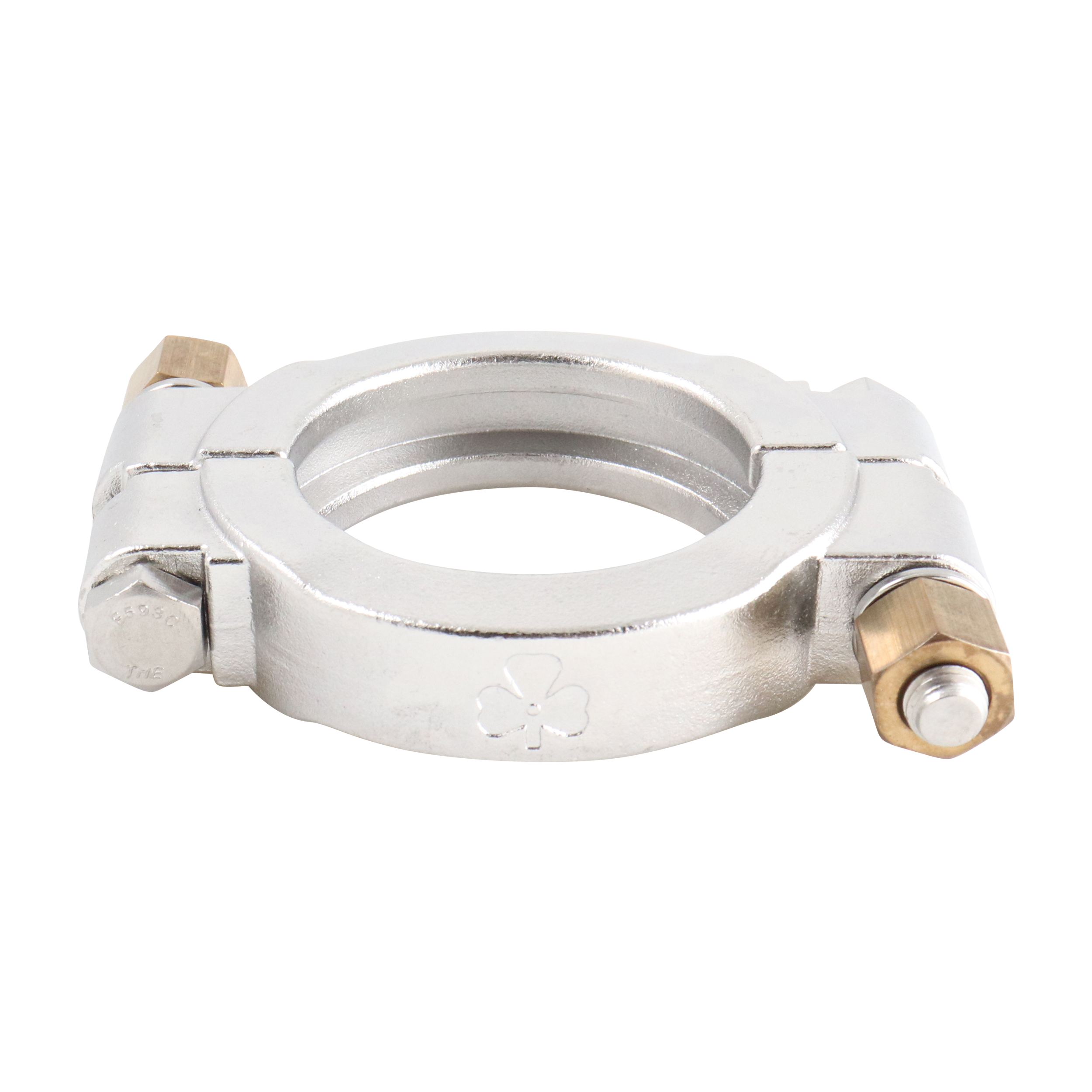

CLAMP BLOCK STYLE HIGH PRESSURE 4" TC 304
A13MHP-4
This item is non-returnable.
$15.28 / EA
- Availability:
-
Springfield, MO 152 EA Durham, NC 413 EA Modesto, CA 98 EA Grand Prairie, TX 671 EA
Spare Parts
Attributes
- Alloy/Material:
- 304 / 304L
- Connection Type:
- Tri-Clamp
- Size:
- 4"
- Specification/Standard:
- Sanitary Fittings
- Weight:
- 2
Dimensional Data
Tri-Clamp High Pressure Block Style | A13MHP-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¾ | 19.05 | 1.04 | 26.42 |
| 1½ | 38.10 | 2.05 | 52.07 |
| 2 | 50.80 | 2.58 | 65.53 |
| 2½ | 63.50 | 3.11 | 78.99 |
| 3 | 76.20 | 3.64 | 92.46 |
| 4 | 101.60 | 4.73 | 120.14 |
| 6 | 152.40 | 6.63 | 168.40 |
| 8 | 203.20 | 8.69 | 220.73 |
| 10 | 254 | 10.90 | 276.86 |
| 12 | 304.80 | 12.90 | 327.66 |
