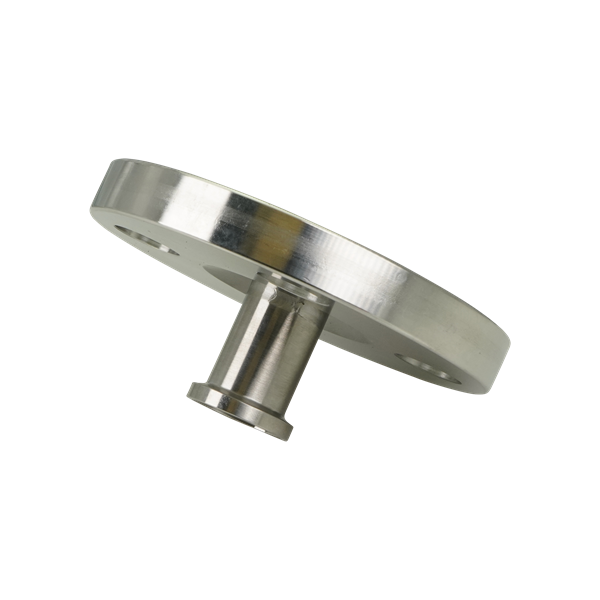

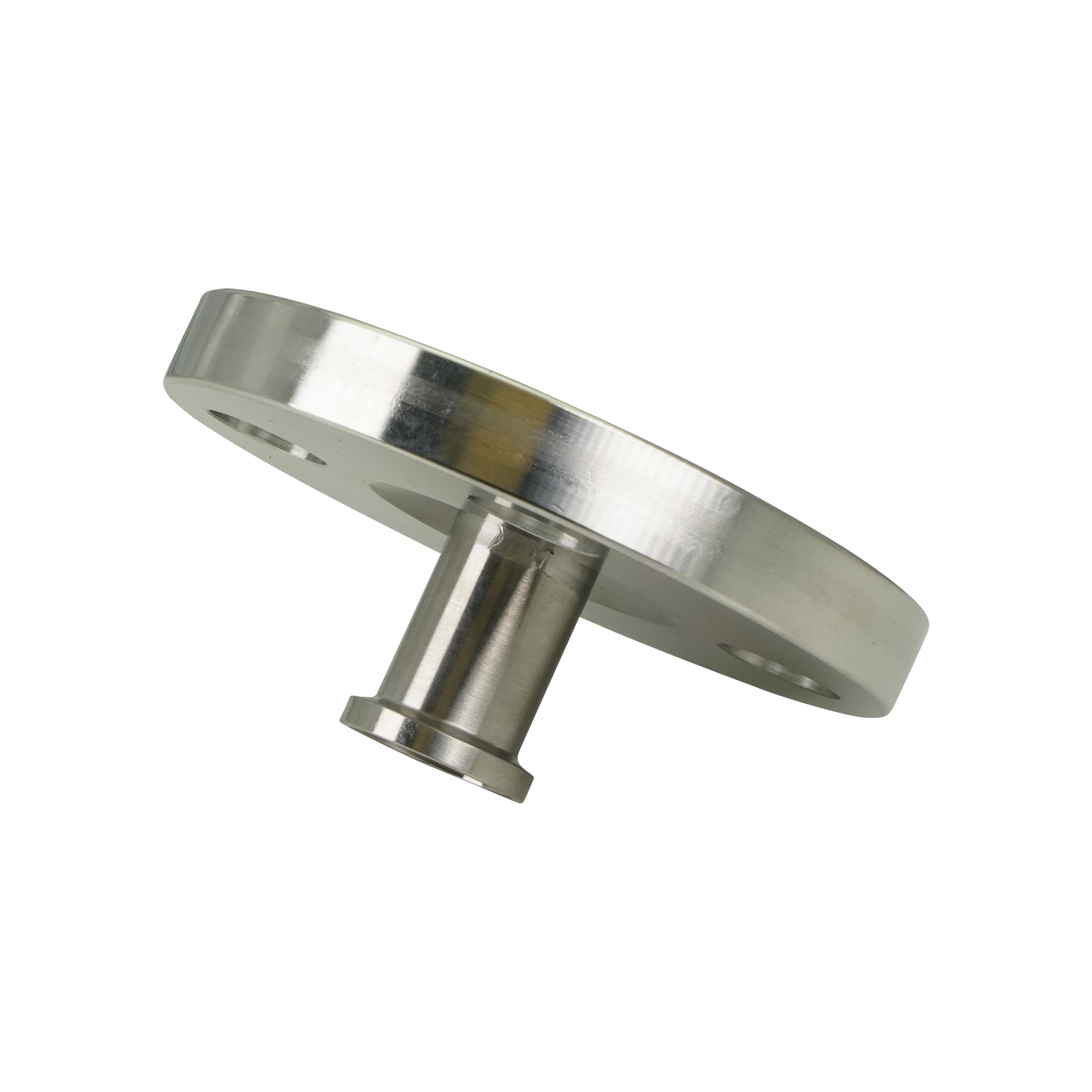

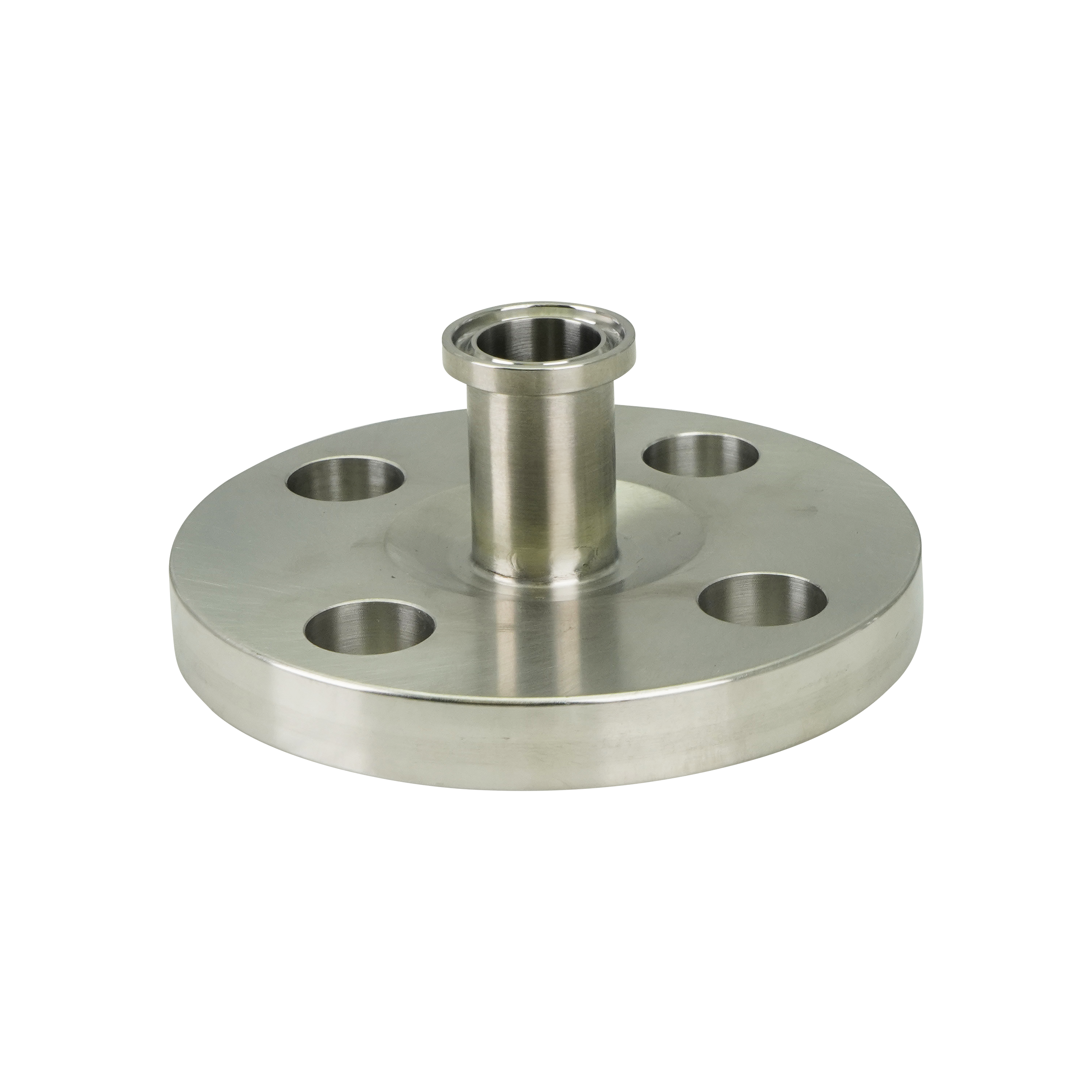

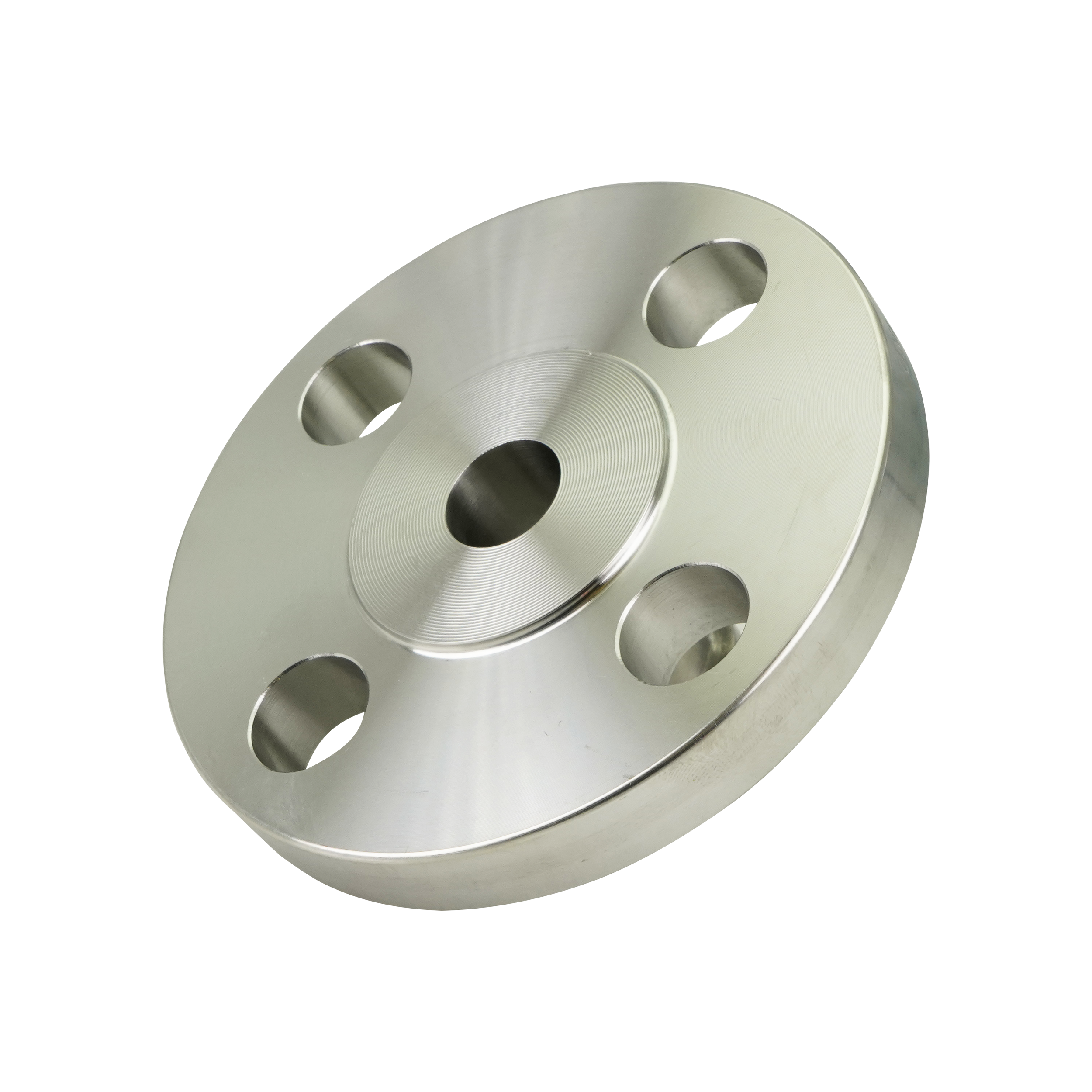

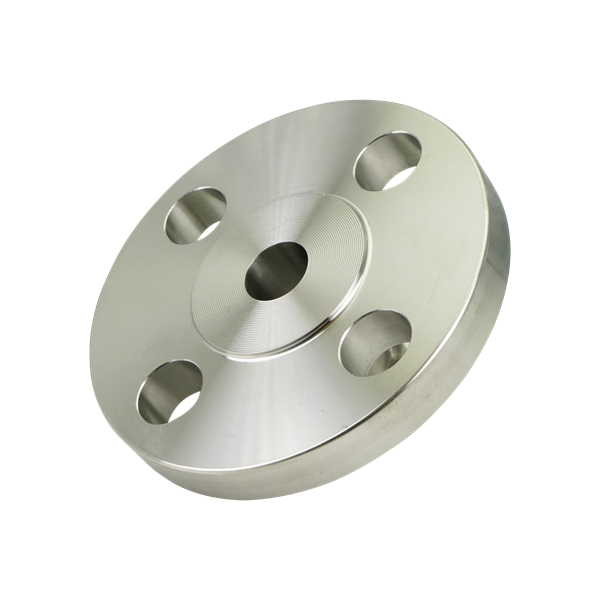

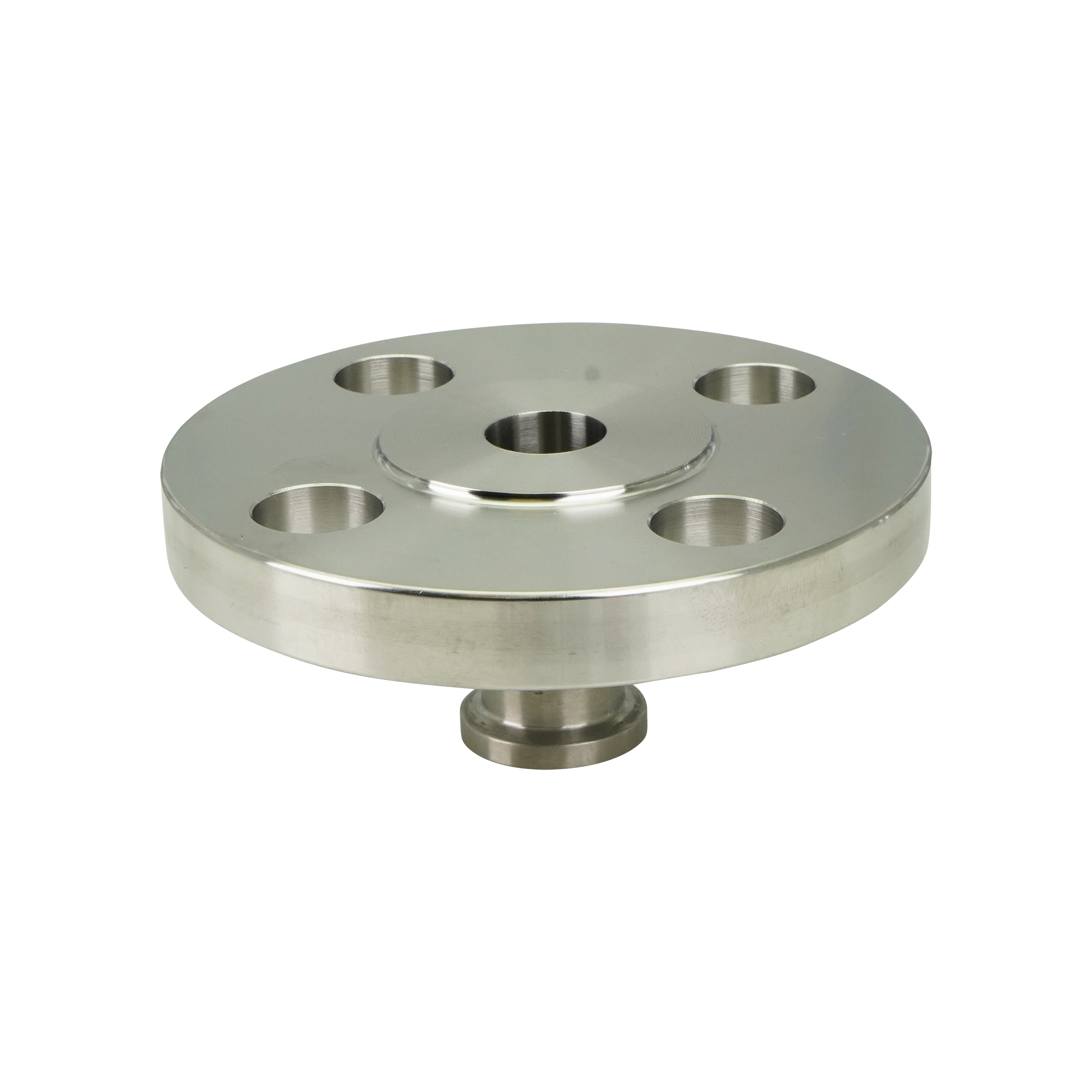

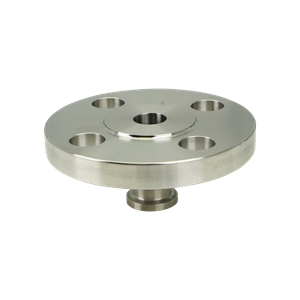

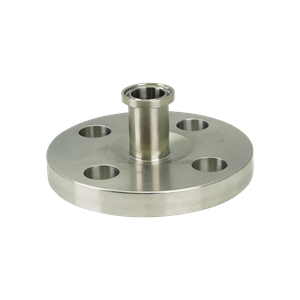

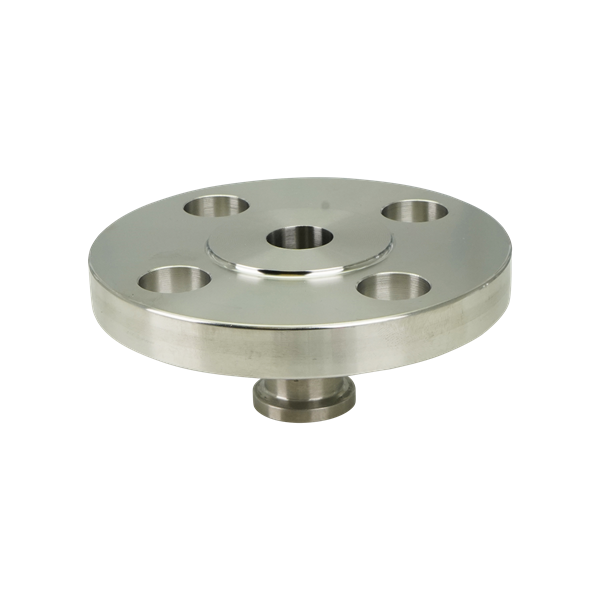

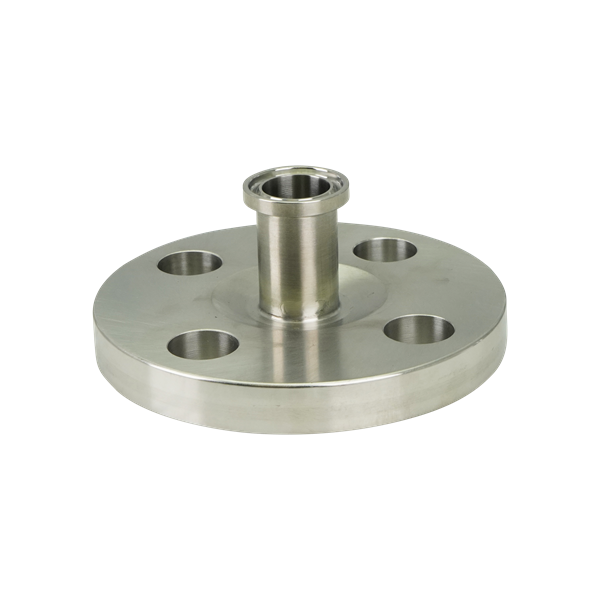

ADAPTER 0.75" 150# FLANGE X TC 316L
38MP-0.75-316L
Net Price: $135.00 / EA
- Availability:
Spare Parts
- Total: 1
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| FLANGE PACK 0.75" WITH (4) 1/2-13 X2 1/4 304 SS BOLT CAP (4) 1/2" 304 SS HEX NUT |
$4.25 / EA |
|
- Total: 1
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Flange Adapters |
| Material | 316L Stainless Steel |
| Size 1 | 0.75" |
| Connection Type 1 | Flange |
| Size 2 | 0.75" |
| Connection Type 2 | Tri-Clamp |
| Fitting Design | 38MP |
| Number of Bolt Holes | 4 |
| Weight | 1.50000 |
Dimensional Data
Flange x Tri-Clamp Adapter | 38MP-Size-Material-Finish
| Nominal Size | A | B | C | # of Bolt Holes | ||||
|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| ½ | 12.70 | 1.57 | 39.88 | 3.50 | 88.90 | 0.44 | 11.18 | 4 |
| ¾ | 19.05 | 1.63 | 41.40 | 3.88 | 98.55 | 0.50 | 12.70 | 4 |
| 1 | 25.40 | 1.69 | 42.93 | 4.25 | 107.95 | 0.56 | 14.22 | 4 |
| 1½ | 38.10 | 1.81 | 45.97 | 5.00 | 127.00 | 0.68 | 17.27 | 4 |
| 2 | 50.80 | 1.88 | 47.75 | 6.00 | 152.40 | 0.75 | 19.05 | 4 |
| 2½ | 63.50 | 2.00 | 50.80 | 7.00 | 117.80 | 0.87 | 22.10 | 4 |
| 3 | 76.20 | 2.07 | 52.58 | 7.50 | 190.50 | 0.94 | 23.88 | 4 |
| 4 | 101.60 | 2.07 | 52.58 | 9.00 | 228.60 | 0.94 | 23.88 | 8 |
| 6 | 152.40 | 2.50 | 63.50 | 11.00 | 279.40 | 1.00 | 25.40 | 8 |
Fittings Reference Sheet
