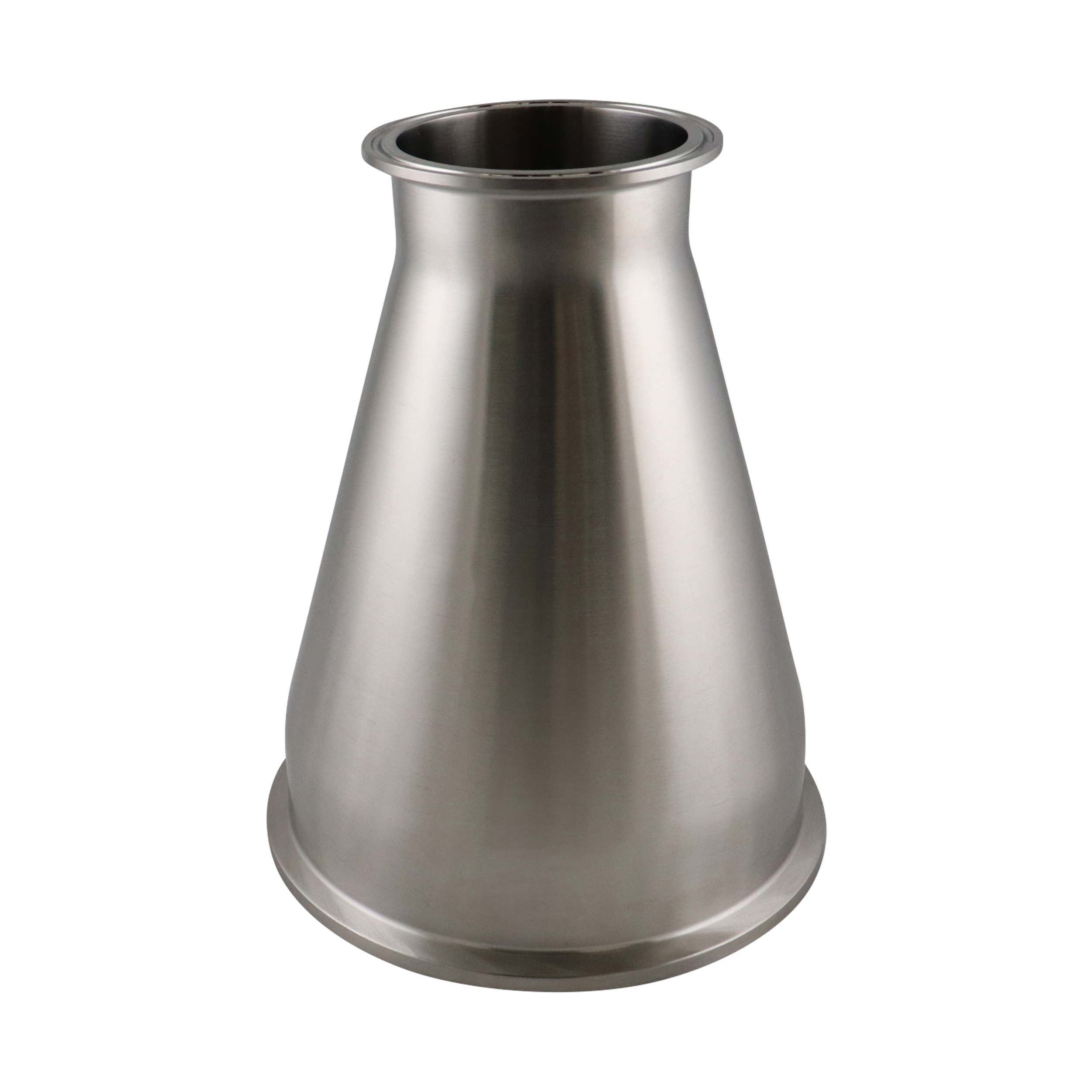

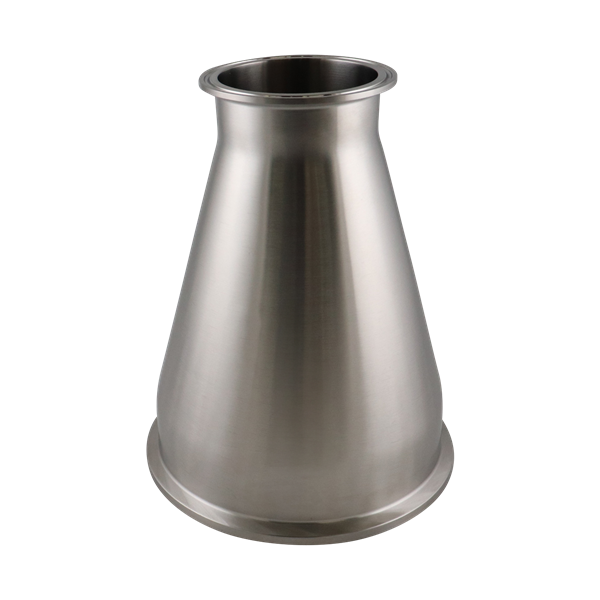

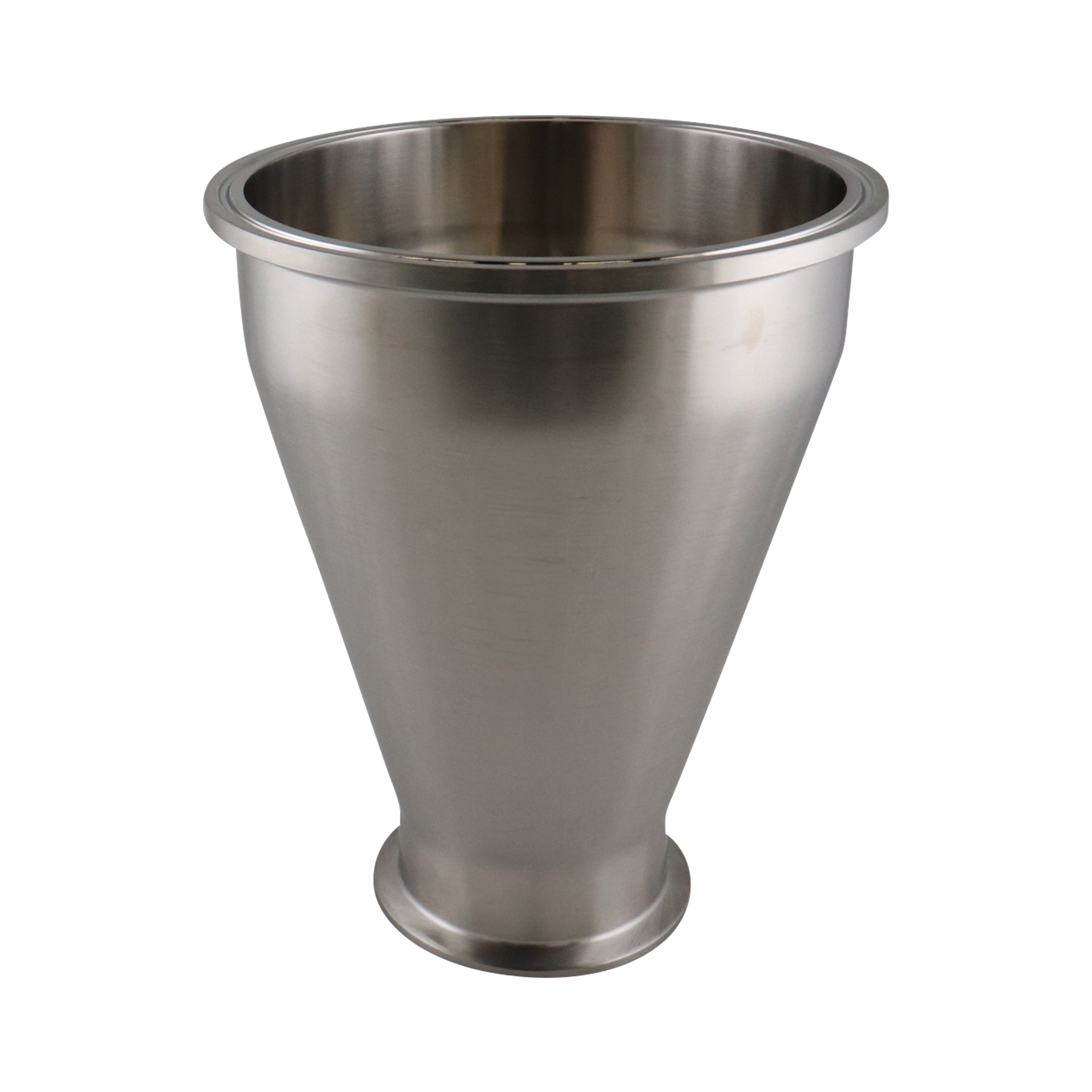

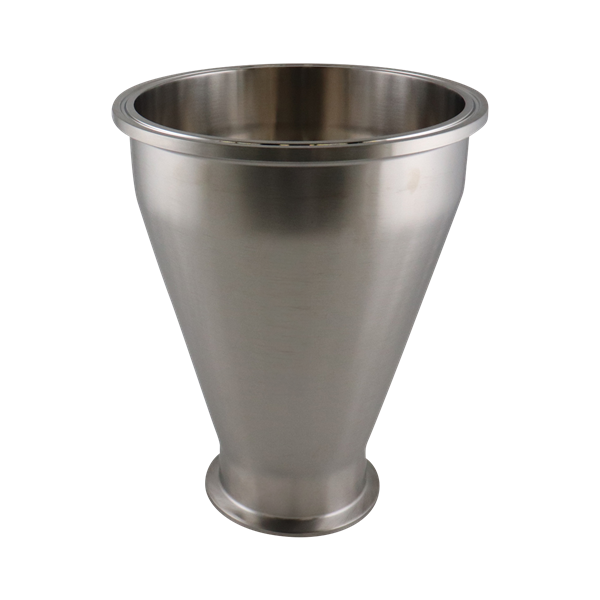

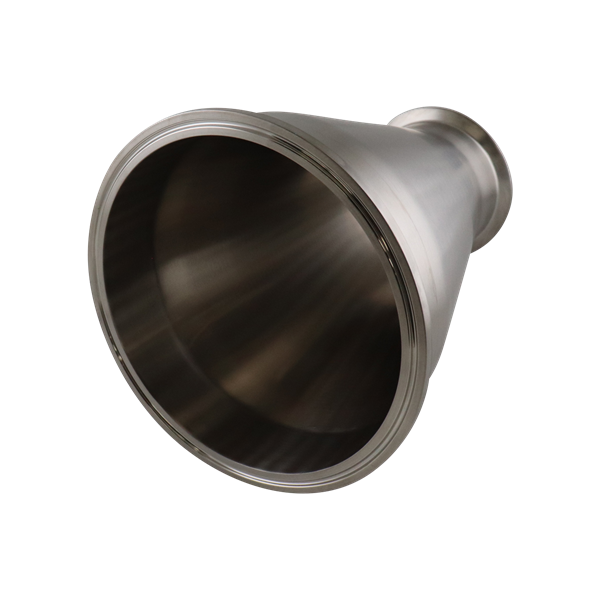

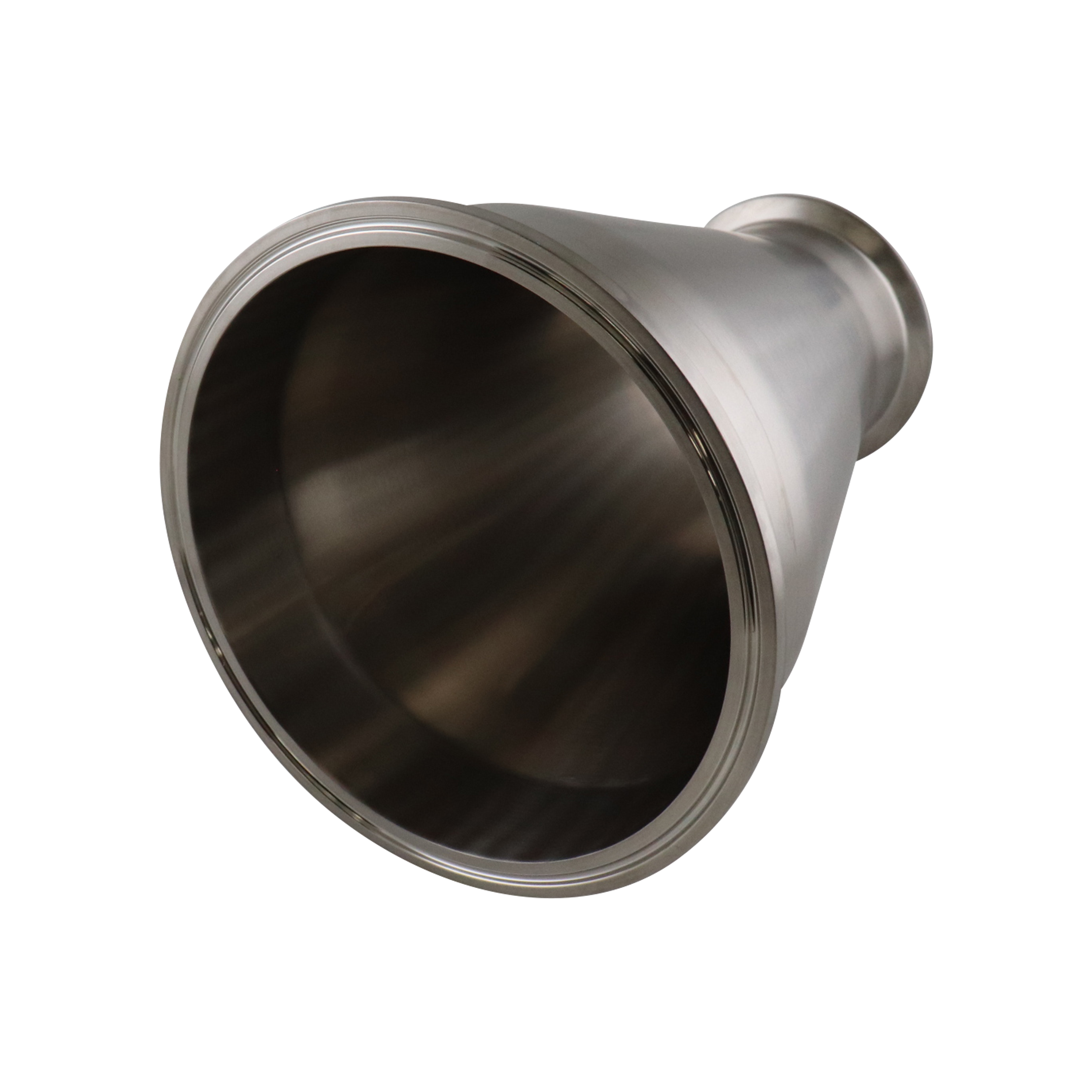

CONCENTRIC REDUCER 6X4 TC 316L 7" OAL 32RA ID 32RA OD
B31-14MP-6X4-316L-7
Net Price: $196.61 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Concentric Reducers |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 6" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 4" |
| Connection Type 2 | Tri-Clamp |
| Length | 7" OAL |
| Fitting Design | B31-14MP |
| Weight | 4.90000 |
Dimensional Data
Concentric Tri-Clamp Reducer (2009 BPE) | B31-14MP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ¾ x ½ | 19.05 x 12.70 | 2.00 | 50.80 |
| 1 x ½ | 25.40 x 12.70 | 2.00 | 50.80 |
| 1 x ¾ | 25.40 x 19.05 | 2.00 | 50.80 |
| 1½ x ½ | 38.10 x 12.70 | 3.50 | 88.90 |
| 1½ x ¾ | 38.10 x 19.05 | 3.00 | 76.20 |
| 1½ x 1 | 38.10 x 25.40 | 3.00 | 76.20 |
| 2 x 1 | 50.80 x 25.40 | 5.00 | 127.00 |
| 2 x 1½ | 50.80 x 38.10 | 3.00 | 76.20 |
| 2½ x 1 | 63.50 x 25.40 | 7.00 | 177.80 |
| 2½ x 1½ | 63.50 x 38.10 | 5.00 | 127.00 |
| 2½ x 2 | 63.50 x 50.80 | 3.00 | 76.20 |
| 3 x 1 | 76.20 x 25.40 | 9.00 | 228.60 |
| 3 x 1½ | 76.20 x 38.10 | 7.00 | 177.80 |
| 3 x 2 | 76.20 x 50.80 | 5.00 | 127.00 |
| 3 x 2½ | 76.20 x 63.50 | 3.00 | 76.20 |
| 4 x 1½ | 101.60 x 38.10 | 11.125 | 282.575 |
| 4 x 2 | 101.60 x 50.80 | 9.125 | 231.775 |
| 4 x 2½ | 101.60 x 63.50 | 7.125 | 180.975 |
| 4 x 3 | 101.60 x 76.20 | 5.125 | 130.175 |
| 6 x 3 | 152.40 x 76.20 | 6.875 | 174.625 |
| 6 x 4 | 152.40 x 101.60 | 7.00 | 177.80 |
| 10 x 8 | 254.00 x 203.20 | 7.625 | 193.675 |
