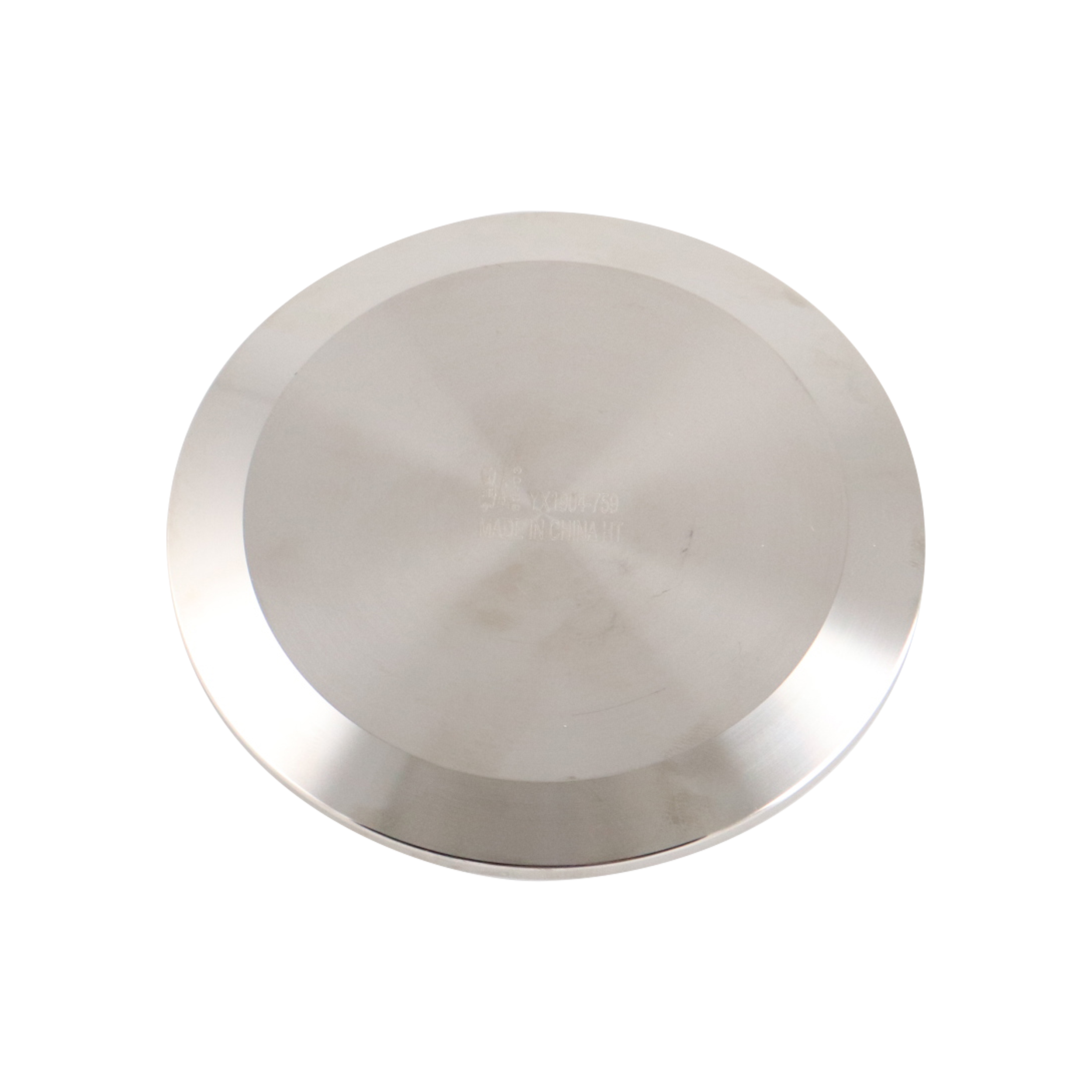

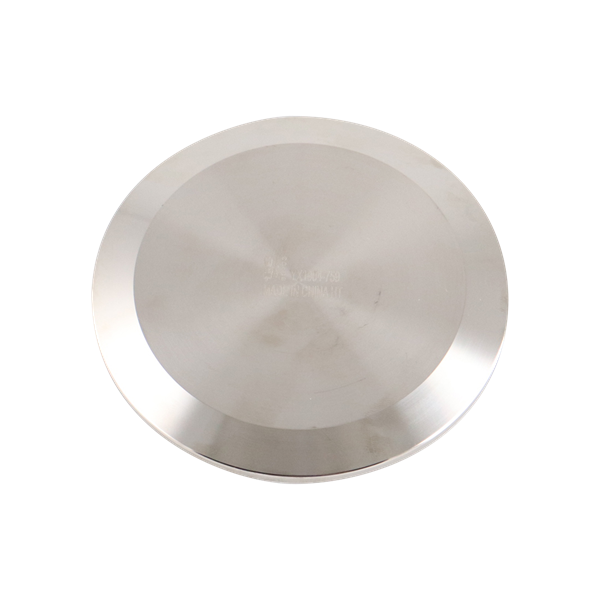

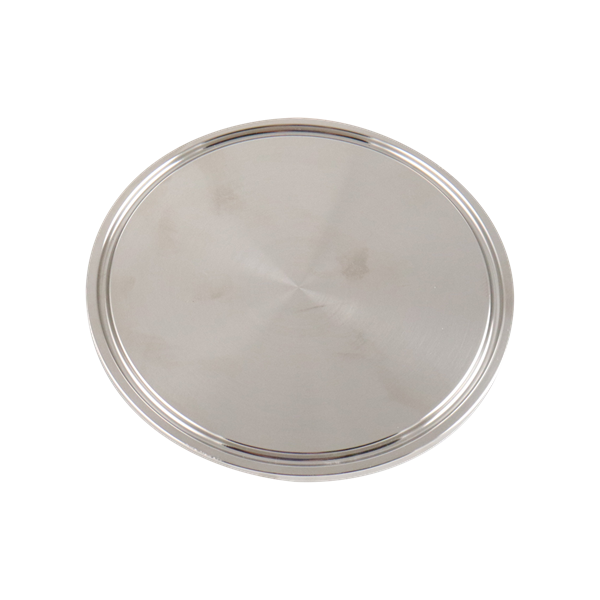

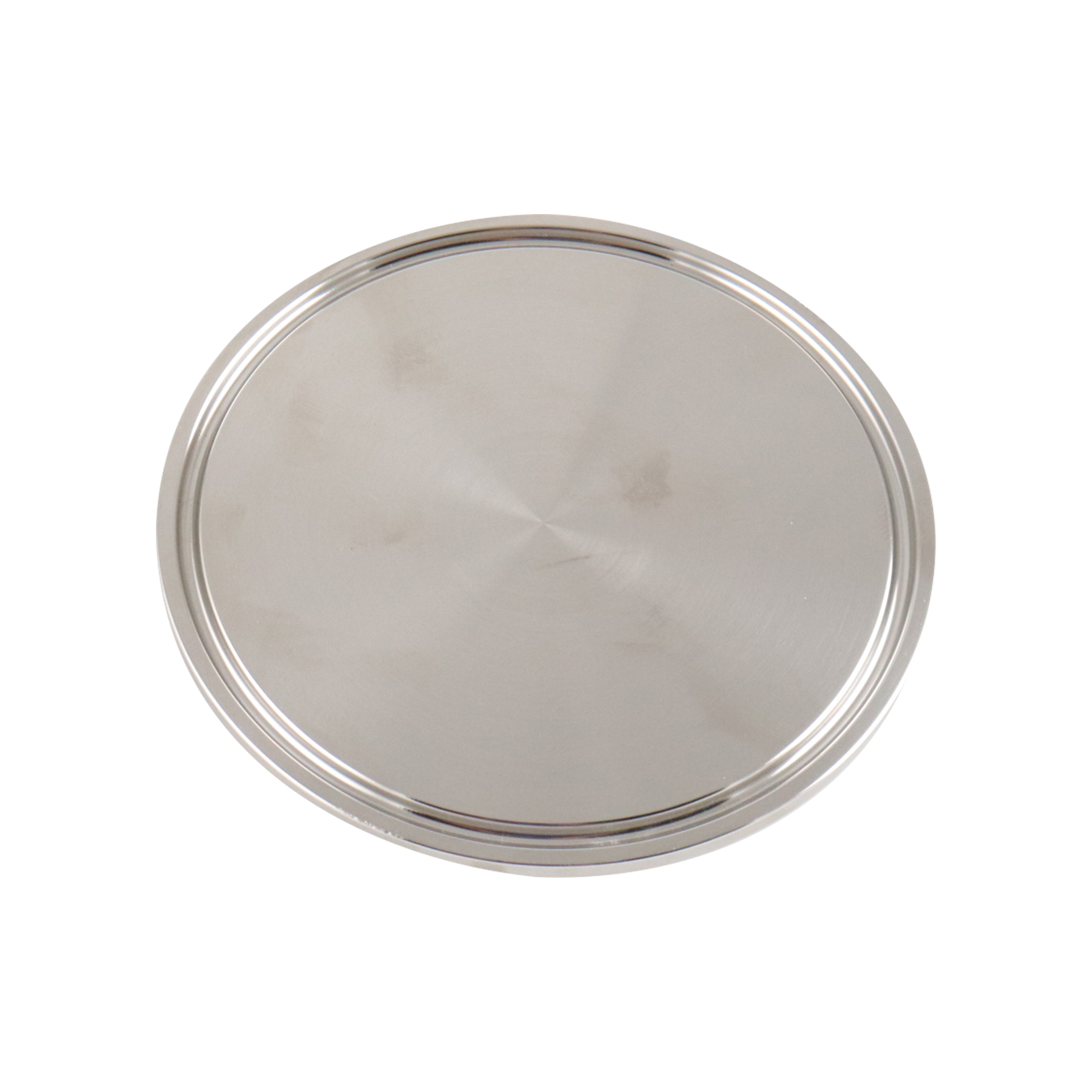

CAP 2.5" TC SCH 5 304 SAME AS 16AMP-3-304-7

16AMV-2.5-304

USUALLY SHIPS IN 1-2 DAYS

Net Price: $4.39 / EA

Have an account? Login now.

Availability:
Product Type Tube Fittings
Product Subtype Caps
Material 304 Stainless Steel
Size 1 2.5"
Connection Type 1 Tri-Clamp
Specification / Standard 3-A
Fitting Design 16AMV
Wall Thickness Sch 5
Weight 0.00000

16AMV Dimensional Diagram

IPS Sch. 5 Tri-Clamp Solid End Cap | 16AMV-Size-Material-Finish
Nominal Size A
(in) (mm) (in) (mm)
1 25.40 0.25 6.35
1½ 38.10 0.25 6.35
2 50.80 0.25 6.35
2½ 63.50 0.25 6.35
3 76.20 0.31 7.87
4 101.60 0.31 7.87
6 152.40 0.44 11.18
8 203.20 0.44 11.18
