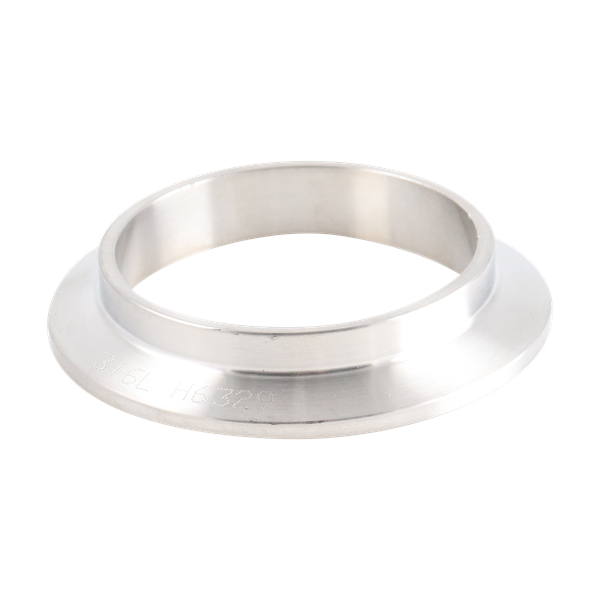

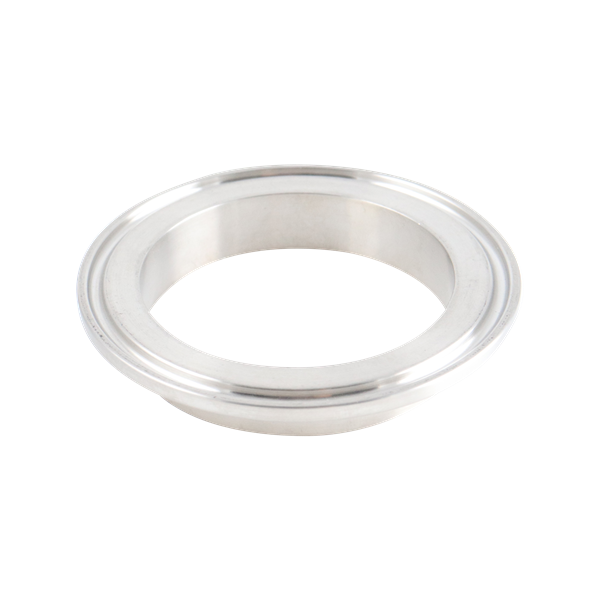

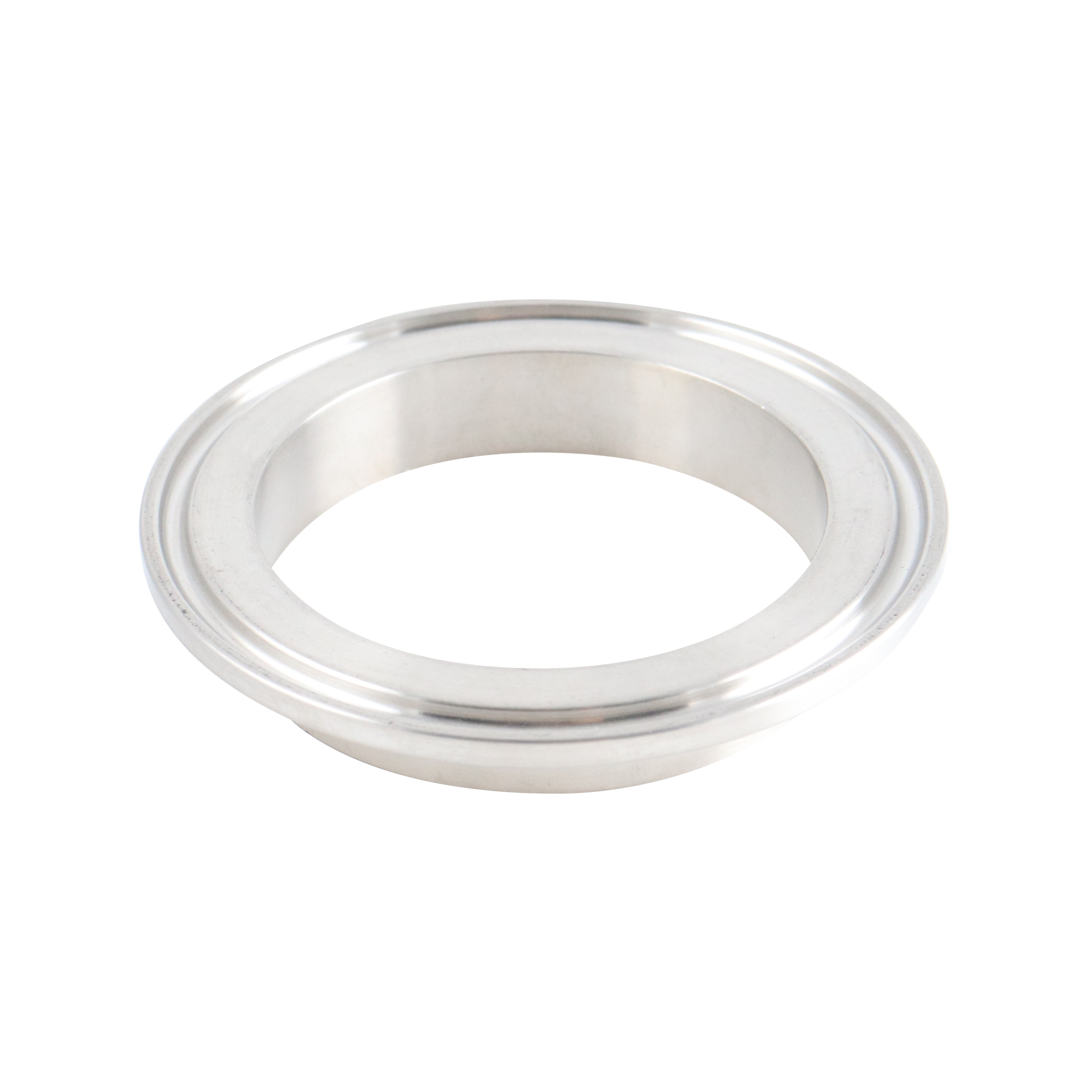

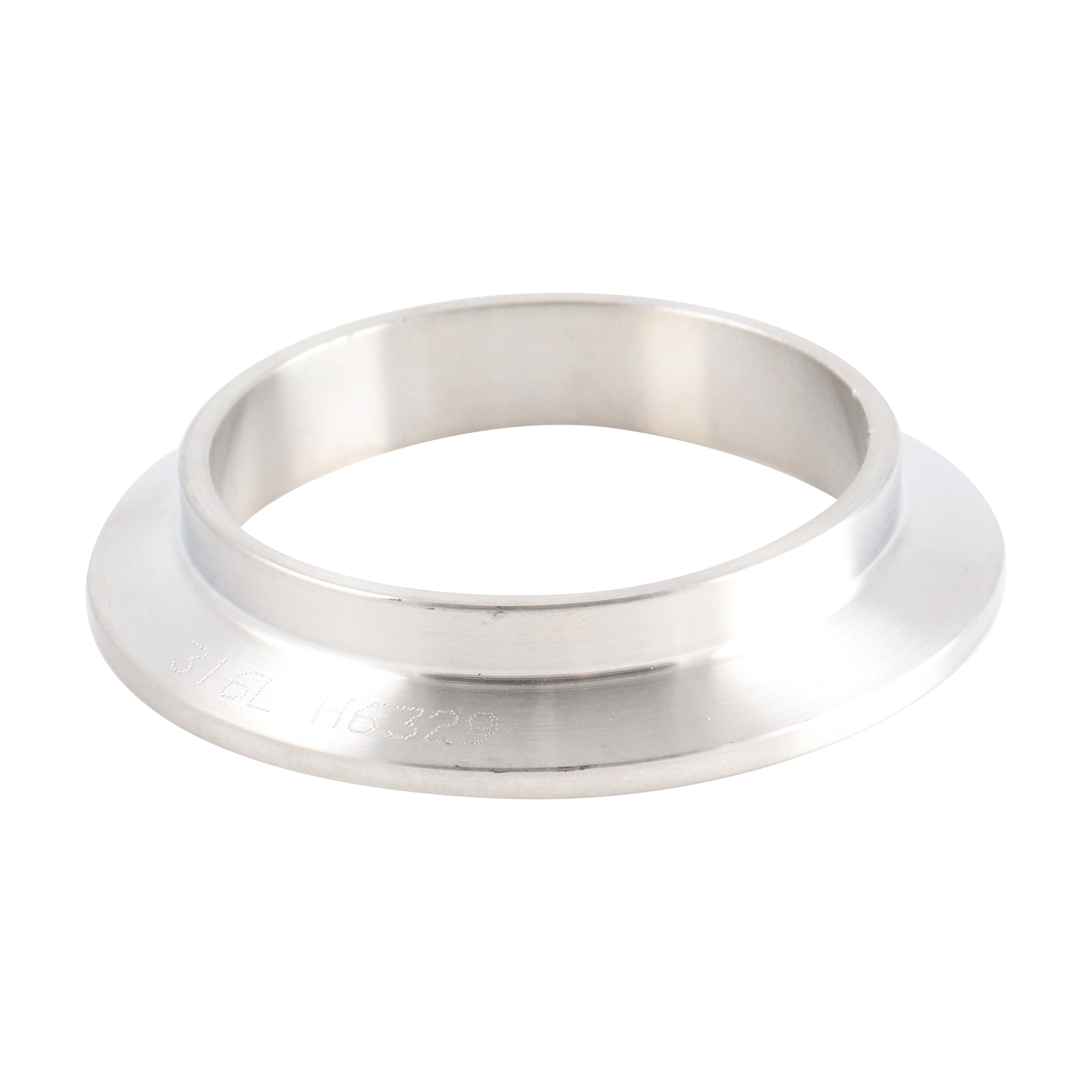

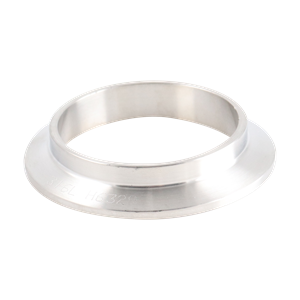

FERRULE 1" TC SCH 10 316L 0.5" OAL 32RA ID 32RA OD
14WMX-1-316L
Net Price: $18.30 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Ferrules |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 1" |
| Connection Type 2 | Butt Weld Pipe |
| Length | 0.5" OAL |
| Fitting Design | 14WMX |
| Wall Thickness | Sch 10 |
| Weight | 0.00000 |
Dimensional Data
Sch. 10 Short Weld Ferrule | 14WMX-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 0.50 | 12.70 |
| 1½ | 38.10 | 0.50 | 12.70 |
| 2 | 50.80 | 0.50 | 12.70 |
| 2½ | 63.50 | 0.50 | 12.70 |
| 3 | 76.20 | 0.50 | 12.70 |
| 4 | 101.60 | 0.63 | 16.00 |
