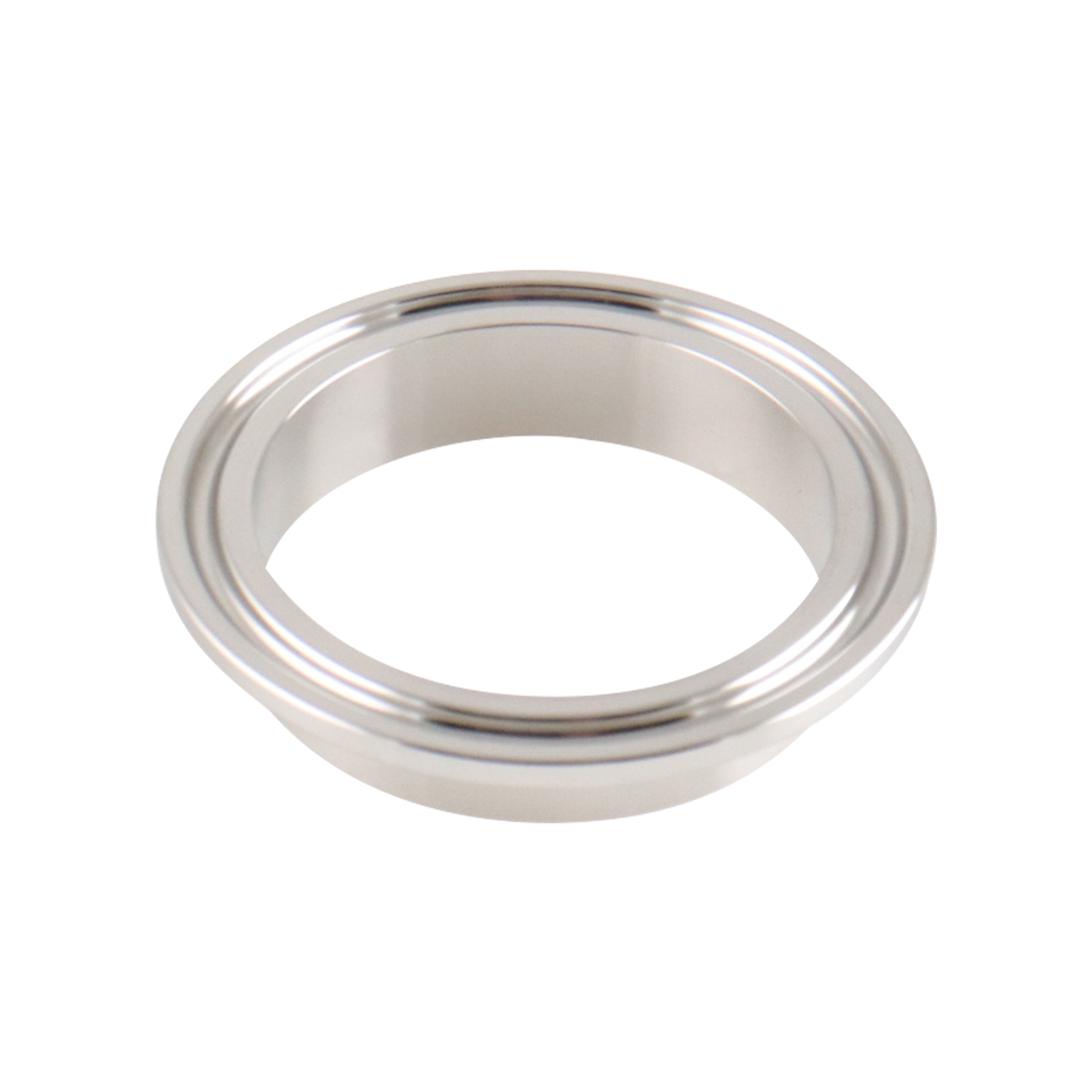

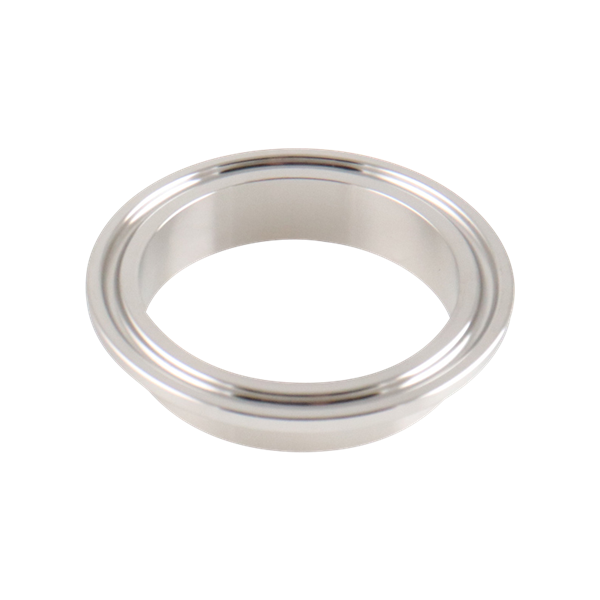

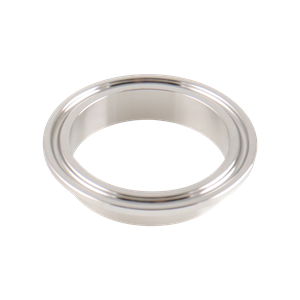

FERRULE 2" TC 316L 0.5" OAL 32RA ID 32RA OD

14WMPS-2-316L-7

USUALLY SHIPS IN 1-2 DAYS

Net Price: $3.09 / EA

Have an account? Login now.

Availability:
  • Total: 1
Product Availability
Price
FERRULE 2" TC 316L 0.5" OAL 20RA ID 32RA OD SF1 BPE

$13.88 / EA

  • Total: 1
Product Type Tube Fittings
Product Subtype Ferrules
Material 316L Stainless Steel
Finish 32Ra ID / 32Ra OD
Size 1 2"
Connection Type 1 Tri-Clamp
Size 2 2"
Connection Type 2 Butt Weld
Length 0.5" OAL
Specification / Standard 3-A
Fitting Design 14WMPS
Weight 0.20000

14WMPS Dimensional Diagram

Tri-Clamp Ferrule, Short | 14WMPS-Size-Material-Finish
Nominal SizeAB
(in)(mm)(in)(mm)(in)(mm)
½12.700.50012.700.98425.00
¾19.050.50012.700.98425.00
125.400.50012.701.98450.39
1½38.100.50012.701.98450.39
250.800.50012.702.51663.91
2½63.500.50012.703.04777.39
376.200.50012.703.57990.91
4101.600.62515.884.682118.92
6152.400.75019.056.575167.01
8203.200.85021.598.570217.68
10254.000.85021.5910.570268.48
12304.800.85021.5912.570319.28
