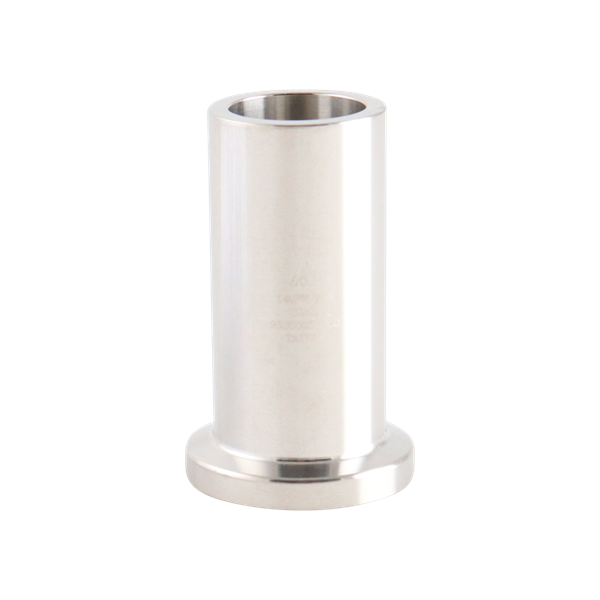

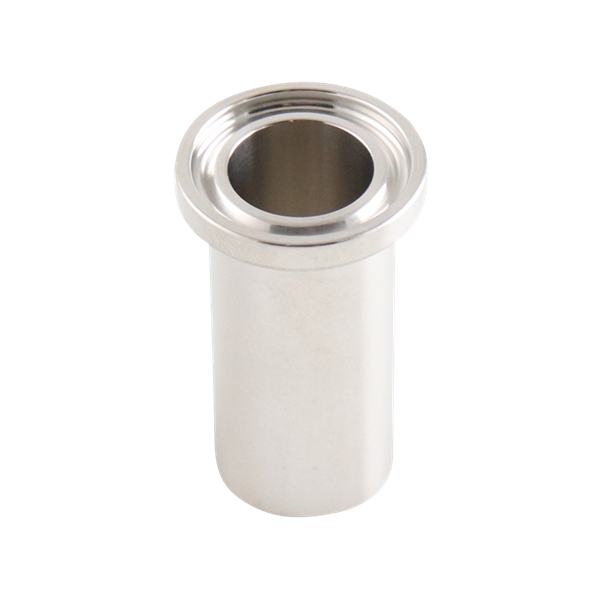

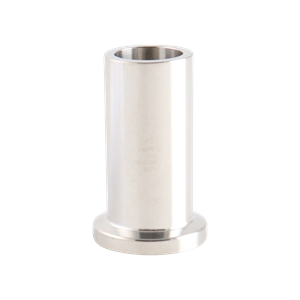

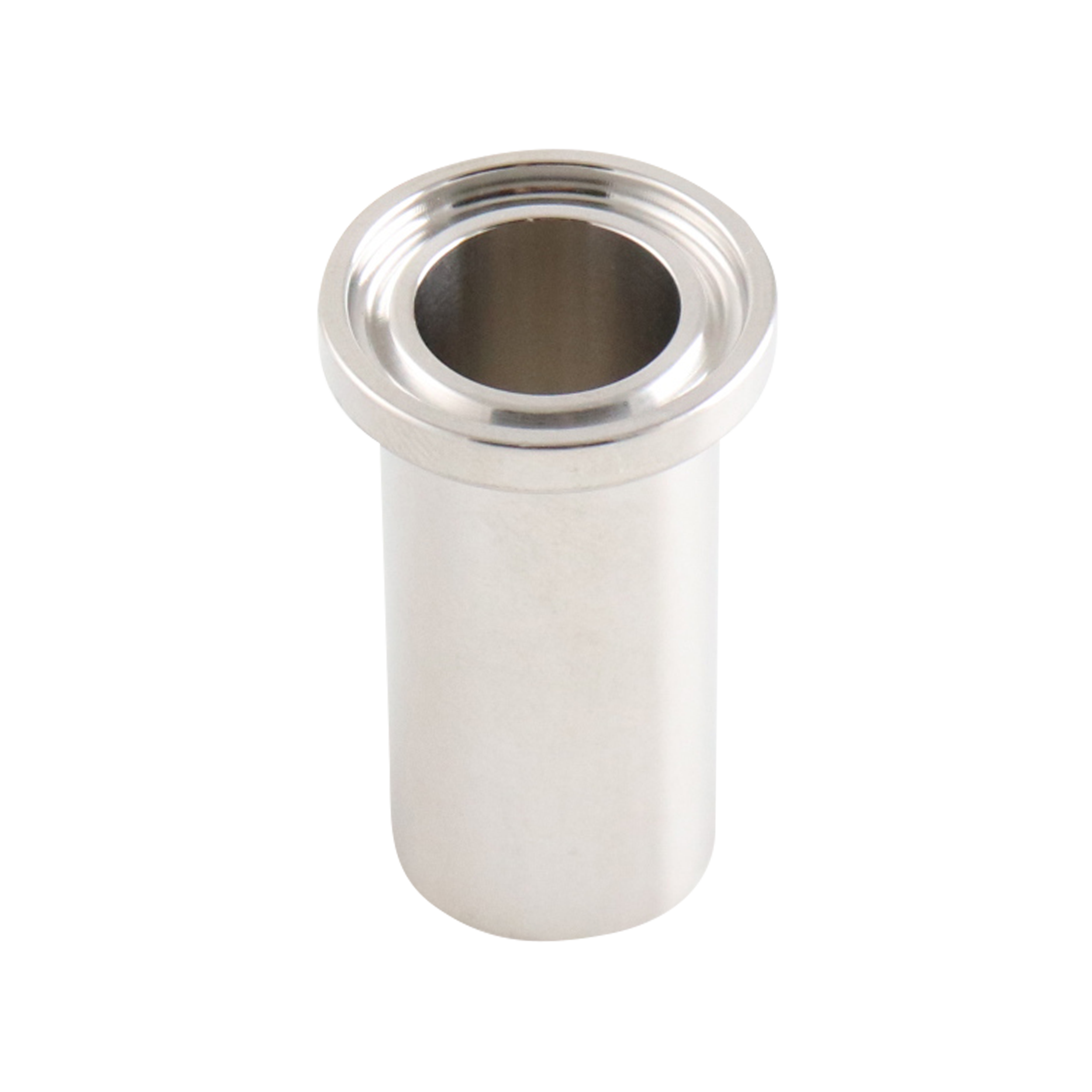

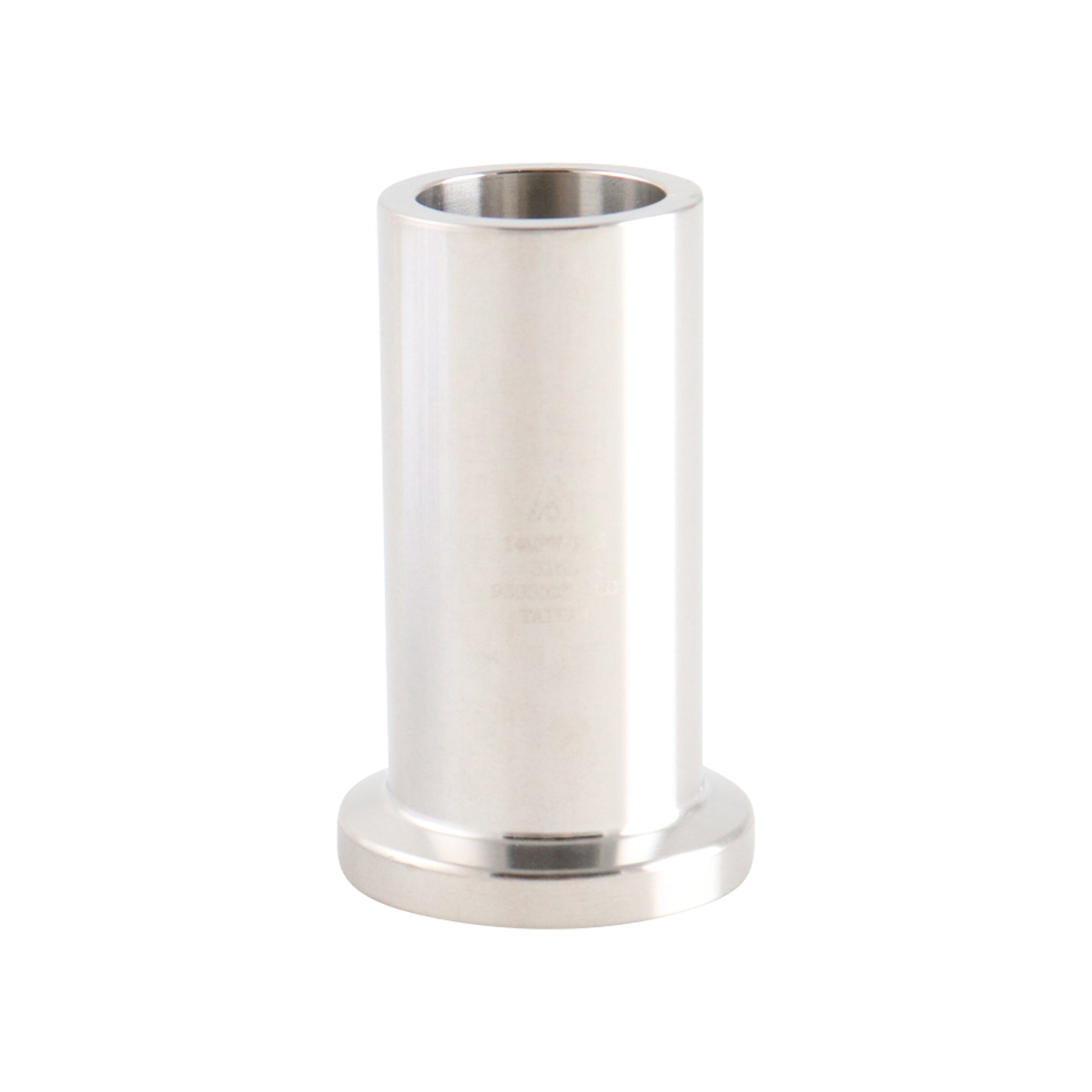

HEAVY WALL TANK FERRULE 0.75" TC 316L 1.625" OAL 0.09" WALL THICKNESS 32RA ID 32RA OD
14MPW-0.75-316L-7
Net Price: $21.09 / EA
This item is non-returnable.
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tank Ferrules |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 0.75" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 0.75" |
| Connection Type 2 | Butt Weld |
| Length | 1.625" OAL |
| Specification / Standard | 3-A |
| Fitting Design | 14MPW |
| Wall Thickness | 0.09" |
| Weight | 0.20000 |
Dimensional Data
Heavy Tank Ferrule | 14MPW-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 1.63 | 41.40 |
| 1½ | 38.10 | 1.63 | 41.40 |
| 2 | 50.80 | 1.75 | 44.45 |
| 2½ | 63.50 | 1.75 | 44.45 |
| 3 | 76.20 | 1.81 | 45.97 |
| 4 | 101.60 | 2.13 | 54.10 |
| 6 | 152.40 | 2.50 | 63.50 |
