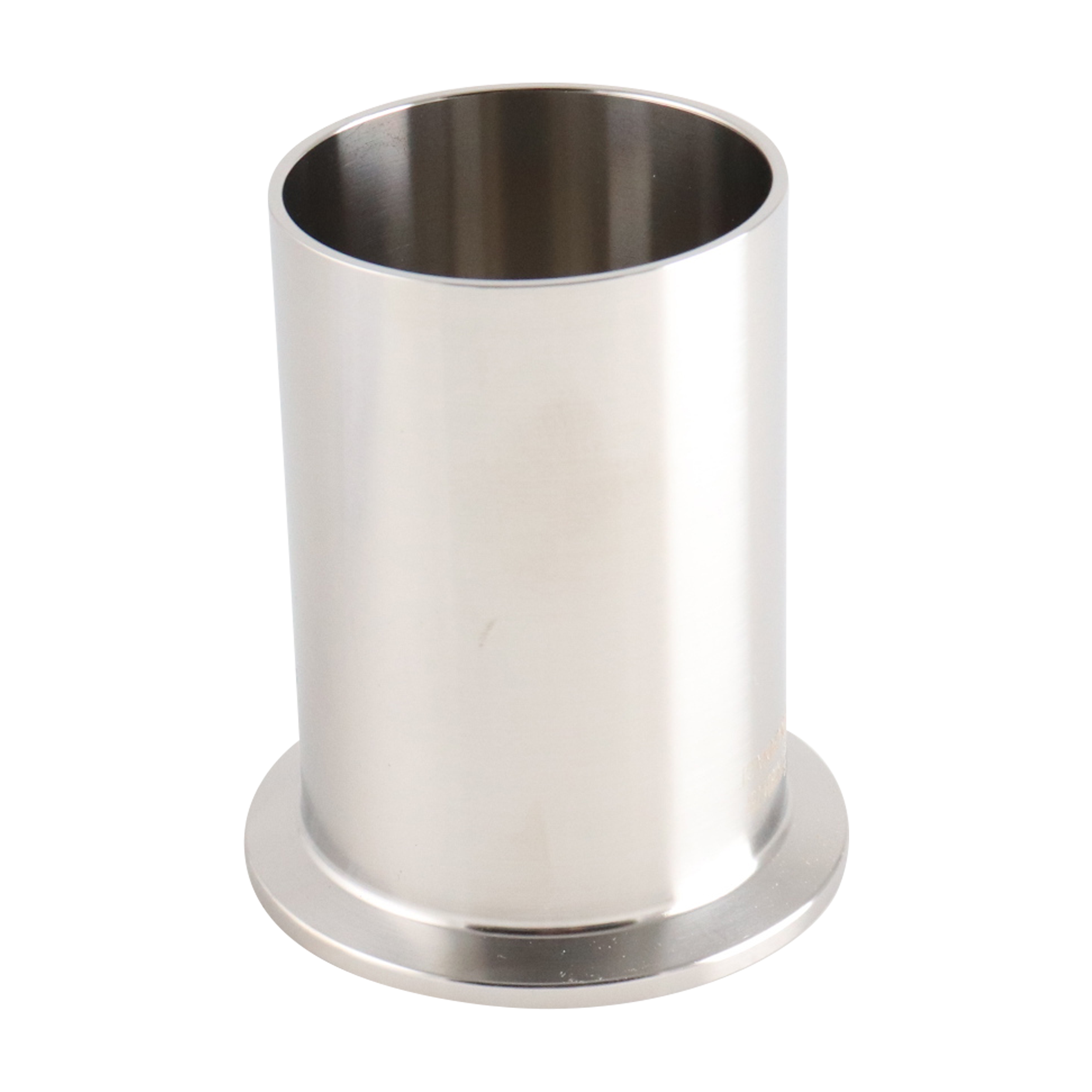

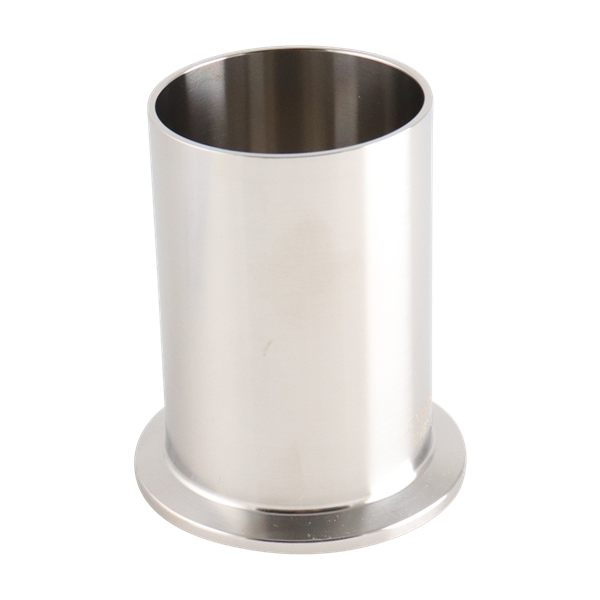

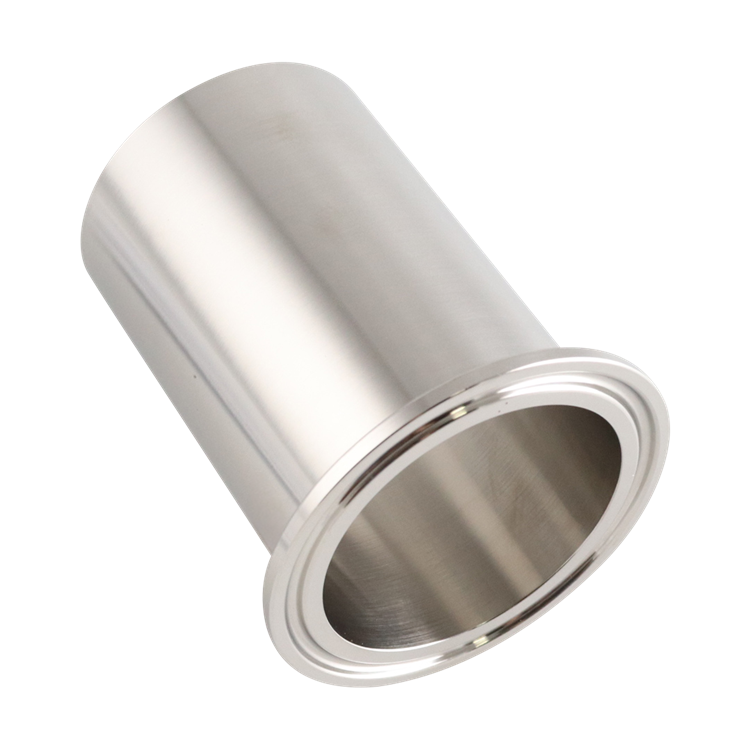

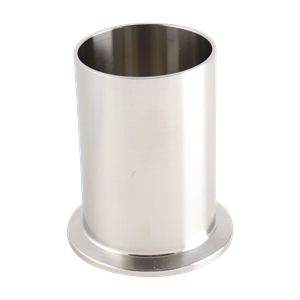

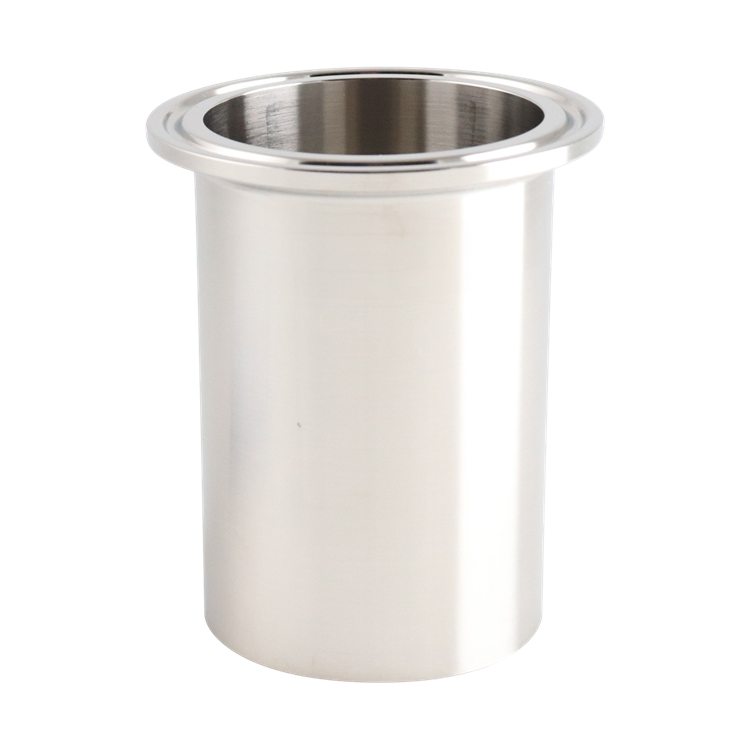

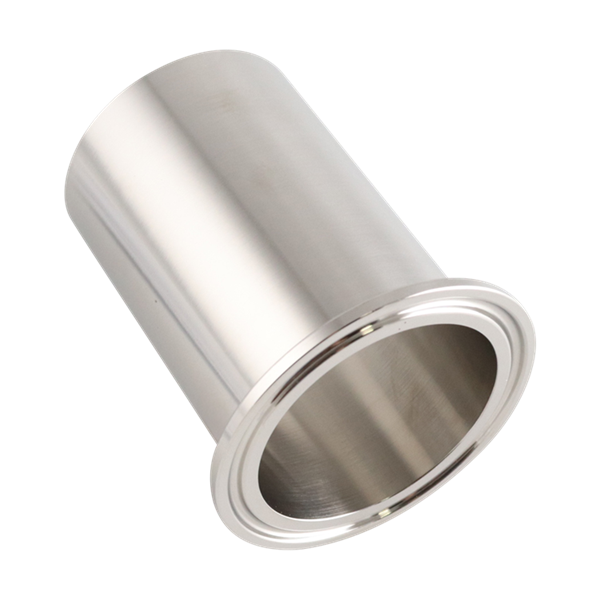

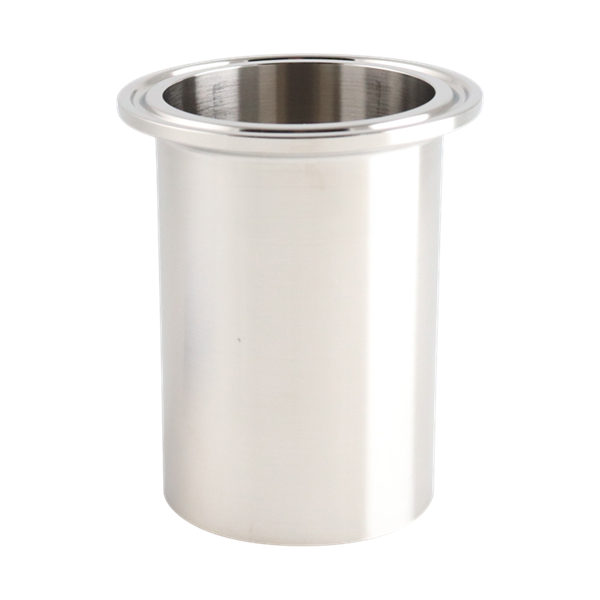

LIGHT TANK FERRULE 1" TC 316L 3" OAL 32RA ID 32RA OD
14WLMP-1-316L-7
Net Price: $11.27 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Tank Ferrules |
| Material | 316L Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 1" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 1" |
| Connection Type 2 | Butt Weld |
| Length | 3" OAL |
| Specification / Standard | 3-A |
| Fitting Design | 14WLMP |
| Weight | 0.31250 |
Dimensional Data
Light Tank Ferrule | 14WLMP-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1 | 25.40 | 3.00 | 76.20 |
| 1½ | 38.10 | 3.00 | 76.20 |
| 2 | 50.80 | 3.00 | 76.20 |
| 2½ | 63.50 | 3.00 | 76.20 |
| 3 | 76.20 | 4.00 | 101.60 |
| 4 | 101.60 | 4.00 | 101.60 |
| 6 | 152.40 | 6.00 | 152.40 |
