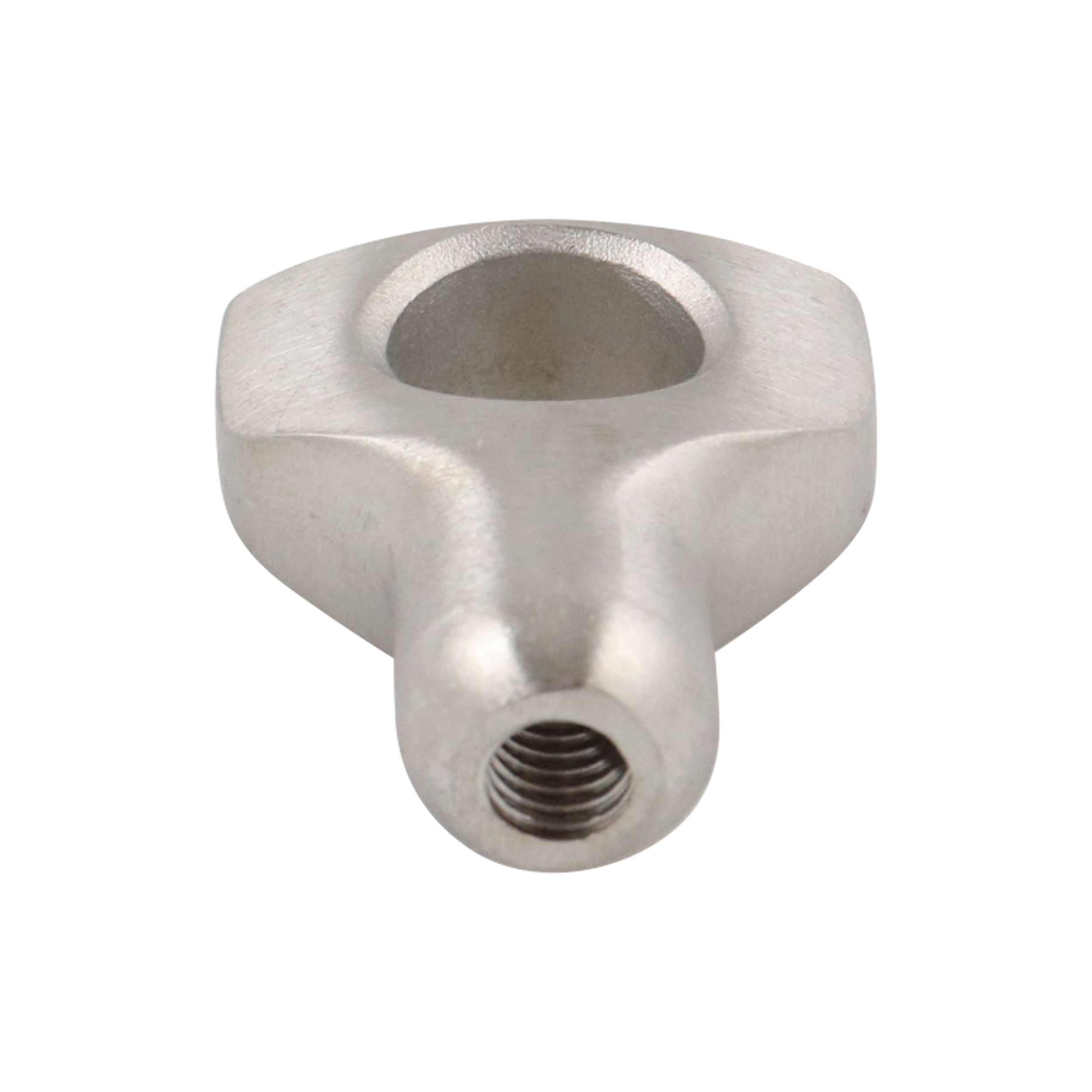

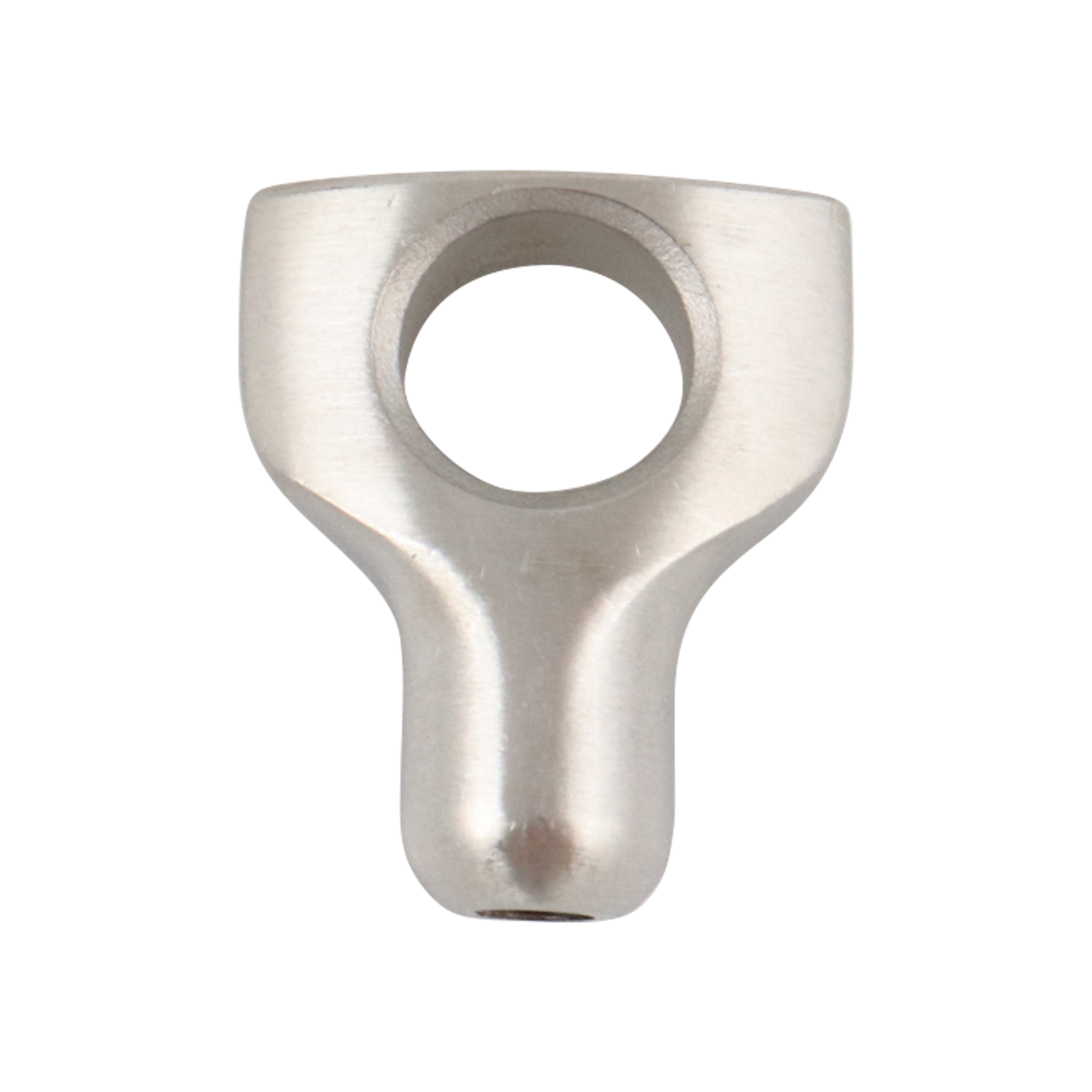

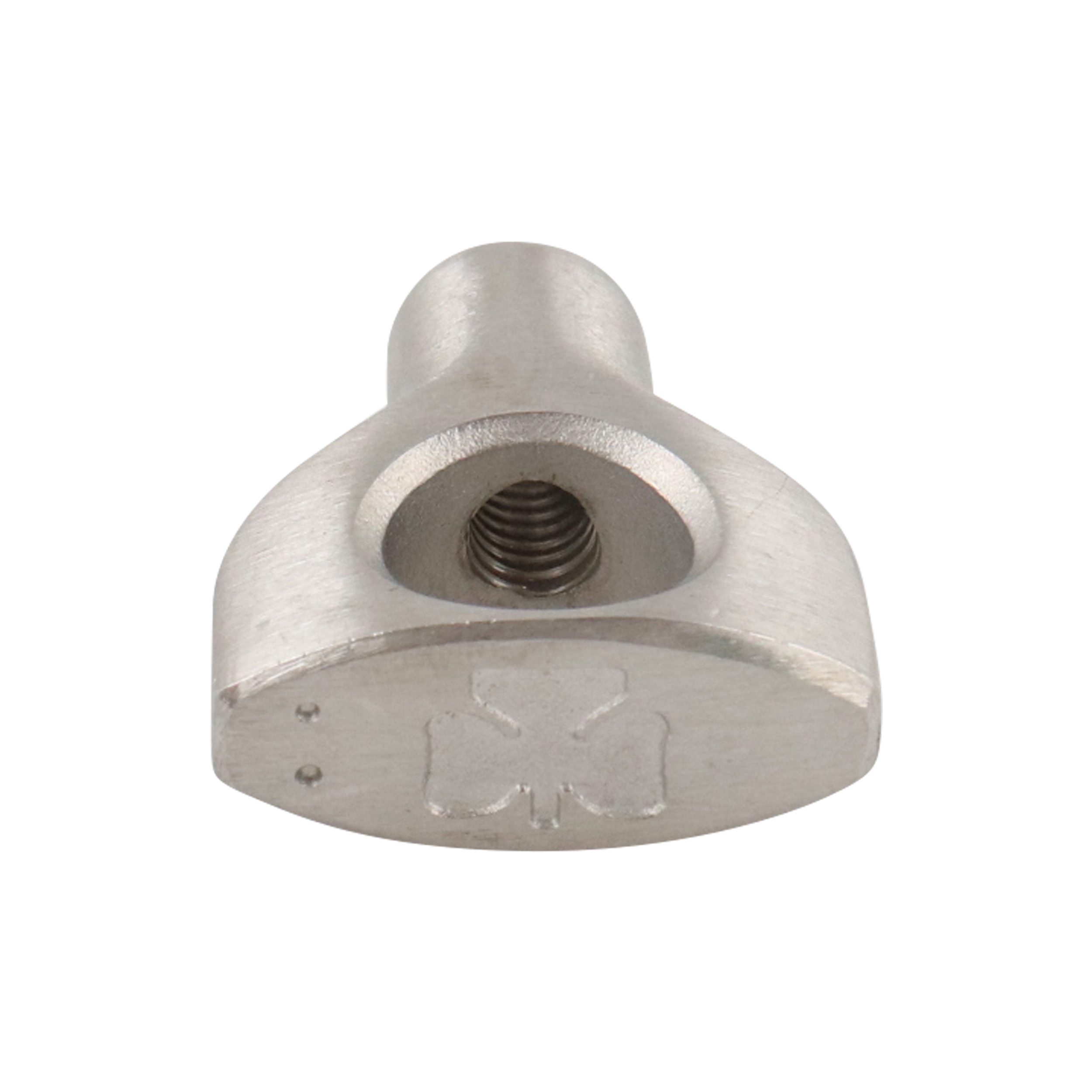

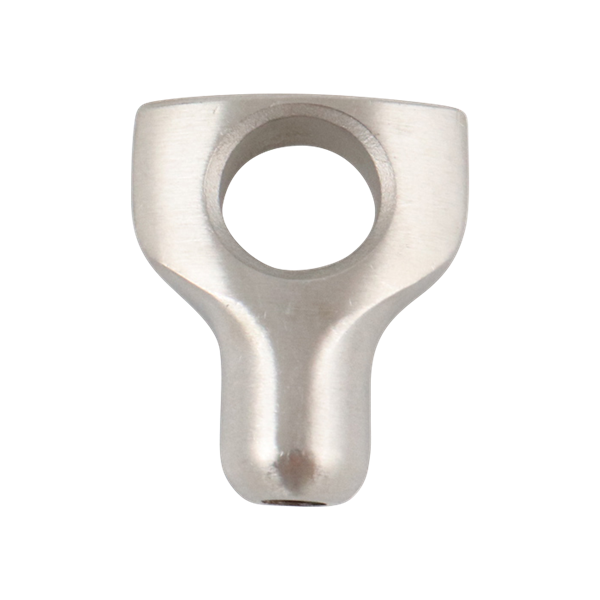

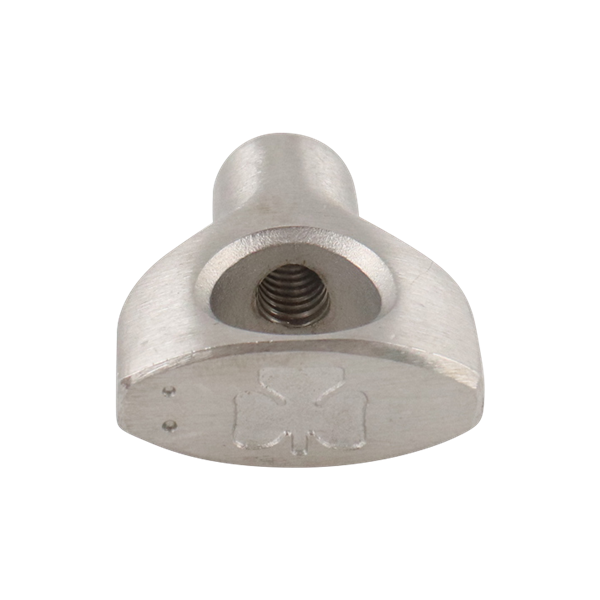

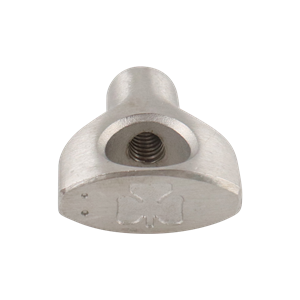

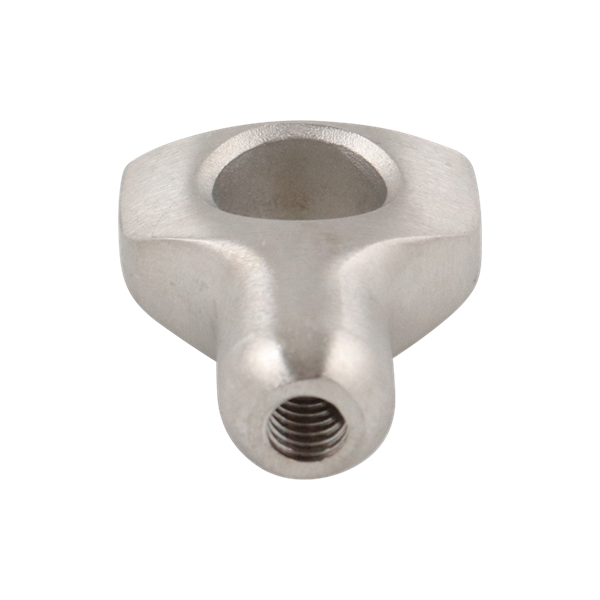

WING NUT FOR TRI CLOVER CLAMP 304 1.5" 2" 2.5" 3" 4" 6" CENTER HOLE 1 5/8 OAL
13MHHS-1.5-03-S
Net Price: $13.41 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Accessories |
| Material | 304 Stainless Steel |
| Size 1 | 1.5"-6" |
| Connection Type 1 | Tri-Clamp |
| Length | 1.625" OAL |
| Fitting Design | 13MHHS |
| Weight | 0.30000 |
Dimensional Data
3-Segment Heavy Duty Tri-Clamp with Wingnut | 13MHHS-Size-Material
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| 1½ | 38.10 | 2.13 | 54.10 |
| 2 | 50.80 | 2.66 | 67.56 |
| 2½ | 63.50 | 3.19 | 81.03 |
| 3 | 76.20 | 3.72 | 94.49 |
| 4 | 101.60 | 4.83 | 122.68 |
