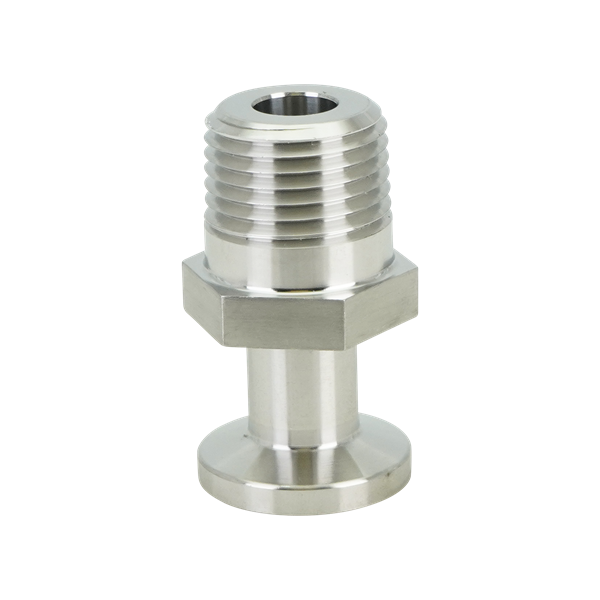

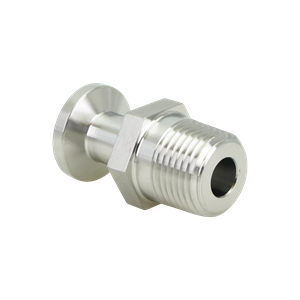

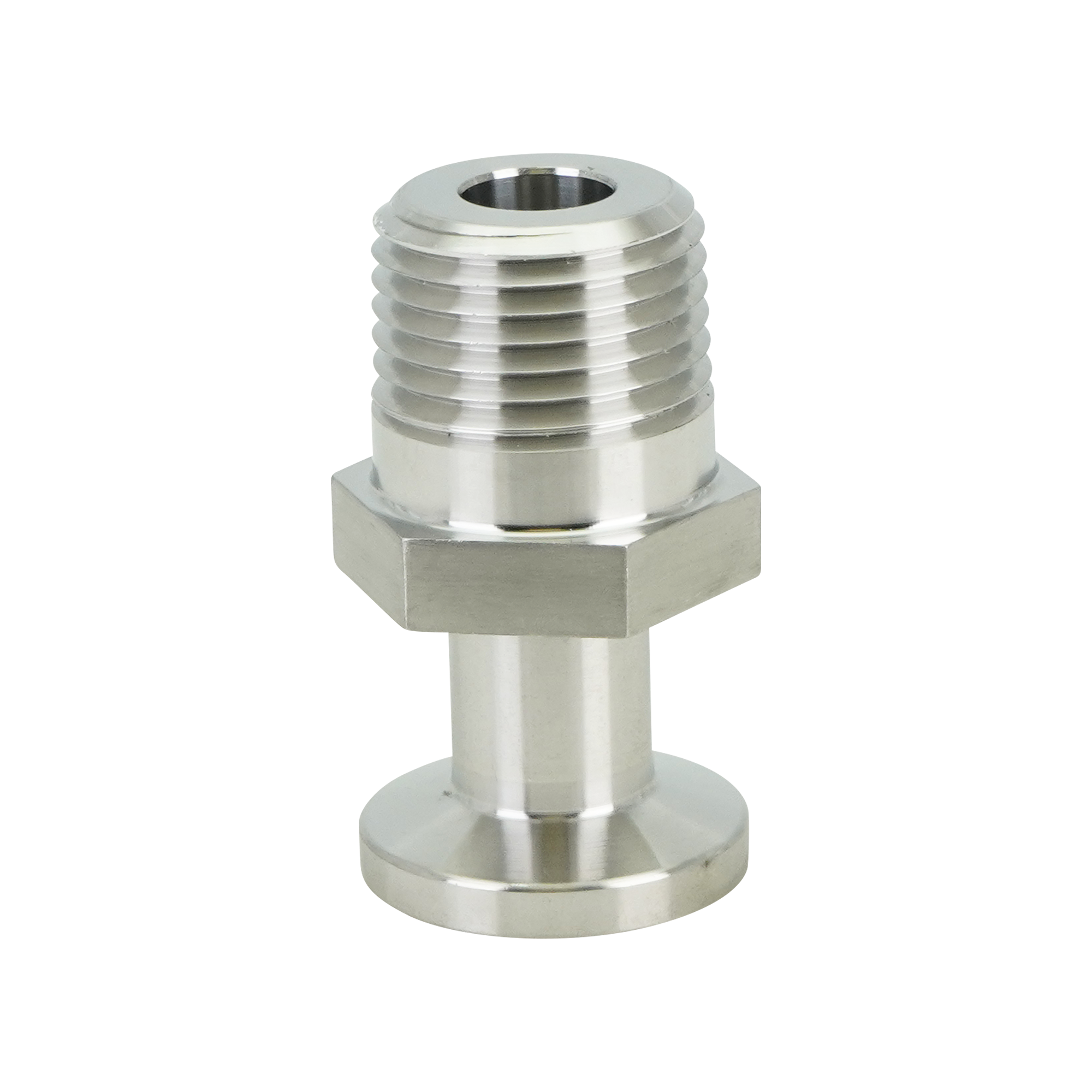

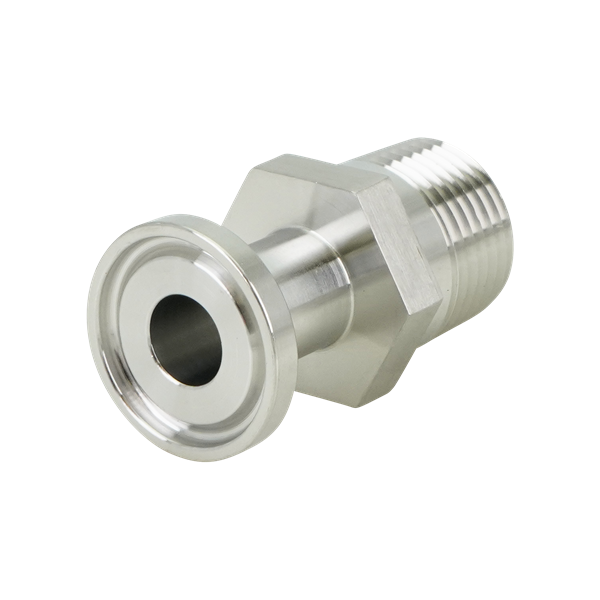

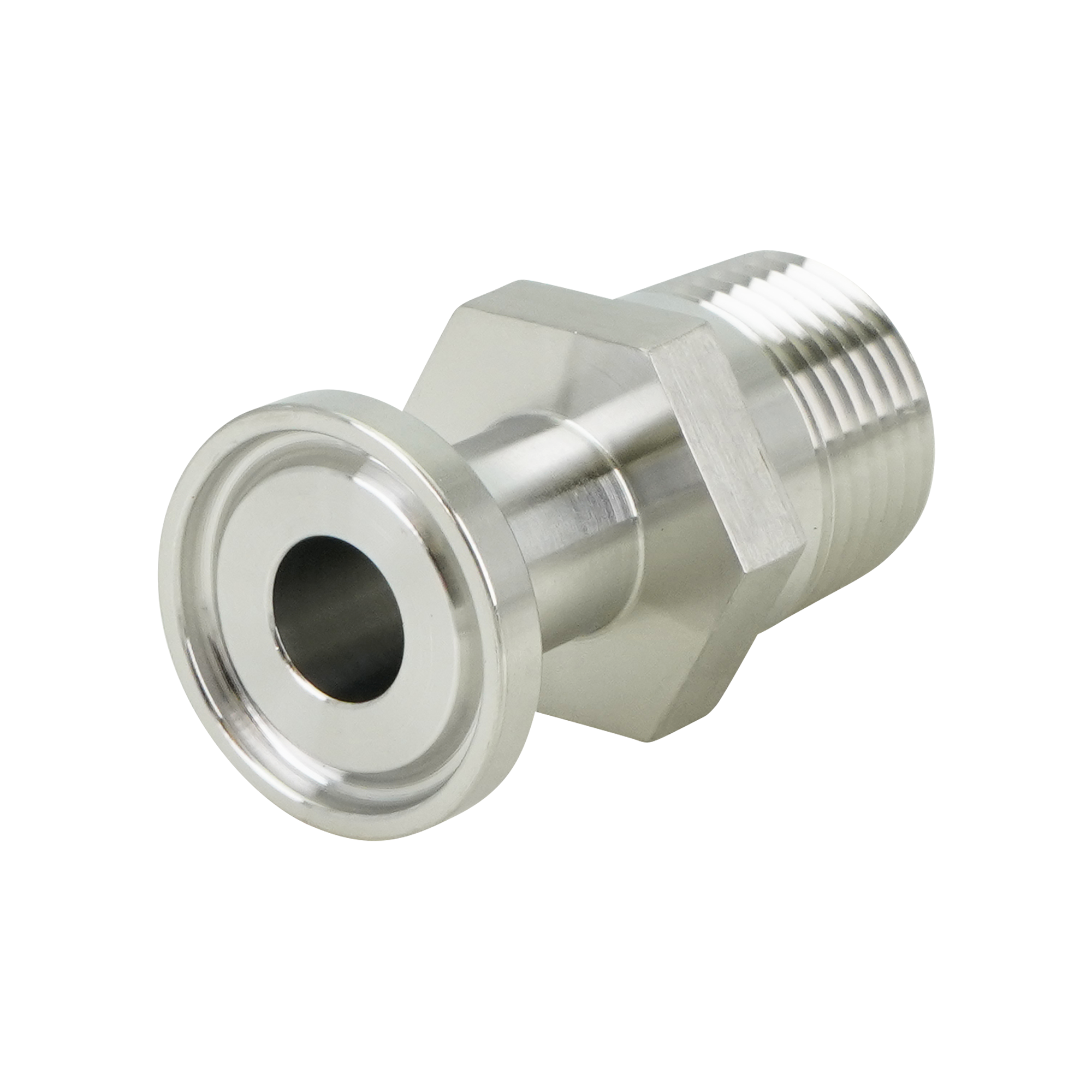

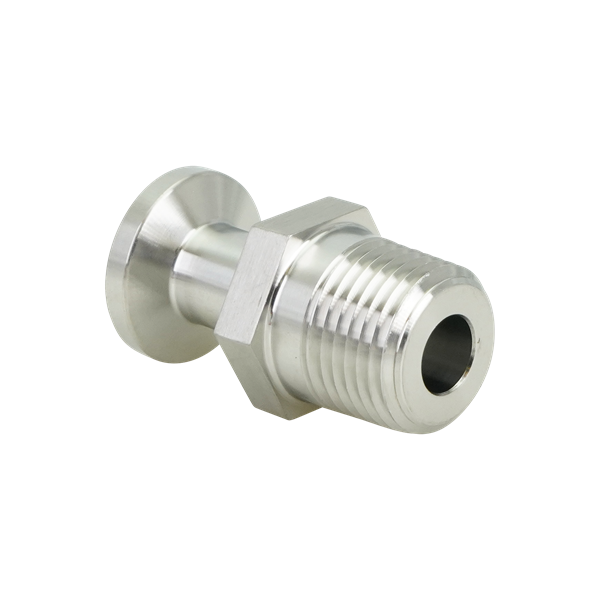

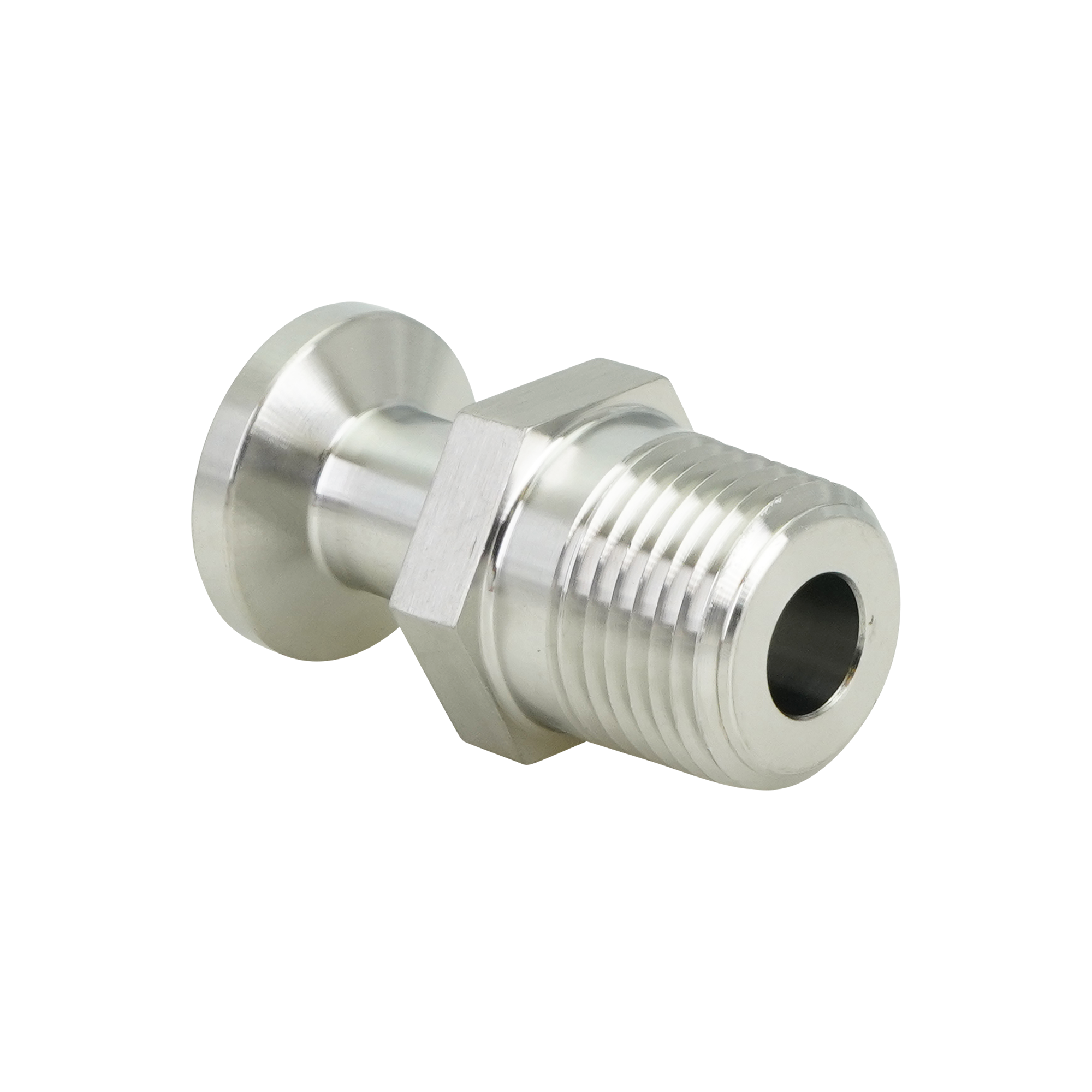

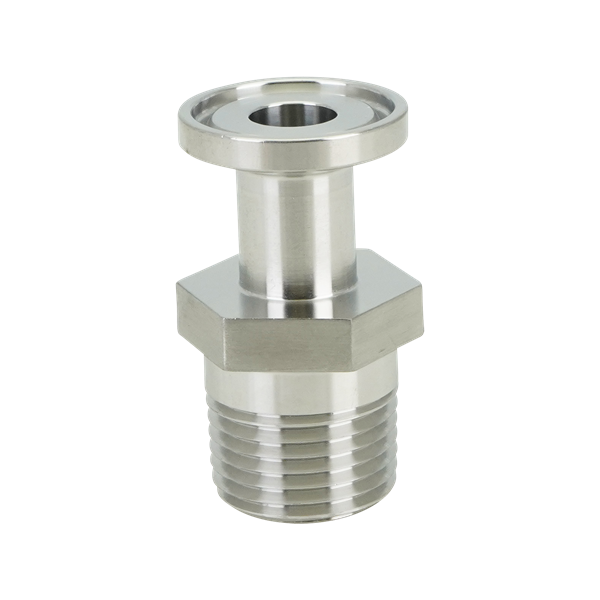

ADAPTER 0.5" TC X 0.5" MPT 316L 20RA ID 32RA OD
21MP-0.5-316L-PL

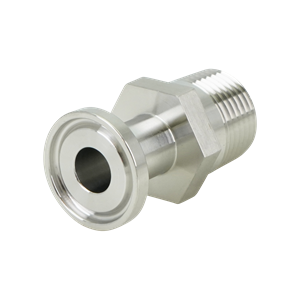

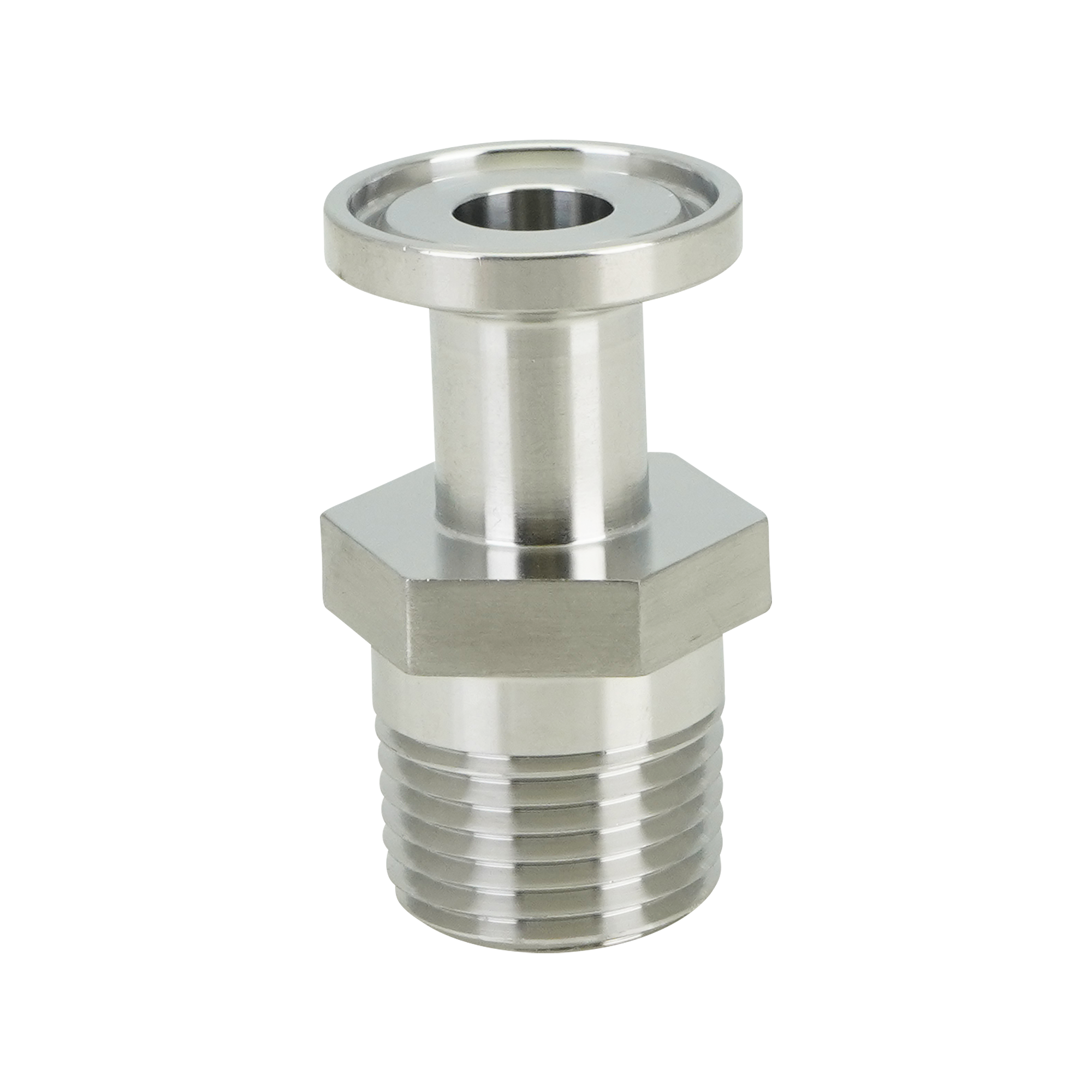

The 21MP 1/2in Tri-Clamp x 1/2in Male National Pipe Thread (MNPT) Adapter is crafted from 316L stainless steel, renowned for its corrosion resistance. It boasts a 20Ra interior finish and a 32Ra exterior finish, meeting strict sanitary standards. This adapter connects a tri-clamp pipeline to a 1/2in MNPT, ensuring a secure, leak-proof connection.
This 316L Tri-Clamp Adapter is precision-designed for a perfect fit. Its compact size allows for easy installation in tight spaces, and its robust construction guarantees durability. The adapter's design simplifies cleaning and maintenance, making it ideal for sanitary processing applications.
Net Price: $35.58 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Adapters |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 0.5" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 0.5" |
| Connection Type 2 | MNPT |
| Length | 1.77" OAL |
| Fitting Design | 21MP |
| Weight | 0.30000 |
Dimensional Data
Fractional:
Nominal:
Tri-Clamp x Male Pipe Thread Adapter | 21MP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ x ⅛ | 12.70 x 3.18 | 2.00 | 50.80 |
| ½ x ¼ | 12.70 x 6.35 | 2.00 | 50.80 |
| ½ x ⅜ | 12.70 x 9.53 | 2.00 | 50.80 |
| ½ | 12.70 | 1.77 | 44.96 |
| ½ x ¾ | 12.70 x 19.05 | 2.00 | 50.80 |
| ¾ x ¼ | 19.05 x 3.18 | 2.00 | 50.80 |
| ¾ x ⅜ | 19.05 x 9.53 | 2.00 | 50.80 |
| ¾ x ½ | 19.05 x 12.70 | 1.77 | 44.96 |
| ¾ | 19.05 | 1.77 | 44.96 |
| ¾ x 1 | 19.05 x 25.40 | 2.25 | 57.15 |
| 1 x ¼ | 25.40 x 6.35 | 1.57 | 39.88 |
| 1 x ⅜ | 25.40 x 9.53 | 1.57 | 39.88 |
| 1 x ½ | 25.40 x 12.70 | 1.57 | 39.88 |
| 1 x ¾ | 25.40 x 19.05 | 1.77 | 44.96 |
| 1 | 25.40 | 1.97 | 50.04 |
| 1½ x ¼ | 38.10 x 6.35 | 1.57 | 39.88 |
| 1½ x ½ | 38.10 x 12.70 | 1.57 | 39.88 |
| 1½ x ¾ | 38.10 x 19.05 | 1.77 | 44.96 |
| 1½ x 1 | 38.10 x 25.40 | 1.97 | 50.04 |
| 1½ x 1¼ | 38.10 x 31.75 | 1.97 | 50.04 |
| 1½ | 38.10 | 1.97 | 50.04 |
| 1½ x 2 | 38.10 x 50.80 | 2.17 | 55.12 |
| 2 x ½ | 50.80 x 12.70 | 1.57 | 39.88 |
| 2 x 1 | 50.80 x 25.40 | 1.97 | 50.04 |
| 2 x 1¼ | 50.80 x 31.75 | 1.97 | 50.04 |
| 2 x 1½ | 50.80 x 38.10 | 1.97 | 50.04 |
| 2 | 50.80 | 2.17 | 55.12 |
| 2½ | 63.50 | 2.36 | 59.94 |
| 3 x 2½ | 76.20 x 63.50 | 2.36 | 59.94 |
| 3 | 76.20 | 2.76 | 70.10 |
| 4 x 3 | 101.60 x 76.20 | 2.76 | 70.10 |
| 4 | 101.60 | 2.95 | 74.93 |
