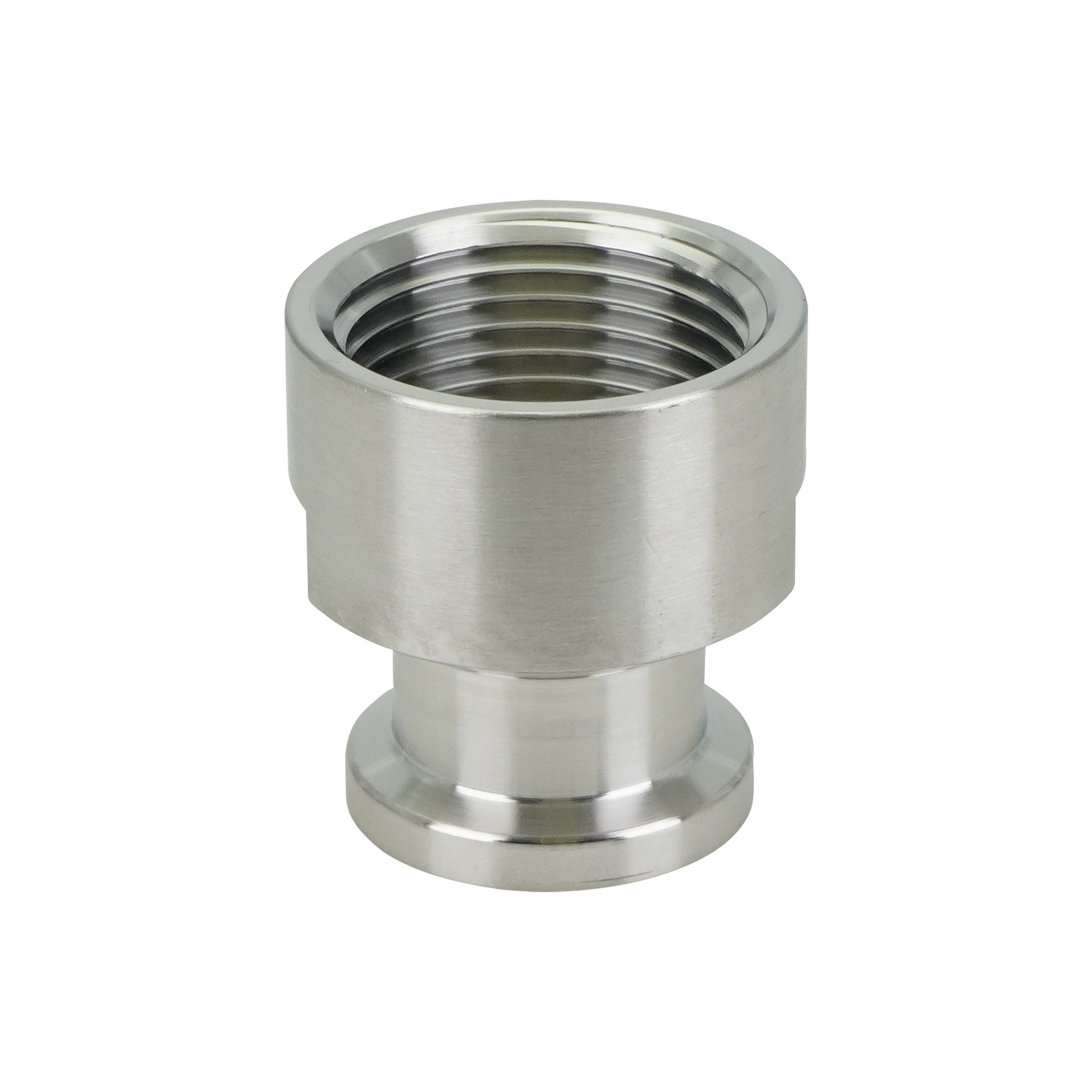

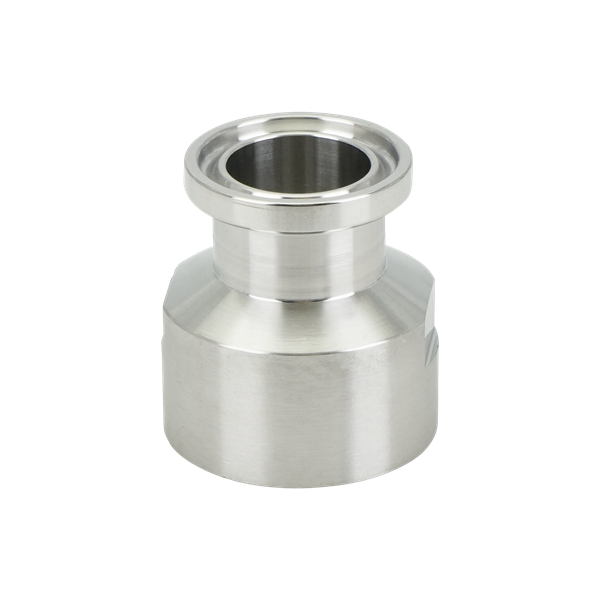

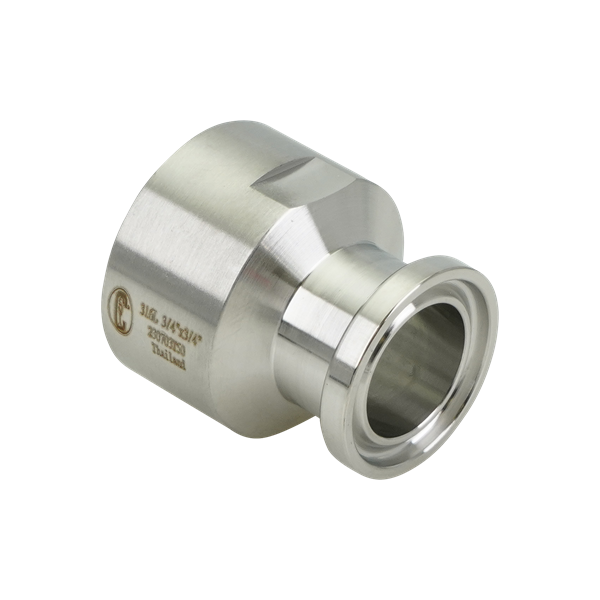

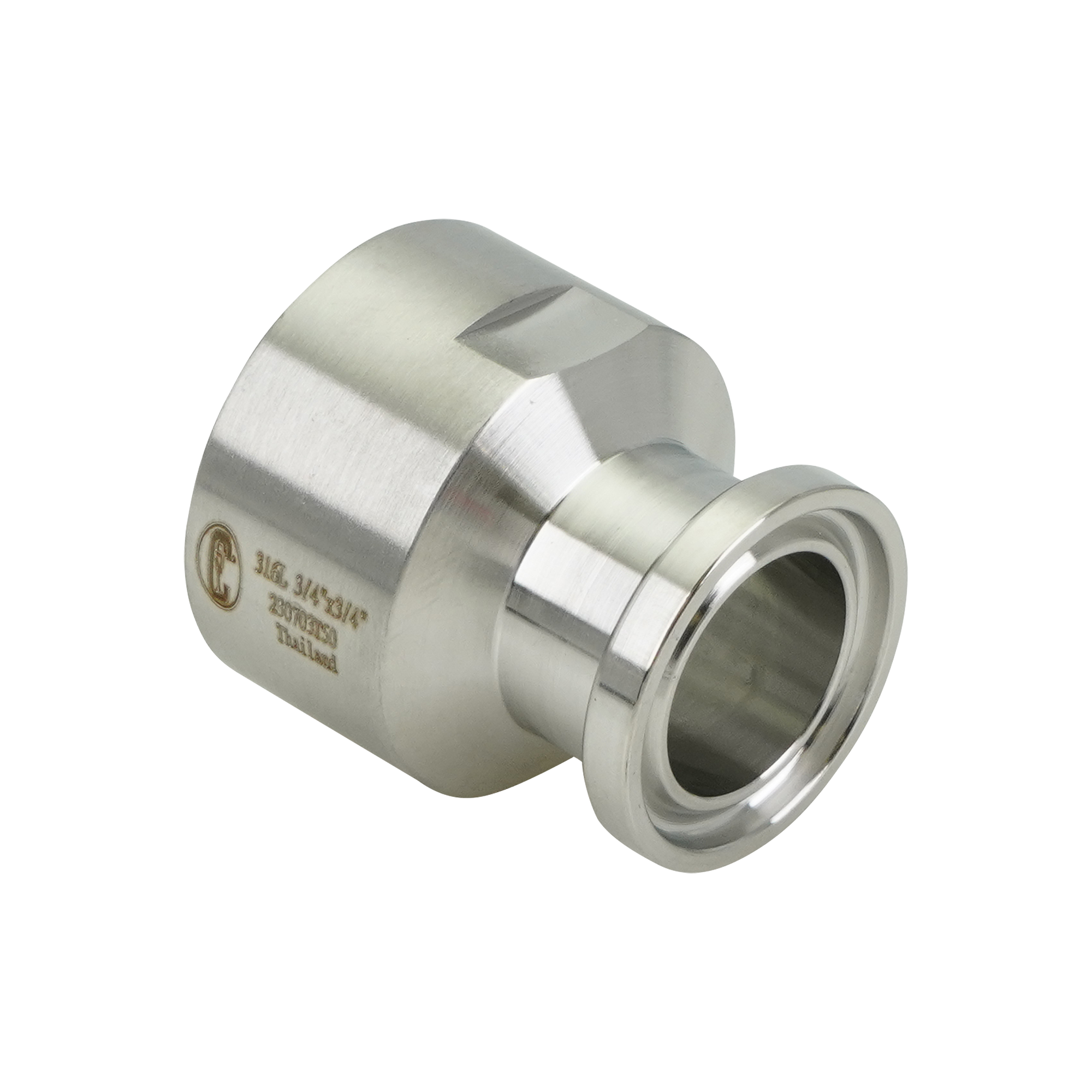

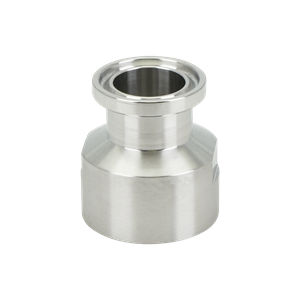

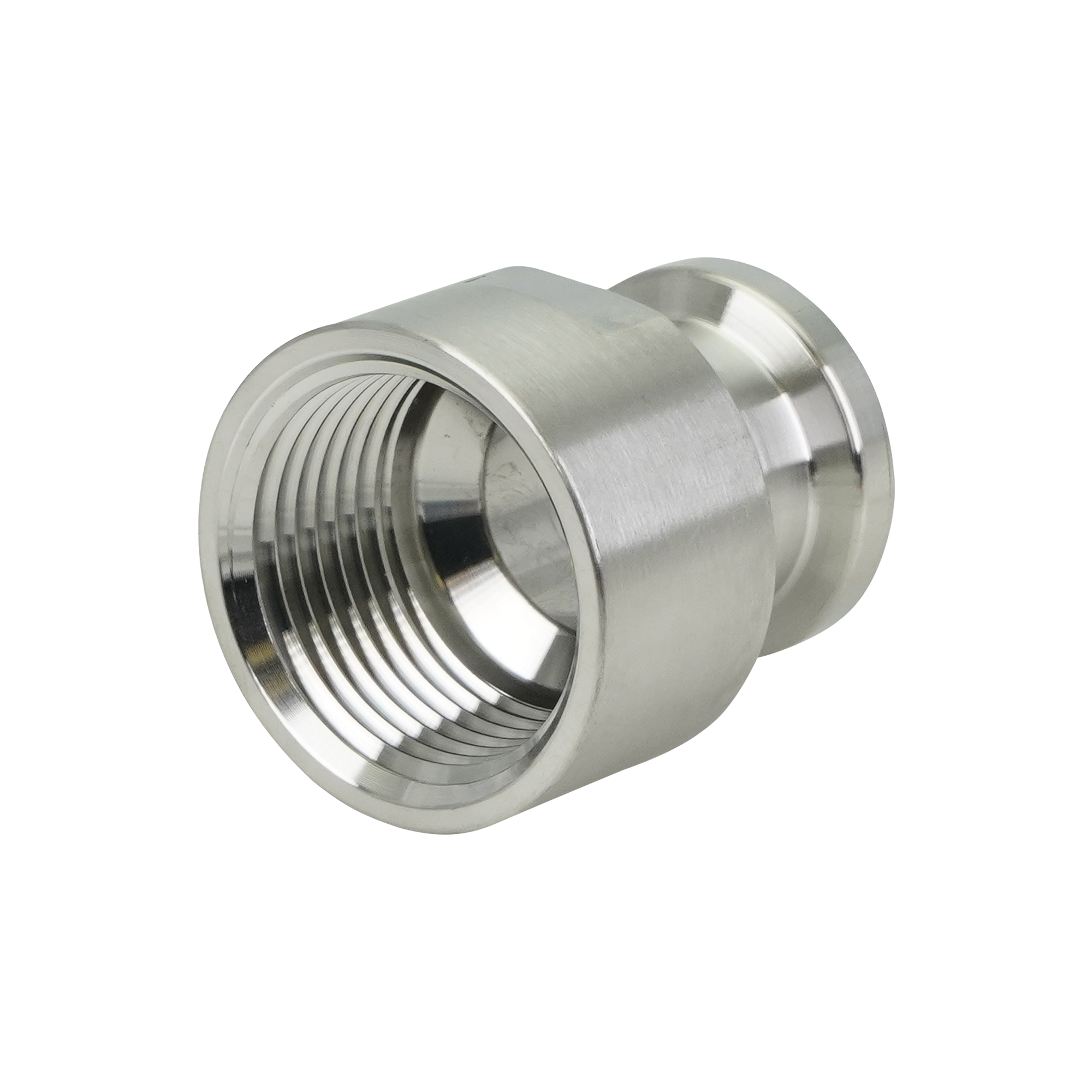

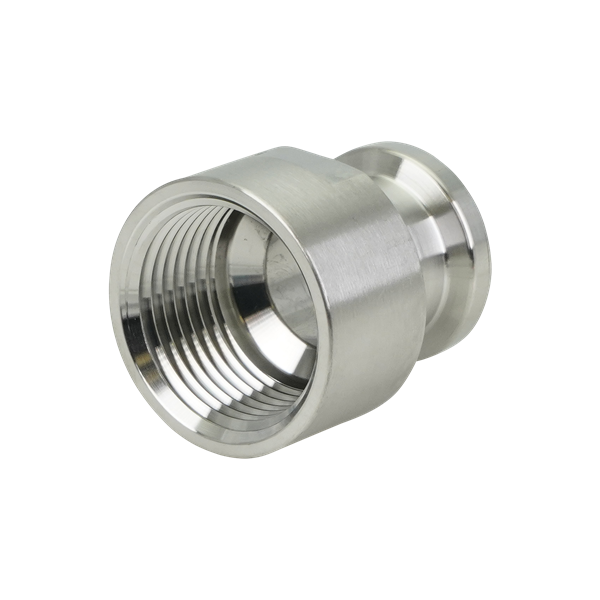

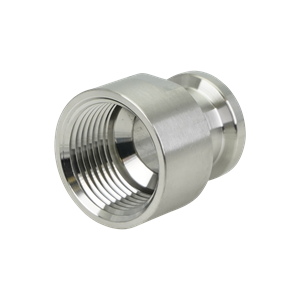

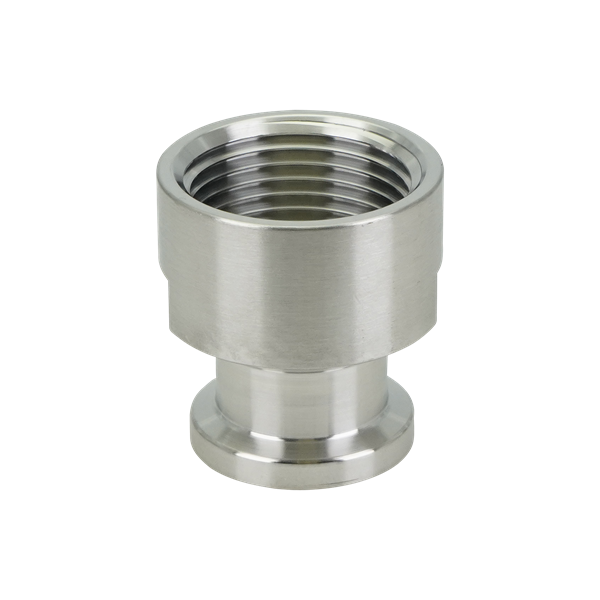

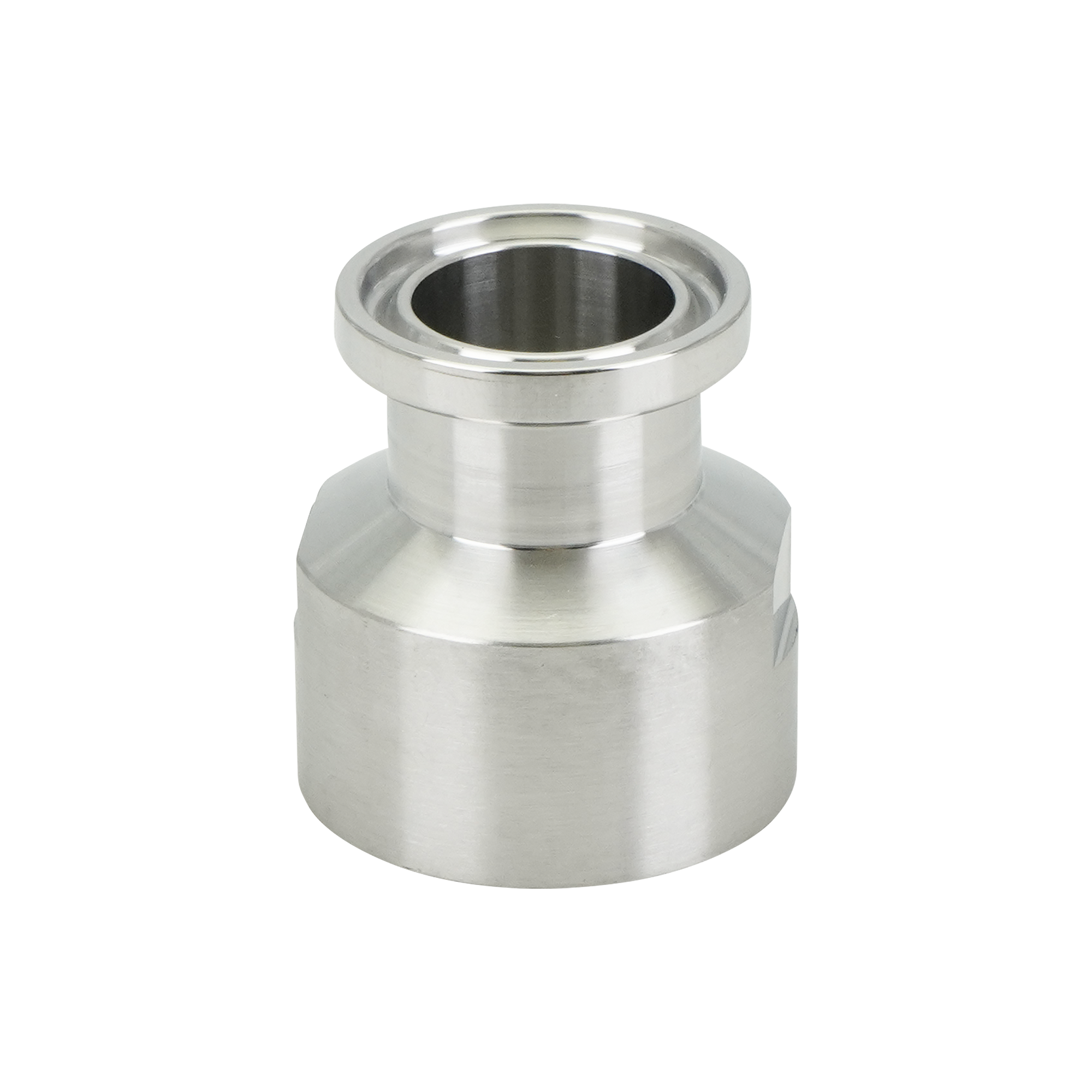

ADAPTER 0.75" TC X 0.75" FPT 316L 20RA ID 32RA OD
22MP-0.75-316L-PL
The 22MP 316L Stainless Steel Adapter is an essential component for sanitary processing. It has a 3/4 inch Tri-Clamp (TC) and a 3/4 inch Female National Pipe Thread (FNPT), offering diverse connectivity. Made from 316L stainless steel, it's highly resistant to corrosion and durable for long-term use in harsh conditions.
Finished to 20 Roughness Average (Ra) inside and 32Ra outside, the adapter meets strict sanitary standards. The smooth finish minimizes bacterial growth and enhances cleaning efficiency. The 316L Tri-Clamp Adapter is a durable, efficient solution for sanitary processing needs.
Net Price: $39.13 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Adapters |
| Material | 316L Stainless Steel |
| Finish | 20Ra ID / 32Ra OD |
| Size 1 | 0.75" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 0.75" |
| Connection Type 2 | FNPT |
| Length | 1.3" OAL |
| Fitting Design | 22MP |
| Weight | 0.25000 |
Dimensional Data
Tri-Clamp x Female NPT Adapter | 22MP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ x ⅛ | 12.70 x 3.18 | 1.50 | 38.10 |
| ½ x ¼ | 12.70 x 6.35 | 1.30 | 33.20 |
| ½ x ⅜ | 12.70 x 9.53 | 1.50 | 38.10 |
| ½ | 12.70 | 1.30 | 33.02 |
| ½ x ¾ | 12.70 x 19.05 | 1.50 | 38.10 |
| ¾ x ¼ | 19.05 x 6.35 | 1.50 | 38.10 |
| ¾ x ⅜ | 19.05 x 9.53 | 1.50 | 38.10 |
| ¾ x ½ | 19.05 x 12.70 | 1.50 | 38.10 |
| ¾ | 19.05 | 1.30 | 33.02 |
| 1 x ¼ | 25.40 x 6.35 | 0.75 | 19.05 |
| 1 x ½ | 25.40 x 12.70 | 0.75 | 19.05 |
| 1 x ¾ | 25.40 x 19.05 | 0.75 | 19.05 |
| 1 | 25.40 | 0.75 | 19.05 |
| 1½ x ¼ | 38.10 x 6.35 | 0.75 | 19.05 |
| 1½ x ½ | 38.10 x 12.70 | 0.75 | 19.05 |
| 1½ x ¾ | 38.10 x 19.05 | 1.625 | 41.275 |
| 1½ x 1 | 38.10 x 25.40 | 0.75 | 19.05 |
| 1½ x 1¼ | 38.10 x 31.75 | 2.25 | 57.15 |
| 1½ | 38.10 | 1.54 | 39.12 |
| 1½ x 2 | 38.10 x 50.80 | 1.57 | 39.88 |
| 2 x ½ | 50.80 x 12.70 | 0.75 | 19.05 |
| 2 x ¾ | 50.80 x 19.05 | 0.75 | 19.05 |
| 2 x 1 | 50.80 x 25.40 | 0.75 | 19.05 |
| 2 x 1½ | 50.80 x 38.10 | 0.75 | 19.05 |
| 2 | 50.80 | 1.57 | 39.88 |
| 2½ x 2 | 63.50 x 50.80 | 1.38 | 35.05 |
| 2½ | 63.50 | 1.97 | 50.04 |
| 3 x 2 | 76.20 x 50.80 | 1.38 | 35.05 |
| 3 x 2½ | 76.20 x 63.50 | 1.97 | 50.04 |
| 3 | 76.20 | 2.05 | 52.07 |
| 4 | 101.60 | 2.13 | 54.10 |
