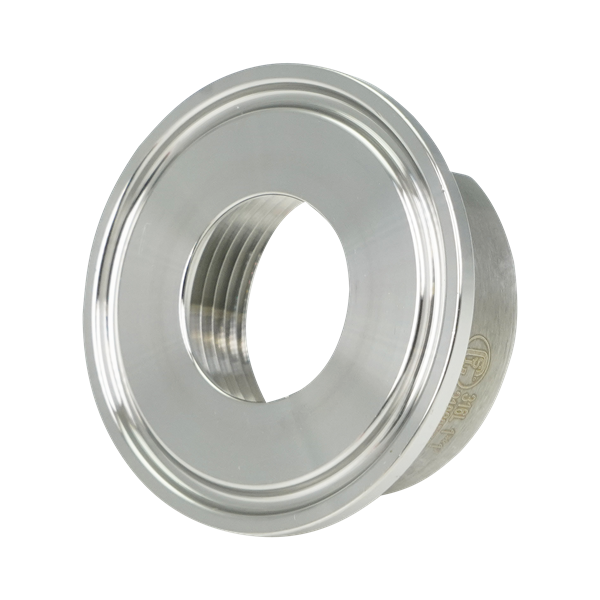

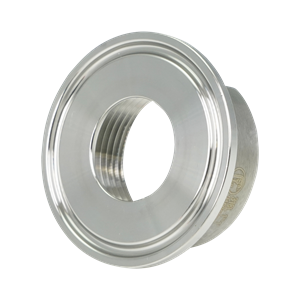

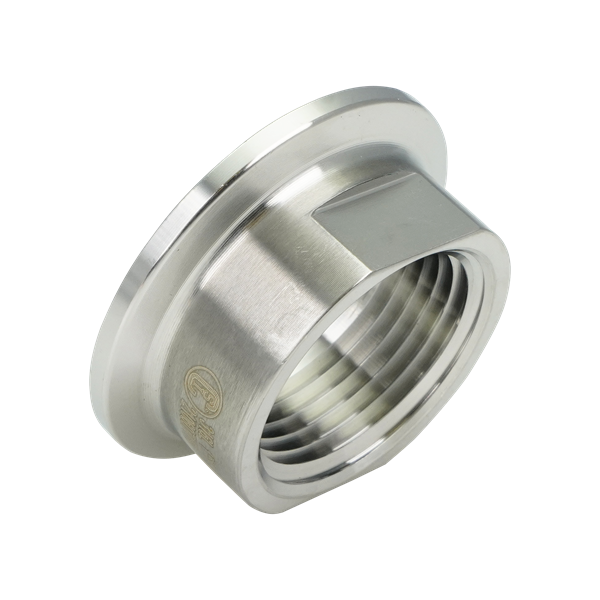

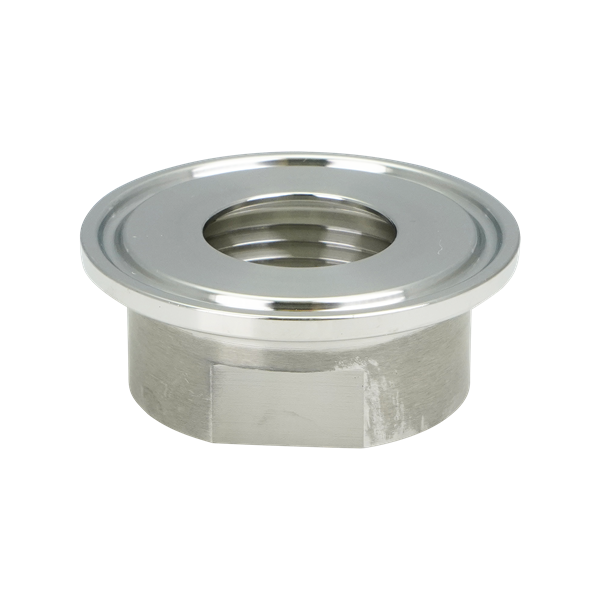

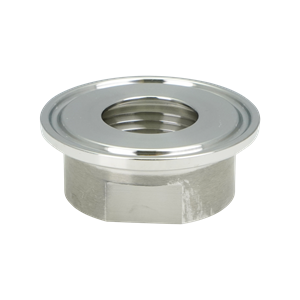

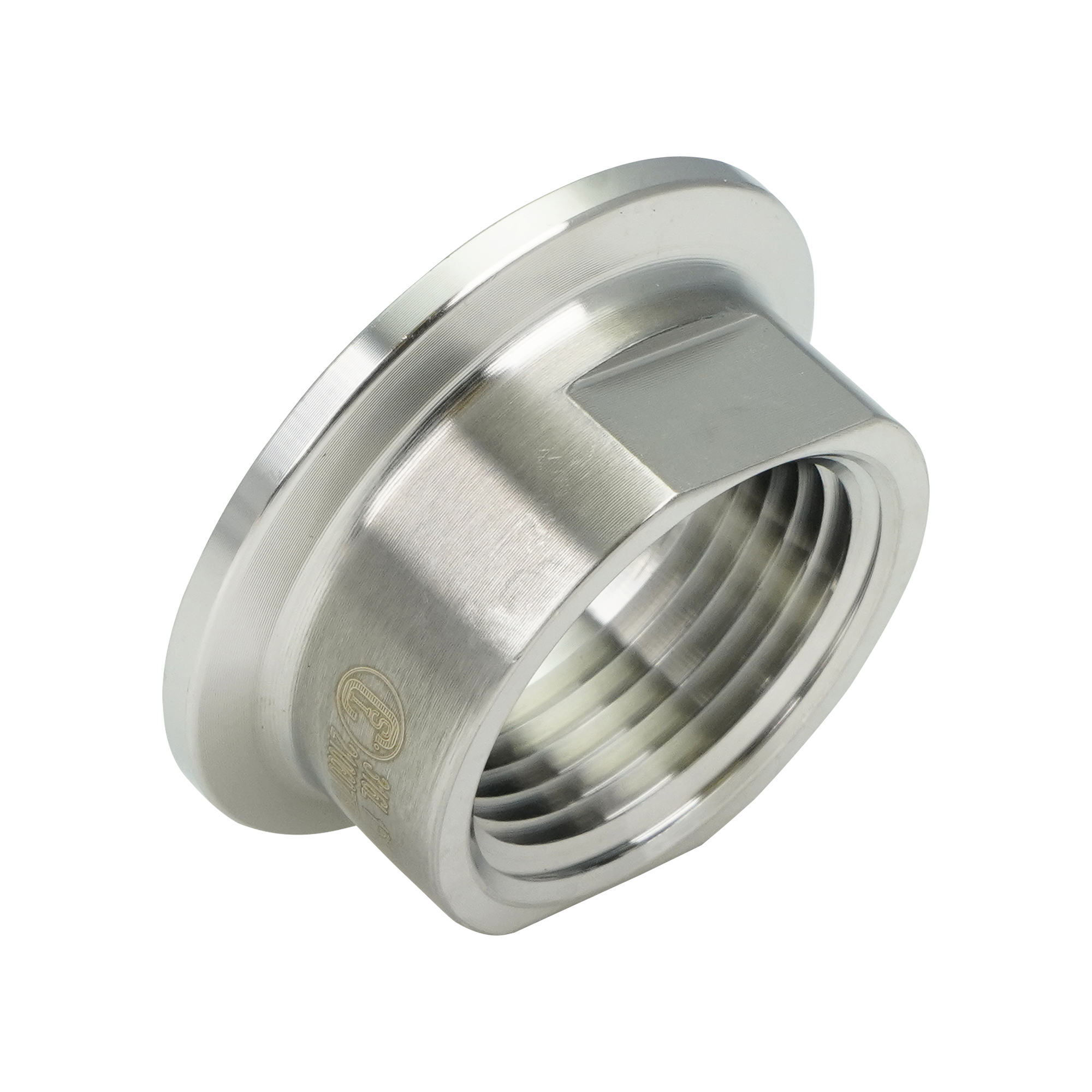

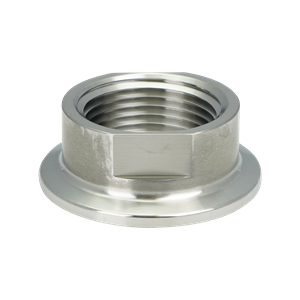

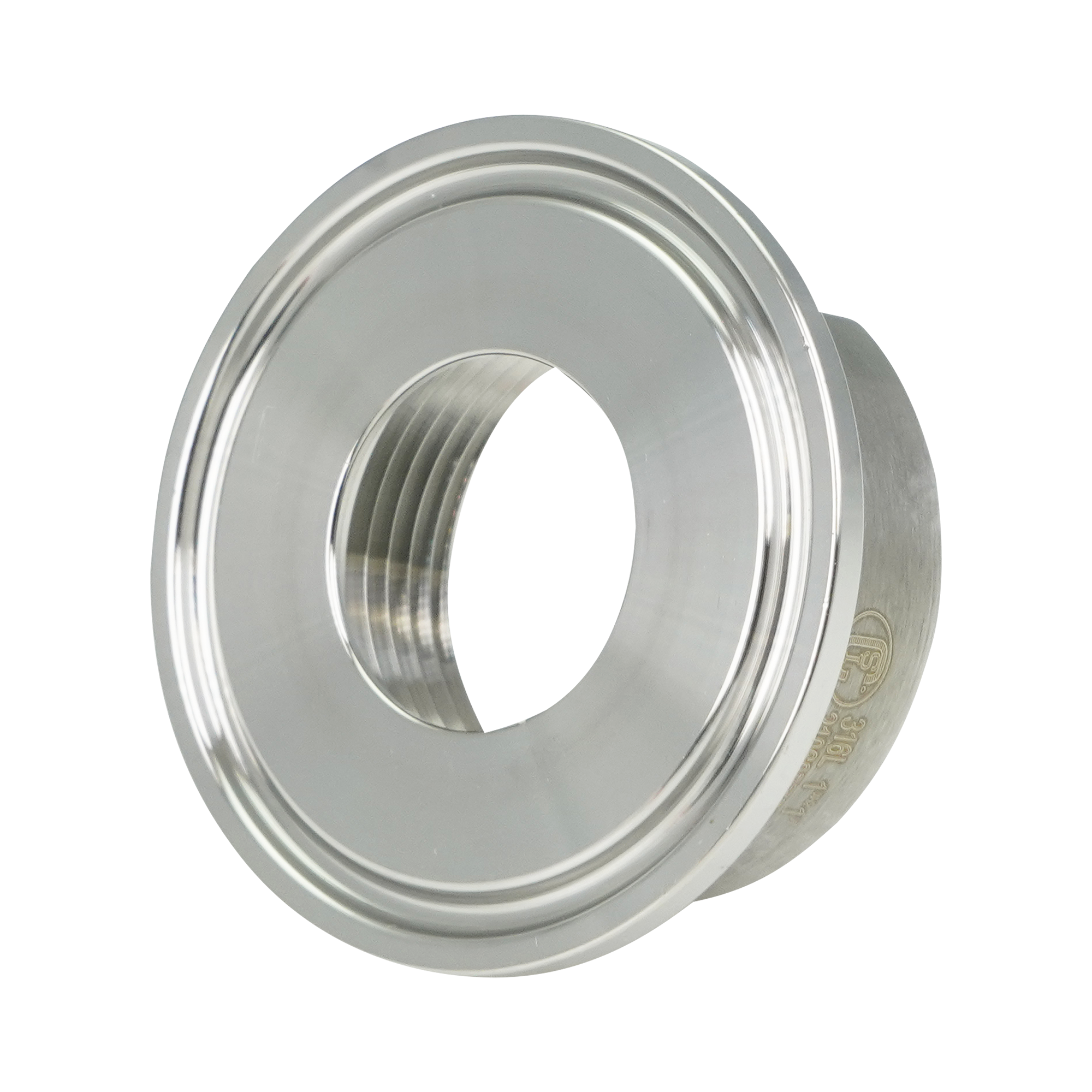

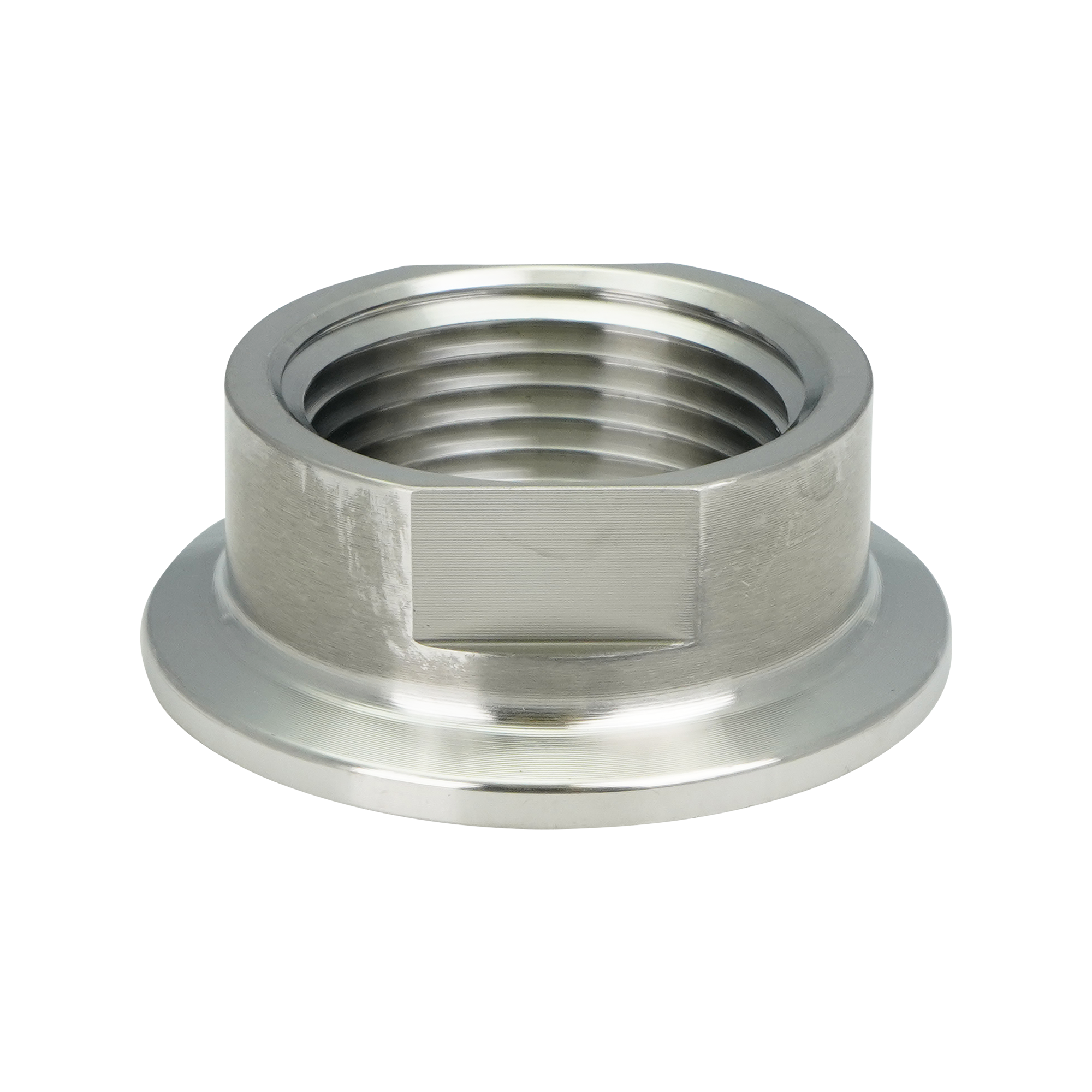

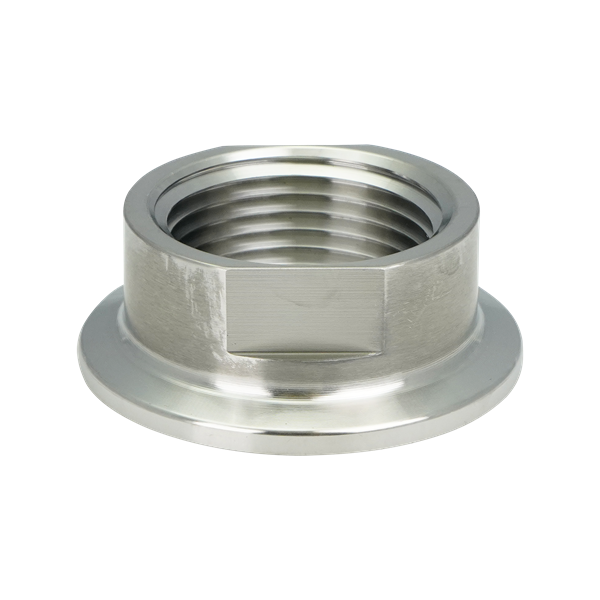

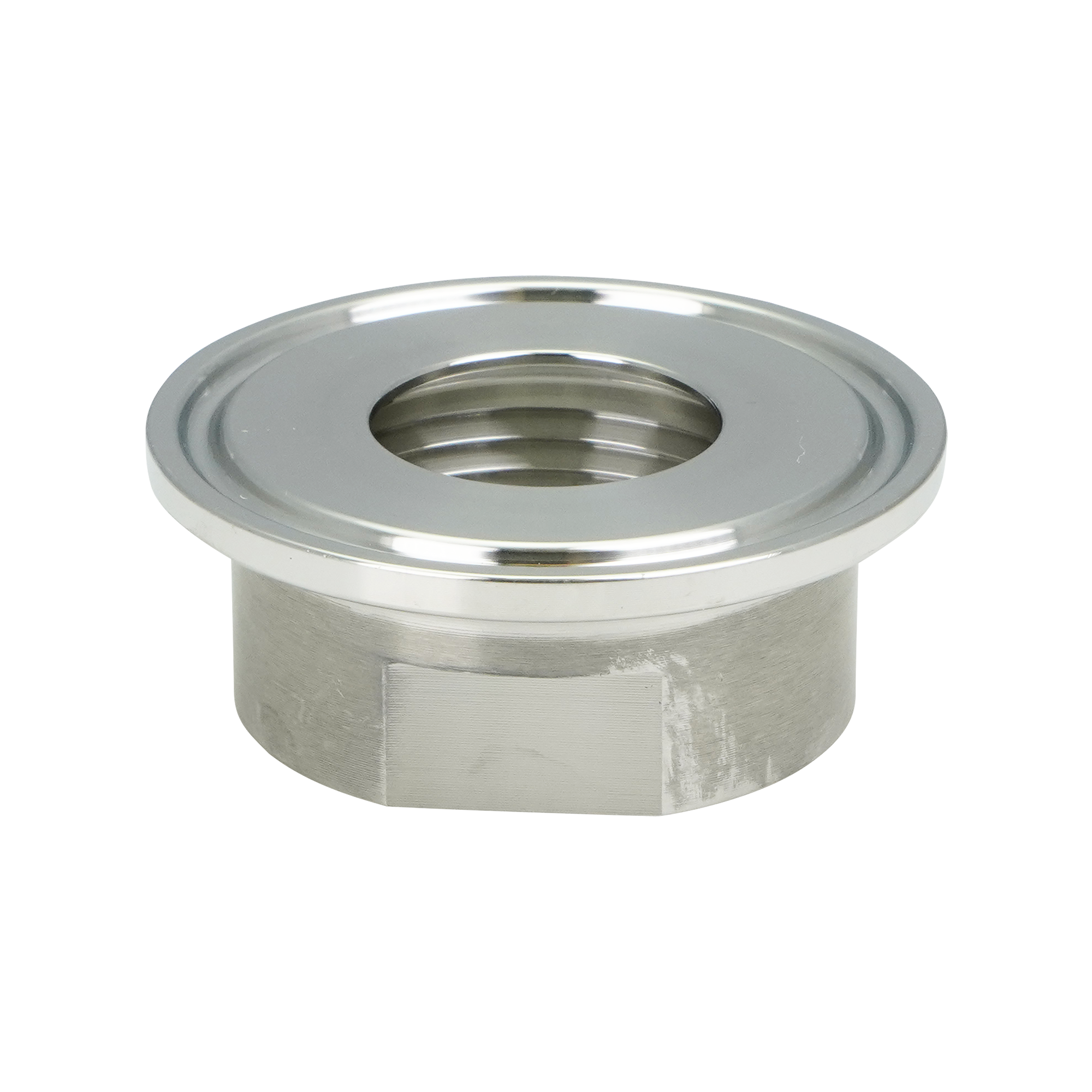

ADAPTER 1" TC X 1" FPT 316L 20RA ID 32RA OD

22MP-1-316L-PL

The 22MP 1" Tri-Clamp x 1" Female National Pipe Thread (FNPT) Adapter is crafted from 316L stainless steel, renowned for its corrosion resistance. It features a 20Ra interior finish and a 32Ra exterior finish, meeting sanitary requirements. The tri-clamp design ensures secure, leak-proof connections, making it vital for sanitary processing systems.

The adapter's 1" size is versatile, suitable for various applications. The FNPT end facilitates easy connection to male threaded pipes or fittings. Designed for durability, the 316L Tri-Clamp Adapter offers reliable, long-lasting performance for your sanitary processing needs.

USUALLY SHIPS IN 1-2 DAYS

Net Price: $55.72 / EA

Have an account? Login now.

Availability:
Product Type Tube Fittings
Product Subtype Adapters
Material 316L Stainless Steel
Finish 20Ra ID / 32Ra OD
Size 1 1"
Connection Type 1 Tri-Clamp
Size 2 1"
Connection Type 2 FNPT
Length 0.75" OAL
Fitting Design 22MP
Weight 1.30000

22MP Dimensional Diagram

Tri-Clamp x Female NPT Adapter | 22MP-Size-Material-Finish
Nominal SizeA
(in)(mm)(in)(mm)
½ x ⅛12.70 x 3.181.5038.10
½ x ¼12.70 x 6.35 1.3033.20
½ x ⅜12.70 x 9.53 1.5038.10
½12.70 1.3033.02
½ x ¾12.70 x 19.05 1.5038.10
¾ x ¼19.05 x 6.35 1.5038.10
¾ x ⅜19.05 x 9.531.5038.10
¾ x ½19.05 x 12.70 1.5038.10
¾19.051.3033.02
1 x ¼ 25.40 x 6.350.7519.05
1 x ½25.40 x 12.70 0.7519.05
1 x ¾25.40 x 19.050.7519.05
125.400.7519.05
1½ x ¼ 38.10 x 6.350.7519.05
1½ x ½ 38.10 x 12.700.7519.05
1½ x ¾38.10 x 19.051.62541.275
1½ x 138.10 x 25.400.7519.05
1½ x 1¼38.10 x 31.752.2557.15
 1½38.101.5439.12
1½ x 238.10 x 50.801.5739.88
2 x ½50.80 x 12.700.7519.05
2 x ¾50.80 x 19.050.7519.05
2 x 150.80 x 25.400.7519.05
2 x 1½50.80 x 38.100.7519.05
250.801.5739.88
2½ x 263.50 x 50.801.3835.05
2½63.501.9750.04
3 x 276.20 x 50.80 1.3835.05
3 x 2½76.20 x 63.50 1.9750.04
376.202.0552.07
4101.602.1354.10
