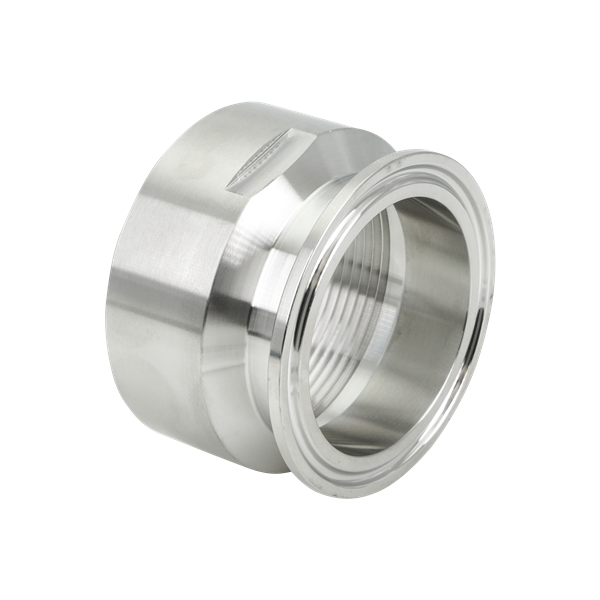

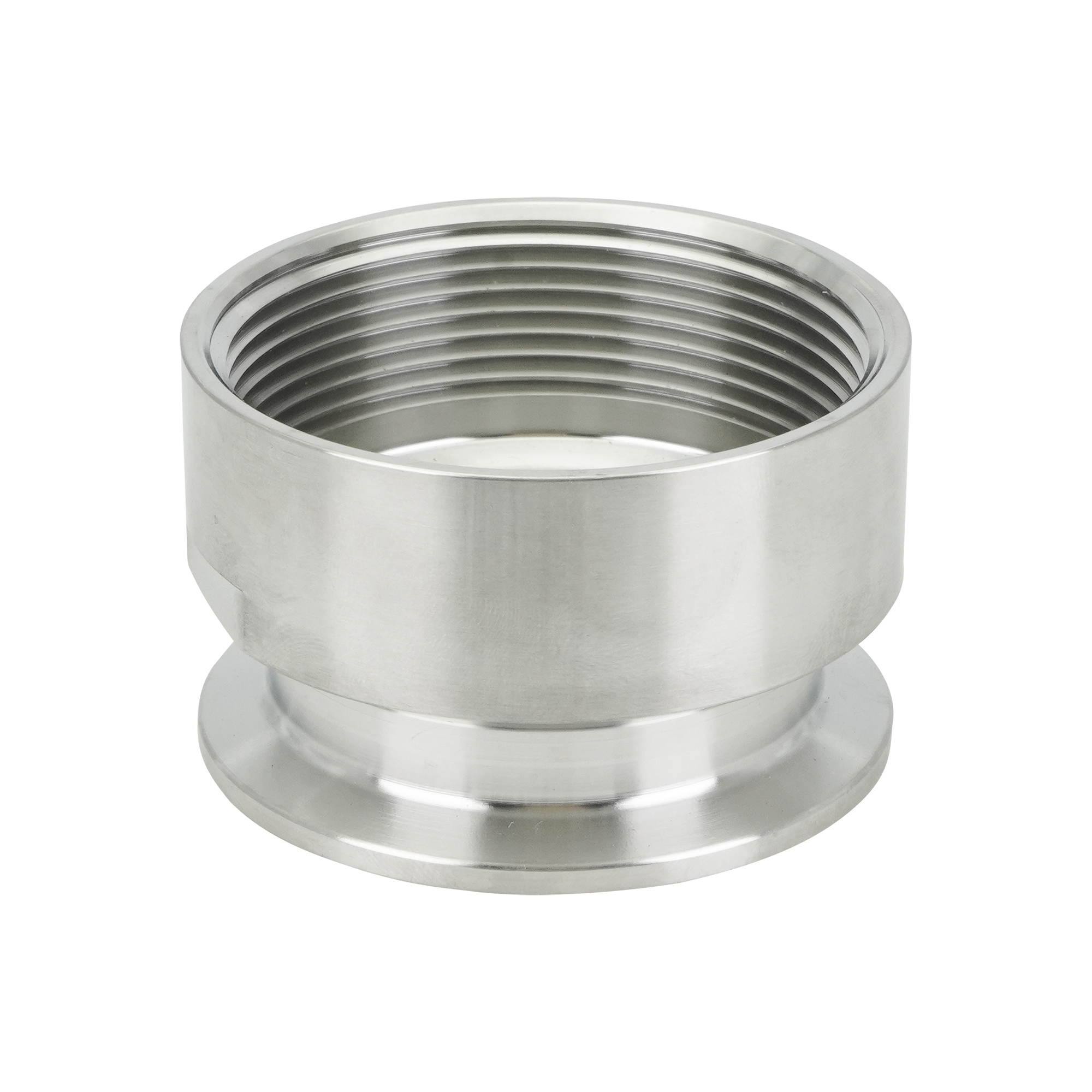

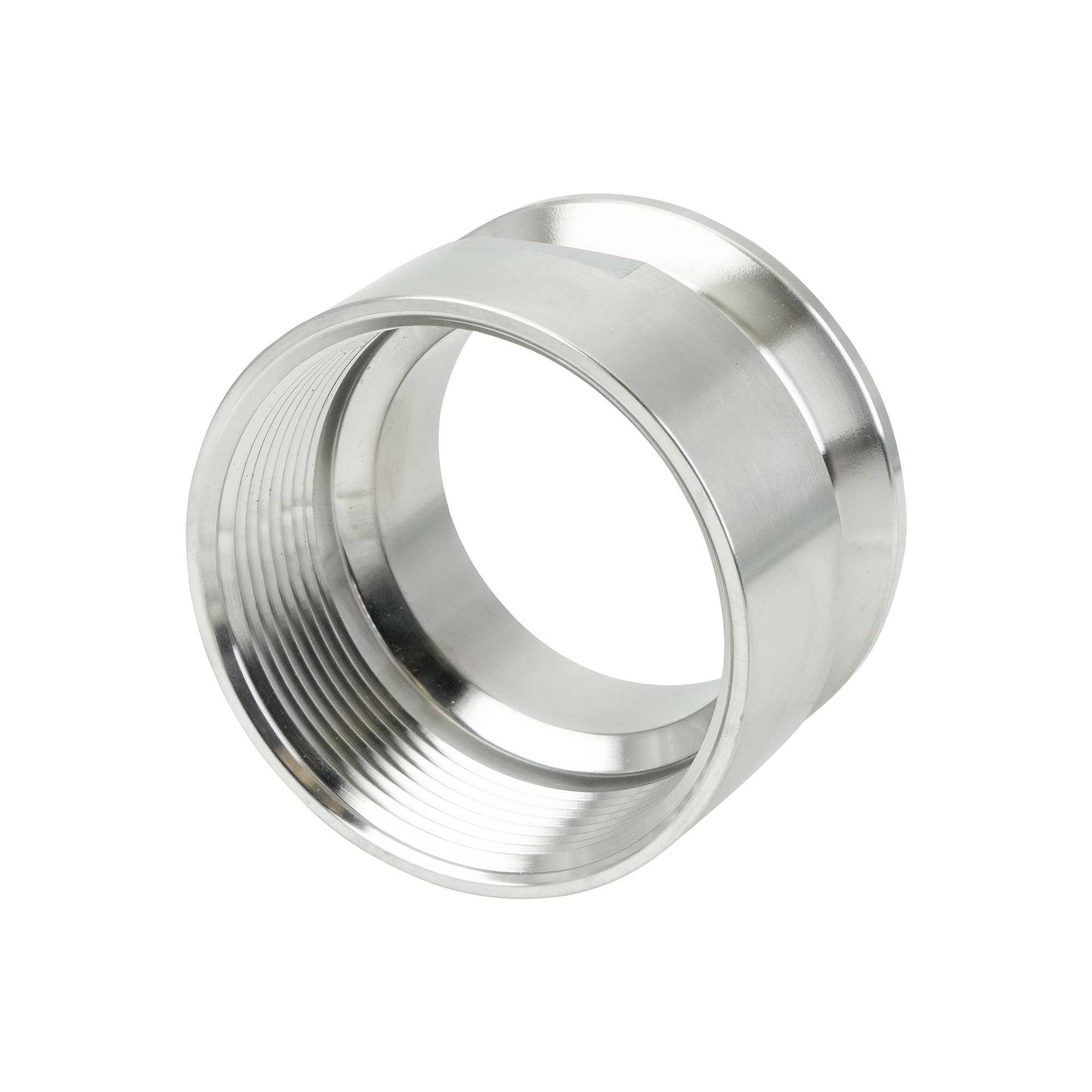

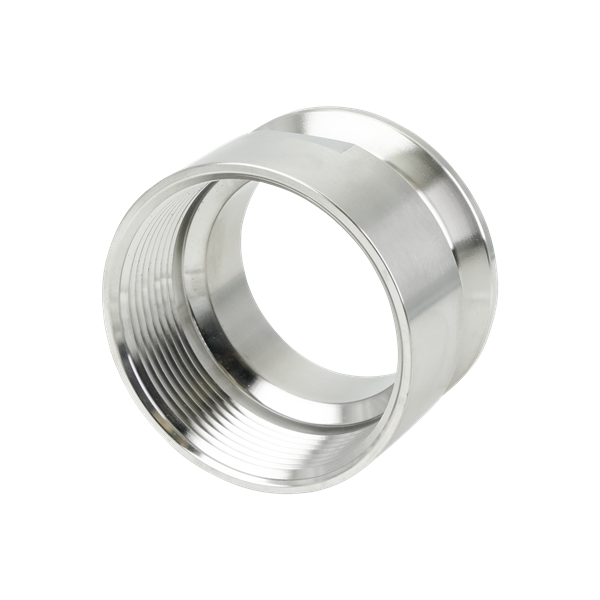

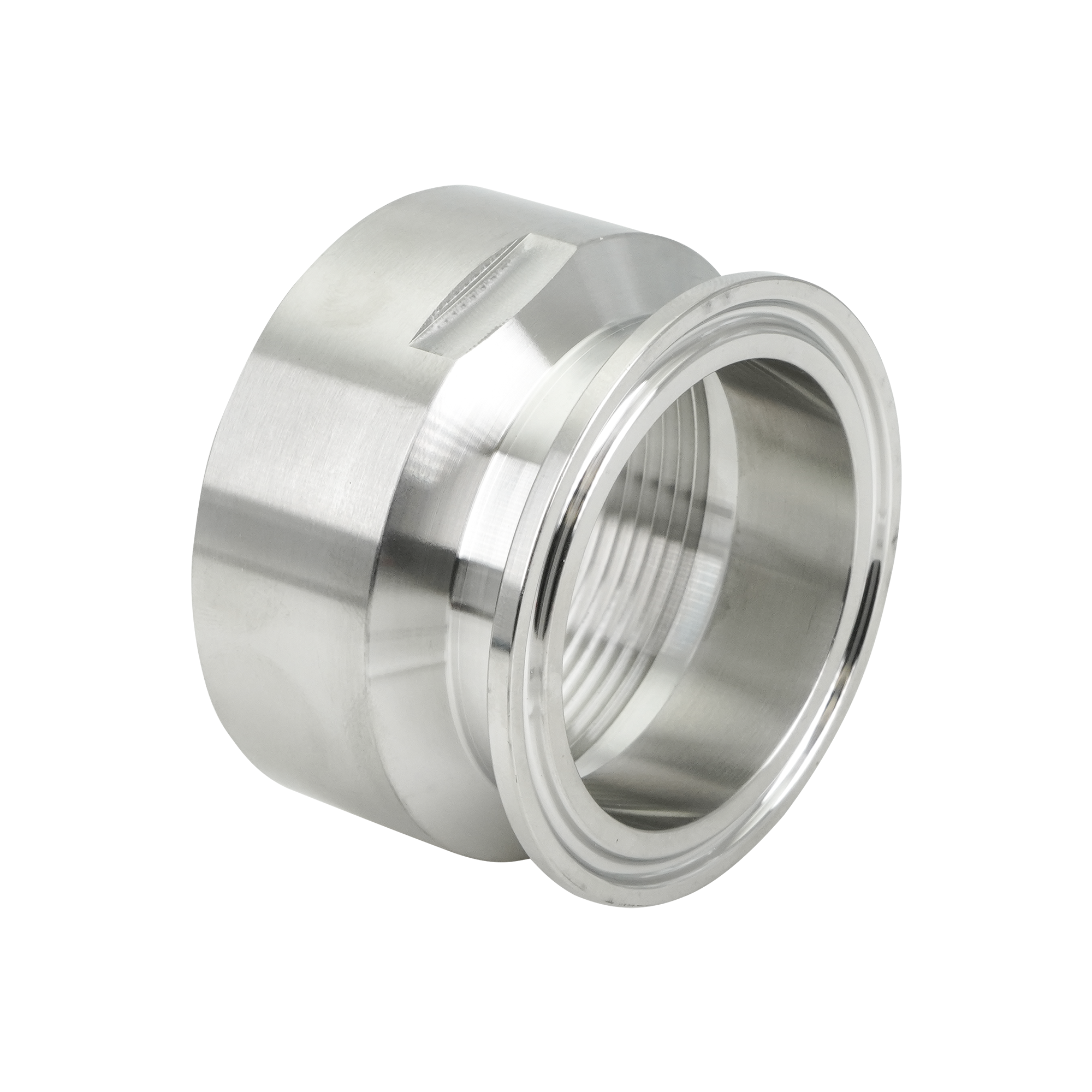

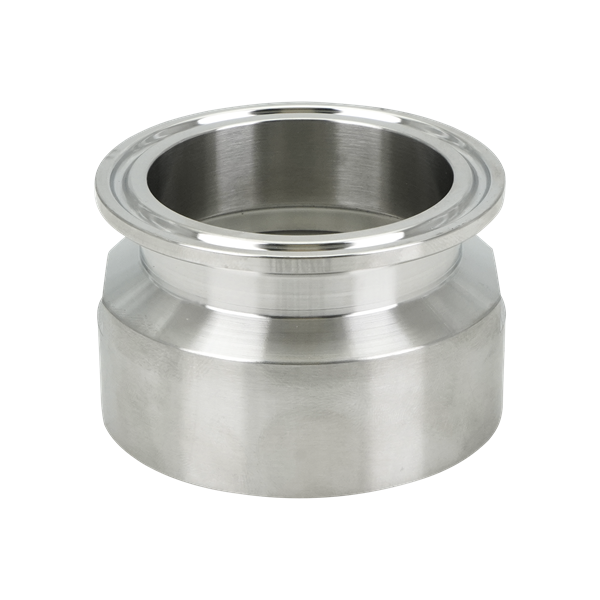

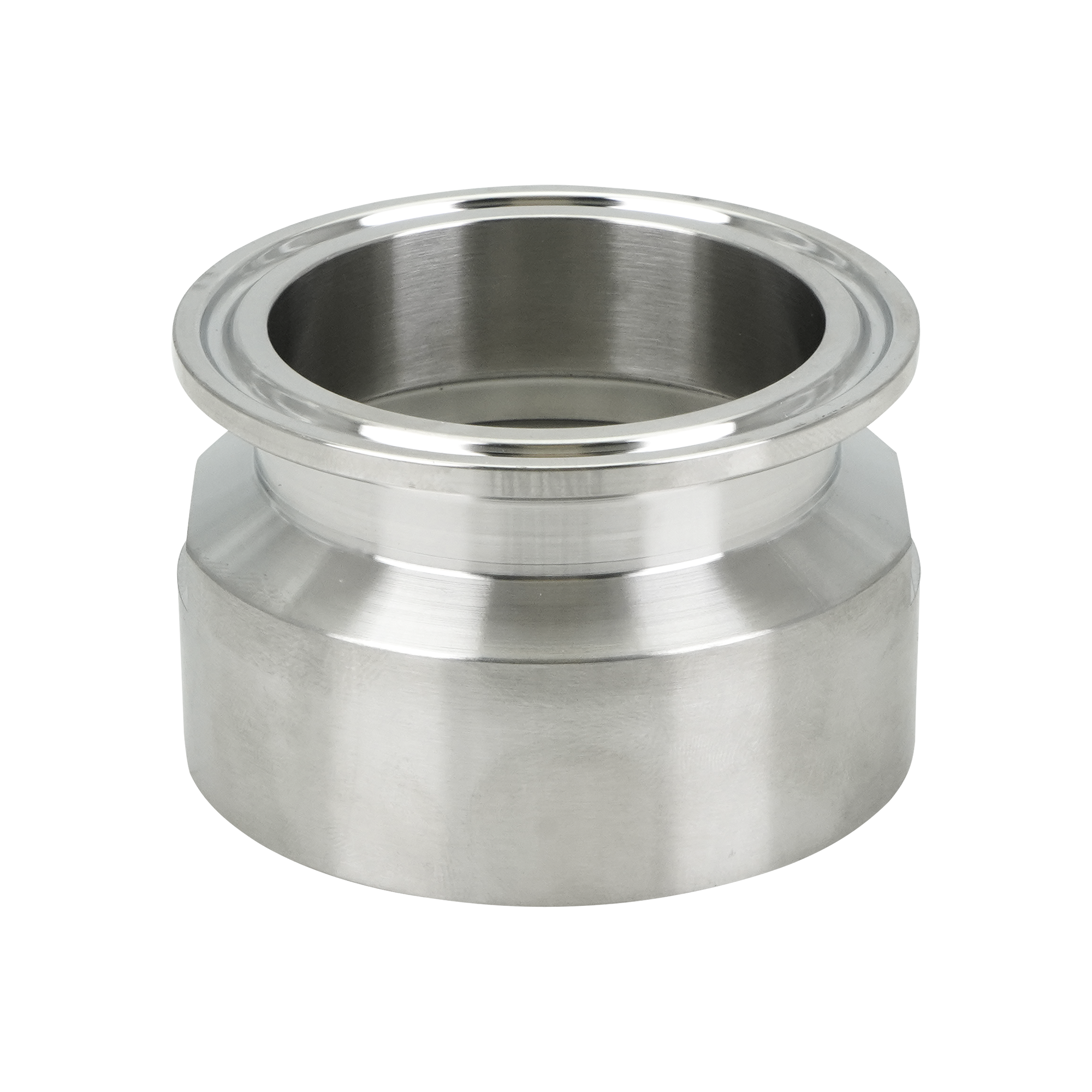

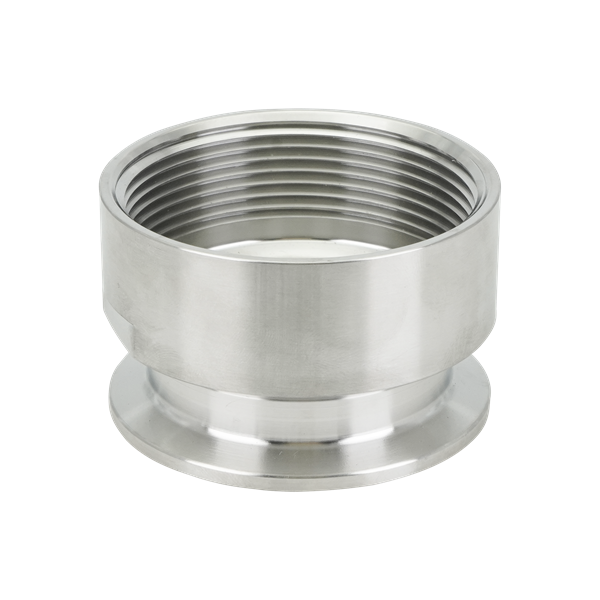

ADAPTER 2" TC X 2" FPT 304 32RA ID 32RA OD
22MP-2-304-7
Net Price: $22.75 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Tube Fittings |
|---|---|
| Product Subtype | Adapters |
| Material | 304 Stainless Steel |
| Finish | 32Ra ID / 32Ra OD |
| Size 1 | 2" |
| Connection Type 1 | Tri-Clamp |
| Size 2 | 2" |
| Connection Type 2 | FNPT |
| Length | 1.57" OAL |
| Specification / Standard | 3-A |
| Fitting Design | 22MP |
| Weight | 1.98000 |
Dimensional Data
Tri-Clamp x Female NPT Adapter | 22MP-Size-Material-Finish
| Nominal Size | A | ||
|---|---|---|---|
| (in) | (mm) | (in) | (mm) |
| ½ x ⅛ | 12.70 x 3.18 | 1.50 | 38.10 |
| ½ x ¼ | 12.70 x 6.35 | 1.30 | 33.20 |
| ½ x ⅜ | 12.70 x 9.53 | 1.50 | 38.10 |
| ½ | 12.70 | 1.30 | 33.02 |
| ½ x ¾ | 12.70 x 19.05 | 1.50 | 38.10 |
| ¾ x ¼ | 19.05 x 6.35 | 1.50 | 38.10 |
| ¾ x ⅜ | 19.05 x 9.53 | 1.50 | 38.10 |
| ¾ x ½ | 19.05 x 12.70 | 1.50 | 38.10 |
| ¾ | 19.05 | 1.30 | 33.02 |
| 1 x ¼ | 25.40 x 6.35 | 0.75 | 19.05 |
| 1 x ½ | 25.40 x 12.70 | 0.75 | 19.05 |
| 1 x ¾ | 25.40 x 19.05 | 0.75 | 19.05 |
| 1 | 25.40 | 0.75 | 19.05 |
| 1½ x ¼ | 38.10 x 6.35 | 0.75 | 19.05 |
| 1½ x ½ | 38.10 x 12.70 | 0.75 | 19.05 |
| 1½ x ¾ | 38.10 x 19.05 | 1.625 | 41.275 |
| 1½ x 1 | 38.10 x 25.40 | 0.75 | 19.05 |
| 1½ x 1¼ | 38.10 x 31.75 | 2.25 | 57.15 |
| 1½ | 38.10 | 1.54 | 39.12 |
| 1½ x 2 | 38.10 x 50.80 | 1.57 | 39.88 |
| 2 x ½ | 50.80 x 12.70 | 0.75 | 19.05 |
| 2 x ¾ | 50.80 x 19.05 | 0.75 | 19.05 |
| 2 x 1 | 50.80 x 25.40 | 0.75 | 19.05 |
| 2 x 1½ | 50.80 x 38.10 | 0.75 | 19.05 |
| 2 | 50.80 | 1.57 | 39.88 |
| 2½ x 2 | 63.50 x 50.80 | 1.38 | 35.05 |
| 2½ | 63.50 | 1.97 | 50.04 |
| 3 x 2 | 76.20 x 50.80 | 1.38 | 35.05 |
| 3 x 2½ | 76.20 x 63.50 | 1.97 | 50.04 |
| 3 | 76.20 | 2.05 | 52.07 |
| 4 | 101.60 | 2.13 | 54.10 |
