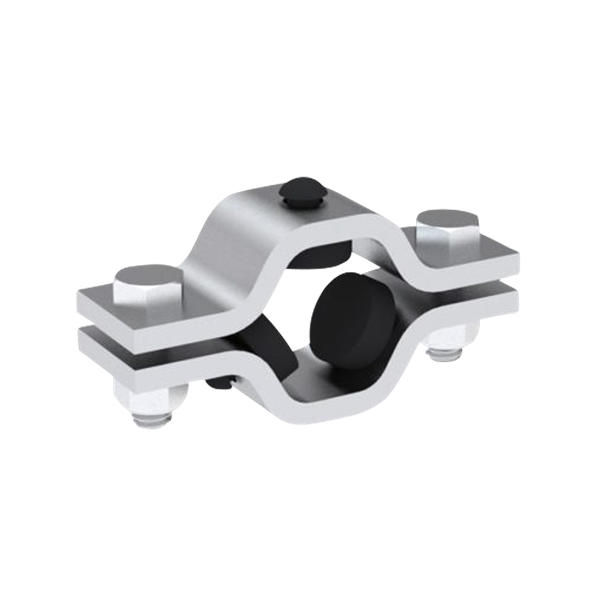

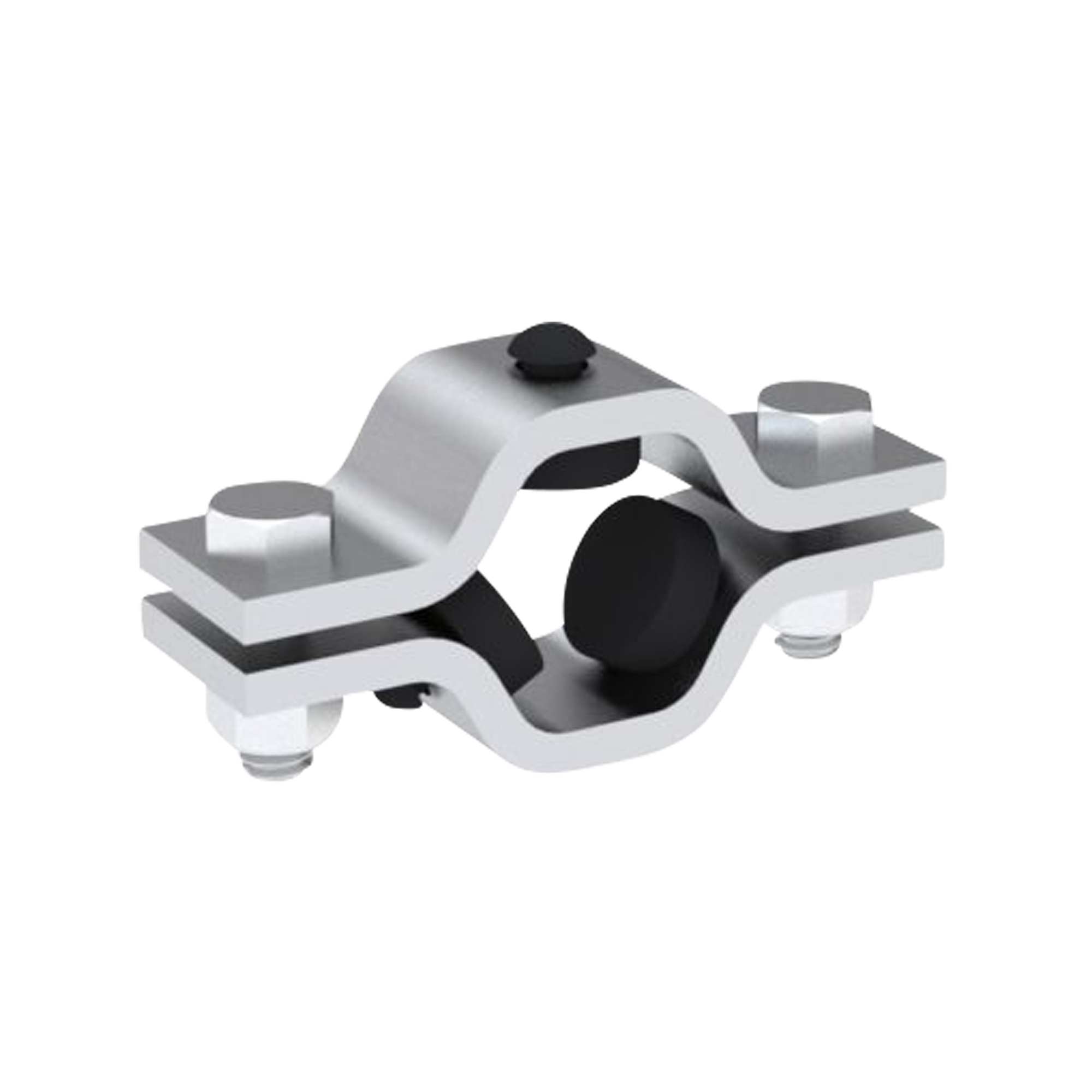

HEX HANGER ASSEMBLY 0.5" PIPE WITH ALCRYN GROMMET USA MADE
B24FCFV-0.5-S
Net Price: $5.80 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Hangers |
|---|---|
| Product Subtype | Hex Hangers |
| Series | B24 Series |
| Size 1 | 0.5" |
| Insert Material | Alcryn |
| Weight | 0.00000 |
Dimensional Data
Rubber Grommet Pipe Hex Hangers
| Nominal Size | A | B | |||
|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) |
| ½ | 12.70 | 3.38 | 85.85 | 2.25 | 57.15 |
| ¾ | 19.05 | 3.38 | 85.85 | 2.19 | 55.63 |
| 1 | 25.40 | 3.75 | 95.25 | 2.13 | 54.10 |
| 1½ | 38.10 | 4.44 | 112.78 | 2.81 | 71.37 |
| 2 | 50.80 | 4.94 | 125.48 | 3.25 | 82.55 |
| 2½ | 63.50 | 5.56 | 141.22 | 3.86 | 98.04 |
| 3 | 76.20 | 6.06 | 153.92 | 4.31 | 109.47 |
| 4 | 101.60 | 7.50 | 190.50 | 5.13 | 130.30 |
| 5 | 127.00 | 8.50 | 215.90 | 6.38 | 162.05 |
| 6 | 152.40 | 9.88 | 250.95 | 7.13 | 181.10 |
| 8 | 203.20 | 12.25 | 311.15 | 9.38 | 238.25 |
| 10 | 254.00 | 15.38 | 390.65 | 11.38 | 289.05 |
| 12 | 304.80 | 17.50 | 444.50 | 13.69 | 347.73 |
