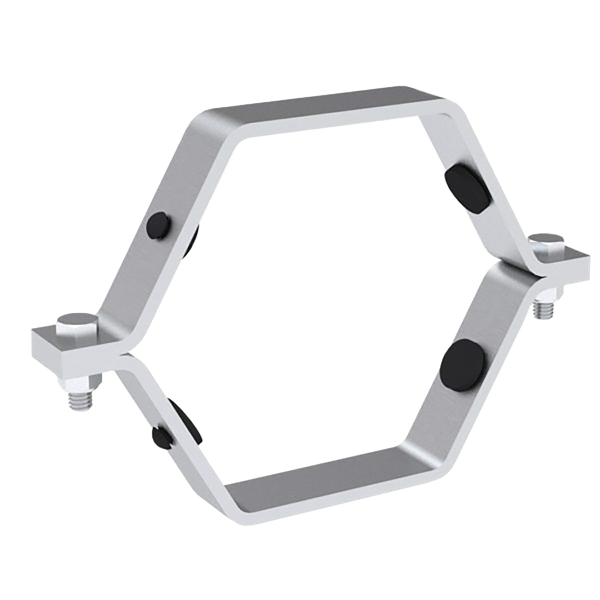

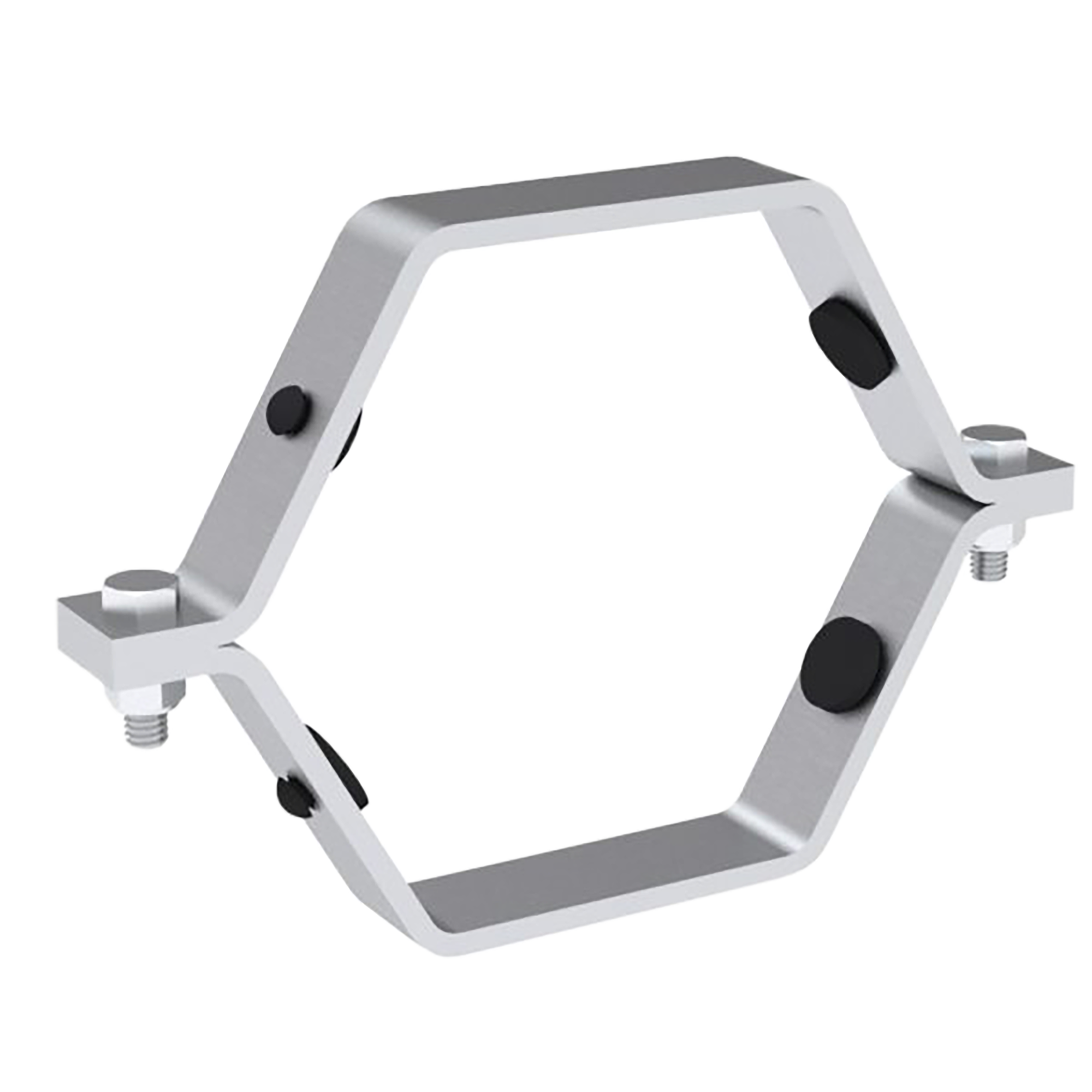

HEX HANGER ASSEMBLY 5" TUBE WITH VITON GROMMET USA MADE

B24FCF-5-SFY-S

Net Price: $14.56 / EA

Have an account? Login now.

Availability:
Product Type Hangers
Product Subtype Hex Hangers
Series B24 Series
Size 1 5"
Weight 0.00000

B24FCF Dimensional Diagram

Alcryn Grommet Hex Hangers | B24FCF-Size-S
Nominal Size A B Grommet Size
(in) (mm) (in) (mm) (in) (mm) (in)
½ 12.70 3.38 85.85 2.13 54.10 ⅜
¾ 19.05 3.38 85.85 2.13 54.10 ¼
1 25.40 3.38 85.85 2.13 54.10 1/8
1½ 38.10 3.75 95.25 2.13 54.10 1/8
2 50.80 4.44 112.78 2.63 66.80 1/8
2½ 63.50 4.94 125.48 3.13 79.50 1/8
3 76.20 5.56 141.22 3.63 92.20 1/8
4 101.60 6.63 168.40 4.75 120.65 1/8
6 152.40 9.88 250.95 7.13 181.10 1/8
