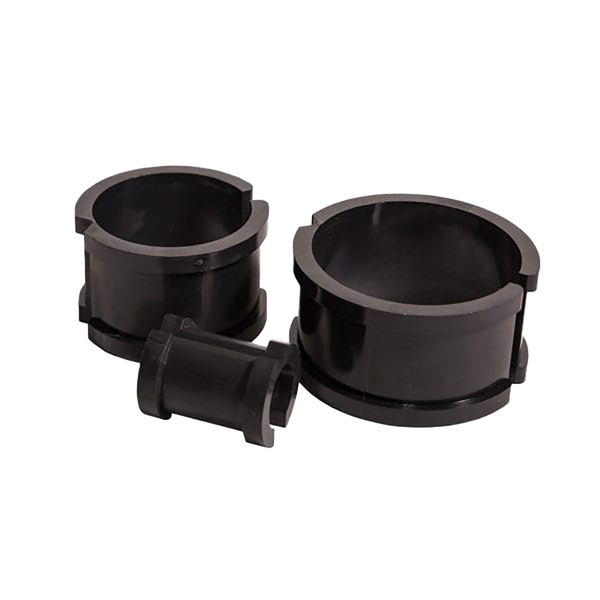

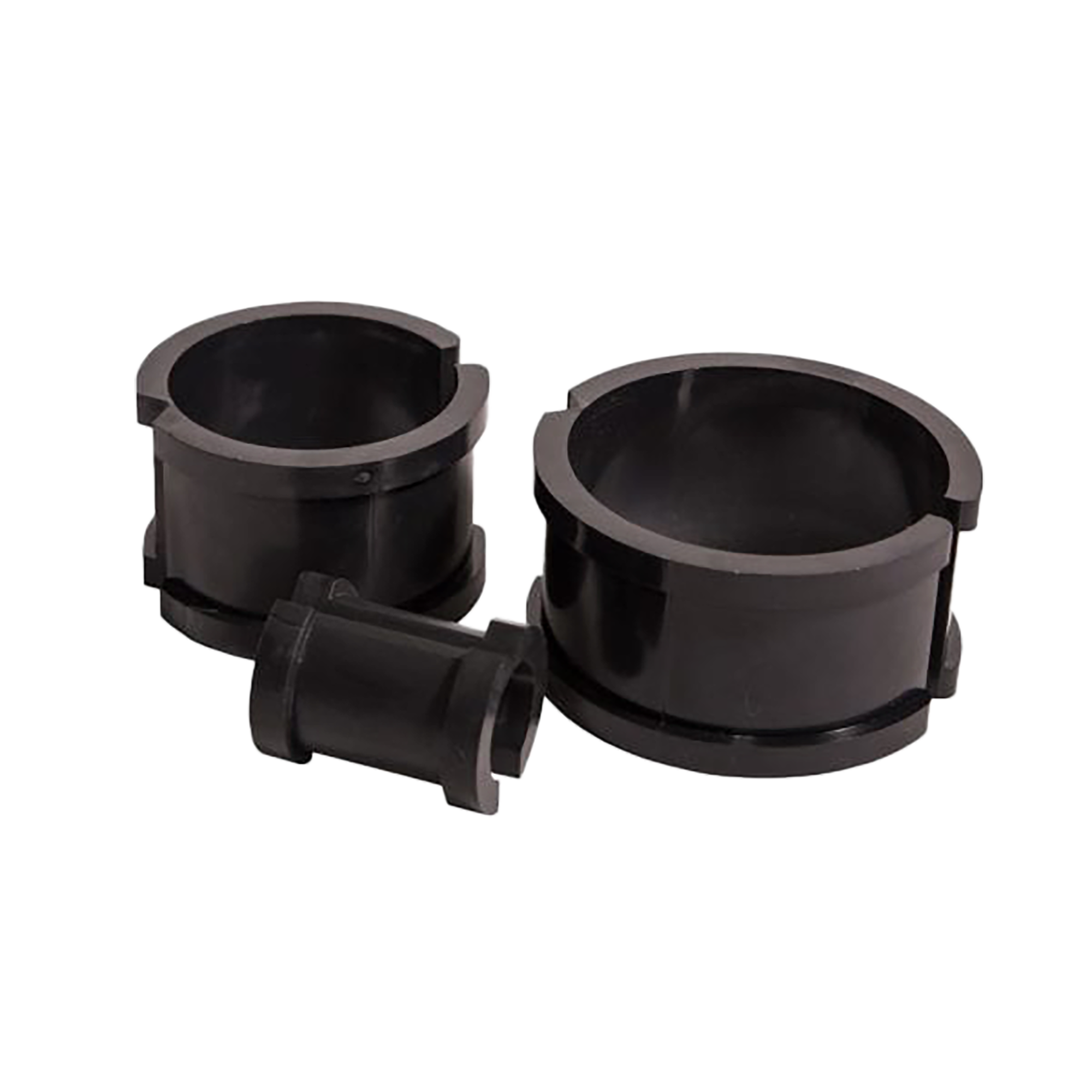

HANGER INSERT COLLAR INSERT ONLY 3" PIPE HIGH HEAT POLYSULFONE 374F SOFTENING POINT
B24BV-3-02-PP-HH
Net Price: $17.39 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Hangers |
|---|---|
| Spare Part Type | Inserts |
| Series | B24 Series |
| Size 1 | 3" |
| Color | Black |
| Insert Material | Polysulfone |
| Weight | 0.00000 |
Dimensional Data
High Temperature Pipe Hanger with Insert | B24BV-Size-S-PP-HH
| Nominal Size | A | B | Bolt Size | |||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) |
| ½ | 12.70 | 3.38 | 85.85 | 2.00 | 50.80 | ¼ x ¾ |
| ¾ | 19.05 | 3.38 | 85.85 | 1.56 | 39.62 | ¼ x ¾ |
| 1 | 25.40 | 3.75 | 95.25 | 1.88 | 47.75 | 5/16 x 1 |
| 1½ | 38.10 | 4.44 | 112.78 | 2.63 | 67.56 | 5/16 x 1 |
| 2 | 50.80 | 4.94 | 125.48 | 3.13 | 79.50 | 5/16 x 1 |
| 2½ | 63.50 | 5.56 | 141.22 | 3.88 | 98.55 | 5/16 x 1 |
| 3 | 76.20 | 6.06 | 153.92 | 4.25 | 107.95 | 5/16 x 1 |
| 4 | 101.60 | 7.50 | 190.50 | 5.63 | 143.00 | 5/16 x 1 |
| 6 | 152.40 | 9.88 | 250.95 | 7.38 | 187.45 | 5/16 x 1 |
