HANGER METAL ONLY 12" TUBE INCLUDES HARDWARE 304 USA MADE
B24B-12
Net Price: $101.53 / PR
- Availability:

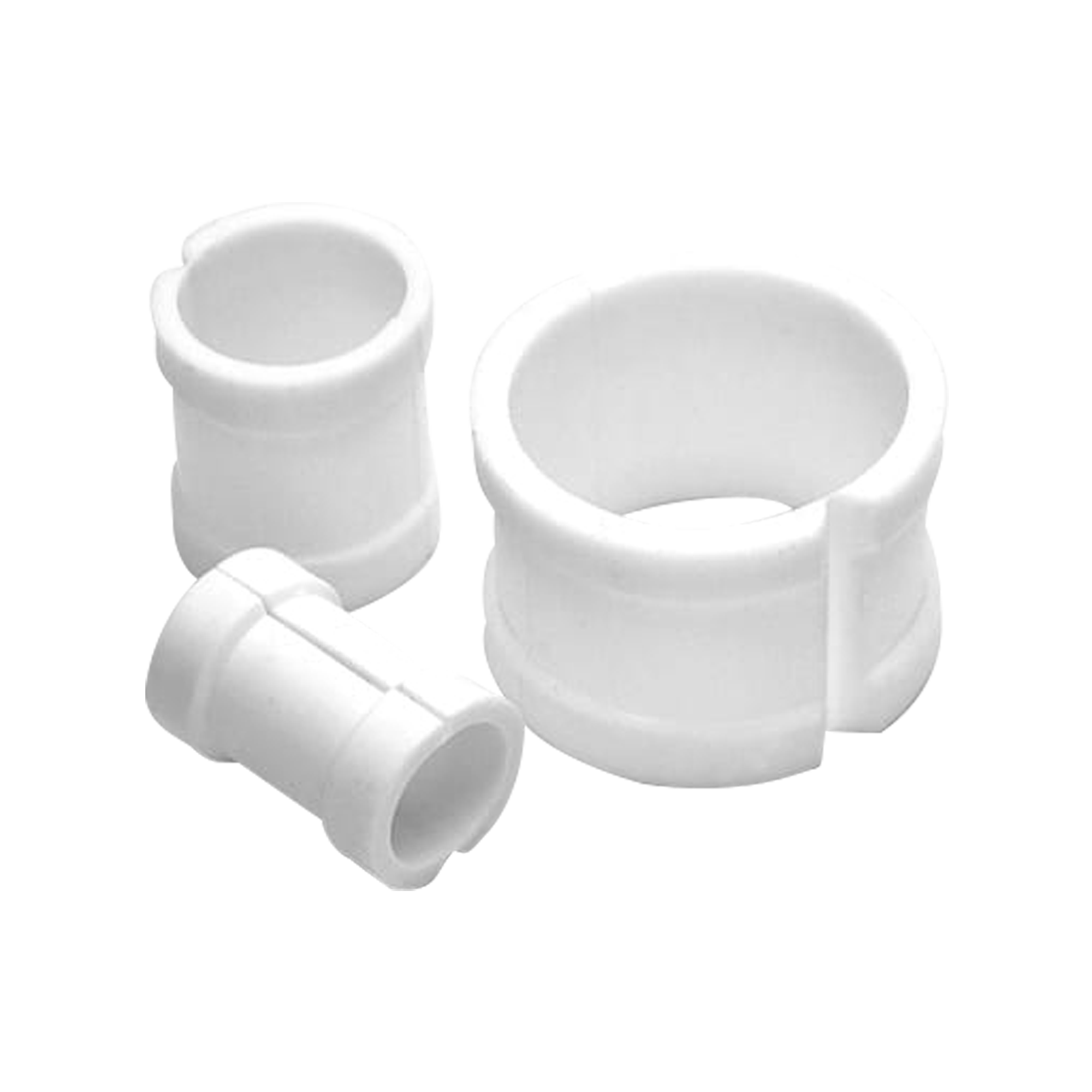

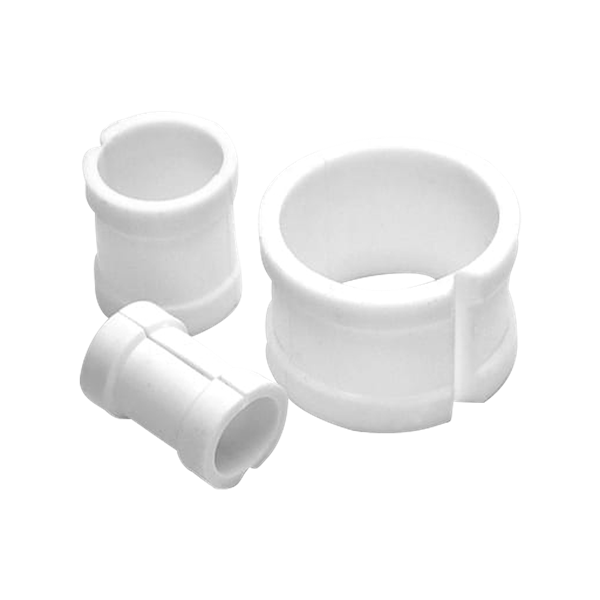

Spare Parts
Suggested products
Attributes
| Product Type | Hangers |
|---|---|
| Product Subtype | Hex Hangers |
| Series | B24 Series |
| Material | 304 Stainless Steel |
| Size 1 | 12" |
| Weight | 0.00000 |
Dimensional Data
304 Tube Hangers (No Inserts) | B24B-Size
| Nominal Size | A | B | Bolt Size | |||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) |
| ½ | 12.70 | 2.25 | 57.15 | 1.06 | 26.92 | ¼ x ¾ |
| ¾ | 19.05 | 2.63 | 66.80 | 1.19 | 30.23 | ¼ x ¾ |
| 1 | 25.40 | 3.38 | 85.85 | 1.56 | 39.62 | 5/16 x 1 |
| 1½ | 38.10 | 3.75 | 95.25 | 2.13 | 54.10 | 5/16 x 1 |
| 2 | 50.80 | 4.44 | 112.78 | 2.63 | 66.80 | 5/16 x 1 |
| 2½ | 63.50 | 4.94 | 125.48 | 3.13 | 79.50 | 5/16 x 1 |
| 3 | 76.20 | 5.56 | 141.22 | 3.63 | 92.20 | 5/16 x 1 |
| 4 | 101.60 | 6.63 | 168.40 | 4.63 | 117.60 | 5/16 x 1 |
| 5 | 127.00 | 8.13 | 206.50 | 5.63 | 143.00 | 5/16 x 1 |
| 6 | 152.40 | 9.19 | 233.43 | 6.63 | 168.40 | 5/16 x 1 |
| 8 | 203.20 | 11.38 | 289.05 | 8.75 | 222.25 | 5/16 x 1 |
| 10 | 254.00 | 14.50 | 368.30 | 10.50 | 266.70 | 5/16 x 1 |
| 12 | 304.80 | 16.63 | 422.40 | 13.00 | 330.2 | 5/16 x 1 |
