Behringer

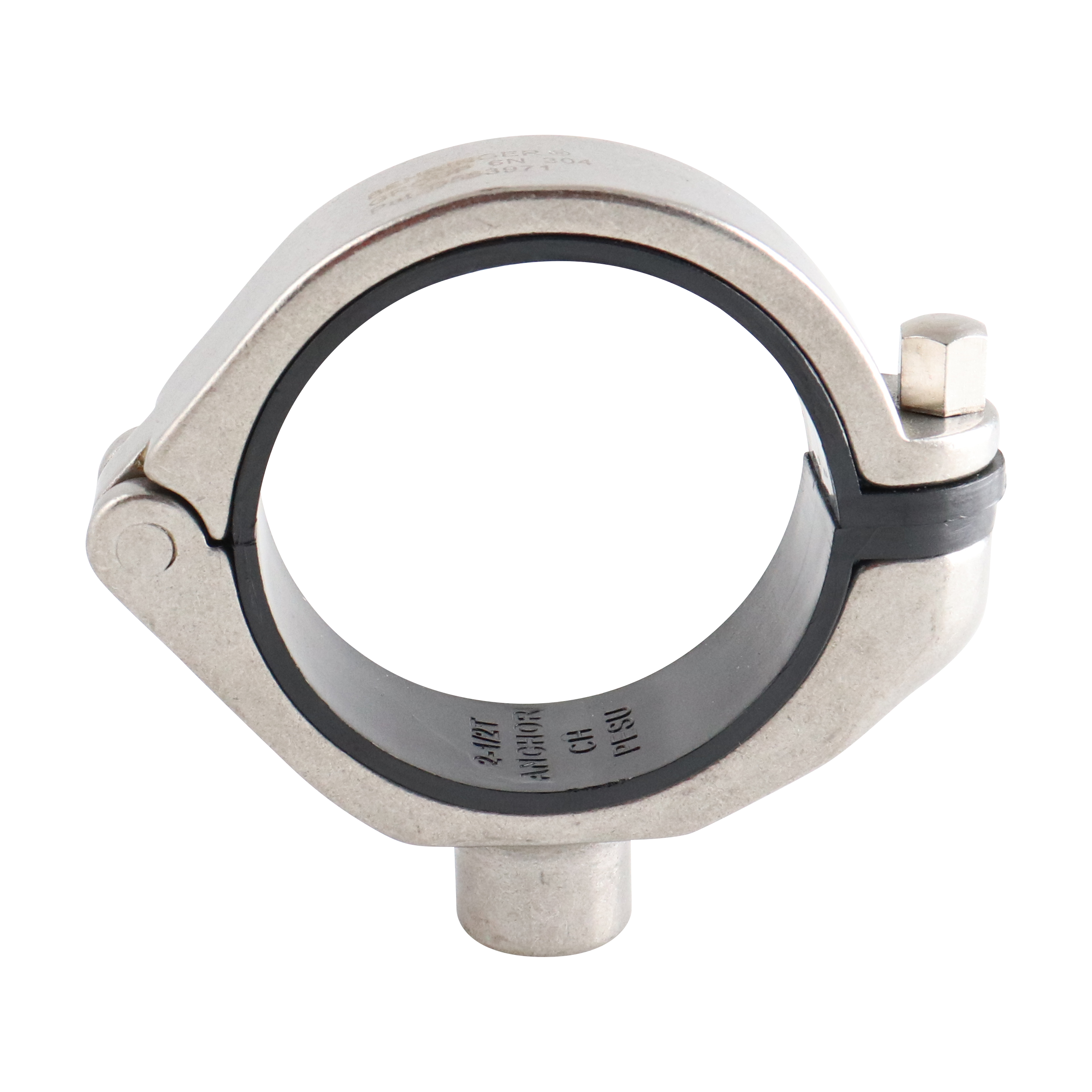

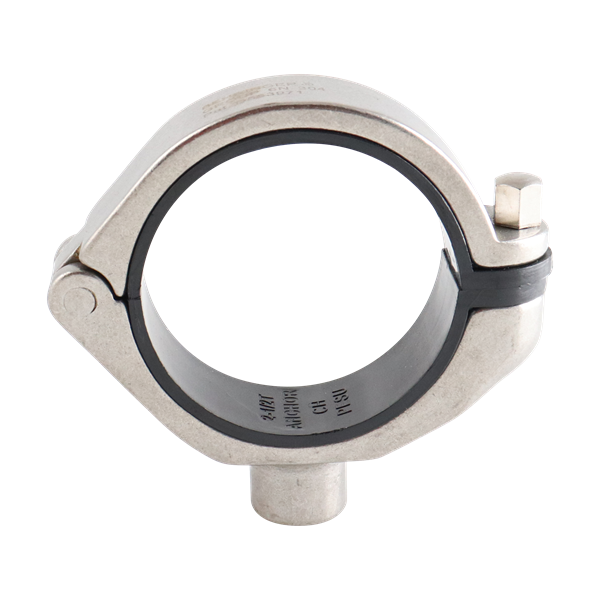

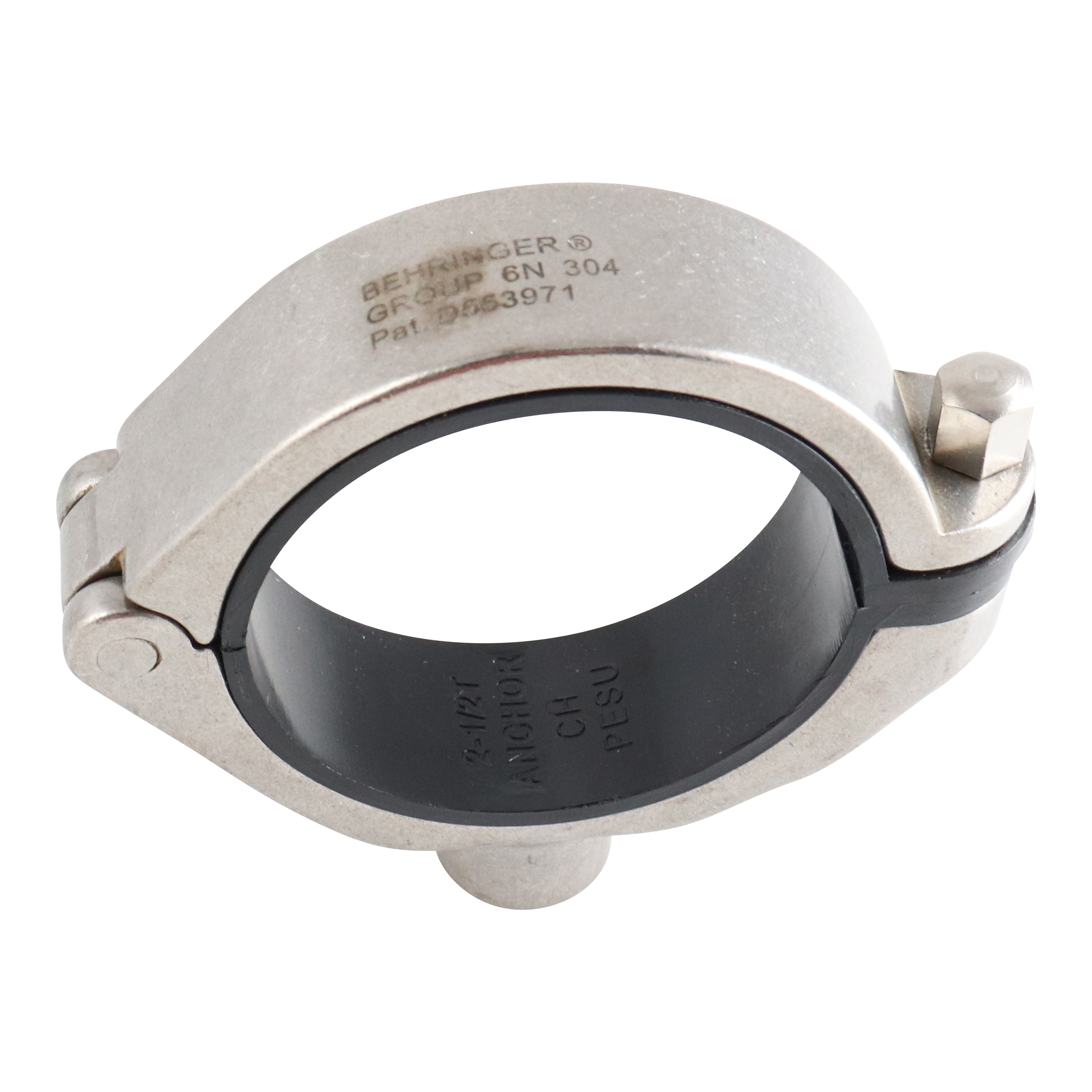

Behringer CHT Threaded Hanger 1" Pipe 304 0.375" Thread Black Polyethersulfone Anchor Insert
CHT-132-PS-304
Net Price: $40.51 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Behringer |
|---|---|
| Product Type | Hangers |
| Product Subtype | Compact Hygienic Hangers |
| Series | CH Series |
| Model | CHT |
| Material | 304 Stainless Steel |
| Finish | 25Ra |
| Size 1 | 1" |
| Specification / Standard | ASME BPE |
| Orientation / Mount | Threaded |
| Insert Material | Polyethersulfone |
| Weight | 0.45000 |
Dimensional Data
CHT Threaded Mount Pipe Hanger with Anchor
| Nominal Size | W1 | W2 | Z | U | H | D | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) |
| 1/4 | 6.35 | 1.06 | 27 | 1.15 | 29 | 0.75 | 19 | 1.23 | 31 | 1.93 | 49 | 0.54 | 13.72 |
| 1/2 | 12.7 | 1.20 | 31 | 1.28 | 33 | 0.75 | 19 | 1.35 | 34 | 2.19 | 56 | 0.84 | 21.34 |
| 3/4 | 19.05 | 1.46 | 37 | 1.56 | 40 | 0.75 | 19 | 1.66 | 42 | 2.74 | 69 | 1.05 | 26.67 |
| 1 | 25 | 1.46 | 37 | 1.56 | 40 | 0.75 | 19 | 1.66 | 42 | 2.74 | 69 | 1.32 | 33.53 |
| 1 1/2 | 38.1 | 1.74 | 44 | 1.79 | 46 | 0.75 | 19 | 1.85 | 47 | 3.18 | 81 | 1.90 | 48.26 |
| 2 | 50.8 | 2.02 | 51 | 2.04 | 52 | 1.00 | 25 | 2.18 | 55 | 3.77 | 96 | 2.38 | 60.45 |
| 2 1/2 | 63.5 | 2.27 | 58 | 2.29 | 58 | 1.00 | 25 | 2.34 | 59 | 4.18 | 106 | 2.88 | 73.15 |
| 3 | 76.2 | 2.76 | 70 | 2.79 | 71 | 1.00 | 25 | 3.08 | 78 | 5.42 | 137 | 3.50 | 90.17 |
| 4 | 101.6 | 3.00 | 76 | 3.09 | 78 | 1.00 | 25 | 3.28 | 83 | 5.87 | 149 | 4.50 | 114.3 |
| 6 | 152.4 | 4.13 | 105 | 4.77 | 121 | 1.50 | 38 | 4.79 | 122 | 8.71 | 221 | 6.63 | 168.40 |
| 8 | 203.4 | 5.14 | 130 | 5.93 | 151 | 1.50 | 38 | 5.87 | 149 | 10.85 | 276 | 8.63 | 219.20 |
