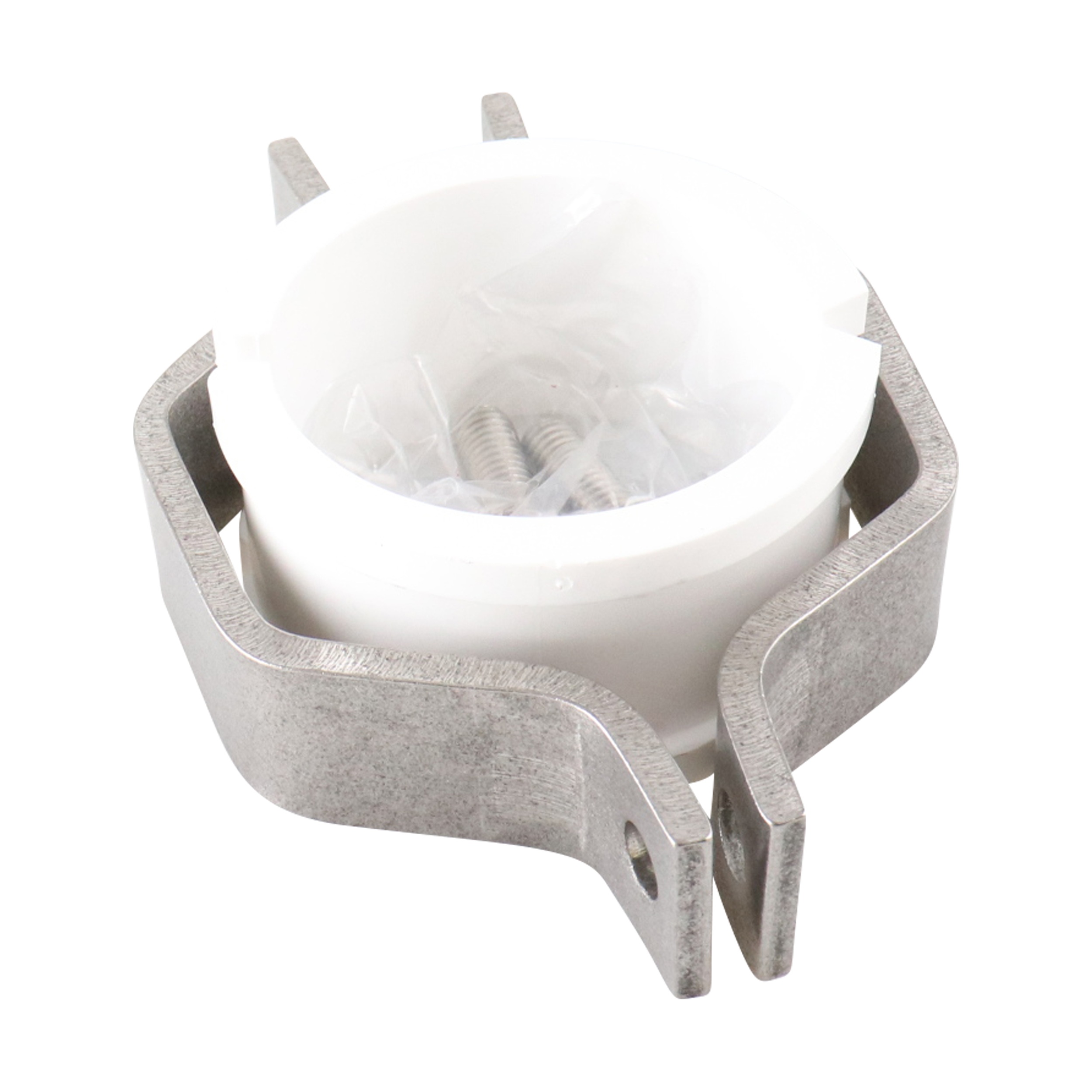

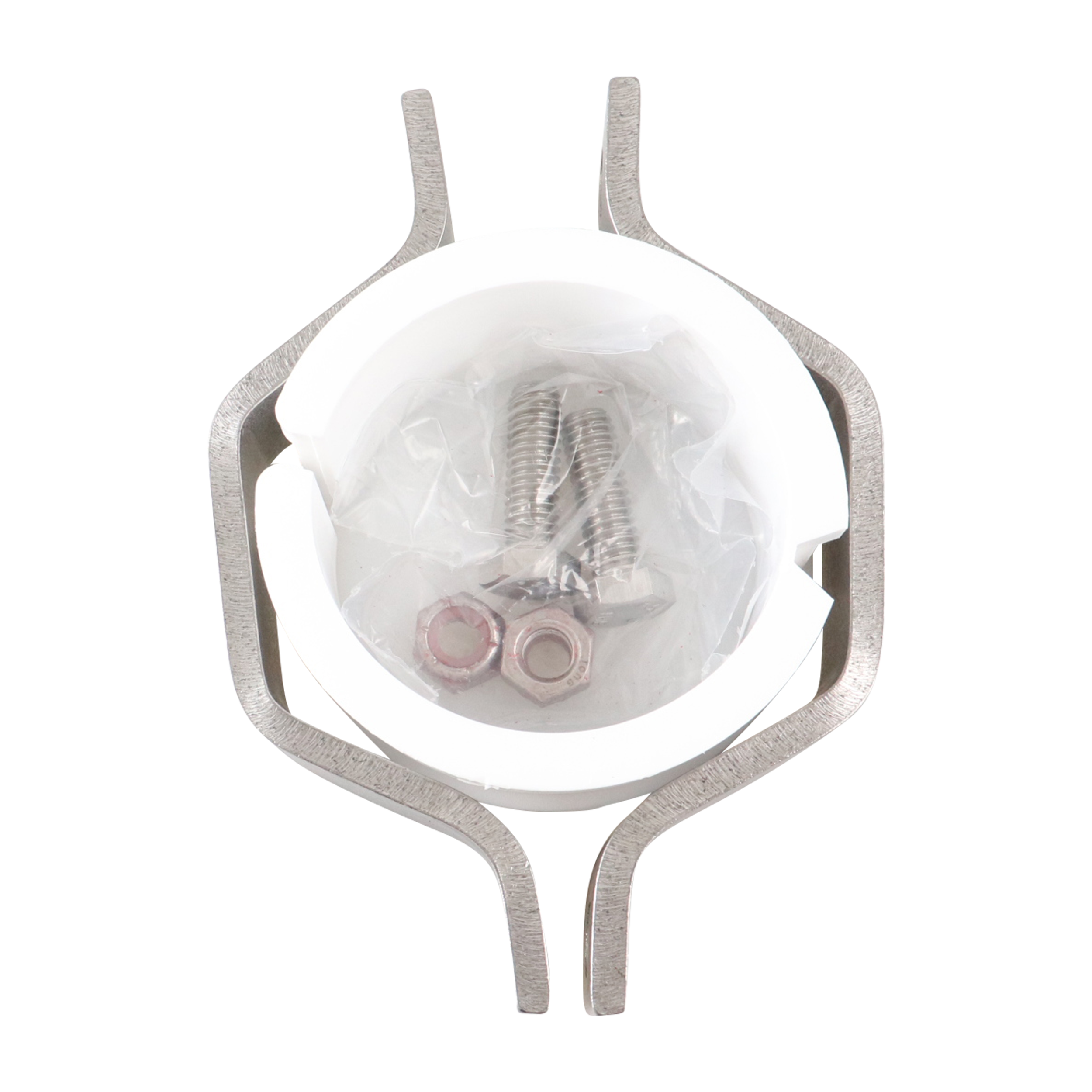

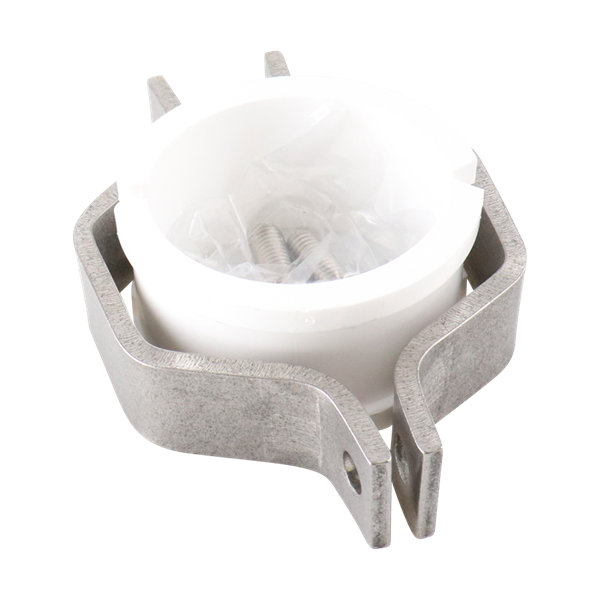

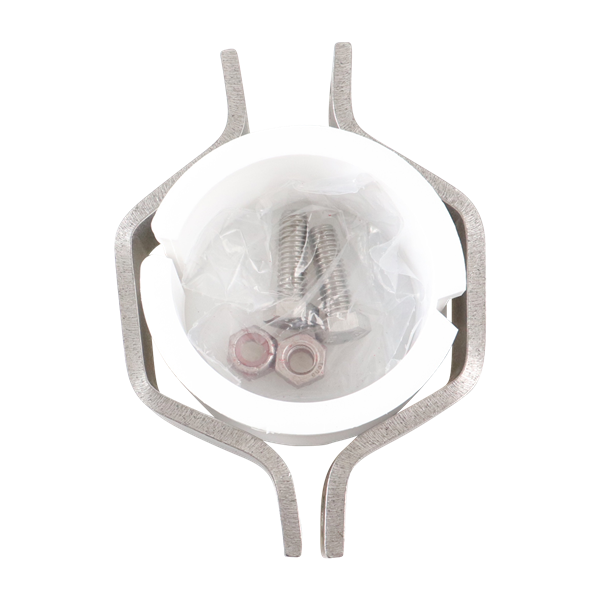

HEX HANGER ASSEMBLY 2" PIPE POLYPROPYLENE PP INSERT 329F USA MADE
B24BV-2-S-PP
Net Price: $10.23 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Product Type | Hangers |
|---|---|
| Product Subtype | Hex Hangers |
| Series | B24 Series |
| Size 1 | 2" |
| Insert Material | Polypropylene |
| Weight | 0.80000 |
Dimensional Data
Polypropylene Pipe Hex Hanger with Insert | B24BV-Size-S-PP
| Nominal Size | A | B | Bolt Size | |||
|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) |
| ½ | 12.70 | 3.38 | 85.85 | 2.00 | 50.80 | ¼ x ¾ |
| ¾ | 19.05 | 3.38 | 85.85 | 1.53 | 38.86 | ¼ x ¾ |
| 1 | 25.40 | 3.75 | 95.25 | 2.13 | 54.10 | 5/16 x 1 |
| 1½ | 38.10 | 4.44 | 112.78 | 2.63 | 66.80 | 5/16 x 1 |
| 2 | 50.80 | 4.94 | 125.48 | 3.13 | 79.50 | 5/16 x 1 |
| 2½ | 63.50 | 5.56 | 141.22 | 3.13 | 79.50 | 5/16 x 1 |
| 3 | 76.20 | 6.06 | 153.92 | 4.25 | 107.95 | 5/16 x 1 |
| 4 | 101.60 | 7.50 | 190.50 | 5.63 | 143.00 | 5/16 x 1 |
| 5 | 127.00 | 8.50 | 215.90 | 6.38 | 162.05 | 5/16 x 1 |
| 6 | 152.40 | 9.86 | 250.44 | 7.38 | 187.45 | 5/16 x 1 |
| 8 | 203.20 | 11.38 | 289.05 | 9.38 | 244.60 | ⅜ x 1 |
| 10 | 254.00 | 15.38 | 390.65 | 11.50 | 292.10 | ⅜ x 1 |
| 12 | 304.80 | 17.50 | 444.50 | 13.88 | 352.55 | ⅜ x 1 |
