Pipetite®
Pipetite Flat Size 2 Uncut 0 - 2.56" Gray Silicone FDA
PTF2-GRAY
- MPN:
- 317 212P

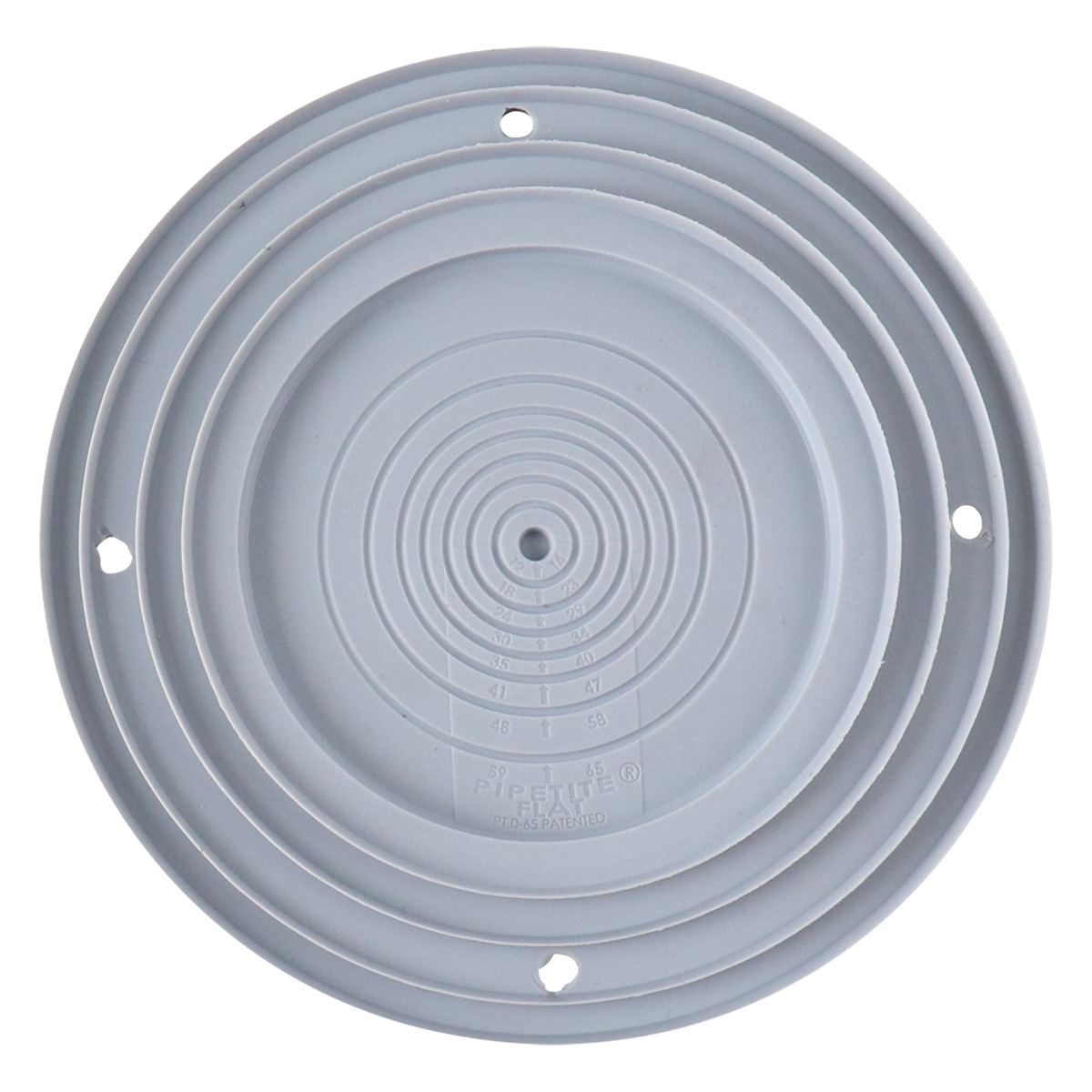

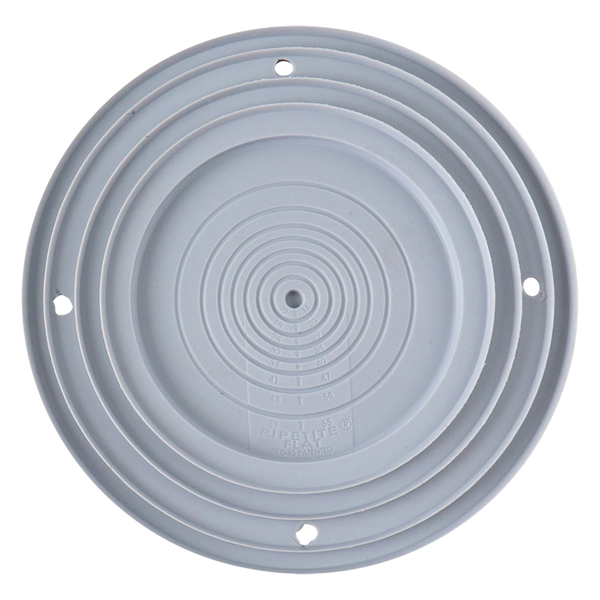

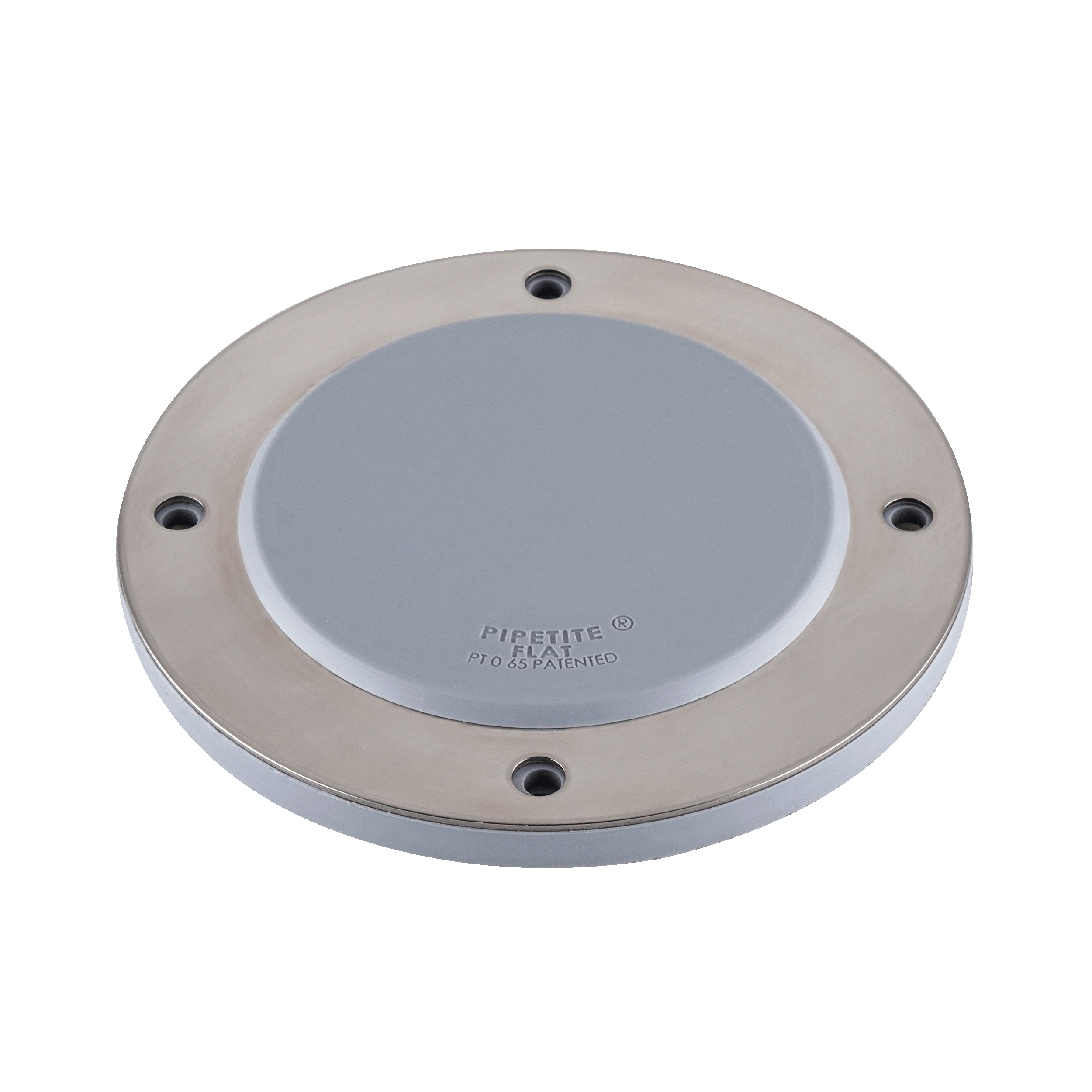

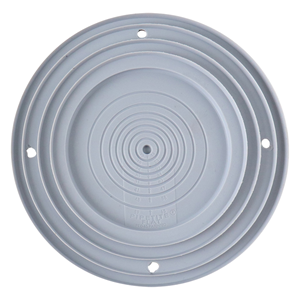

Pipetite forms a flexible, sanitary seal that allows for pipeline movement. Pipetite Flat is designed for jacketed vessels, sheathed tanks, and hard to reach penetrations where a Pipetite Standard is too tall. It will also cover and seal holes created by previously run pipe or other equipment.
Pipetite's unique base design incorporates self-sealing ridges that provide excellent surface contact, so caulks and sealants are not required for installation.
Net Price: $26.00 / EA
- Availability:
Spare Parts
Suggested products
Attributes
| Brand | Pipetite® |
|---|---|
| Product Type | Pipetite |
| Product Subtype | Flats |
| Material | Silicone / 316 Stainless Steel |
| Elastomer | Silicone |
| Size 1 | Size 2 |
| Color | Gray |
| Specification / Standard | FDA 21 CFR 177.2600 |
| Number of Bolt Holes | 4 |
| Weight | 0.18000 |
- Manufacturer:
- Lake Products LTD
- MPN:
- 317 212P
Dimensional Data
Pipetite Flat
| Size | Tube OD | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| 1 | 0.00-1.00 | 0.00-25.40 | 1.18 | 30.00 | 2.24 | 57.00 | 2.75 | 70.00 | 0.39 | 10.00 |
| 2 | 0.00-2.50 | 0.00-63.50 | 2.52 | 64.00 | 3.58 | 91.00 | 4.17 | 106.00 | 0.39 | 10.00 |
| 3 | 0.00-3.74 | 0.00-95.00 | 3.93 | 100.00 | 5.04 | 128.00 | 5.79 | 147.00 | 0.39 | 10.00 |
| 4 | 0.00-5.31 | 0.00-134.87 | 5.51 | 140.00 | 6.61 | 168.00 | 7.36 | 187.00 | 0.39 | 10.00 |
Bolt holes are 0.177" in diameter.
Resources
0Data Sheets
33D Models
Pipetite PTF2-000 3D Model
7Standards and Certifications
-
Pipetite AD DSL Conformance
-
Pipetite BfR Recommendation XV-CoC
-
Pipetite Declaration of Compliance of BfR Section XV
-
Pipetite Declaration of Compliance on Food Contact Materials
-
Pipetite Declaration RoHS Free
-
Pipetite FDA General Certificate of Conformance
-
Pipetite FDA Signed Letter
-
Pipetite FDA Test 2014
-
Pipetite FDA Test and Certificate of Conformance
-
Pipetite ISO 14001 Environmental Certification
-
Pipetite Letter of Conformity
-
Pipetite Rings Stainless Steel Certification 1-21-21
-
Pipetite SGS Institute Fresenius Compliance of BfR Section XV
-
Pipetite UV Testing Report
8Other Literature
-
Pipetite and Fire-Rated Installations
-
Pipetite Applications
-
Pipetite MSDS Silicone Safety Data Sheet
-
Pipetite MSDS Stainless Steel Rings Safety Data Sheet
9Spanish Documents
Blog Posts
Features
- 4 sizes available to fit pipe and tubing up to 5 inch OD
- Flexible seal allows movement without damage or loss of seal
- Easily trimmed to size
- Totally self-sealing—no sealant required
- Predrilled for quick and easy installation with no messy clean-up
- Materials compatible with cleaning solutions
Technical Data
| Materials | Hygienic white silicone 316 stainless steel |
| Tube OD size range | 0 – 5 inch |
| Temperature (min) | -40°F |
| Temperature (max) | 500°F |
| Patents | 9255412, 10000934, 9206928 |
| Registered Designs | 699328, 785768, 801487, 821553 |
