Pipetite®

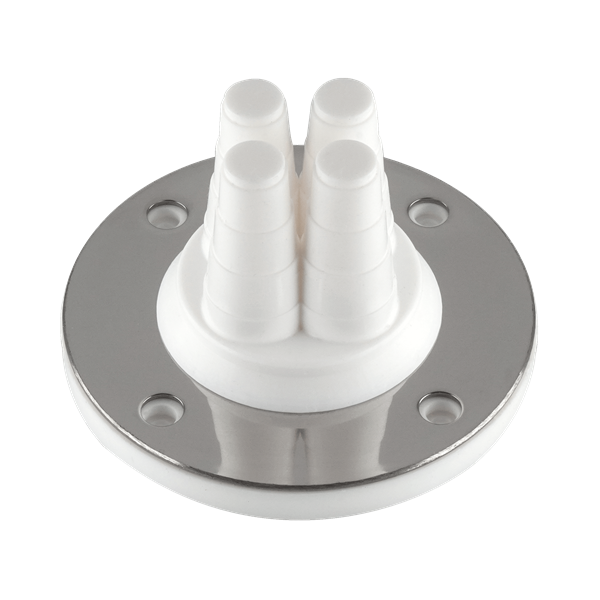

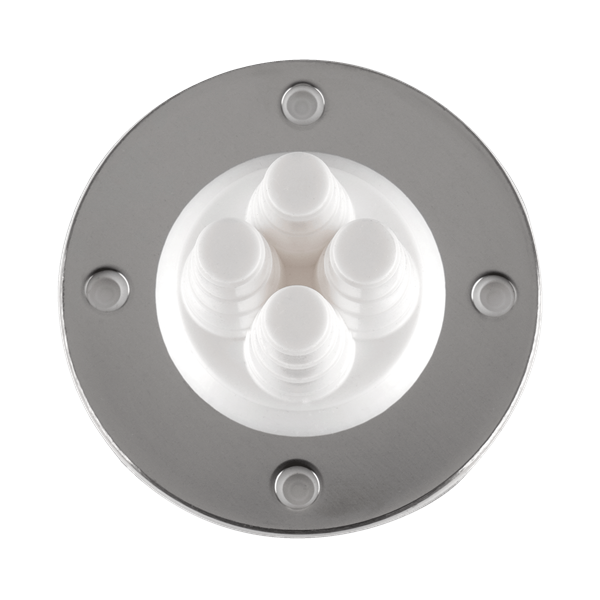

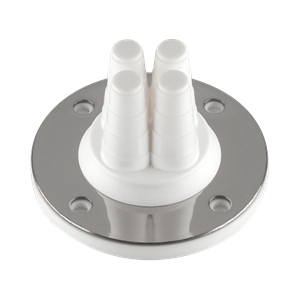

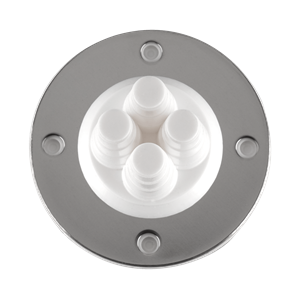

Pipetite Multi Grommet Polished for 6mm 8mm 10mm 12mm Hose
PT1-MG
- MPN:
- 317 139P
Pipetite Multi Grommet is ideal for electrical and IT applications in all industries where there are multiple wires and tubes coming through a cabinet or wall. Each prong fits four sizes for greater versatility. The Multi Grommet provides a hygienic, waterproof, and flexible seal.
Net Price: $28.00 / EA
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| Pipetite Anchor Drive Type Fluted 316 1.5" OAL |
$0.60 / EA |
|
||
| Pipetite Anchor Drive Type Barbed With Insert 316 1" OAL |
$0.90 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Pipetite® |
|---|---|
| Product Type | Pipetite |
| Product Subtype | Multi Grommets |
| Material | Silicone / 316 Stainless Steel |
| Elastomer | Silicone |
| Size 1 | Size 1 |
| Color | White |
| Specification / Standard | FDA 21 CFR 177.2600 |
| Number of Bolt Holes | 4 |
| Weight | 0.10000 |
- Manufacturer:
- Lake Products LTD
- MPN:
- 317 139P
Dimensional Data
Pipetite Multi Grommet
| Size | Tube OD | A | B | C | D | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |
| 1 | 0.00-1.00 | 0.00-25.00 | 1.22 | 31.00 | 2.23 | 56.70 | 2.76 | 70.00 | 1.69 | 43.00 |
Resources
0Data Sheets
33D Models
Pipetite PT1-MG 3D Model
7Standards and Certifications
-
Pipetite AD DSL Conformance
-
Pipetite BfR Recommendation XV-CoC
-
Pipetite Declaration of Compliance of BfR Section XV
-
Pipetite Declaration of Compliance on Food Contact Materials
-
Pipetite Declaration RoHS Free
-
Pipetite FDA General Certificate of Conformance
-
Pipetite FDA Signed Letter
-
Pipetite FDA Test 2014
-
Pipetite FDA Test and Certificate of Conformance
-
Pipetite ISO 14001 Environmental Certification
-
Pipetite Letter of Conformity
-
Pipetite Rings Stainless Steel Certification 1-21-21
-
Pipetite SGS Institute Fresenius Compliance of BfR Section XV
-
Pipetite UV Testing Report
8Other Literature
-
Pipetite and Fire-Rated Installations
-
Pipetite Applications
-
Pipetite MSDS Silicone Safety Data Sheet
-
Pipetite MSDS Stainless Steel Rings Safety Data Sheet
-
Pipetite Vacuum Pressure Test - Multi Grommet
9Spanish Documents
Blog Posts
Features
- Fits 0.25, 0.3, 0.4, 0.5 in (6, 8, 10, & 12mm) wires/tubing
- Constructed of hygienic white silicone
- Totally self-sealing - no sealant required
- Flexible seal allows movement without damage or loss of seal
- Materials compatible with cleaning solution
Technical Data
| Material | Hygienic white silicone |
| Temperature (min) | -40ºF |
| Temperature (max) | 500ºF |
| Patents | 9255412, 10000934 |
| Registered Designs | 699328 |
