Pipetite®

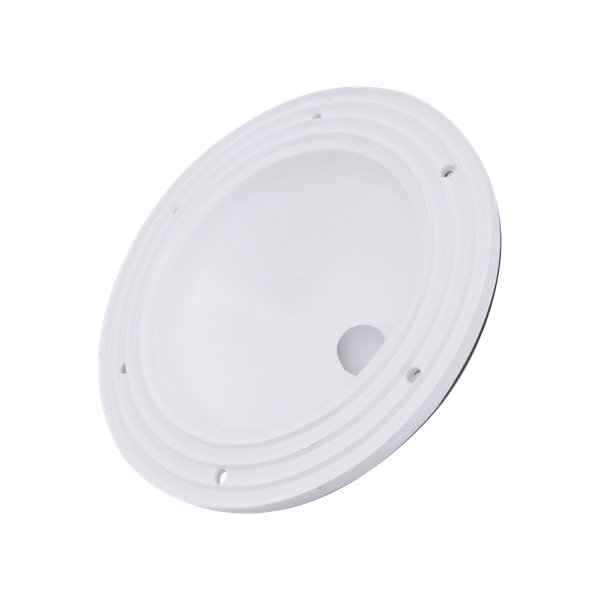

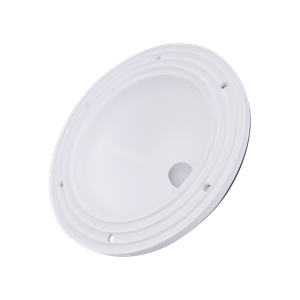

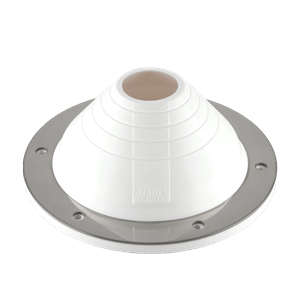

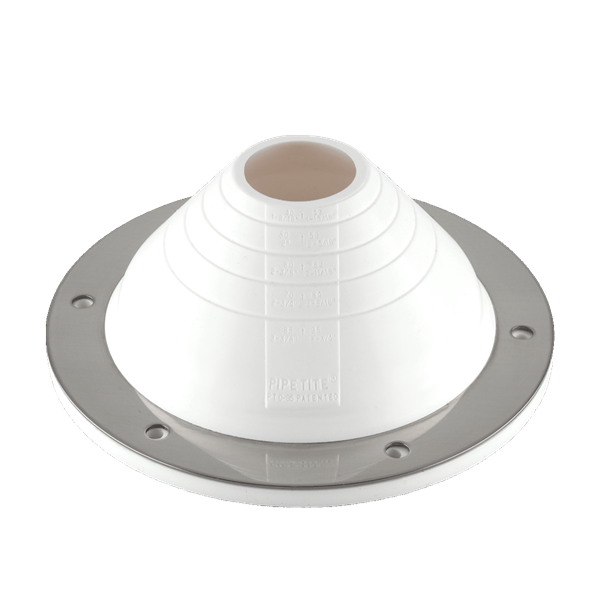

Pipetite Wall Boot Size 3 Precut 1.31" White Silicone FDA
PT3-131
- MPN:
- 317 116P
Net Price: $38.00 / EA
- Availability:
Spare Parts
- Total: 2
| Product | Availability |
Price
|
||
|---|---|---|---|---|
| Pipetite Anchor Drive Type Fluted 316 1.5" OAL |
$0.60 / EA |
|
||
| Pipetite Anchor Drive Type Barbed With Insert 316 1" OAL |
$0.90 / EA |
|
- Total: 2
Suggested products
Attributes
| Brand | Pipetite® |
|---|---|
| Product Type | Pipetite |
| Product Subtype | Wall Boots |
| Material | Silicone / 316 Stainless Steel |
| Elastomer | Silicone |
| Size 1 | Size 3 |
| Color | White |
| Specification / Standard | FDA 21 CFR 177.2600 |
| Number of Bolt Holes | 6 |
| Weight | 0.35000 |
- Manufacturer:
- Lake Products LTD
- MPN:
- 317 116P
Dimensional Data
Pipetite Standard
| Size | Tube OD | A | B | C | D | # of Anchors Needed | Item # | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | (in) | (mm) | |||
| 1 | 0.00-1.00 | 0.00-24.50 | 1.18 | 30.00 | 2.24 | 57.00 | 2.76 | 70.00 | 2.05 | 52.07 | 4 | PT1-000 |
| 1 | 0.75 | 19.05 | 1.18 | 30.00 | 2.24 | 57.00 | 2.76 | 70.00 | 1.42 | 36.07 | 4 | PT1-075 |
| 1 | 1.00 | 24.50 | 1.18 | 30.00 | 2.24 | 57.00 | 2.76 | 70.00 | 1.26 | 32.00 | 4 | PT1-100 |
| 2 | 0.00-2.50 | 0.00-63.50 | 2.52 | 64.00 | 3.58 | 91.00 | 4.17 | 06.00 | 2.36 | 59.94 | 4 | PT2-000 |
| 2 | 1.00 | 24.50 | 2.52 | 64.00 | 3.58 | 91.00 | 4.17 | 106.00 | 1.89 | 48.01 | 4 | PT2-200 |
| 2 | 2.00 | 50.80 | 2.52 | 64.00 | 3.58 | 91.00 | 4.17 | 106.00 | 1.38 | 35.05 | 4 | PT3-000 |
| 3 | 0.00-3.74 | 0.00-95.00 | 3.94 | 100.00 | 5.04 | 128.00 | 5.79 | 147.00 | 3.07 | 77.98 | 6 | PT3-000 |
| 3 | 3.00 | 76.20 | 3.94 | 100.00 | 5.04 | 128.00 | 5.79 | 147.00 | 1.61 | 40.89 | 6 | PT3-300 |
| 4 | 2.76-5.31 | 70.10-134.87 | 5.51 | 140.00 | 6.61 | 168.00 | 7.36 | 187.00 | 2.52 | 64.01 | 6 | PT4-000 |
| 4 | 4.00 | 101.60 | 5.51 | 140.00 | 6.61 | 168.00 | 7.36 | 187.00 | 2.05 | 52.07 | 6 | PT4-400 |
| 5 | 3.94-7.09 | 100.08-180.00 | 7.09 | 180.00 | 8.39 | 213.00 | 9.33 | 237.00 | 3.15 | 80.01 | 10 | PT5-000 |
Bolt holes are 0.177" in diameter.
Resources
0Data Sheets
7Standards and Certifications
-
Pipetite AD DSL Conformance
-
Pipetite BfR Recommendation XV-CoC
-
Pipetite Declaration of Compliance of BfR Section XV
-
Pipetite Declaration of Compliance on Food Contact Materials
-
Pipetite Declaration RoHS Free
-
Pipetite FDA General Certificate of Conformance
-
Pipetite FDA Signed Letter
-
Pipetite FDA Test 2014
-
Pipetite FDA Test and Certificate of Conformance
-
Pipetite ISO 14001 Environmental Certification
-
Pipetite Letter of Conformity
-
Pipetite Rings Stainless Steel Certification 1-21-21
-
Pipetite SGS Institute Fresenius Compliance of BfR Section XV
-
Pipetite UV Testing Report
8Other Literature
-
Pipetite and Fire-Rated Installations
-
Pipetite Applications
-
Pipetite MSDS Silicone Safety Data Sheet
-
Pipetite MSDS Stainless Steel Rings Safety Data Sheet
-
Pipetite Vacuum Pressure Test
9Spanish Documents
Blog Posts
Features
- Available in seven sizes to fit up to 15 inch OD pipe or tube
- Easily trimmed to size
- Flexible seal allows movement without damage or loss of seal
- Totally self-sealing—no sealant required
- Predrilled for quick and easy installation with no messy clean-up
- Materials compatible with cleaning solution
Technical Data
| Materials | Hygienic white silicone 316 stainless steel |
| Tube OD size range | 0 – 15 inch |
| Temperature (min) | -40°F |
| Temperature (max) | 500°F |
| Patents | 9255412, 10000934 |
| Registered Designs | 699328, 796014 |
